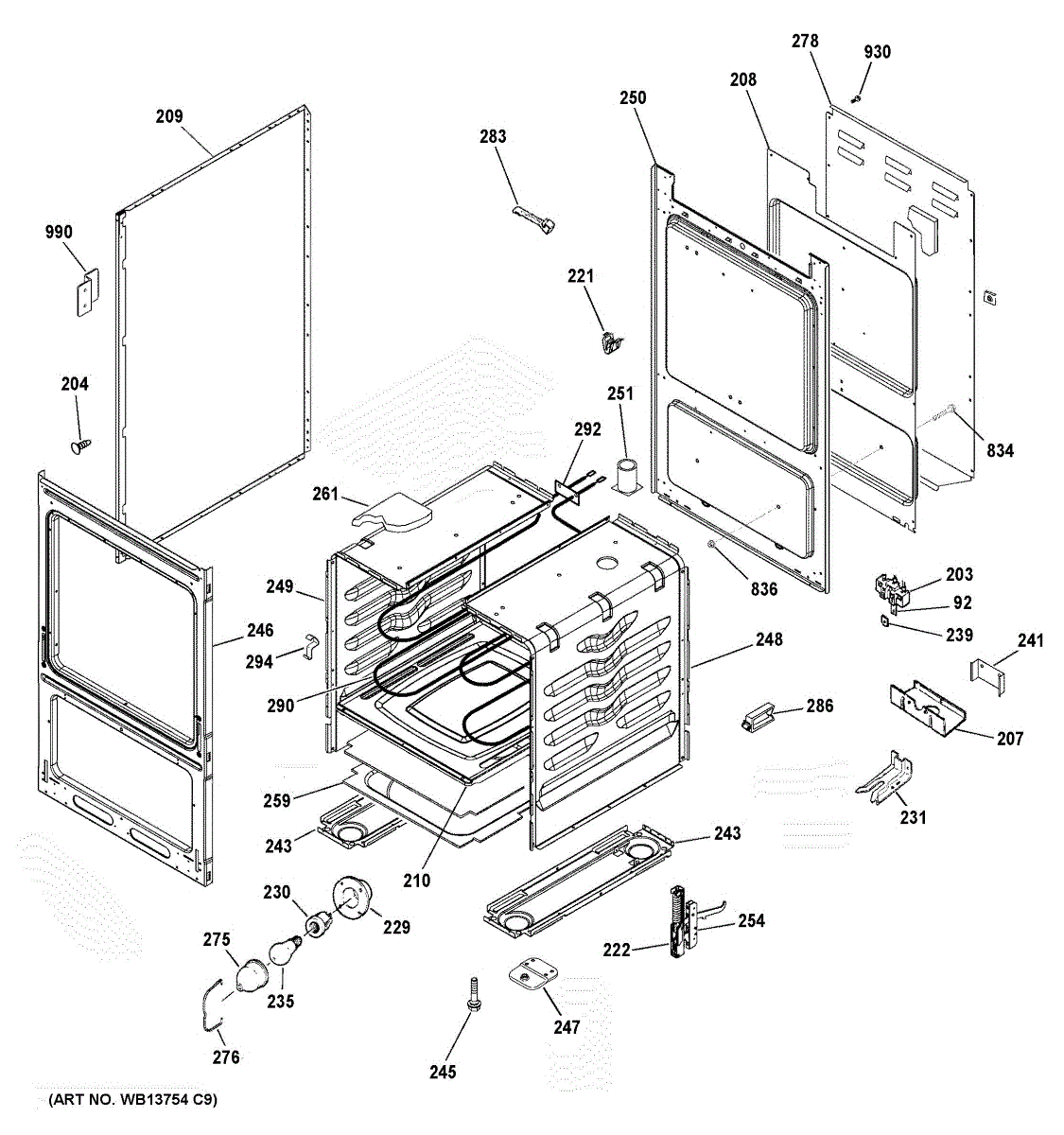

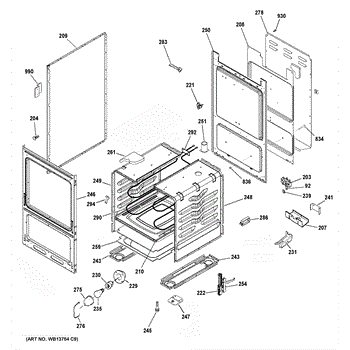

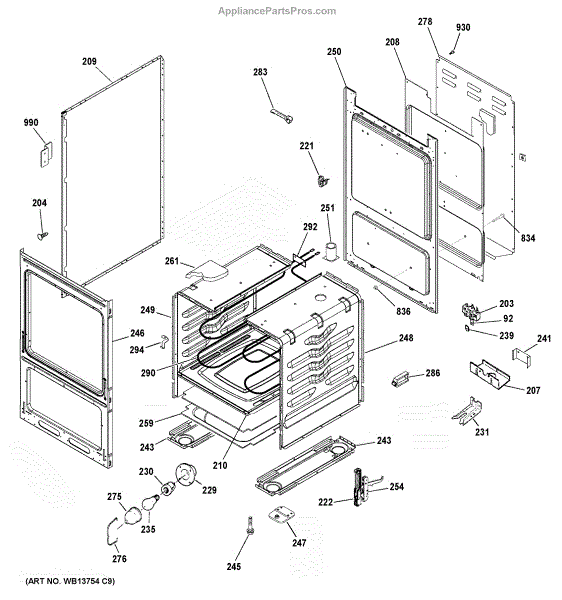

Parts for Hot Point RA824DD2WW: Body Parts

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

The Terminal Block Assembly is an OEM replacement part for GE electric stoves. It acts as the central wiring connection hub, routing power to critical heating components such as the oven bake/broil elements and stovetop burners.

Symptoms of a bad terminal block include:

• Intermittent or unpredictable burner/heating element operation
• Inability to achieve proper cooking temperatures
• Buzzing or crackling noises from inside the stove cabinet

Causes stem from normal wear over time, as vibration and heat cycling can cause cracks or corrosion in the block's electrical connections.

This OEM GE part is compatible with Hotpoint, RCA, and some Kenmore electric stove models.

Package of 12

This bracket mounting terminal secures the appliance's main electrical terminal block to the cabinet, keeping wiring stable for a safe, reliable power connection. It's a direct-fit replacement where terminal block support is damaged or loose. What it does

• Physically mounts and supports the main terminal block so incoming power wires stay secure
• Keeps wiring strain-relieved to reduce the risk of loose connections or arcing
• Restores a stable electrical connection when a broken or bent bracket causes intermittent power or poor contact
• Helps prevent overheating at the terminal connection by maintaining proper alignment

• One bracket mounting terminal

• Disconnect all power before servicing; lock out and tag if needed
• Use basic hand tools; avoid overtightening terminal screws to prevent damage
• Inspect wiring and terminal block; replace any damaged wires or connectors when present

This capillary clip secures the oven thermostat's sensing bulb/capillary to the cavity wall so it stays correctly positioned for accurate temperature control. Replace a missing or damaged clip to prevent a sagging bulb and erratic oven performance.

• Holds the thermostat capillary tube/sensing bulb in place inside the oven
• Helps maintain consistent temperature regulation by keeping the bulb properly located
• Direct replacement for a broken, corroded, or missing clip
• Symptoms include a loose or dangling bulb, uneven baking, or temperature swings

• Disconnect power (and gas, if applicable) and allow the oven to cool completely
• Access the oven cavity; locate the thermostat sensing bulb and capillary along the wall or back panel
• Position the bulb/capillary and secure with the new clip; avoid kinking or crushing the tube
• Restore power, and test operation

This housing receptacle is the molded mounting and connection point that secures and protects the oven/range control wiring and plug-in module, helping maintain reliable electrical contact and safe operation of the control components. What it does:

• Provides a secure housing for the control module or wiring receptacle to prevent movement and wear
• Protects electrical connections from abrasion and incidental contact
• Keeps the control harness aligned for consistent plug-in engagement
• Can resolve issues like intermittent control operation or loose control module connections

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Basic hand tools are typically required; note wire harnesses and screw locations before removal.
• Handle plastic tabs and mounting points gently to avoid breakage; replace any damaged fasteners.

The Receptacle Push-In is an OEM replacement part for GE ranges. This component securely holds the electrical receptacle/plug in place on the back of the range. Proper functioning of the receptacle push-in allows for a stable electrical connection and safe cord positioning.

Causes of a bad receptacle push-in include normal wear over time, bending/stress on the receptacle area, or damage affecting its securing ability.

Symptoms of a bad receptacle push-in are:

• Loose or wobbly electrical plug connection
• Exposed wiring or fragile cord positioning
• Tripped breakers or recurring electrical issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bracket base is a replacement support bracket that secures and stabilizes appliance components, helping restore proper alignment and reduce movement. Use it to replace a cracked, bent, or missing base bracket for safe, stable operation. What it does:

• Provides a sturdy mounting point to secure panels, assemblies, or controls
• Restores proper alignment when a worn or damaged bracket allows shifting
• Helps eliminate vibration or rattling caused by loose support hardware
• Prevents further wear by re-establishing correct component positioning

• One bracket base

• Disconnect power to the appliance before beginning any repair
• Verify orientation and fastener locations against the appliance diagram before removal
• Use the correct size screwdriver or socket to avoid stripping fasteners
• Handle edges carefully and wear gloves; replace any damaged fasteners or clips

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bail is the replacement door/handle support used to secure a handle or attach components to an appliance door or panel. It restores a stable grip and proper attachment when the original bail is cracked, bent, or missing. What it does

• Replaces a worn, broken, or missing bail that supports a door handle or accessory
• Restores a secure connection so the handle or component doesn't wobble or detach
• Helps prevent further damage from a loose or improperly supported handle
• Fits into the existing mounting points to re-establish proper alignment

• One replacement bail

• Disconnect power and remove any removable panels or doors before starting
• Use basic hand tools; retain original screws and fasteners unless damaged
• Align bail with existing mounting holes and secure without over-tightening

This lower oven bake element provides the primary heat source for Bake cycles, restoring proper preheat and even, reliable cooking. Replace it if the oven won't heat, preheats slowly, or bakes unevenly.

• Heats from the bottom in Bake to reach and maintain set temperature
• Common symptoms: no heat in Bake, very slow preheat, oven temperature too low, or uneven results
• Visual clues: cracks, blisters, or burned spots on the element sheath
• If shorted, it may trip the circuit breaker when Bake is selected

• Disconnect power at the breaker and let the oven cool completely
• Remove racks, take out the element's mounting screws, and gently pull the element forward
• Hold wires so they don't retract; transfer and firmly connect the terminals; replace any heat-damaged connectors
• Reinstall element, ensure it's not contacting the cavity, restore power, and test Bake

This broil heater assembly replaces a failed upper-oven broil element to restore top-heat cooking and browning. It fits many GE ovens and provides a direct-replacement heating element for broiling performance. What it does

• Heats the top of the oven cavity for broiling, broil-browning, and crisping finishes
• Restores proper broil function when the element is visibly burned, broken, or not heating
• Works with the oven's broil control to reach required temperatures for short, high-heat cycles
• Helps eliminate uneven browning caused by partial or intermittent element failure

• One broil heater assembly

• Disconnect power to the range/oven at the breaker before starting any repair
• Access typically requires removing the oven back panel or interior broil access screws; keep track of fasteners
• Avoid contact with the element until fully cool; wear gloves and eye protection as needed
• Verify the part number on the oven tag and compare the old element to this assembly before installation

The Support Bracket is an OEM part for GE ovens, designed to provide stability and support for the broiling element. This bracket is essential for ensuring the broiling element is securely positioned at the top of the oven, allowing for even heat distribution and optimal cooking performance when broiling foods.

Causes of damage to the support bracket often involve high heat exposure, accidental impacts during cleaning or cooking, or general wear and tear over time.

Symptoms of a bad Support Bracket include:

• The broiling element hanging lower than usual or touching the oven cavity, which can affect cooking performance and potentially damage the oven's interior.
• Unstable or loose broiling element, leading to uneven cooking or broiling.
• Visible signs of wear, damage, or corrosion on the bracket itself, indicating it may no longer provide adequate support.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.
