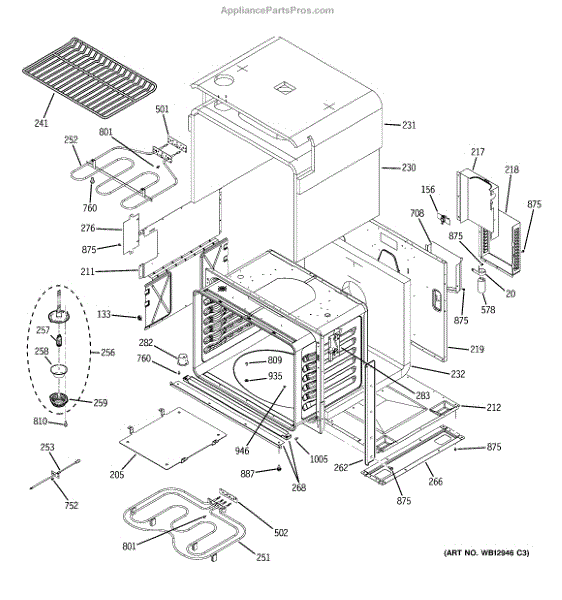

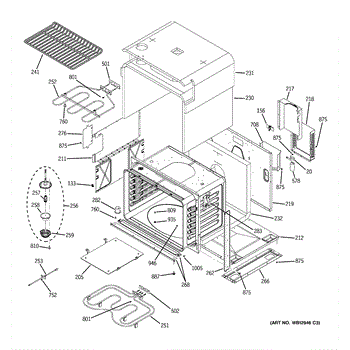

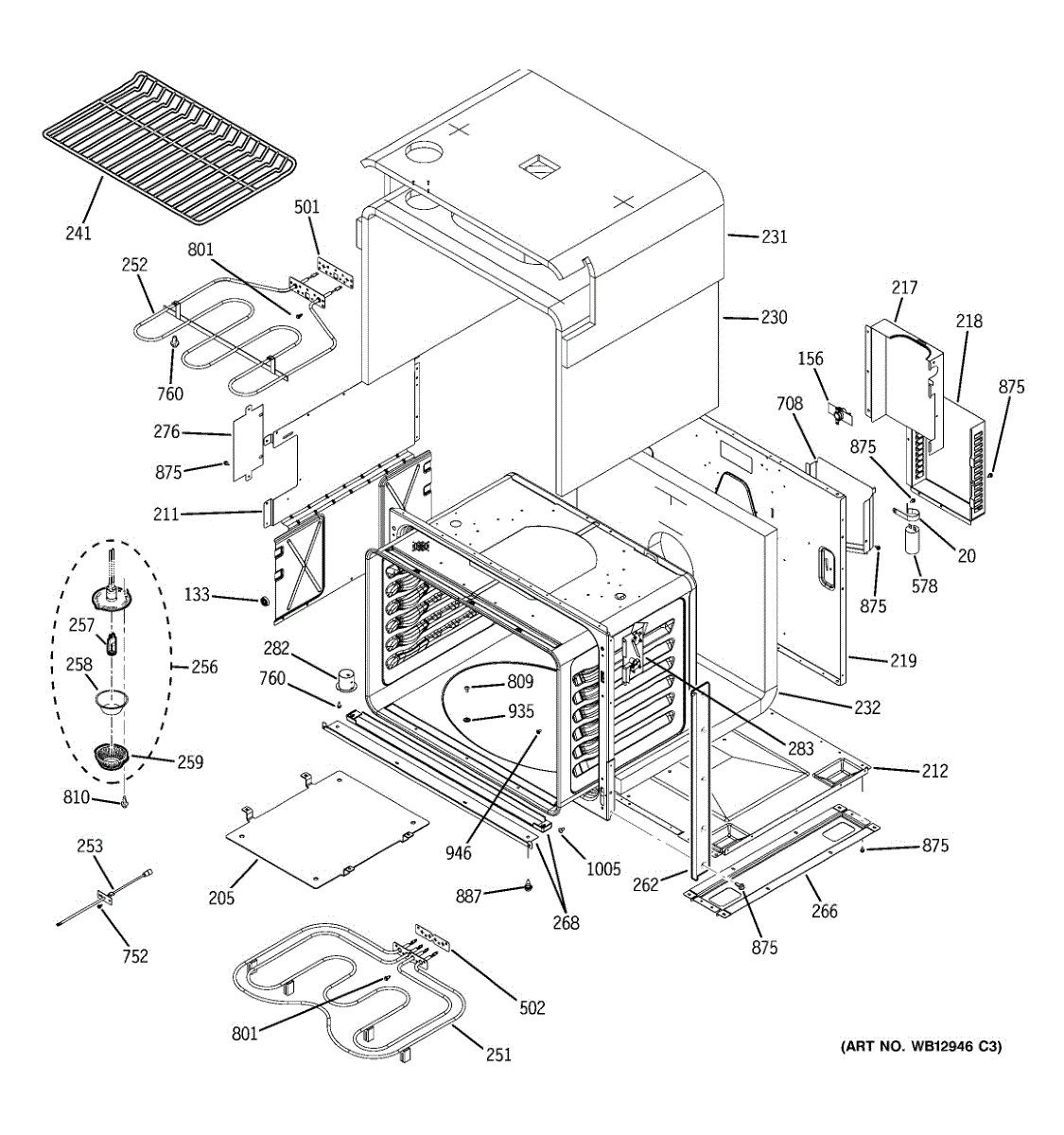

Parts for Kenmore 911.49223300 (91149223300, 911 49223300): Body Parts

Secures the capacitor inside your oven. Replace if the bracket is bent, broken, or missing to properly mount and protect the electrical capacitor component.

Small rubber bumper that cushions contact between oven door and cabinet. Replace if cracked, missing, or worn to reduce noise and protect finishes.

Oven won't heat or shuts off after preheating? This thermal cutoff fuse opens the heating circuit when temperatures exceed safe limits. Direct fit part.

This side cabinet is the outer refrigerator cabinet panel that restores the unit's exterior structure and appearance. It replaces a cracked, dented, or missing outer side panel to help protect internal components and improve cosmetic look. What it does

• Covers and protects the refrigerator's side area and internal components from damage and debris.
• Restores a smooth, finished exterior surface when the original panel is dented, cracked, or missing.
• Helps maintain proper airflow around sealed sections by keeping the cabinet enclosure intact.
• Common symptom: visible dents, cracks, holes, or loose/missing side panel affecting appearance and protection.

• One (1) side cabinet panel as pictured.

• Disconnect power and empty nearby shelves before beginning work.
• Removal/installation may require removing trim, doors, or adjacent panels—use proper tools and follow the service manual.
• Handle edges carefully; panels and sheet metal can be sharp.

Back insulation retainer panel for ovens and ranges. Secures insulation to the rear cabinet. Replace if cracked, broken, or missing to restore proper fit.

This dual bake element restores even, reliable heat in your range or wall oven's bake cycle. Replace a burned-out or damaged element to recover proper preheat times and consistent cooking performance.

• Produces heat during the Bake cycle to reach and maintain set temperature
• Works with the companion element to promote even baking results
• Replace if the oven won't heat, preheats slowly, or bakes unevenly
• Signs of failure include blisters, breaks, or a section that won't energize

What's included: 1 dual bake heating element Install notes:

• Disconnect power at the breaker before servicing; allow the oven to cool completely
• Remove racks, take out mounting screws, and gently pull the element forward
• Support and label wires to prevent them from retracting; transfer connections securely
• Reinstall element so it doesn't contact the cavity; restore power and test Bake

Oven not heating on broil or broiling unevenly? This broil element restores high-heat cooking. Common repair for failed broiler performance.

Fix inaccurate oven temperatures or error codes with a new temperature sensor. Restores consistent heat regulation and reliable preheating performance.

Halogen light bulb illuminates your oven interior. Replace when burned out or if flickering. Push-in style bulb for easy installation. Confirm fit with your model.

Clear glass lens that protects your oven light bulb from heat, grease, and debris. Replace when cracked, discolored, or missing to restore visibility.

Vertical side trim assembly for ovens. Installs along the right edge of the oven cavity. Replace if cracked, broken, or missing to restore appearance.

Vertical side trim assembly for wall ovens. Replaces cracked, broken, or missing trim pieces along the oven's side edge for a clean, finished look.

Vertical side trim assembly for wall ovens. Installs along the right edge to provide a finished appearance. Replace if cracked, chipped, or missing.

Vertical side trim assembly for ovens and wall ovens. Covers the side edge of the unit for a finished look. Replace if cracked, chipped, or missing.

Base rail that guides and supports oven racks for smooth sliding. Replace this structural component if cracked, bent, or worn to restore proper rack movement.

Vent tube for electric ranges and ovens. Connects oven cavity to exhaust system. Replace if cracked, broken, or missing to restore proper ventilation.

Oven won't start or door won't lock during self-clean? This interlock assembly ensures proper door locking function. Moderate DIY repair in 30-45 minutes.

Seals your oven's bake element to prevent heat loss and ensure even cooking. Replace if cracked, brittle, or damaged. Confirm fit with your model number.

Fix an oven that won't heat with this magnetron. Common cause of no heating in microwave ovens. Direct replacement part restores full function.

Replacement mounting screw for electric ranges, ovens, and wall ovens. Secures panels, brackets, and components. Replace if stripped, missing, or broken.

Replacement mounting screw for appliances. Secures components and reduces vibration. Needed when original screws are missing, stripped, or damaged.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Black hex washer screw for securing range components like door trim, control panels, and internal brackets. Replace missing or stripped screws during repairs.

Black trim screw secures exterior trim and panels on ovens and ranges. Replace missing, stripped, or corroded screws to restore proper fit and finish.

Replace your missing, worn, or damaged range washer. This small metal component secures parts and assemblies throughout your oven, ensuring proper fit.

Truss head screw for fastening oven panels, trim, and brackets. Replace if missing, stripped, or corroded to secure loose components and panels.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
