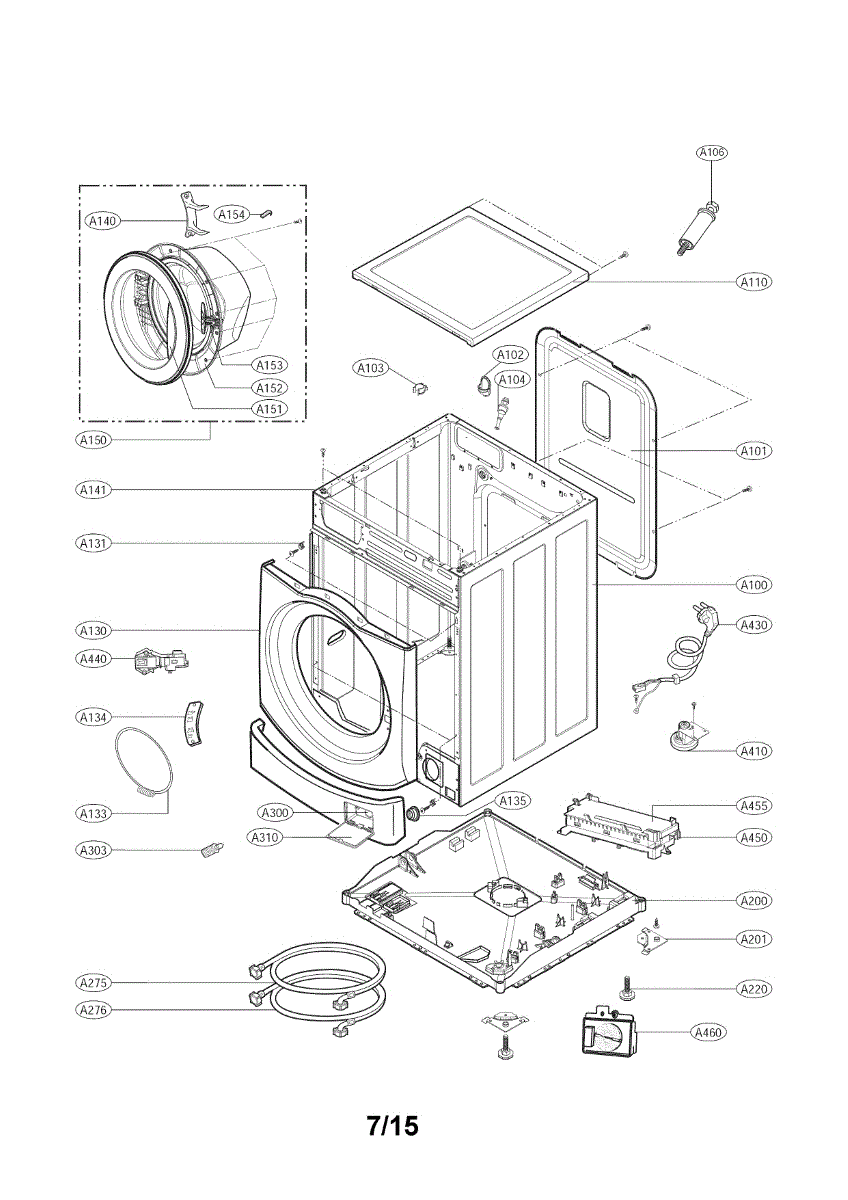

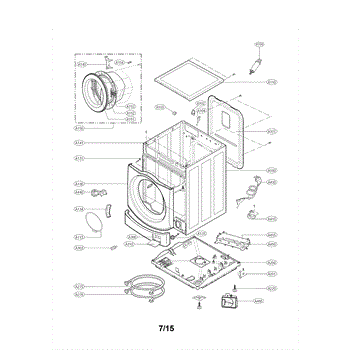

Parts for Lg WM3477HW: Cabinet Assembly Parts

This rear cover replaces the cabinet back panel that protects internal components and helps maintain proper airflow. Restores enclosure integrity and reduces noise or debris entry when the original cover is cracked, warped, or missing. What it does:

• Shields motors, wiring and controls from dust, lint and accidental contact.
• Directs airflow path and helps avoid airflow-related performance issues.
• Reduces vibration noise caused by loose or damaged back panels.
• Prevents small objects from entering the appliance rear and creating hazards.

• One rear cover (cabinet back) as shown.

• Disconnect power (unplug or shut off breaker) before attempting any repairs.
• Access requires moving the appliance and removing exterior fasteners—keep track of screws and clips.
• Inspect surrounding seals and mounting points; replace any damaged hardware to ensure a secure fit.

This holder is a small mounting bracket that secures internal components and keeps assemblies aligned for reliable operation. It replaces a worn or broken bracket to stop rattling and prevent parts from shifting. What it does

• Secures and positions nearby components or assemblies to maintain correct alignment
• Prevents vibration, rattling, or intermittent contact caused by a loose or cracked bracket
• Restores proper spacing so sensors, panels, or moving parts operate smoothly
• Helps prevent further wear or damage from misaligned parts

• One holder as shown

• Turn off power and disconnect the appliance before attempting any repairs
• Installation typically requires basic hand tools; save removed screws and clips for reassembly

The Shipping Bolt is an OEM part for LG washing machines, designed to secure the washing machine's drum during transportation. These bolts are important for preventing damage to the drum and suspension system by immobilizing the drum, thereby avoiding any excessive movement or vibrations that could occur while moving the appliance.

Causes of a bad shipping bolt can include improper removal during installation, damage from handling, or degradation over time if it was left in place during operation. A damaged or missing shipping bolt can lead to issues with the washing machine's drum alignment and overall stability.

Symptoms that indicate the shipping bolts need removal or installation include:

• Excessive noise or vibrations during operation, suggesting the bolts were not removed after installation.
• Damage to the washing machine's drum or suspension system after moving the appliance without the bolts properly installed.

This OEM LG part can also be used on Kenmore/Sears appliances.

This clamp assembly secures a hose, tube, or similar connection inside your appliance, maintaining a tight, reliable hold to prevent leaks and movement. Replacing a worn or damaged clamp restores proper sealing and dependable performance.

• Holds a hose/tube or component firmly in place to help prevent leaks or disconnections
• Reduces movement and vibration that can cause noise or wear
• Restores clamping force when the original is bent, corroded, or stretched
• Common symptoms: drips at a joint, hose slipping off, rattling, or a missing/broken clamp

• Disconnect power; shut off the water supply if the clamp secures a water line
• Place a towel or pan to catch residual water and relieve line pressure if applicable
• Note the original orientation; use suitable hand tools to release and seat the clamp securely
• Inspect the hose/tube and fitting for damage; replace if cracked or deformed and check for leaks after reassembly

This door inner frame is the replacement inner panel frame that supports the door liner and trim, restoring proper fit and appearance. It helps keep the door assembly aligned and finished for normal operation and seal integrity. What it does:

• Provides structural support for the door liner and attached trim pieces
• Restores correct alignment and fit of the door assembly
• Helps maintain a proper door seal and reduces drafts or uneven closing
• Replaces cracked, warped, or cosmetically damaged inner door framing

• One door inner frame

• Disconnect power to the appliance before starting any door repair
• Removal typically requires taking off door trim and inner liner; keep fasteners organized
• Inspect door gasket, hinges, and hardware while replacing the frame; replace any damaged hardware

This replacement door handle restores a secure, comfortable grip for opening and closing the appliance door. Replace a cracked, loose, or missing handle to bring back proper function and a clean, finished look. What it does:

• Provides the handhold used to open and close the door
• Mounts to the door with internal screws or bolts specific to the model
• Restores appearance after wear, cracks, or finish damage
• Typical symptoms: cracked/broken or wobbly/loose handle, missing handle, difficulty gripping

• 1 handle

• Disconnect power to the appliance before servicing; allow surfaces to cool
• Access the handle's mounting screws from the inner side of the door; remove trim or panels as needed
• Transfer any spacers or bushings from the old handle to the new one
• Tighten hardware evenly without overtightening; verify door opens and closes smoothly

The Door Latch Hook is an OEM replacement part for LG front load washers. It is a component of the overall latch and locking assembly and works to securely close and lock the washer door. With a properly functioning latch hook, the washer door remains tightly sealed during cycles to ensure optimal water retention and the most thorough cleaning.

Symptoms of a bad door latch hook include:

• Water leaks around the door during washing cycles
• The door fails to latch fully and unlock after cycles
• Difficulty opening or closing the washer door completely
• Alignment issues like misaligned or skewed door positions

Causes of a bad door latch hook can include wear over extended use. Damage may also result from washing hard or abrasive items that put excess strain on the latch mechanism over time.

This OEM LG part is compatible with Sears/Kenmore front-load washer models as well.

This base bracket mounts to the washer's lower frame to hold associated components securely in place. By keeping parts properly anchored, it helps maintain alignment and stability during operation to minimize vibration and noise.

• Attaches to the washer base and provides a mounting point for designated hardware
• Helps keep assemblies from shifting during agitation and spin
• Supports smooth, quieter operation by reducing vibration and rattling
• Common signs of failure include a bent or cracked bracket, loose/misaligned parts, or unusual noises from the base area

• Disconnect power and water supply before servicing; move the appliance for safe access
• Carefully tip or lay the washer back on protective padding; use a helper for stability
• Note the bracket's orientation and reuse existing mounting hardware as applicable
• Tighten fasteners securely and verify nearby parts have proper clearance before test run

Restore stable, level support with this replacement leg assembly. The adjustable foot steadies the unit on uneven floors, reducing vibration and rattling while allowing precise leveling for proper alignment and smooth, reliable operation.

• Provides adjustable support at the base of the unit
• Helps keep the appliance level on uneven or sloped floors
• Reduces wobble, vibration, and rattling noises
• Promotes proper door alignment and closure
• Replaces stripped, cracked, or missing leg assemblies

• Disconnect power; shut off water supply if applicable
• Carefully tilt and support the appliance to access the leg area
• Unthread the old leg; hand-thread the new assembly to avoid cross-threading, then fine-adjust with a wrench
• Level front-to-back and side-to-side; confirm stability before use

This inlet hose supplies fresh water from the household line to the dishwasher. Replace a damaged or leaking hose to help restore proper filling and prevent water leaks during operation.

• Channels water from the supply valve to the dishwasher's inlet
• Common failure signs: leaks under or behind the unit, fill errors, slow or no fill
• Helps resolve intermittent water supply issues caused by a kinked or cracked hose

• Unplug power and shut off the water supply before starting
• Place a towel or pan to catch residual water when disconnecting
• Check for leaks after installation and tighten connections as needed

This inlet hose is the internal water line for your dishwasher, routing fresh water from the fill valve into the wash system. Replacing a brittle or leaking hose restores reliable filling and helps protect floors and cabinetry from water damage.

• Channels incoming water from the inlet valve to the tub/sump
• Maintains proper fill level and flow at the start of each cycle
• A cracked, kinked, or loose hose can cause leaks or slow/no fill
• Restores correct water delivery and helps prevent water damage

• Disconnect power and shut off the water supply before servicing
• Pull the dishwasher forward for access; place a towel or pan to catch residual water
• Note the original routing and clamp positions; transfer clamps and avoid kinks
• Restore water, run a quick fill cycle, and check all connections for leaks

This part may be black or gray in color.

This pressure switch assembly monitors the washer's tub water level and signals the control to fill, drain, and advance cycles properly. Replacing a faulty switch restores accurate water level sensing for reliable washing performance.

• Senses air pressure from the tub to determine water level
• Helps prevent overfilling and underfilling
• Common failure symptoms: overfills or won't fill, won't advance to spin/drain, drains continuously, or shows a PE (water level sensor) error
• Can cause intermittent cycle stops when readings are inaccurate

• Disconnect power and turn off water supply before servicing
• Access is typically from the top/console area; note hose and connector positions
• Inspect/clear the pressure hose; ensure it's not cracked, kinked, or blocked
• Seat the hose fully on the barb and reconnect the wire harness securely; test a fill cycle for proper operation

The Washer Door Lock Switch is an OEM part for LG washing machines. This critical safety feature locks the washer door during operation to prevent it from being opened, which ensures safety and proper functioning. The door lock switch also communicates with the washer's control system to indicate that the door is securely closed and the machine can begin its cycle.

Symptoms of a bad Washer Door Lock Switch include:

• The washing machine refusing to start, despite the door appearing to be closed.
• The door failing to lock properly, or the lock releasing prematurely during a cycle.
• Error messages on the washer's display related to door closure issues.

Causes of a bad door lock switch can include mechanical failures such as worn or damaged locking mechanisms, electrical issues like faulty wiring or failed solenoids, or alignment problems that prevent the door from engaging the switch properly.

This OEM LG part is also compatible with Sears/Kenmore models.

This Main PCB power control board assembly replaces the appliance's primary electronic control module to restore proper power distribution and command signals. It helps recover normal control operation and device responsiveness when the main board is faulty. What it does:

• Manages power distribution and control signals to the appliance's components
• Controls user-interface commands and cycle/function sequencing
• Can stop intermittent power, random resets, or unresponsive controls caused by a failing main board
• Works with the appliance's safety and sensor inputs to coordinate operation

• Disconnect power (unplug or switch off breaker) before removing or installing the board
• Handle the PCB by its edges and avoid static discharge; use an ESD strap if available
• Verify board part number matches the board being replaced before installation

This filter assembly replaces the water/ice filter housing and valve connections in compatible refrigerators to restore proper water flow to the dispenser and icemaker. It helps stop leaks and resolve low or no-water flow when the housing is faulty. What it does

• Replaces the internal filter housing and inlet/outlet connections that route water to the dispenser and icemaker.
• Restores normal water flow and pressure when a cracked or damaged housing causes leaks or restricted flow.
• Helps prevent leaks that can occur from worn seals or damaged fittings in the filter assembly area.
• Can resolve symptoms such as reduced dispenser flow, intermittent water flow to the icemaker, or visible leaks near the filter area.

• One filter assembly (housing and associated valve/connectors) as shown

• Turn off the refrigerator water supply and unplug the appliance before beginning work.
• Relieve system pressure by dispensing water after shutoff and have towels ready to catch residual water.
• Inspect and tighten all connections; replace any O-rings or seals if specified by OEM instructions.
• After installation, turn the water back on, check for leaks, and flush several liters through the dispenser per manufacturer guidance before use.
