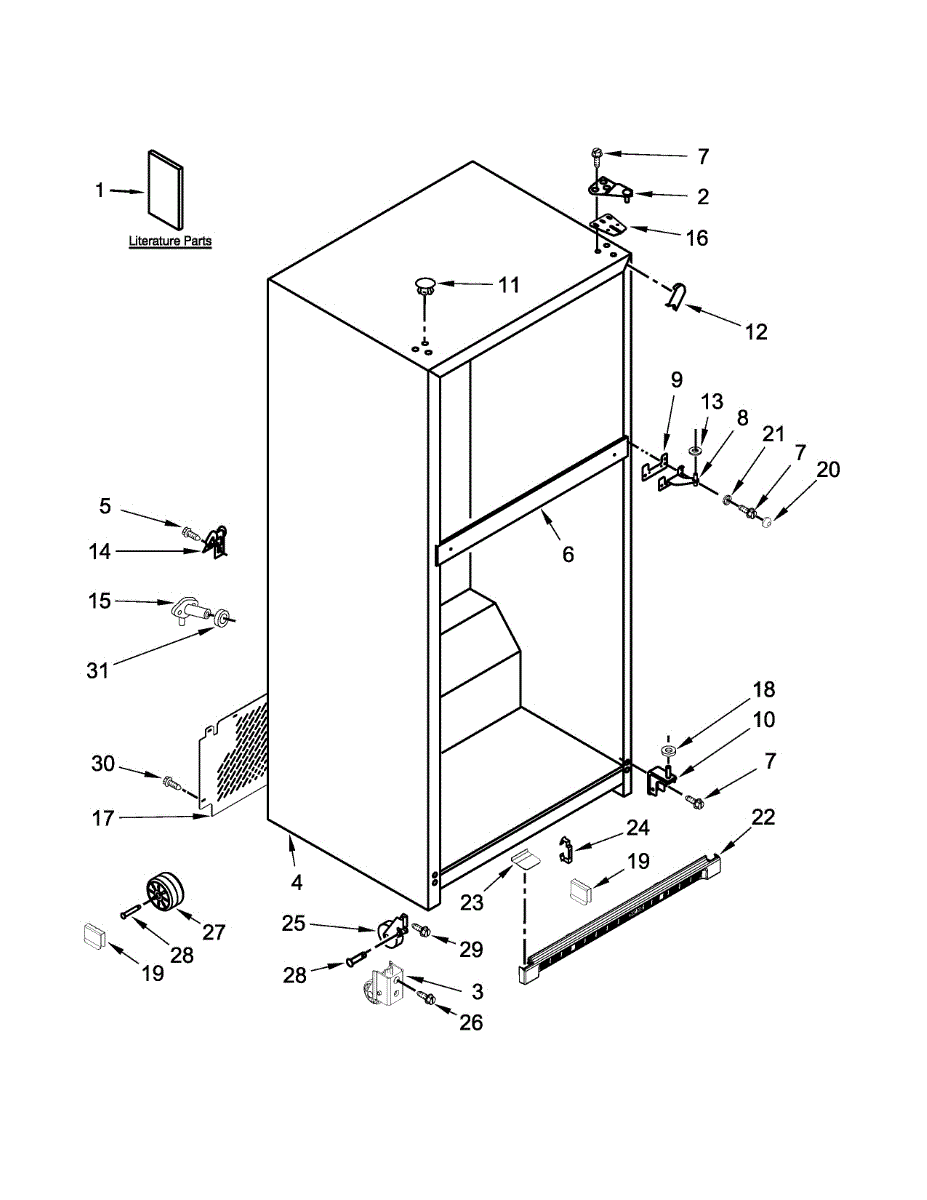

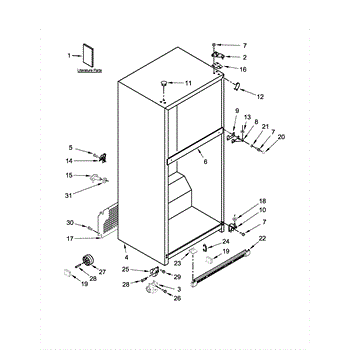

Parts for Kenmore 106.70212410 (10670212410, 106 70212410): Cabinet Parts

This top door hinge is the butt hinge assembly that mounts to the cabinet at the top of the refrigerator door, supporting the door and allowing smooth swing. Replacing a worn hinge restores alignment and a reliable seal.

• Provides the upper pivot point for the door
• Keeps the door aligned so the gasket seals correctly
• Wear or damage can cause sagging, rubbing, squeaks, or a door that won't close fully
• Helps reduce air leaks and temperature swings near the door

• Disconnect power and remove items from the door to reduce weight
• Support the door from below; remove the hinge cover and mounting screws
• Note the position of any shims/spacers and transfer them to the new hinge
• Reinstall, align the door, tighten screws, and ensure proper gasket contact

Size: 8-18 x 1/2 inch.

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

The Center Door Hinge is an OEM replacement part for Whirlpool refrigerators. As one of several hinges supporting each refrigerator door panel, it works to guide opening and closing movements.

Causes of a faulty center hinge tend to be wear from years of continuous operation with near-daily door cycles. Complete failure could also occur in the event of physical damage sustained during a repair or installation issue.

Symptoms include:

• Looseness, wobbling, or misalignment of the associated door
• Increased effort required to open or close doors
• Potential for doors to fall off alignment, cease opening fully
• Risk of door detachment altogether without hinge support

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This small shim installs on the refrigerator's center hinge pin to set door height and reduce excess play. Replacing a worn spacer can help restore smooth door movement and a reliable gasket seal. What it does:

• Maintains proper spacing at the center hinge to support door alignment
• Reduces door wobble, sagging, or rubbing against the cabinet
• Helps doors open and close smoothly with consistent gasket contact
• Can lessen clicking or squeaking from a worn hinge interface

• Includes the center hinge spacer only

• Unplug the refrigerator or switch off power at the breaker
• Remove items from the door; support the door before loosening center hinge screws
• Lift the door off; place the new spacer on the center hinge pin in the same orientation as the original
• Reinstall the hinge and door; tighten fasteners and verify door alignment and gasket seal

This lower door hinge supports the refrigerator door at the bottom pivot so it opens smoothly and stays properly aligned. Replacing a worn hinge can restore reliable door closure and help maintain an effective gasket seal.

• Provides the bottom pivot point and supports the door's weight
• Helps keep the door aligned for proper gasket contact
• Allows smooth opening and closing without binding
• Common symptoms of a failing hinge: door sagging, rubbing/scraping, squeaking, or not closing fully

• Disconnect power and, if applicable, shut off the water supply; remove items from the door.
• Support the door, remove the top hinge hardware, and lift the door off the bottom hinge.
• Remove the old bottom hinge from the cabinet/frame and install the new hinge in the same orientation, reusing original screws/shims.
• Reinstall the door and top hinge, then check alignment and gasket seal before restoring power.

Color: White

Color: Black

This press-in hole plug fills unused panel or console openings to restore a finished look and help keep out dirt and moisture. Simple, unobtrusive replacement that snaps into place for a clean, finished appearance. What it does:

• Covers unused holes in control panels, trim, or appliance housing for cosmetic repair
• Helps block dirt, dust, and small debris from entering interior cavities
• Maintains a flush surface so controls and trim fit properly
• Prevents moisture and contaminants from reaching internal components

• One press-in hole plug

• Designed to snap into a matching-size opening; press straight in until fully seated
• Disconnect power to the appliance before servicing if working near electrical components
• Use light hand pressure or a soft block to evenly seat the plug; do not force or use sharp tools

Color: Grey

This filler is a trim piece that fills the gap between the appliance and surrounding cabinetry for a finished look and to keep debris out of tight spaces. It restores proper fit and appearance after removal or damage. What it does:

• Covers the gap between the appliance and cabinets to improve appearance
• Prevents small items and debris from getting trapped in the gap
• Restores proper alignment and sealing where trim has been lost or damaged
• Useful when replacing panels or re-installing the appliance

• One filler trim piece as shown

• Designed for simple, non-technical replacement; typically snaps or screws into place
• Turn off and disconnect the appliance power before accessing mounting areas
• Keep fasteners from original installation; replace only with matching hardware if needed

This filler wrapper corner is a small trim piece that restores the finished edge and alignment where two panels meet, helping keep the appliance looking finished and reducing gaps or rubbing between surfaces. What it does

• Covers and finishes the outer corner where filler/trim panels meet for a clean appearance
• Helps maintain panel alignment and keeps adjacent parts from rubbing or catching
• Reduces visible gaps that can collect dirt or moisture
• Commonly replaced when corner trim is cracked, broken, or missing

• One filler wrapper corner

• Disconnect power to the appliance before beginning any repair
• Handle trim pieces gently to avoid cracking; pry or loosen adjacent trim panels as needed
• May require removing outer panels or adjacent trim fasteners for access
• Work slowly and use non-marring tools to avoid damaging surrounding finishes

The Hinge Washer is an OEM replacement part for Whirlpool refrigerators. This small washer plays a supports the refrigerator door hinge assembly. Center hinge plastic washer.

Causes of a bad hinge washer are generally normal wear and tear from extensive use. As the washer absorbs pressure each time the door is opened or closed, it can gradually deteriorate or crack. Physical damage is also possible if the door is accidentally struck or slammed.

Symptoms of a worn or damaged hinge washer include:

• sagging doors
• uneven gaps around the door seal
• doors that do not stay securely closed on their own
• Over time and repeated opening/closing stress, the hinge washer compresss which affects door alignment.

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This water tube fitting links sections of the appliance's water line to create a secure, leak-resistant connection. Replacing a worn or cracked fitting helps maintain proper water flow and reduces the chance of leaks around the water system. What it does:

• Joins two sections of water tubing within the appliance's water circuit
• Maintains a watertight seal at the connection point
• Supports consistent flow to water-dependent features (e.g., dispenser or ice maker)
• Typical symptoms: leaks or drips at the joint, water under the unit, weak/no dispenser flow, or ice maker not filling

• 1 water tube fitting (approximately 128 mm length)

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure by dispensing water; place a towel to catch residual water
• Remove the old fitting and fully seat tubing into the new fitting; restore water, check all connections for leaks, then reconnect power

This shim is a thin flat spacer used to align or space appliance components for proper fit and stable operation. It restores correct spacing to reduce rubbing, vibration, or misalignment during repairs and maintenance. What it does:

• Provides a precise gap or alignment between panels, housings, or assemblies
• Helps stop rubbing or scraping noises caused by misaligned parts
• Reduces vibration by stabilizing mating surfaces
• Used when replacing worn or missing shims during panel, bracket, or trim repairs

• Disconnect power (and gas, if applicable) before starting any repair
• Position shim between mating surfaces, then secure fasteners snugly—do not over-tighten
• Inspect surrounding parts and fasteners; replace any that are damaged

The Hinge Washer is an OEM part for Whirlpool refrigerators. This part ensures smooth opening and closing by reducing friction between the door hinge and the refrigerator body.

Causes of a bad hinge washer can include normal wear and tear from frequent use, accumulation of dirt or debris, and exposure to moisture, which can lead to rust and corrosion.

Symptoms of a bad hinge washer include:

• Difficulty in opening or closing the refrigerator door
• A door that does not stay in place
• Squeaking or grinding noises when the door is moved
• Visible wear or deformation on the washer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This small pin clip secures the roller pin in a refrigerator drawer/track assembly, keeping the roller and pin from sliding apart. Replacing a missing or bent clip restores smooth drawer movement and helps prevent bins from tilting, binding, or dropping.

• Retains the roller on its pin to keep the drawer track assembly together
• Helps resolve drawers that tilt, bind, or fall when a clip is missing or damaged
• Prevents the pin from backing out, reducing scraping or popping noises
• Replaces clips that are missing, bent, or no longer hold securely

• Disconnect power and remove the drawer/bin to access the track and roller
• Support the roller; remove the old clip with small pliers while securing the pin
• Align roller and pin; press the new clip fully into the groove until seated
• Reassemble and verify the drawer glides smoothly without binding

Color: Black

Color: White

Color: Grey

This small fastener washer fits under a bolt or nut inside your washing machine, distributing clamping force and protecting surfaces. Replacing a worn or missing washer restores a secure fit and helps reduce vibration, rattling, and premature wear.

• Distributes load evenly under a bolt or nut to prevent damage and loosening
• Helps maintain correct spacing and alignment within the assembly
• Reduces metal-on-metal wear at the mounting point
• Can help address looseness, rattling/metallic noises, and excessive vibration

• Disconnect power and shut off water before servicing
• Note the original washer's position and orientation before removal
• Inspect the bolt/nut and mating surfaces; replace any damaged hardware
• Tighten to manufacturer guidance; avoid overtightening

This front trim grille restores the appliance's lower/front appearance and helps protect internal components from dust and debris. It replaces a cracked, broken, or missing grille to improve looks and allow proper airflow. What it does

• Covers and protects the appliance's front/lower opening and internal components
• Keeps dirt and debris from entering the cabinet area
• Restores a neat, finished appearance after damage or wear
• Helps maintain proper airflow through the front vent area

• Disconnect power to the appliance before beginning any work
• Typically installs by aligning tabs and snapping or fastening into place; may require a screwdriver
• Handle carefully to avoid scratching the finished surfaces during installation
• If mounting hardware is broken or missing, replace with manufacturer-recommended fasteners

This replacement lower front grille restores the finished look and directs airflow near the appliance base. It helps keep debris out of lower openings and provides a clean, finished appearance to the appliance front. What it does

• Covers and protects the lower front opening, helping prevent dust and debris from entering the cabinet area.
• Directs ventilation airflow where designed, supporting proper cooling of components behind the grille.
• Restores the appliance's exterior appearance when the original grille is cracked, dented, or missing.
• Fits into the lower front retainer and secures with factory fasteners.

• One lower front grille.

• Install requires removing the kick plate or access to the lower front; keep fasteners for reinstallation.
• Handle carefully to avoid scratching the finish; align tabs before snapping or fastening into place.
• Always disconnect power to the appliance before removing panels for service.
• If screws or clips are missing or damaged, replace with manufacturer-specified fasteners.

A replacement grille that restores the appliance's exterior venting trim and finished appearance. Designed to fit the factory opening and help direct air flow while covering internal components for a clean look. What it does:

• Covers and protects the appliance vent opening while maintaining the original appearance
• Directs airflow from the appliance to help proper ventilation
• Replaces cracked, broken, warped, or discolored trim that affects fit and finish
• Helps prevent debris from entering internal components behind the vent

• Verify fit by comparing part number and shape before installation
• Remove power to the appliance before removing access panels or fasteners
• Use basic hand tools; retain all fasteners for reassembly
• If clips or mounting hardware are damaged, replace them to ensure a secure fit

This replacement grille covers the appliance's front vent opening to maintain airflow and protect internal components. It restores a clean, finished appearance and secure fit when the original grille is cracked, warped, loose, or missing.

• Directs airflow through the unit for proper ventilation
• Shields internal parts from debris and accidental contact
• Replaces a broken, warped, or missing grille
• Common symptoms include rattling, poor fit, visible cracks, or an exposed opening

• Disconnect power to the appliance before servicing
• Remove mounting screws or release retaining tabs; keep hardware for reuse
• Align the new grille with tabs or slots and secure without overtightening
• Restore power and confirm proper fit and clearance

This end cap is a small replacement trim piece that restores the finished appearance and protects the exposed edge of the appliance component. It helps keep edges covered and prevents dirt buildup where panels meet. What it does:

• Covers and protects the exposed end of a panel or housing to prevent wear and dirt accumulation
• Restores a finished, uniform appearance after damage or loss
• Helps maintain proper alignment of adjacent trim or components
• Commonly replaced when cracked, broken, missing, or cosmetically damaged

• One end cap trim piece

• Disconnect power or unplug the appliance before beginning any repair
• Installation is typically simple: align the cap and snap or secure it into place with existing retainers or fasteners
• Keep track of any small clips or screws removed during replacement
• If the cap does not seat easily, double-check alignment to avoid damaging surrounding trim

This small retainer clip secures a component or wiring harness to the appliance so parts stay aligned and rattle-free. It replaces a worn or broken fastener to restore proper fit and reduce noise or intermittent connections. What it does:

• Holds a panel, bracket, or wiring harness in place to prevent movement
• Keeps components aligned to ensure smooth operation and reduce vibration noise
• Helps maintain electrical connections by stabilizing wiring runs
• Common symptom: loose trim, rattling or vibrating parts, or intermittent wiring contact

• Disconnect power to the appliance before starting any work
• Remove the appropriate access panel or trim to reach the damaged clip
• Use pliers or a flat screwdriver to remove the old clip and snap the new clip into place
• Verify the secured part is seated correctly and test the appliance after reassembly

The Refrigerator Roller is an OEM part for Whirlpool refrigerators. This component allows for easy movement of the refrigerator, enabling smooth sliding and positioning during installation or cleaning. Does not include the leveling screw. For complete assembly order part number AP5988919.

Causes of a bad refrigerator roller can include regular wear and tear, exposure to heavy loads, or damage from moving the refrigerator across uneven surfaces.

Symptoms of a bad Refrigerator Roller include:

• Difficulty moving the refrigerator
• Unstable or uneven positioning
• Noisy or squeaky movement
• Visible damage to the roller, such as cracks or breaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This genuine replacement screw secures appliance panels and components for reliable operation. Use it to replace stripped, missing, or corroded fasteners and restore proper fit and alignment for safe appliance use. What it does

• Secures panels, brackets, and small components to restore proper alignment and reduce vibration
• Replaces stripped or missing fasteners that can cause loose parts or rattling
• Helps maintain safe electrical and mechanical connections by holding components in place
• Works wherever the original matching screw was used on the appliance

• Disconnect power and water before beginning any repair
• Use the correct driver bit to avoid cam-out and head damage
• Tighten securely but avoid overtightening to prevent stripping threads or cracking plastic
• If threads are damaged, replace mating hardware or use appropriate repair inserts rather than forcing the screw

The Roller is an OEM part for Whirlpool refrigerators. It is designed to facilitate the smooth movement of your refrigerator, making it easier to position and clean underneath the appliance. The roller supports the weight of the refrigerator and allows for easy adjustments in placement.

Causes of a bad fridge roller can include wear and tear from frequent movement, exposure to heavy loads that can damage the roller, or accumulation of dirt and debris that can impede its function. When a roller is damaged, it can affect the stability and mobility of the refrigerator.

Symptoms of a bad Roller include:

• Difficulty moving the refrigerator
• Unusual noises when the refrigerator is moved
• Uneven leveling of the refrigerator
• The refrigerator not staying in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Axle is an OEM part for Whirlpool refrigerators. This axle allows it to be easily repositioned or moved for cleaning and maintenance. It supports the rollers that enable the refrigerator to glide across the floor.

Common causes of a bad axle include prolonged use, excessive weight, or impact damage, which can lead to the axle bending or breaking.

Symptoms of a bad refrigerator roller axle include:

• Difficulty moving the refrigerator
• Uneven or wobbling movement
• Scratches or damage to the floor
• The refrigerator not staying level

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This gasket/seal creates a tight barrier between two mating parts in your appliance to prevent leaks and performance loss. Replacing a worn gasket restores proper sealing and helps stop seepage at the joint. What it does

• Forms a reliable seal between components to prevent fluid or air leaks
• Maintains proper operation by keeping the sealed area contained
• Replaces gaskets that are brittle, cracked, flattened, or swollen
• Common signs include residue or moisture around the joint, visible wear on the old gasket, or a loose/poor seal

• 1 gasket/seal

• Disconnect power and any water or gas supply before servicing
• Note the gasket's orientation; compare old and new parts before installation
• Clean and dry mating surfaces; remove old adhesive and debris
• Seat the gasket evenly; do not overtighten fasteners; test for leaks after reassembly
