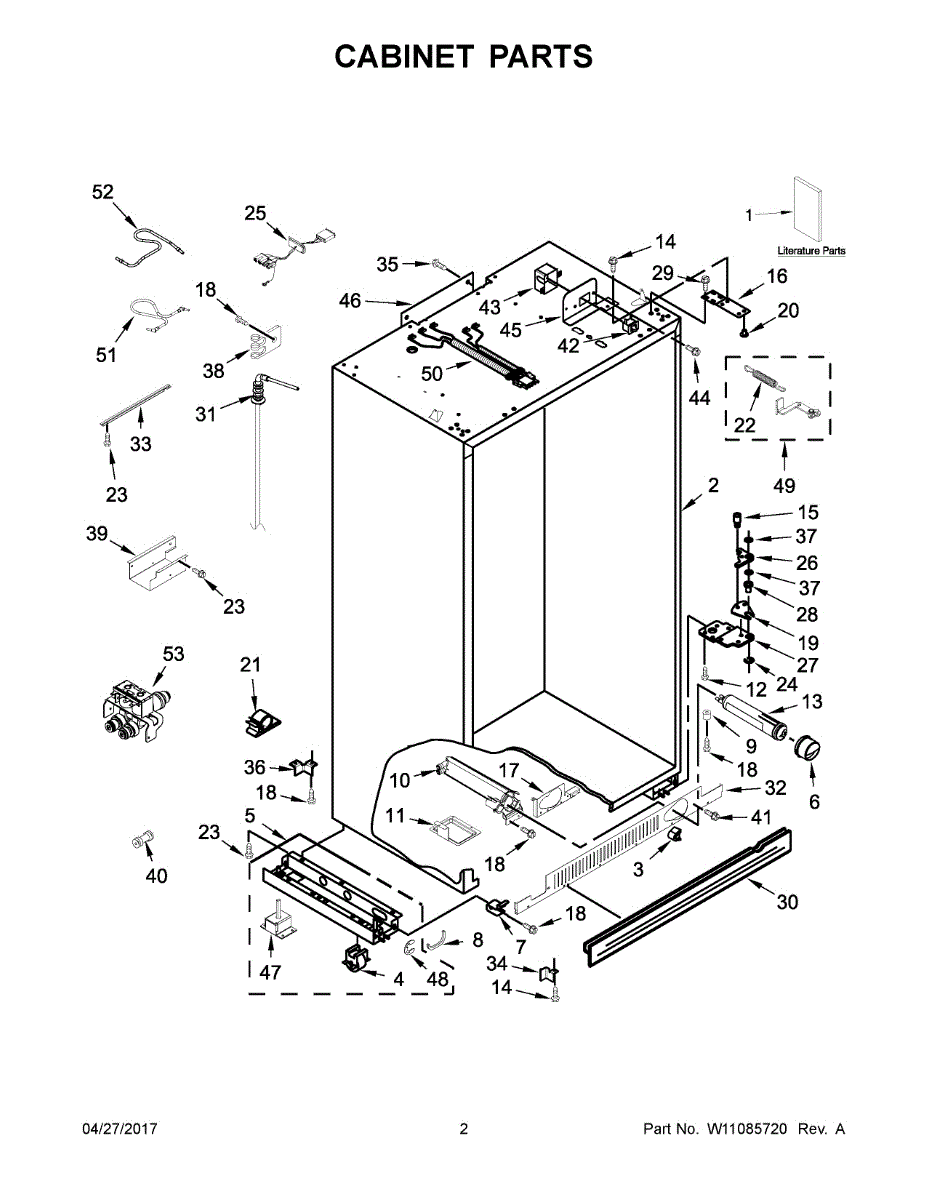

Parts for Kitchenaid KBSD608EBS01: 02 - Cabinet Parts

Color: Black

This replacement roller fits the front or rear position of a slide mechanism, restoring smooth, even movement and reducing noise when a wheel is worn or broken. It helps racks or drawers glide properly and stay aligned. What it does:

• Provides low-friction rolling support for the slide track
• Helps slide-out assemblies move freely without binding or scraping
• Worn or damaged rollers can cause sticking, squeaking, or uneven travel
• Restores proper alignment and smooth operation when replaced

• 1 roller assembly

• Disconnect power and allow the appliance to cool before servicing
• Remove the slide-out assembly; note roller orientation and hardware
• Transfer/reuse existing screws, clips, or retainers as required
• Do not lubricate unless the manufacturer specifies a lubricant

This Support (mounting bracket) secures internal components and stabilizes the appliance's assembly to help prevent sagging, misalignment and excess vibration. It's a small replacement that restores proper fit and reduces rattling. What it does:

• Provides a stable mounting point for panels or internal assemblies
• Keeps components aligned to prevent binding or wear
• Reduces noise caused by loose or sagging parts
• Helps stop intermittent contact or rubbing that can cause rattles

• Disconnect power (and water, if applicable) before servicing
• Access may require removing outer panels or trim; keep track of fasteners
• Support the assembly while replacing the bracket to avoid strain

This Support bracket holds internal components in place to restore proper alignment and reduce rattling or sagging. It's a simple replacement that helps stabilize the appliance's interior structure. What it does:

• Secures internal panels or assemblies to prevent movement and vibration
• Restores proper alignment when a factory support is damaged or missing
• Can reduce noise caused by loose components
• Helps maintain safe, stable operation of the affected area

• One Support bracket

• Disconnect power and unplug the appliance before beginning any repair
• Inspect surrounding fasteners and mounting points; replace any damaged hardware as needed
• Use appropriate hand tools; avoid over-tightening to prevent cracking plastic or stripping threads

This replacement filter cap secures the filter in its housing and helps maintain a proper, watertight seal. It restores a snug fit when the original cap is cracked, stripped, or missing to help prevent drips and performance issues. What it does:

• Locks the filter into place and helps provide a reliable seal
• Helps prevent water seepage at the filter housing
• Restores proper fit when the cap is worn, rounded, or broken
• Common symptoms: dripping around the filter area, filter won't stay seated, difficulty tightening or removing the cap

• 1 filter cap

• Disconnect power; shut off the water supply before servicing
• Place a towel to catch residual water and access the filter housing per your model's instructions
• Remove the old cap; align and hand-tighten the new cap until snug—do not overtighten
• Restore water and power, then test and check for leaks; ensure any separate O-ring used by your model is present and in good condition

This top door spacer positions and supports the upper edge of the appliance door to maintain correct clearance and alignment for smooth opening and closing. It helps keep the door trim and glass properly spaced for reliable operation. What it does:

• Keeps the top edge of the door correctly spaced from the cabinet to prevent rubbing or binding
• Helps maintain door alignment for an even seal and consistent closing
• Reduces vibration-related noise by stabilizing the door assembly
• Protects trim and glass from contact damage at the top edge
• Useful when replacing worn or missing door support components

• One top door spacer

• Disconnect power to the appliance before starting any repair
• Remove the door or door trim panels per the manufacturer's instructions to access the spacer
• Handle door glass and trim carefully; use appropriate tools and support to avoid damage

The Water Filter Housing is an OEM part for Whirlpool refrigerators. It encases the water filter, ensuring a secure fit and proper water flow through the filtration system to provide clean, safe drinking water.

Causes of a bad water filter housing can include cracks or wear and tear over time, improper installation, or damage from replacing the water filter.

Symptoms of a bad water filter housing include:

• Water leaks around the filter area
• Reduced water flow from the dispenser
• Odd tastes or odors in the water
• The water filter not fitting securely

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 8-32 x .312 inch.

This replacement screw is a small fastener used to secure appliance panels and components. It restores lost or damaged screws so parts stay mounted and appliances run quietly and safely. What it does:

• Secures panels, trim, brackets or housings to prevent rattling and movement
• Replaces missing or stripped screws that allow parts to come loose
• Helps maintain correct alignment of assemblies for safe operation
• Small hardware solution for common repair and reassembly needs

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or driver bit to avoid cam-out or damage
• Do not overtighten; snug until secure to avoid stripping threads or cracking plastic
• Keep small parts away from children and pets

This top door hinge secures the refrigerator door to the cabinet and lets the door pivot smoothly. Replace a worn hinge to restore proper door alignment and even sealing for better cooling performance. What it does

• Supports the top of the refrigerator door and provides the pivot point for opening and closing.
• Helps keep the door aligned so the gasket seals properly and cold air stays inside.
• Worn or damaged hinge can cause door sag, uneven gaps, rubbing, or noisy operation.
• Restoring the hinge can reduce stress on the door and other hinge components.

• One top door hinge.

• Basic hand tools are usually required; support the door while removing or installing hinges to prevent injury or door damage.
• Disconnect power only if working near electrical components; this hinge replacement typically does not require electrical disconnection.
• If the door was removed, recheck alignment and gasket contact after reinstalling; adjustments may be needed.
• Follow OEM instructions and use proper safety equipment.

This bracket is a small mounting/support part that secures and aligns appliance components to restore proper fit and reduce movement. It's a direct-fit replacement designed to return panels and assemblies to their correct position. What it does:

• Provides a stable mounting point to secure panels, trim, or internal assemblies
• Restores correct alignment to eliminate rattling, vibration, or loose fit
• Helps maintain proper clearances for smooth operation of moving parts
• Replaces worn, bent, or broken brackets that prevent components from seating correctly

• One bracket

• Disconnect power and water before starting any repair
• Use common hand tools; support panels during removal to avoid damage
• Align bracket and fasteners before tightening; do not overtighten screws

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

A small replacement bushing that secures and centers the appliance's rotating plate or tray for smooth, stable rotation. Restores proper alignment and reduces noise or wobble caused by a worn or damaged bushing. What it does:

• Centers and locks the rotating plate/tray to the drive hub for steady rotation
• Prevents the plate from wobbling, slipping, or scraping during use
• Helps eliminate grinding, rattling, or uneven rotation symptoms
• Durable replacement for a worn, cracked, or deformed bushing

• One adjustable plate locking bushing

• Disconnect power before servicing and handle any glass plate or trim carefully
• Remove the plate/tray and access the bushing location according to the appliance service instructions
• Test rotation before use

The Top Hinge Bushing is an OEM part for Whirlpool refrigerators. It provides support and movement for the refrigerator door's top hinge.

A bad top hinge bushing can be caused by regular use, wear and tear, or accidental damage. If you notice excessive door movement, sagging, or difficulty in opening or closing the refrigerator door, it may indicate a problem with the hinge bushing.

Symptoms of a bad top hinge bushing include:

• Excessive door movement or sagging
• Difficulty in opening or closing the door
• Squeaking or grinding noises

Replace your faulty top hinge bushing with this genuine OEM part to restore your refrigerator door.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The door closure spring restores the tension that pulls the door closed and holds it securely. Replacing a fatigued spring brings back smooth, reliable closing action and helps prevent doors that drift open or feel loose.

• Provides return tension to assist door closing and latch engagement
• Replaces a stretched, broken, or missing spring
• Can help with symptoms like a door that won't stay shut, pops open, or closes weakly
• Restores a consistent, even feel to the door movement

• Disconnect power to the appliance before servicing; wear gloves and eye protection
• Support the door/drawer to relieve spring tension before removal
• Note the spring's routing and hook locations; take a photo for reference
• Use pliers to detach/attach the spring; keep hands clear of pinch points and avoid overstretching

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

A retainer ring that secures components in place to prevent axial movement and maintain proper alignment. Replacing a worn or damaged ring helps stop rattling and shifting, restoring quieter, more reliable operation. What it does:

• Holds shafts, bearings or seals in position to prevent side-to-side movement
• Keeps mating parts aligned so assemblies run smoothly
• Common symptom of failure: rattling, grinding, wobbling or loosened parts
• Small, inexpensive part that prevents larger component misalignment or wear

• Disconnect power and water before servicing the appliance
• Access the affected assembly by removing the appropriate panel(s)
• Installation may require snap-ring/retaining-ring pliers or small hand tools

The GAP-HINGE is an OEM component for Whirlpool brand refrigerators. It is designed to fill the space between the refrigerator door and cabinetry, creating a flush fit. The hinge allows the door to open and close smoothly while preventing air and moisture leaks around the door frame.

Symptoms of a bad gap hinge include:

• Gaps around the refrigerator door letting hot or humid air enter the refrigerator interior
• Increased energy costs from lack of insulation due to air gaps
• Buildup of moisture on internal surfaces from improper sealing
• Difficulty opening or closing the refrigerator door smoothly

Causes can include normal wear over time, or damage from repeated opening and closing of the door putting stress on the hinge.

This OEM Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore brands.

Bottom refrigerator hinge. For bottom freezer hinge use part number W10527053.

This adjustable bushing supports and centers a rotating shaft to reduce wobble and wear, helping the appliance run quieter and maintain smooth operation. It's a direct-fit service part used where a replaceable bearing surface is needed. What it does:

• Centers and supports a rotating shaft to maintain proper alignment
• Provides a replaceable bearing surface to reduce metal-on-metal wear
• Helps stop rubbing, scraping, or loud bearing-type noises from worn mounts
• Can restore smooth rotation when the original bushing is worn or damaged

• One adjustable bushing

• Disconnect power (and gas if applicable) before servicing
• Inspect adjoining components (shaft, housing, clips) and replace if worn
• Follow OEM torque and alignment guidance; avoid forcing parts into place
• Use only OEM-approved lubrication or none if OEM specifies dry install

The Grille-Front is an OEM component specifically designed for Whirlpool refrigerator cabinet fronts. It allows for air circulation while protecting internal refrigeration system components. Proper grille functioning keeps components running cool and efficient.

Symptoms of a bad grille can include:

• Parts of the grille cracking, loosening, or detaching
• Reduced airflow causing elevated temperature readings inside
• Components overheating, leading to premature failures

Causes related to physical impacts, such as kids' toys or vacuum cleaners striking the grille. Direct sun exposure can also cause material degradation over time.

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Tube-Inlet is an OEM part for Whirlpool refrigerators. It is the component that connects the water supply lines allowing water to flow into the refrigerator's ice maker and water dispenser. The tube inlet is designed to securely attach to the back of the fridge and easily connect to supply hoses through compression nuts and fittings.

Causes of a bad tube-inlet include mineral or sediment buildup within the tubing restricting flow, cracks or leaks from wear and tear over time, or loose or damaged fittings. With normal use, water pressure and temperature fluctuations can cause small issues to develop.

Symptoms of a bad tube-inlet are:

• Slow or incomplete filling of the ice maker or water dispenser
• Water leaks from connection points
• Loose fittings or burst tubing

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This front grille is the lower kick-panel trim that covers and protects the appliance's lower front area while restoring a clean, finished appearance. It replaces damaged, bent, or missing front trim. What it does:

• Covers and protects lower front components from debris and accidental contact
• Restores the appliance's finished appearance after dents, cracks, or paint loss
• Helps maintain proper airflow paths at the appliance base when fitted correctly
• Stops rattling or vibration caused by loose or broken trim

• Disconnect power (and gas, if applicable) before beginning any work
• Typical install requires basic hand tools (screwdriver, nut driver); save any original fasteners and note their locations
• Align grille tabs and secure with factory fasteners; do not force or bend mounting tabs
• Replace with OEM-specified fasteners to ensure proper fit

Front left hand side

Front left hand side

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This door bearing fits the washer door assembly to restore smooth opening and closing and reduce noise, wobble, or binding. Replacing a worn bearing helps maintain proper door alignment for reliable operation. What it does:

• Supports the door hinge so the door pivots smoothly without sagging or sticking
• Reduces squeaks, grinding, or rough movement when opening or closing the door
• Helps keep the door aligned to reduce stress on the latch and door seal
• Addresses symptoms like door wobble, uneven closing, or noisy operation

• Disconnect power (and water if accessing near waterlines) before starting any repair
• Removing the door panel or inner door trim may be required; retain all fasteners and document their locations
• Inspect surrounding parts (hinge, seal, latch) and replace if damaged; improper alignment can cause premature wear

This spring-style tube clamp secures flexible tubing to fittings, helping prevent leaks and maintain proper flow. It's a simple replacement that restores a firm seal on water or drain lines. What it does:

• Keeps flexible tubing firmly clamped to barbed or nipple fittings
• Helps stop or reduce leaks from loose or corroded connections
• Prevents tubing from slipping off under pressure or vibration
• Useful where a compact, spring-action clamp is required

• Disconnect power and shut off water to the appliance before replacing parts
• Use pliers to expand the clamp, position it over the tube/fitting, then release to secure
• Inspect connected tubing and fittings for damage; replace if cracked or severely corroded

This replacement screw secures panels, brackets, and internal components within your appliance. Replacing a missing or damaged fastener restores a tight fit, reduces vibration and noise, and helps keep parts properly aligned during operation.

• Fastens panels, trim, brackets, or internal components to the chassis
• Maintains proper alignment and stability during normal use
• Replaces missing, rusted, or stripped hardware
• Common symptoms: loose or rattling panels, vibration, difficulty fastening, or a visibly missing screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Match length and thread to the original; replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is stripped, repair threads or replace the clip/nut before installing

The Door Switch is an OEM part for Whirlpool refrigerators. It is designed to detect when the refrigerator or freezer door is open or closed. This switch controls the interior light and ensures that the cooling system operates efficiently.

Causes of a bad Door Switch can include mechanical wear from frequent use, electrical faults such as short circuits or burnt contacts, and physical damage from impact or mishandling of the refrigerator door.

Symptoms of a bad Door Switch include:

• The interior light not turning on when the door is opened or not turning off when the door is closed
• The refrigerator or freezer not cooling properly
• The light staying on continuously
• The cooling system running continuously or not running at all due to incorrect signals from the switch

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

This leveler is the adjustable leg that helps stabilize and level your appliance, restoring balance and reducing vibration. It's a simple replacement to get a rocking or uneven washer or dryer sitting squarely again. What it does:

• Replaces a worn or damaged leveling leg to restore stable, level support under the appliance
• Allows height adjustment to compensate for uneven floors and reduce rocking or vibration
• Helps prevent door misalignment and uneven loads that can affect performance
• Commonly used when an appliance wobbles, shifts during cycles, or sits crooked

• Disconnect power to the appliance before attempting service; for washers, turn off water supply and drain hoses if needed
• Slide or tip the appliance as required to access the leveling legs; use caution and a helper for heavy units
• Adjust height by turning the leveler; verify stability with the appliance resting on all legs

This light cam assembly positions and secures the interior light mechanism so the appliance light operates correctly when the door is opened. Replaces a worn or broken cam to restore proper light activation and fit. What it does:

• Holds and indexes the interior light/lens assembly so the light turns on/off reliably with door movement
• Prevents the light or lens from rattling or becoming loose inside the cabinet
• Restores proper alignment when a broken or worn cam causes intermittent or non-functioning interior lighting
• Works with the door/light linkage to ensure consistent contact with the light switch

• Disconnect power to the appliance before starting any repair
• Remove the light lens and/or inner trim panel to access the cam; keep all fasteners for reassembly
• Inspect mating parts (lens, switch, brackets) and replace if damaged to avoid repeat failures
• Test light and door operation after installation to confirm correct alignment and function

This light cam assembly interfaces with a switch mechanism to turn the light on when actuated and off when released, restoring reliable lighting performance and preventing the light from staying on. What it does

• Engages the light switch as the mechanism moves to provide on/off control
• Restores consistent interior lighting function
• Helps prevent heat build-up from a light left on
• Typical symptoms: light stays on, won't turn on, intermittent operation, or a broken/missing cam near the switch

• 1 light cam assembly

• Disconnect power before servicing
• Access the switch/cam area; note the original cam's orientation
• Transfer any reusable clips/brackets from the old part if present; avoid forcing brittle plastics
• Restore power and test light operation before full reassembly

The Water Supply Tube is an OEM part for Whirlpool refrigerators. This tube transports water to supply the automatic ice maker. It ensures a consistent water flow to produce batches of ice on demand.

Causes of a bad water supply tube can include cracks or leaks from regular use and flexing over time. Mineral buildup inside the tube may also restrict water flow.

Symptoms of a bad water supply tube include:

• Ice maker not working or producing ice slowly
• Water droplets under the refrigerator
• Noticeable cracks or splits in the tube

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This inlet fitting connects the household water supply to the appliance's waterline, providing a secure, leak-resistant connection for ice makers and water dispensers. Use it to replace damaged or leaking supply fittings and restore proper water flow. What it does:

• Provides a sealed connection between the home's water supply and the appliance waterline
• Replaces cracked, corroded, or leaking inlet fittings that cause drips or loss of water supply
• Helps restore proper water flow to ice makers and dispensers when the original connector fails
• Compatible with standard waterline tubing used on many Whirlpool refrigeration applications

• Turn off the household water supply and unplug the appliance before beginning any work
• Inspect tubing for damage and replace the waterline if brittle or kinked to ensure a reliable seal
• Use appropriate thread sealant or ferrules per the original installation type; hand-tighten then secure per manufacturer guidance

This replacement water inlet valve controls water flow into the appliance so cycles can fill properly. It restores reliable water delivery for normal operation and helps stop fill-related faults or slow fills. What it does

• Opens and closes to let water into the appliance during fill cycles.
• Directs water to the correct chamber or dispenser when operating.
• Commonly linked to symptoms like no fill, slow fill, continuous filling, or water at the valve area.
• Helps prevent improper cycle operation caused by restricted or stuck valve passages.

• One water inlet valve.

• Turn off power and shut off the water supply before starting work.
• Drain remaining water from hoses and wear eye protection when disconnecting plumbing.
• Replace with the same part number and ensure all hose and electrical connections are secure.
• After installation, restore water and power and check carefully for leaks during a test fill.
