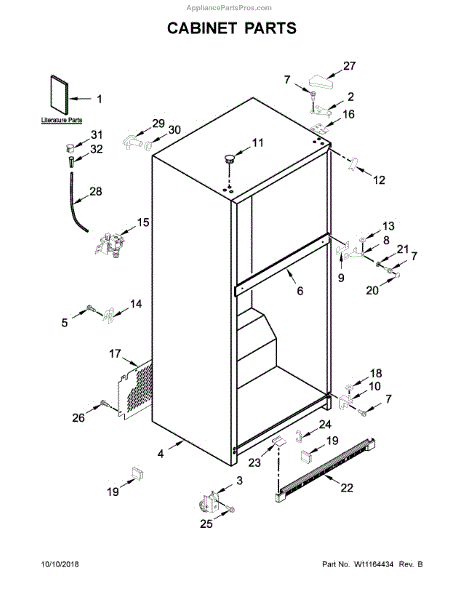

Parts for Whirlpool WRT311FZDB01: Cabinet Parts

This top door hinge is the butt hinge assembly that mounts to the cabinet at the top of the refrigerator door, supporting the door and allowing smooth swing. Replacing a worn hinge restores alignment and a reliable seal.

• Provides the upper pivot point for the door
• Keeps the door aligned so the gasket seals correctly
• Wear or damage can cause sagging, rubbing, squeaks, or a door that won't close fully
• Helps reduce air leaks and temperature swings near the door

• Disconnect power and remove items from the door to reduce weight
• Support the door from below; remove the hinge cover and mounting screws
• Note the position of any shims/spacers and transfer them to the new hinge
• Reinstall, align the door, tighten screws, and ensure proper gasket contact

This cabinet roller helps a door or pull-out drawer roll smoothly along its track for consistent, quieter operation. It replaces a worn or damaged roller to restore even movement and reduce scraping or sticking. What it does:

• Supports and guides a door or drawer along its track for proper alignment and motion
• Reduces noise and friction from worn or damaged rollers
• Helps eliminate sticking, scraping, or uneven travel during opening/closing
• Restores consistent operation when the original roller is cracked, broken, or missing

• One cabinet roller

• Disconnect power to the appliance before beginning any repair
• Inspect the track and surrounding components for wear or debris; clean as needed
• Many rollers snap or screw into place; use appropriate tools and avoid forcing parts

Size: 8-18 x 1/2 inch.

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

The Center Door Hinge is an OEM replacement part for Whirlpool refrigerators. As one of several hinges supporting each refrigerator door panel, it works to guide opening and closing movements.

Causes of a faulty center hinge tend to be wear from years of continuous operation with near-daily door cycles. Complete failure could also occur in the event of physical damage sustained during a repair or installation issue.

Symptoms include:

• Looseness, wobbling, or misalignment of the associated door
• Increased effort required to open or close doors
• Potential for doors to fall off alignment, cease opening fully
• Risk of door detachment altogether without hinge support

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This small shim installs on the refrigerator's center hinge pin to set door height and reduce excess play. Replacing a worn spacer can help restore smooth door movement and a reliable gasket seal. What it does:

• Maintains proper spacing at the center hinge to support door alignment
• Reduces door wobble, sagging, or rubbing against the cabinet
• Helps doors open and close smoothly with consistent gasket contact
• Can lessen clicking or squeaking from a worn hinge interface

• Includes the center hinge spacer only

• Unplug the refrigerator or switch off power at the breaker
• Remove items from the door; support the door before loosening center hinge screws
• Lift the door off; place the new spacer on the center hinge pin in the same orientation as the original
• Reinstall the hinge and door; tighten fasteners and verify door alignment and gasket seal

This lower door hinge supports the refrigerator door at the bottom pivot so it opens smoothly and stays properly aligned. Replacing a worn hinge can restore reliable door closure and help maintain an effective gasket seal.

• Provides the bottom pivot point and supports the door's weight
• Helps keep the door aligned for proper gasket contact
• Allows smooth opening and closing without binding
• Common symptoms of a failing hinge: door sagging, rubbing/scraping, squeaking, or not closing fully

• Disconnect power and, if applicable, shut off the water supply; remove items from the door.
• Support the door, remove the top hinge hardware, and lift the door off the bottom hinge.
• Remove the old bottom hinge from the cabinet/frame and install the new hinge in the same orientation, reusing original screws/shims.
• Reinstall the door and top hinge, then check alignment and gasket seal before restoring power.

Color: White

Color: Black

This press-in hole plug fills unused panel or console openings to restore a finished look and help keep out dirt and moisture. Simple, unobtrusive replacement that snaps into place for a clean, finished appearance. What it does:

• Covers unused holes in control panels, trim, or appliance housing for cosmetic repair
• Helps block dirt, dust, and small debris from entering interior cavities
• Maintains a flush surface so controls and trim fit properly
• Prevents moisture and contaminants from reaching internal components

• One press-in hole plug

• Designed to snap into a matching-size opening; press straight in until fully seated
• Disconnect power to the appliance before servicing if working near electrical components
• Use light hand pressure or a soft block to evenly seat the plug; do not force or use sharp tools

Color: Grey

The Hinge Washer is an OEM replacement part for Whirlpool refrigerators. This small washer plays a supports the refrigerator door hinge assembly. Center hinge plastic washer.

Causes of a bad hinge washer are generally normal wear and tear from extensive use. As the washer absorbs pressure each time the door is opened or closed, it can gradually deteriorate or crack. Physical damage is also possible if the door is accidentally struck or slammed.

Symptoms of a worn or damaged hinge washer include:

• sagging doors
• uneven gaps around the door seal
• doors that do not stay securely closed on their own
• Over time and repeated opening/closing stress, the hinge washer compresss which affects door alignment.

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The inlet valve is an OEM replacement part for Whirlpool refrigerators. Located where the water line attaches inside the fridge, it controls input flow into the ice maker and water dispenser components. A reliable inlet is necessary for these features.

Causes of a faulty inlet valve can range from water conditions like excess minerals collecting inside to wear from repeated valve openings.

Symptoms include:

• Ice maker or water dispenser not working properly
• Water leaks inside the fridge compartment
• Restricted flow not allowing full ice baskets or glass fills

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This shim is a thin flat spacer used to align or space appliance components for proper fit and stable operation. It restores correct spacing to reduce rubbing, vibration, or misalignment during repairs and maintenance. What it does:

• Provides a precise gap or alignment between panels, housings, or assemblies
• Helps stop rubbing or scraping noises caused by misaligned parts
• Reduces vibration by stabilizing mating surfaces
• Used when replacing worn or missing shims during panel, bracket, or trim repairs

• Disconnect power (and gas, if applicable) before starting any repair
• Position shim between mating surfaces, then secure fasteners snugly—do not over-tighten
• Inspect surrounding parts and fasteners; replace any that are damaged

The Hinge Washer is an OEM part for Whirlpool refrigerators. This part ensures smooth opening and closing by reducing friction between the door hinge and the refrigerator body.

Causes of a bad hinge washer can include normal wear and tear from frequent use, accumulation of dirt or debris, and exposure to moisture, which can lead to rust and corrosion.

Symptoms of a bad hinge washer include:

• Difficulty in opening or closing the refrigerator door
• A door that does not stay in place
• Squeaking or grinding noises when the door is moved
• Visible wear or deformation on the washer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This small pin clip secures the roller pin in a refrigerator drawer/track assembly, keeping the roller and pin from sliding apart. Replacing a missing or bent clip restores smooth drawer movement and helps prevent bins from tilting, binding, or dropping.

• Retains the roller on its pin to keep the drawer track assembly together
• Helps resolve drawers that tilt, bind, or fall when a clip is missing or damaged
• Prevents the pin from backing out, reducing scraping or popping noises
• Replaces clips that are missing, bent, or no longer hold securely

• Disconnect power and remove the drawer/bin to access the track and roller
• Support the roller; remove the old clip with small pliers while securing the pin
• Align roller and pin; press the new clip fully into the groove until seated
• Reassemble and verify the drawer glides smoothly without binding

Color: Black

Color: White

Color: Grey

This small fastener washer fits under a bolt or nut inside your washing machine, distributing clamping force and protecting surfaces. Replacing a worn or missing washer restores a secure fit and helps reduce vibration, rattling, and premature wear.

• Distributes load evenly under a bolt or nut to prevent damage and loosening
• Helps maintain correct spacing and alignment within the assembly
• Reduces metal-on-metal wear at the mounting point
• Can help address looseness, rattling/metallic noises, and excessive vibration

• Disconnect power and shut off water before servicing
• Note the original washer's position and orientation before removal
• Inspect the bolt/nut and mating surfaces; replace any damaged hardware
• Tighten to manufacturer guidance; avoid overtightening

This front trim grille restores the appliance's lower/front appearance and helps protect internal components from dust and debris. It replaces a cracked, broken, or missing grille to improve looks and allow proper airflow. What it does

• Covers and protects the appliance's front/lower opening and internal components
• Keeps dirt and debris from entering the cabinet area
• Restores a neat, finished appearance after damage or wear
• Helps maintain proper airflow through the front vent area

• Disconnect power to the appliance before beginning any work
• Typically installs by aligning tabs and snapping or fastening into place; may require a screwdriver
• Handle carefully to avoid scratching the finished surfaces during installation
• If mounting hardware is broken or missing, replace with manufacturer-recommended fasteners

This replacement lower front grille restores the finished look and directs airflow near the appliance base. It helps keep debris out of lower openings and provides a clean, finished appearance to the appliance front. What it does

• Covers and protects the lower front opening, helping prevent dust and debris from entering the cabinet area.
• Directs ventilation airflow where designed, supporting proper cooling of components behind the grille.
• Restores the appliance's exterior appearance when the original grille is cracked, dented, or missing.
• Fits into the lower front retainer and secures with factory fasteners.

• One lower front grille.

• Install requires removing the kick plate or access to the lower front; keep fasteners for reinstallation.
• Handle carefully to avoid scratching the finish; align tabs before snapping or fastening into place.
• Always disconnect power to the appliance before removing panels for service.
• If screws or clips are missing or damaged, replace with manufacturer-specified fasteners.

A replacement grille that restores the appliance's exterior venting trim and finished appearance. Designed to fit the factory opening and help direct air flow while covering internal components for a clean look. What it does:

• Covers and protects the appliance vent opening while maintaining the original appearance
• Directs airflow from the appliance to help proper ventilation
• Replaces cracked, broken, warped, or discolored trim that affects fit and finish
• Helps prevent debris from entering internal components behind the vent

• Verify fit by comparing part number and shape before installation
• Remove power to the appliance before removing access panels or fasteners
• Use basic hand tools; retain all fasteners for reassembly
• If clips or mounting hardware are damaged, replace them to ensure a secure fit

This replacement grille covers the appliance's front vent opening to maintain airflow and protect internal components. It restores a clean, finished appearance and secure fit when the original grille is cracked, warped, loose, or missing.

• Directs airflow through the unit for proper ventilation
• Shields internal parts from debris and accidental contact
• Replaces a broken, warped, or missing grille
• Common symptoms include rattling, poor fit, visible cracks, or an exposed opening

• Disconnect power to the appliance before servicing
• Remove mounting screws or release retaining tabs; keep hardware for reuse
• Align the new grille with tabs or slots and secure without overtightening
• Restore power and confirm proper fit and clearance

This end cap is a small replacement trim piece that restores the finished appearance and protects the exposed edge of the appliance component. It helps keep edges covered and prevents dirt buildup where panels meet. What it does:

• Covers and protects the exposed end of a panel or housing to prevent wear and dirt accumulation
• Restores a finished, uniform appearance after damage or loss
• Helps maintain proper alignment of adjacent trim or components
• Commonly replaced when cracked, broken, missing, or cosmetically damaged

• One end cap trim piece

• Disconnect power or unplug the appliance before beginning any repair
• Installation is typically simple: align the cap and snap or secure it into place with existing retainers or fasteners
• Keep track of any small clips or screws removed during replacement
• If the cap does not seat easily, double-check alignment to avoid damaging surrounding trim

This small retainer clip secures a component or wiring harness to the appliance so parts stay aligned and rattle-free. It replaces a worn or broken fastener to restore proper fit and reduce noise or intermittent connections. What it does:

• Holds a panel, bracket, or wiring harness in place to prevent movement
• Keeps components aligned to ensure smooth operation and reduce vibration noise
• Helps maintain electrical connections by stabilizing wiring runs
• Common symptom: loose trim, rattling or vibrating parts, or intermittent wiring contact

• Disconnect power to the appliance before starting any work
• Remove the appropriate access panel or trim to reach the damaged clip
• Use pliers or a flat screwdriver to remove the old clip and snap the new clip into place
• Verify the secured part is seated correctly and test the appliance after reassembly

This genuine replacement screw secures appliance panels and components for reliable operation. Use it to replace stripped, missing, or corroded fasteners and restore proper fit and alignment for safe appliance use. What it does

• Secures panels, brackets, and small components to restore proper alignment and reduce vibration
• Replaces stripped or missing fasteners that can cause loose parts or rattling
• Helps maintain safe electrical and mechanical connections by holding components in place
• Works wherever the original matching screw was used on the appliance

• Disconnect power and water before beginning any repair
• Use the correct driver bit to avoid cam-out and head damage
• Tighten securely but avoid overtightening to prevent stripping threads or cracking plastic
• If threads are damaged, replace mating hardware or use appropriate repair inserts rather than forcing the screw

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This small hinge cover caps and secures the appliance lid/cover hinge, restoring proper alignment and preventing wear on the hinge joint for smoother opening and closing. What it does:

• Protects the hinge pivot and keeps the cover seated correctly
• Helps prevent looseness, wobble, or misalignment of the lid/cover
• Reduces metal-on-metal wear and guards against rubbing or rattling noises
• Restores normal lid movement when the original hinge cover is cracked, missing, or worn

• Disconnect power to the appliance before starting any work
• Remove any screws or trim panels that block access to the hinge; keep fasteners for reassembly
• Handle plastic components carefully to avoid cracking; align before tightening
• If other hinge hardware is damaged or loose, inspect and replace as needed for a complete repair

This hinge cover conceals and protects the door hinge area, providing a clean, finished look while helping keep dust and debris out. The black finish matches compatible appliances for a seamless appearance.

• Covers the door hinge to protect hardware and improve appearance
• Helps prevent dust and debris from entering the hinge area
• Common fix when the original cover is cracked, broken, loose, or missing
• Cosmetic part; does not correct door alignment issues caused by hinge wear

• Unplug the appliance before beginning any repair
• Open the door and remove any visible screws or clips securing the cover
• Lift off the old cover and align the new cover over the hinge
• Reinstall screws/clips and verify the cover is seated securely

This hinge cover replaces a damaged or missing hinge trim to protect and conceal the hinge assembly and restore the appliance's finished appearance. It fits over the hinge area and helps reduce dirt buildup and exposed hardware. What it does:

• Covers and protects hinge hardware, hiding screws and sharp edges
• Helps keep dirt, lint, and moisture out of the hinge area
• Restores the appliance's original, finished look
• Common symptoms: cracked, broken, or missing cover; exposed hinge hardware; cosmetic damage or debris buildup

• Refer to your model diagram for correct orientation and fastener locations
• Basic hand tools may be required; some models need the hinge loosened or partially removed
• Disconnect power and/or unplug the appliance before starting work when applicable
• Handle edges carefully to avoid cuts; follow OEM instructions for reassembly

This water tube fitting links sections of the appliance's water line to create a secure, leak-resistant connection. Replacing a worn or cracked fitting helps maintain proper water flow and reduces the chance of leaks around the water system. What it does:

• Joins two sections of water tubing within the appliance's water circuit
• Maintains a watertight seal at the connection point
• Supports consistent flow to water-dependent features (e.g., dispenser or ice maker)
• Typical symptoms: leaks or drips at the joint, water under the unit, weak/no dispenser flow, or ice maker not filling

• 1 water tube fitting (approximately 128 mm length)

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure by dispensing water; place a towel to catch residual water
• Remove the old fitting and fully seat tubing into the new fitting; restore water, check all connections for leaks, then reconnect power

This gasket/seal creates a tight barrier between two mating parts in your appliance to prevent leaks and performance loss. Replacing a worn gasket restores proper sealing and helps stop seepage at the joint. What it does

• Forms a reliable seal between components to prevent fluid or air leaks
• Maintains proper operation by keeping the sealed area contained
• Replaces gaskets that are brittle, cracked, flattened, or swollen
• Common signs include residue or moisture around the joint, visible wear on the old gasket, or a loose/poor seal

• 1 gasket/seal

• Disconnect power and any water or gas supply before servicing
• Note the gasket's orientation; compare old and new parts before installation
• Clean and dry mating surfaces; remove old adhesive and debris
• Seat the gasket evenly; do not overtighten fasteners; test for leaks after reassembly

A small metal clamp that secures flexible hoses or tubing in laundry and kitchen appliances to prevent leaks and keep connections tight. Simple, durable replacement for a worn or loose hose fastening point. What it does

• Holds a hose or tube firmly to a barb, fitting or nipple to stop leaks and movement
• Restores a secure connection where a cracked or corroded clamp allows fluid or air escape
• Common service item for loose drain, fill, or vent hoses showing seepage or slipping
• Helps maintain proper appliance function by ensuring sealed hose connections

• One clamp

• Disconnect power and water before servicing; follow your appliance safety procedures
• Inspect mating hose and fitting for damage; replace hose if cut or brittle
• Use the correct pliers or clamp tool for safe installation and to avoid over-tightening

These inserts are for 1/4 inch plastic tubing. Package of 4.
