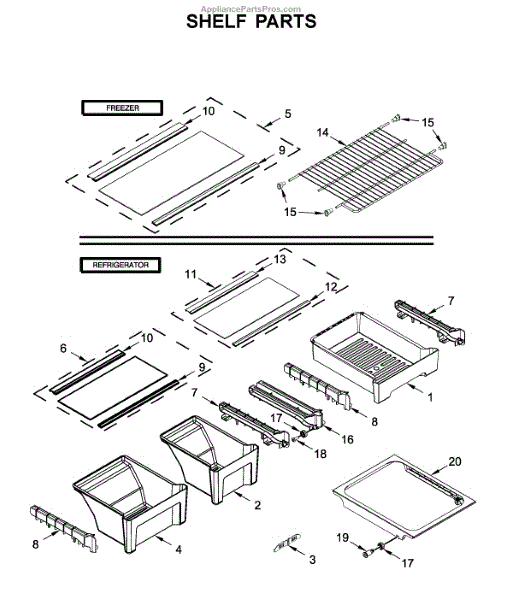

Parts for Whirlpool WRT311FZDB01: Shelf Parts

This refrigerator meat pan is the deli drawer that slides into the fresh food section to organize meats and cheeses and help contain drips. It restores clean, smooth, easy-access storage when the original bin is cracked or missing. What it does:

• Provides a dedicated drawer for deli items in the fresh food compartment
• Slides on existing rails for organized, easy access
• Helps contain spills to keep shelves cleaner
• Common symptoms: cracked bin, broken tabs, drawer won't slide smoothly or falls off track, missing drawer

• 1 refrigerator meat pan

• Remove contents, pull the old drawer straight out, then lift to clear the rails
• Align the new pan with the rails and slide it in until fully seated
• Do not force; if it won't seat, inspect the drawer slides/tracks for damage
• Unplug the refrigerator if removing shelves or working near internal components

The Crisper Pan is an OEM component for Whirlpool refrigerators. Located in the crisper drawer, it collects moisture to prevent stored fruits and vegetables from drying out or wilting.

The crisper pan utilizes a precise design and surface texturing to maintain the optimal humidity level. Its material withstands continuous use without warping or staining over time. Drainage holes allow excess liquids to return to the pan.

Symptoms of a bad crisper pan can include:

• Moisture streaking on drawer surfaces over multiple uses
• A buildup of pink or white residue from dried-out produce
• Fruits and vegetables show signs of wilting or decay more quickly
• Deformation from cracking, creasing, or impact damage

This OEM part is also compatible with refrigerators from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, and Kenmore.

This humidity control graphic is the replacement label for the crisper drawer humidity slider, restoring clear markings so you can set and read the vent position easily. It helps make humidity settings visible and intuitive. What it does:

• Replaces worn, faded or missing humidity-slider markings on the crisper vent
• Restores clear low/med/high or open/closed indicators for accurate vent position reading
• Helps prevent confusion when adjusting drawer humidity for produce storage
• Matches OEM appearance and placement to maintain original look

• One humidity control graphic/label for the crisper humidity slider

• Disconnect power to the appliance before accessing interior components when required
• Remove the crisper drawer and clean the mounting area; peel-and-stick or snap-in fit may be adhesive-backed
• Align the graphic carefully before attaching to avoid rework; press firmly to ensure full adhesion

The Pan-Crisper is an OEM component specifically designed for Whirlpool refrigerators. Located in the fresh food compartment door, it houses the crisper drawers where vegetables are stored to prolong freshness. Proper pan functioning ensures the drawer glides smoothly and seals shut to regulate humidity levels optimally.

Symptoms of a bad crisper pan include:

• Drawers failing to open or close fully due to warping/deformation
• Excessive condensation buildup caused by compromised seals
• Drawers sticking or binding during operation

Causes are commonly cracking or mineral scale accumulation which can warp the plastic over time. Temperature fluctuations also make them brittle and prone to failure.

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This freezer shelf assembly provides a sturdy, easy-to-clean surface for organizing frozen goods and restoring proper storage spacing. Replaces a cracked, warped, or missing shelf to help keep items secure and accessible. What it does:

• Provides stable support for frozen food and containers to prevent sagging or falling
• Restores proper shelf spacing and organization inside the freezer compartment
• Helps maintain airflow by fitting into the designed shelf brackets
• Common fix for shelves that are cracked, broken, warped, or otherwise unusable

• Remove all food and any loose items from the shelf area before installation
• Slide the shelf into the factory mounting brackets until it seats fully; no special tools typically required
• Inspect bracket rails for damage and replace if worn to ensure proper fit

The Track is an OEM replacement part for Whirlpool refrigerators. It is designed to support and guide the movement of the refrigerator drawer opening and closing. It is responsible for keeping the drawer aligned and preventing it from falling off track or becoming misaligned.

A bad track rail can occur due to wear and tear, physical damage, or improper installation. If you notice symptoms such as a sticking or jamming drawer, difficulty in sliding the drawer in and out smoothly, or a misaligned drawer, it may be time to replace the track rail.

Symptoms of a bad track include:

• Sticking or jamming drawer
• Difficulty in sliding the drawer smoothly
• Misaligned drawer

Restore your refrigerator drawer by replacing the faulty or damaged track with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
Right side.

Left side

This shelf trim is a replacement trim piece that restores the front edge/finish of a refrigerator door shelf, keeping items secure and improving appearance. It snaps into the shelf to cover and protect the exposed edge. What it does:

• Replaces a cracked, chipped, or missing front shelf edge to prevent items from sliding out
• Restores a flush, finished look to a refrigerator door shelf
• Helps maintain proper containment of bottles and smaller items on the door
• Fits into the shelf channel and holds the shelf liner edge in place

• Remove the door shelf or bin per the refrigerator manual before replacing the trim
• Align the trim with the shelf channel and press firmly until it snaps into place
• Do not force parts; inspect clips or mounting features for damage and replace shelf if necessary
• Disconnect power or follow manufacturer safety guidance if working near electrical components

This refrigerator glass shelf replaces a cracked or missing shelf, restoring a sturdy, level, easy-to-clean storage surface. The glass surface helps keep items organized and can contain minor spills to prevent messes from spreading.

• Provides a flat, stable surface for food storage inside the refrigerator
• Helps contain small spills to reduce cleanup
• Restores shelf space lost due to broken or missing glass
• Common symptoms: cracked or shattered glass, wobbling shelf, items tipping

• Empty the shelf and remove any obstructing bins before starting
• Handle glass carefully; wear cut-resistant gloves and avoid flexing the panel
• Lift the front edge slightly to disengage, then slide out; install the new shelf in reverse
• Ensure the shelf is fully seated in its supports before loading items

A replacement shelf trim that restores the front edge of a refrigerator shelf for a clean look and helps keep items from sliding forward. Easy cosmetic fix that renews shelf function without replacing the entire shelf. What it does:

• Replaces a cracked, chipped, warped, or missing front shelf trim to prevent items from slipping off the shelf edge
• Restores a finished appearance to the shelf front and helps retain small items
• Snaps into the shelf edge or bracket to secure the glass shelf in place
• Helps eliminate rattling or shifting caused by damaged trim

• One shelf trim

• Remove refrigerated items and slide or lift the shelf out per your owner's manual before replacing trim
• Handle glass shelf carefully; support it on a flat surface during installation
• Align trim clips with the shelf edge and press until it snaps into place
• No electrical disconnection required; follow OEM instructions for safe handling

This refrigerator glass shelf replaces a cracked or missing shelf, restoring a sturdy, level, easy-to-clean storage surface. The glass surface helps keep items organized and can contain minor spills to prevent messes from spreading.

• Provides a flat, stable surface for food storage inside the refrigerator
• Helps contain small spills to reduce cleanup
• Restores shelf space lost due to broken or missing glass
• Common symptoms: cracked or shattered glass, wobbling shelf, items tipping

• Empty the shelf and remove any obstructing bins before starting
• Handle glass carefully; wear cut-resistant gloves and avoid flexing the panel
• Lift the front edge slightly to disengage, then slide out; install the new shelf in reverse
• Ensure the shelf is fully seated in its supports before loading items

This genuine wire shelf replaces a damaged or missing interior refrigerator shelf to restore storage and airflow. It provides stable support for food and containers and matches factory fit and finish. What it does

• Replaces a broken, bent or missing refrigerator wire shelf so items sit securely.
• Restores correct shelving layout to maintain even airflow and cooling.
• Prevents items from falling through damaged shelving and keeps food organized.
• Fits into existing shelf rails or supports for a factory-style fit.

• Remove all food and unplug the refrigerator or turn off power to the appliance before starting.
• Slide shelf into existing rails or seat onto shelf supports; no special tools typically required.
• Wear gloves to avoid sharp wire edges during handling.
• If shelf does not seat easily, verify support clips or rails are correctly positioned and undamaged.

This freezer shelf mounting cup fits into the liner opening to support the ribbed freezer shelf post, keeping the shelf level and secure. Replace cracked or missing cups to restore proper shelf support and prevent sagging.

• Supports the ribbed freezer shelf post and anchors it in the liner
• Helps keep the shelf level and properly positioned
• Replaces cracked, worn, or missing cups
• Common symptoms: shelf tilts, won't stay in place, rattles, or falls

• Unplug the refrigerator before starting
• Remove the freezer shelf; carefully pry the old cup straight out of the liner opening to avoid damage
• Press the new cup fully into the opening until flush; reinstall the shelf post into the cup
• Verify the shelf is seated and level before loading items

This center crisper track supports and guides the refrigerator's produce drawers. Replacing a cracked or warped track restores smooth sliding and proper alignment so the bins open and close correctly without binding or sagging.

• Provides the center guide and support for the crisper drawers beneath the crisper cover
• Helps keep bins level and aligned for smooth operation
• Replace if the center rail is cracked, loose, or tabs are broken
• Typical symptoms: drawers stick, tilt, fall off the track, or won't close fully

• Disconnect power; remove crisper drawers and any glass shelf/cover as needed
• Note orientation; release tabs or remove fasteners to take out the old track
• Transfer and reuse existing hardware if required
• Seat the new track securely and verify drawer alignment before restoring power

The Drawer Roller is an OEM part for Whirlpool refrigerators, specifically designed to facilitate the smooth and effortless sliding of drawers within the appliance. This small but crucial component ensures that the refrigerator's drawers open and close with ease, allowing for convenient access to fruits, vegetables, meats, and other items stored inside.

Causes of a bad Drawer Roller can stem from wear and tear over time, accumulation of debris or food particles in the roller mechanism, or damage from overloading the drawer beyond its capacity.

Symptoms of a bad Drawer Roller include:

• Drawers sticking or jamming when you try to open or close them
• A grinding or squeaking noise during drawer movement
• The drawer sagging or not aligning properly within the refrigerator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement cabinet screw secures panels, brackets, and ducts in Whirlpool-built appliances so components stay aligned and secure. Replacing missing or stripped hardware helps reduce vibration, rattling, and gaps that can affect performance.

• Fastens panels, brackets, and internal components in the appliance cabinet
• Helps maintain proper alignment and reduce vibration or rattling noises
• Restores a tight fit where original hardware is missing, damaged, or stripped
• Typical symptoms: loose paneling, buzzing/rattling sounds, or parts that won't stay fastened

• Disconnect power; for gas models, also shut off the gas supply
• Replace one fastener at a time to preserve alignment and match to the original hardware
• Use the correct driver; start threads by hand to avoid cross-threading
• Do not overtighten into sheet metal

The Axle is an OEM part for Whirlpool refrigerators. It is the mechanism that supports and enables smooth extension of shelves and drawers on sliding tracks.

Causes of a bad slide axle can include normal wear to plastic bushings from constant shelf movement, or damage from sharp or heavy items that cause stress and premature failure.

Symptoms of a faulty slide axle include:

• Shelves or drawers that do not fully extend or retract
• Resistance felt while pulling shelves out
• Squeaking or grinding noises coming from sliding areas
• Shelves that do not stay securely in place once extended

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Deli Drawer Shelf Frame is an OEM part for Whirlpool refrigerators. This frame serves as the structural support for the deli drawer, holding it in place and providing a smooth surface for the drawer to slide in and out easily. Additionally, it acts as a shelf for items stored above the drawer, maximizing space utilization within the refrigerator.

Symptoms of a bad Deli Drawer Shelf Frame include:

• Cracks or breaks in the frame that compromise its structural integrity.
• The drawer sagging or sticking due to a misaligned or damaged frame.
• Difficulty in sliding the drawer in and out smoothly.
• Unstable storage as items on the shelf above the drawer shift or fall.

Causes of a bad shelf frame can include overloading the drawer or shelf with too much weight, general wear and tear from frequent use, or environmental factors such as moisture and temperature changes that can warp or degrade the materials.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
