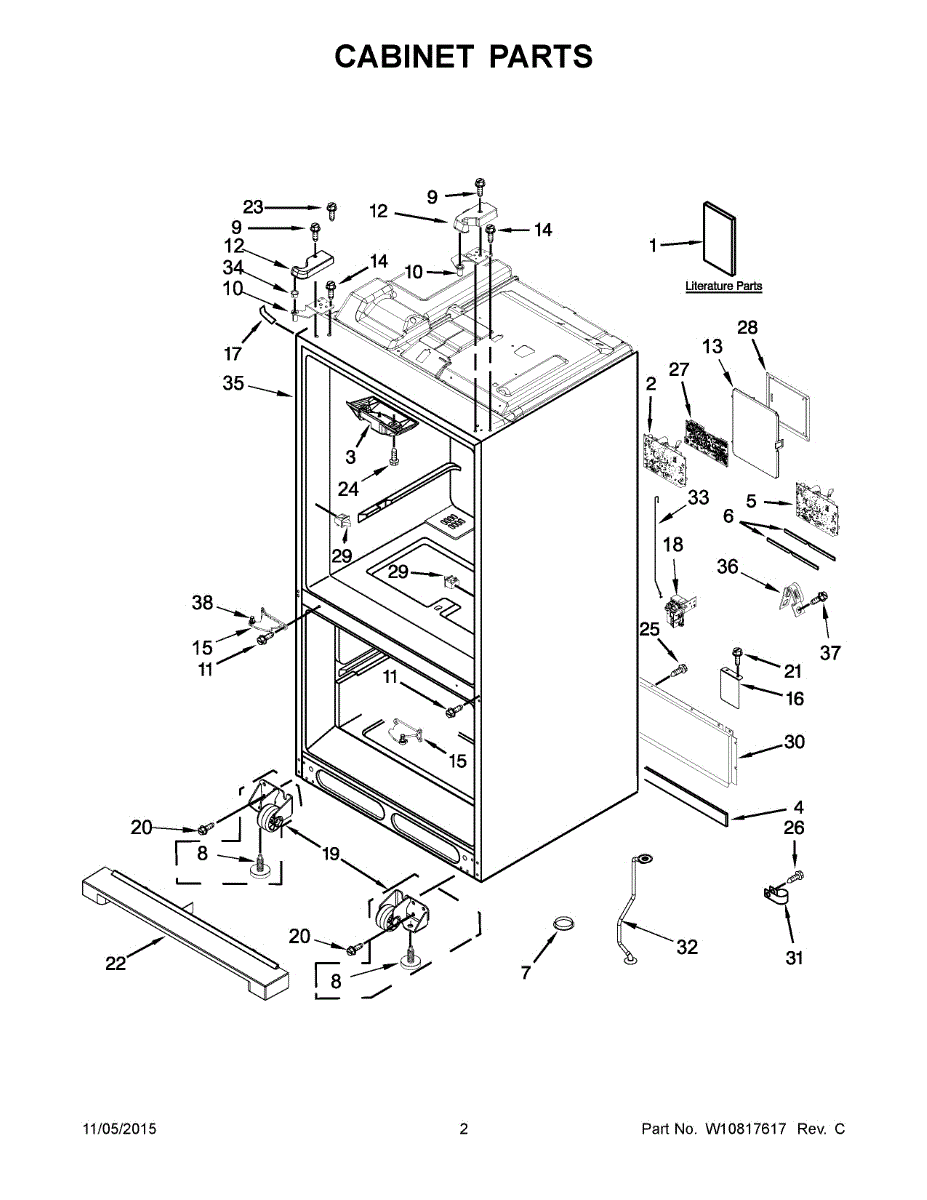

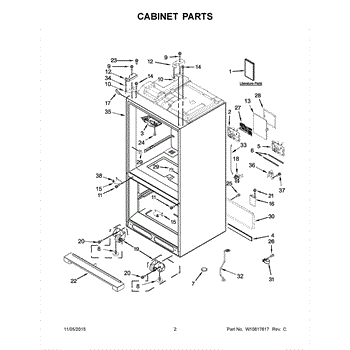

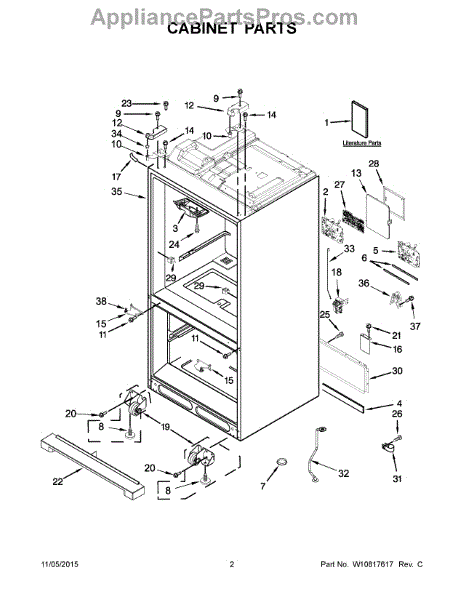

Parts for Whirlpool WRV996FDEE01: 02 - Cabinet Parts

The Power Control Board is an OEM component for Whirlpool refrigerators. It is an essential electronic component responsible for monitoring and regulating power distribution throughout the entire unit. The power control board controls components such as cooling fans, compressors, lights, ice makers, and more.

Symptoms of a bad power control board include:

• Lights, fans, or other components failing to turn on
• Inability to adjust temperature settings
• Constant tripping of circuit breakers
• Error codes displayed that cannot be cleared

Causes of failure include moisture damage, component breakdown over time, or power surges that can fry circuitry.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

The Refrigerator Control Board is an OEM part for Whirlpool refrigerators. It acts as the brain of the refrigerator, managing and coordinating various functions such as temperature regulation, defrost cycles, and the operation of fans and compressors.

You should replace the control board if it malfunctions or fails. Causes of a bad control board can include power surges, electrical shorts, or component wear and tear over time. Exposure to moisture or extreme temperatures can also cause damage to the board.

Symptoms of a bad control board include:

• Inconsistent or incorrect temperatures
• The refrigerator or freezer not cooling
• Unresponsive control panel or display
• Unusual noises from the refrigerator
• Error codes displayed on the control panel

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Leveling Leg is an OEM replacement part for Whirlpool refrigerators. It is one of four legs situated internally at the base corners for proper tilt positioning. It raises or lowers each leg independently to stabilize units on uneven kitchen floors.

Causes of replacement consist of wear from continual torque required during positioning processes. Thread damage or corrosion buildup attributable to floor locations over extended use necessitates periodic renewal as well.

Symptoms involve:

• Doors that fail to align or seal completely during open-close cycles
• Noisy imbalances traced to feet contacting floor surfaces
• Appliance rocking is unable to be remedied through existing leg corrections

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This upper left door hinge supports and guides the appliance door for smooth opening and secure alignment. Replacing a worn or damaged hinge restores proper door fit and helps prevent sagging or uneven seals. What it does:

• Provides the pivot point that lets the door open and close smoothly
• Keeps the door aligned to maintain an even seal and proper closing
• Prevents door sagging, rubbing, or misalignment that can cause gaps
• Works with the hinge pin and mounting points to support door weight

• Disconnect power to the appliance and remove food from the door area before starting
• Support the door while removing and installing the hinge to prevent dropping or damage
• Use the same mounting hardware unless replacements are specified; tighten fasteners securely but do not overtighten
• Inspect strike plates, lower hinge, and gasket for related wear

This replacement screw secures appliance panels and components to restore proper fit and reduce vibration. A straightforward fastener that helps keep parts aligned and prevents noise or loose trim from worsening. What it does:

• Fastens panels, brackets, or trim pieces to the appliance frame
• Helps stop rattling or vibration caused by loose or missing hardware
• Restores proper alignment where original screw has been lost or damaged
• Works wherever the OEM screw specification is required for secure mounting

• Turn power off and unplug the appliance before working on it
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed fasteners organized so you reinstall the correct pieces

Color: Grey  (RH)

Color: Black  (RH)


This hinge screw secures the door hinge to the appliance cabinet or door. Replacing a missing or stripped screw restores a tight, aligned hinge connection for smooth opening and reliable sealing.

• Fastens the hinge to the frame or door to prevent looseness
• Helps maintain door alignment for smooth opening/closing
• Direct replacement for lost, rusted, or stripped hinge screws
• Common symptoms: loose hinge, door sagging, rubbing/binding, or poor sealing

• Disconnect power before service; if working on a refrigerator, also shut off the water supply
• Support the door before loosening or tightening hinge hardware
• Start threads by hand to avoid cross-threading; tighten securely without over-torquing

Color: Black


Color: Grey


Color: Black

Color: Grey

The Hinge Door is an OEM part for Whirlpool refrigerators. It attaches the refrigerator door securely while allowing smooth opening and closing. Reinforced metal hinges withstand heavy doors with precision balance.

Over the years, excess force from heavy loads or clumsy handling can misalign hinges. Causes of a bad hinge include stripped screws, bent barrels, or worn bushings letting doors droop or stick.

Symptoms of a bad hinge include:

• Door doesn't close or seal properly
• Difficulty opening/closing the refrigerator door
• Door is crooked or sits unevenly
• Noise or grinding felt/heard from hinges

This Whirlpool OEM hinge ensures proper door function. Its durable construction maintains dependability and refrigerator efficiency. Compatible also with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, select Kenmore models.

This cover corner replaces a missing or damaged corner trim piece to restore the refrigerator's interior/exterior finish and help keep shelves and bins seated properly. It provides a clean, finished look and protects edges from wear. What it does:

• Replaces the corner trim/filler that covers panel edges or joins interior liners
• Helps keep adjoining panels, shelves or bins aligned and reduces gaps
• Restores appearance after chipping, cracks or impact damage

• Designed for drop-in or snap-on installation; verify fit against the appliance before final assembly
• Use basic hand tools; avoid excessive force which can crack plastic parts
• Disconnect power if removing interior panels or working near electrical components

The Water Inlet Valve is an OEM part for Whirlpool refrigerators. It plays a crucial role in supplying water to the refrigerator's ice maker and water dispenser. This valve opens and closes to allow water to flow into the appliance as needed, ensuring that you have access to fresh ice and cold water whenever you need it.

Symptoms of a bad Water Inlet Valve include:

• The refrigerator’s ice maker not producing ice or producing very small or malformed ice cubes.
• No water being dispensed, or the water dispenser running slowly.
• Leaking water from the valve area, which may indicate a crack or failure in the valve itself.

Causes of a bad water inlet valve can include mineral build-up from hard water, which can block the flow or cause the valve to stick open or closed; wear and tear over time that affects the valve’s ability to function properly; or electrical failures that prevent the valve from receiving the signal to open or close.

This OEM part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Front Left Roller Assembly is an OEM part for Whirlpool refrigerators. This roller assembly supports the refrigerator, allowing it to be easily moved for cleaning or maintenance.

Causes of a bad roller assembly can include wear and tear over time, damage from moving the refrigerator frequently, or exposure to heavy loads that can cause the roller to crack or break.

Symptoms of a bad front left roller assembly include:

• Difficulty moving the refrigerator
• The refrigerator not staying level
•  Unusual noises when attempting to move the appliance
• Visible damage or wear on the roller

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Roller Assembly is an OEM part for Whirlpool refrigerators. It contains heavy-duty ball bearing rollers located along the bottom front-right cabinet. Repeatedly maneuvering fully-loaded refrigerators can cause cabinet rollers to crack or bearing races to deteriorate over extended use.

Potential failure causes include structural cracks from strong impacts or bearing lubrication washing away from repeated wet cleaning.

Symptoms of faulty cabinet rollers include:

• Resistance or grinding noises when tilting the refrigerator
• Visible bearing marks wearing into roller housing
• Potential for cabinet walls or flooring damage without smooth motion

This is a genuine Whirlpool OEM replacement, this part is also compatible with Maytag, Jenn-Air and some KitchenAid models.

This hex-head sheet metal screw secures refrigerator panels, brackets, and other internal components. Replacing a missing, corroded, or stripped screw helps keep parts tight, reduces vibration noise, and maintains proper alignment of covers and assemblies.

• Fastens sheet-metal panels, ducts, brackets, and trim inside the cabinet
• Helps maintain a secure fit and reduce rattles or buzzing
• Restores alignment when an original fastener is missing or damaged
• Common signs include loose or vibrating panels, a stripped screw head, or a screw that won't tighten

• Unplug the refrigerator and shut off water supply if working near ice/water components
• Use the correct nut driver or socket for the hex head
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten
• Replace screws one at a time to help keep parts aligned

This self-drilling screw secures appliance panels and components where a fastener must cut its own pilot hole. It provides a quick, reliable hold for repair or reassembly of trim, brackets, and internal fixtures. What it does:

• Fastens panels, brackets, and small components without pre-drilling
• Helps stop loose or rattling trim and parts caused by missing or worn screws
• Restores proper alignment and secure mounting after repairs
• Works where sheet metal or thin substrates require self-tapping engagement

• One self-drilling screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct size driver and steady pressure to avoid stripping the head
• Start straight and apply firm, even torque; avoid overtightening which can damage mounting surfaces
• Wear eye protection and handle small fasteners carefully to avoid loss or ingestion hazards

Color: Black


Color: Grey


This is a genuine mounting screw used to secure appliance panels and components. It provides reliable fastening to keep parts aligned and reduce vibration-related noise for safer, quieter operation. What it does:

• Secures panels, brackets, or small components to the appliance frame
• Prevents parts from loosening and causing rattling or misalignment
• Maintains proper part positioning for reliable operation
• Helps reduce vibration and noise when panels are fastened correctly

• Use the correct driver and size to avoid stripping the head
• Tighten until snug; do not overtighten which can strip threads or crack plastic
• Disconnect power before servicing electrical appliances to avoid shock
• If a screw is corroded or damaged, replace all similar fasteners in that area for best results

This factory screw secures appliance components so they stay aligned and firmly attached during everyday use. Replacing a missing or damaged screw helps stop rattles, looseness, and poor fit that can affect performance over time.

• Fastens panels, brackets, or hardware to keep assemblies tight
• Helps correct issues like loose handles, vibrating panels, or misaligned parts
• Restores proper fit after a screw is stripped, corroded, or lost
• Built to match the original thread and length for reliable engagement

• Disconnect power and, if applicable, shut off water before servicing
• Use the correct driver to avoid stripping the head or threads
• Start threads by hand to prevent cross-threading; tighten snugly without over-torquing
• Replace any companion fasteners that are worn or missing for even clamping

Replacement screw that secures panels, brackets, and other components inside your appliance, keeping assemblies tight and aligned. Replace missing or stripped hardware to eliminate looseness, reduce vibration, and restore a solid, factory-fit hold.

• Fastens panels, brackets, trim, or internal components
• Helps maintain alignment and reduce rattling/vibration
• Replaces missing, loose, rusted, or stripped hardware
• Common signs: stripped head/threads, loose panel, buzzing/rattling noises

• Disconnect power before service; shut off gas/water if applicable
• Match to the original screw; start threading by hand to avoid cross-threading
• Use the correct driver size to prevent stripping
• Tighten snugly; do not overtighten. If it won't hold, inspect the receiving hole/clip

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This water tube guides the refrigerator's water from the inlet to the dispenser and ice maker, ensuring a steady flow where needed. Replaces a damaged or clogged tube to restore proper water delivery and help prevent leaks. What it does

• Channels incoming water to the dispenser and ice maker assemblies.
• Restores normal dispenser flow when the original tube is cracked, pinched, or blocked.
• Helps stop leaks that occur from split or deteriorated tubing.
• Supports proper ice maker fill cycles by maintaining an unobstructed water path.

• One replacement water tube.

• Turn off the refrigerator and shut off the water supply before starting work.
• Inspect and replace any worn clamps, seals, or grommets encountered during installation.
• Use appropriate hand tools; avoid overtightening fittings to prevent damage.

This rubber grommet cushions and protects a mounting or wiring pass-through, helping reduce vibration and prevent chafing where parts or wires pass through a panel. It's a simple replacement that restores a secure, quiet fit. What it does:

• Provides a protective barrier around openings to prevent wire and component abrasion
• Cushions panels or components to reduce noise and vibration
• Helps maintain proper alignment of mounted parts
• Commonly replaced when torn, flattened, or allowing rubbing/metal-to-metal contact

• One rubber grommet as shown

• High-level replacement — access to the panel or opening is required
• Inspect surrounding fasteners and wiring for damage while replacing
• Use basic hand tools; avoid stretching the grommet excessively during installation
• Disconnect power to the appliance before working in areas with wiring or motors

Replacement screw that secures panels, brackets, and other components inside your appliance, keeping assemblies tight and aligned. Replace missing or stripped hardware to eliminate looseness, reduce vibration, and restore a solid, factory-fit hold.

• Fastens panels, brackets, trim, or internal components
• Helps maintain alignment and reduce rattling/vibration
• Replaces missing, loose, rusted, or stripped hardware
• Common signs: stripped head/threads, loose panel, buzzing/rattling noises

• Disconnect power before service; shut off gas/water if applicable
• Match to the original screw; start threading by hand to avoid cross-threading
• Use the correct driver size to prevent stripping
• Tighten snugly; do not overtighten. If it won't hold, inspect the receiving hole/clip

This door cam coupler links the hinge cam components that control your refrigerator door's movement. Replacing a worn coupler restores smooth opening/closing and proper alignment so the gasket seals correctly and the door stays shut.

• Couples the hinge cam surfaces to guide door travel and detent action
• Helps the door close smoothly and stay open at designed stop points
• Maintains door alignment for even gasket contact and sealing
• Common symptoms of failure: clicking/grinding at the hinge, door sagging or misalignment, door not closing fully or popping back open

• Disconnect power and remove items from the door to reduce weight
• Support the door while removing hinge fasteners; lift door straight off the hinge pin
• Note the original coupler's orientation and install the new part the same way
• Reassemble, then check door alignment and verify a full perimeter gasket seal
