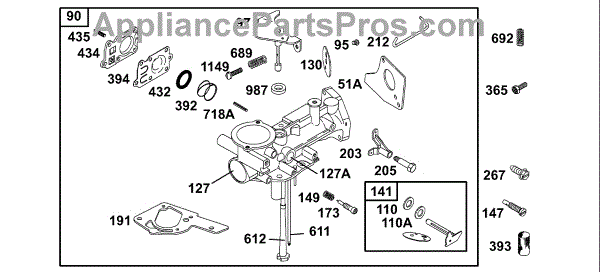

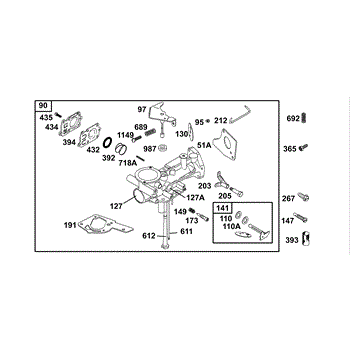

Parts for Briggs & Stratton 137202-0714-A2: Carburetor Group Parts

The intake gasket on a carburetor serves an important function. It ensures there is no additional air getting into the carburetor. If a gasket on a carburetor is not working properly, it could allow for extra air and dirt to get in, which might cause engine performance issues.Over time, the gaskets will need to be replaced. They can dry, crack, and break over time. It is not a matter of whether they should be replaced, but when. Ideally, gaskets should be replaced whenever the carburetor is serviced. Check on the gaskets occasionally to ensure they are in good condition.This intake gasket is used on a wide range of lawn and garden machines including mowers, tillers, leaf blowers, generators, and wood chippers. This gasket is compatible with select models from Midwest Engine, Briggs & Stratton, Craftsman, Toro, and Simplicity. It is sold individually and is a genuine OEM replacement sourced from the manufacturer.

The carburetor mixes the air and gas before the fuel mixture heads into the engine of lawn and garden equipment. In the event that the engine will not start, and the tank has fresh fuel and is full, it might be a problem with the carburetor. It is possible to test the carburetor by removing the air filter and pouring a small amount of fuel into the carburetor. Then, pull the starter rope to see if the engine starts. If the engine can start, but it dies shortly after, it is likely that the carburetor is to blame. This OEM kit includes the metal body of the carburetor, as well as two composite material gaskets. When replacing the carburetor, it is advised to also change out the gaskets. This will ensure a proper seal and the best possible engine performance. The genuine OEM carburetor kit will work with many types of small engines, lawnmowers, leaf blowers, log splitters, generators, and wood chippers. It is compatible with a range of brands such as Briggs & Stratton, Toro, Cub Cadet, Craftsman, and Simplicity.

This genuine OEM welch plug manufactured for use in select Briggs & Stratton engines may be found in several locations in the carburetor. Its job is to seal air and fuel passages that help ensure that the proper air and fuel mixture gets to the engine. These plugs are exposed to constant vibrations, chemicals, and high temperatures. They can become worn, damaged, or break loose and get lost over time. If this occurs, a replacement will be necessary. It's often best to replace all of the welch plugs and other gasket components at the same time. This OEM welch plug is manufactured to specific standards for use in select engines manufactured by Briggs and Stratton and found in various lawnmowers and snow blowers from the brand, as well as select models from Lawn Boy and Toro. The plug is sold as an individual unit. Those who need more than one will have to order multiple quantities. Since this is an internal engine part, it is important to wear gloves and allow the engine to cool completely before doing any repairs.

This replacement choke shaft is an authentic OEM part for over 150 different appliance engines. The choke shaft is essentially a lever used to control the choke. When the choke is engaged, it controls how much air is released from the intake valve into the carburetor. With less air in the carburetor, the engine will burn less fuel and create less power. The choke shaft extends out from the engine, allowing operators to engage the choke. While useful, this does, however, mean that it is exposed to the elements and physical damage. If broken off, the choke will be unusable and the shaft will need replacing. To do so, use a socket wrench to disassemble the air filter and filter housing, and a pair of pliers to pull out the choke plate. Remove the damaged shaft by hand and reassemble with a new part. As a high-quality replacement part, this choke shaft comes sourced from its original manufacturer. It is compatible with engines made by Toro and Briggs & Stratton. This part includes a shaft, choke plate, and O-ring. This parts ship as a single unit.

This is a replacement needle valve spring that is an exact match for the one that came with the machine. It is a small metal spring that goes near the idle mixture valve. It can help with the control of the flow and can help to keep the carb from overfilling. There may be a need to replace the needle valve spring. It could become corroded over time, or it could break. It might also start to wear out and not work as well as it once did. Other times, owners who were making other repairs could misplace the spring. No matter what the problem with the spring might be, owners need to replace them when needed. This is an authentic OEM replacement needle valve spring. It is sold individually, and some buyers might want to have more than one of them on hand. The part is used for many types of machines including lawn mowers, tillers, leaf blowers, edgers, log splitters, wood chippers, generators, and other small engines. Compatible brands include Briggs & Stratton, Craftsman, Toro, Cub Cadet, Lawn-Boy, and Simplicity.

This genuine Briggs and Stratton idle mixture valve is an original OEM replacement part designed to fit select engines made by the brand. This valve is responsible for controlling the mixture of air and gasoline that enter the carburetor, which helps determine how much power gets to the engine. This valve opens and closes based on the pull of the engine throttle, allowing the engine to perform at the optimal level based on user need. The valve can wear out over time due to the constant repetitive motion and high heat exposure, which can result in the need for replacement. This part should always be replaced with a genuine OEM model. This OEM idle mixture valve is manufactured for use in lawn and garden equipment that features select small engines manufactured by Briggs and Stratton. It is sold as an individual unit and does not include any additional parts or hardware. If additional parts are needed, they will require a separate purchase. This part replacement should be done on an engine that has had sufficient time to cool so that there is no danger of burns. Gloves should be worn at all times and it may be necessary to drain some of the fuel before working on these engines.

With lawn mowers and other small gasoline engines that have drive trains, a bell crank engages a pulley that enables the motor to turn the wheels. Bell cranks are also the device used to engage drives so that an engine can be running with a blade, wheel, or other device turning. Bell cranks are used in tillers, leaf blowers, mowers, generators, log splitters, and woodchippers. While these assemblies are made of metal and tend to be quite durable, they are also subject to a great deal of vibration and frequent jolts. This is largely the result of the relatively small size of the equipment being used. This type of drive is also favored by commercial landscapers and outdoor workers, who subject the devices to a great deal of wear. As a fulcrum around which the machine's drive turns, the bell crank sometimes fails. This bell crank is a certified OEM genuine replacement part. This bell crank fits models sold by Briggs & Stratton, Craftsman, Simplicity, Cub Cadet, and Toro.

This is an authentic throttle link that was been supplied by the manufacturer. It is used with many different types of lawn and garden machines and other small engines. The link connects the accelerator cable and the throttle, allowing the user to control how wide the throttle valve opens. If it is not working correctly, it will be impossible to control the throttle properly. The throttle link is made from metal and it tends to be durable. However, it could become broken or bent. It could also become corroded. If there is anything wrong with the throttle link, the owner will want to replace it as soon as possible. The replacement is relatively easy. This part is made from high-quality materials. The genuine OEM throttle link is sold individually and can work with many types of machines including lawn mowers, tillers, leaf blowers, generators, log splitters, wood splitters, and other small engines. Brands with compatible models for this part include Briggs & Stratton, Craftsman, Toro, Cub Cadet, and Simplicity.

This screw is designed by Briggs & Stratton as a mounting screw to attach the carburetor onto the engine body so the two can work in tandem. Over time, these screws can become damaged or broken, which requires replacement. A visual inspection of the carburetor mounting screws can help determine whether they need to be replaced. Cleaning the screws can make it easier to see if the screw has been broken or damaged in any way. In some cases, these screws can also become loose, which also indicates a replacement is required. Remove the old screw using the appropriate screwdriver and install the new screw before running the engine again. This is a genuine OEM replacement part directly from the manufacturer. It is sold individually. This screw is designed for use with Briggs & Stratton, Simplicity, Toro, and Cub Cadet lawnmowers, chipper shredders, leaf blowers, snowblowers, tillers, generators, and lawn tractors. A hex screwdriver and other tools may be needed to make a repair.

Here is a replacement pump diaphragm spring that is identical to the original part that came with the machine. The pump diaphragm spring is used for a range of different types of engines. The spring is made from metal, and it attaches to the spring cap. This spring helps to ensure the proper return motion of the diaphragm, causing the fuel located in the pump chamber to be pushed through the outlet port and into the carburetor. The pump diaphragm spring could need to be replaced for several reasons. In some cases, it might have become bent or misshapen, which would prevent it from working properly. It could also become corroded over time since it is made from metal. Replacing the spring will typically require a wrench set, screwdriver, and a nut driver. This is a genuine OEM replacement part, which is sold individually. The pump diaphragm spring can be used for more than 150 types of machines including generators, blower vacuums, tillers, log splitters, and wood chippers. Compatible brands include Briggs & Stratton, Craftsman, Toro, Simplicity, and Cub Cadet.

This is a carburetor diaphragm replacement for use with 3-5 gross HP horizontal crankshaft engines. The diaphragm in a carburetor helps to regulate the fuel in the air-fuel mixture and is an important part of the overall engine. If the diaphragm is bad, owners will notice that the engine does not run smoothly. The machine may not start, or it might suddenly stop in the middle of working. In some cases, the engine might sound sluggish, or it could have an abundance of smoke. When the engine is operating at higher speeds, it could cause it to seem like it could be flooding. These symptoms could indicate that a replacement carburetor diaphragm is needed. During replacement, it is important to make sure the surfaces are clean and dry, and that no solvents or gasket sealer is used. This genuine OEM replacement part is sold individually. The carburetor diaphragm can be used with small engines, tillers, leaf blowers, wood chippers, generators, and lawn mowers. Compatible brands include Briggs & Stratton, Midwest Engine, Craftsman, Toro, and Simplicity.

This is a replacement spring cap that will ensure the spring retains the correct position between the spring and the diaphragm. It is sometimes called a carburetor diaphragm spring cap. If there is an issue with the spring cap, it could cause issues with the placement of the spring, along with carburetor problems. The engine may not run properly, and it could be more difficult to start. Owners should check the spring cap if they notice issues with their engine, as well as during maintenance check-ups. In some cases, the spring cap could become corroded or broken, and getting a replacement becomes essential. The spring cap is a genuine OEM replacement part for small engines including lawn mowers, tillers, leaf blowers, generators, chippers, and log splitters. The cap is compatible with a range of brands including Craftsman, Toro, Briggs & Stratton, Cub Cadet, Lawn-Boy, and Simplicity.

This is an authentic diaphragm cover from the manufacturer Genuine Midwest Engine that is used for many different types of lawn and garden equipment. The diaphragm cover is used to provide an airtight seal for the carburetor. This, along with gaskets and filters, helps to ensure that there is not too much air getting into the carburetor. Over time, however, the cover could start to degrade and no longer provide the airtight seal that is needed. If this happens and more air gets into the carburetor, it could cause problems starting the engine and keeping it running. If this occurs, it will need to be replaced. The owner may also want to replace the gaskets when they replace the diaphragm cover. The high-quality replacement diaphragm cover is a genuine OEM part that is sold individually. The cover can be used for many models of small engines, generators, tillers, blowers, log splitters, and wood chippers. Certain models from the brands Briggs & Stratton, Toro, Craftsman, Cub Cadet, and Simplicity are compatible with the cover.

This screw is made of durable metal in a gold color. It is designed to be used in various lawn and garden equipment, including lawn mowers and leaf blowers. The screws can be used on their own or in tandem with a nut in a pre-drilled, threaded hole. If a nut is going to be used, it's best to choose a version with the same finish and threading as the screw. Over time, a screw can become damaged and may need to be replaced.Extremely hot temperatures, excess stress, and corrosion can all make the screw weaker, which can cause it to loosen, become brittle, and eventually break. Visually inspect the screw to see if any corrosion is present or the screw has become damaged or broken. If it needs to be replaced, a screwdriver can remove it and insert the replacement part. If the screw has been stripped, a bolt cutter can be used to take it out of its hole to screw in the replacement.This screw is compatible with Briggs & Stratton, Toro, Simplicity, Craftsman, and Cub Cadet lawn mowers, wood chippers, tillers, log splitters, leaf blowers, and generators. It is a single genuine OEM replacement part sourced directly from the manufacturer.

Here is an authentic fuel pipe that serves as a replacement for many types of small engines including those on outdoor power equipment. The fuel pipe is made from metal, and it is used as a means to transfer fuel inside of the machine. If the pipe is not working properly, it may mean that the fuel will leak, or it will not be able to flow through to the engine. Even though the metal is durable, there are still problems that could arise. Perhaps there is a clog in the pipe, or there could be a bend. It might not fit correctly onto the machine. Regardless of the reason for the fuel pipe's problem, it is not something that the owner can ignore. They will need to replace the pipe as soon as they can. This is a genuine OEM part that is sold individually. The fuel pipe can work with more than 150 types of engines for machines such as lawn mowers, tillers, leaf blowers, log splitters, wood chippers, and other small engines. Compatible brands include Briggs & Stratton, Craftsman, Toro, Cub Cadet, and Simplicity.

This tube-pick up was created for three to five horsepower horizontal and five horsepower vertical engines with a two to three-quart tank and a pulse jet carburetor. As part of the carburetor, the tube-pick up moves gas from the float bowl to the main body of the carburetor. Sometimes the tube-pick up can become clogged up with particles and dirt, which makes it harder for gasoline to flow through it. This component can also become damaged or cracked, which means it will need to be replaced to operate the lawn equipment. Replacement requires removing the carburetor from the fuel tank, removing the tube-pick up and installing the new version. Carb cleaner may also be used in the process. This tube-pick up is a genuine OEM product directly from the manufacturer. It comes as an individual part and is made out of plastic. It is used for engines on leaf blowers, generators, tillers, lawn tractors, and lawnmowers by Simplicity, Briggs & Stratton, Cub Cadet, and Toro. A set of pliers may be needed to install the tube-pick up.
