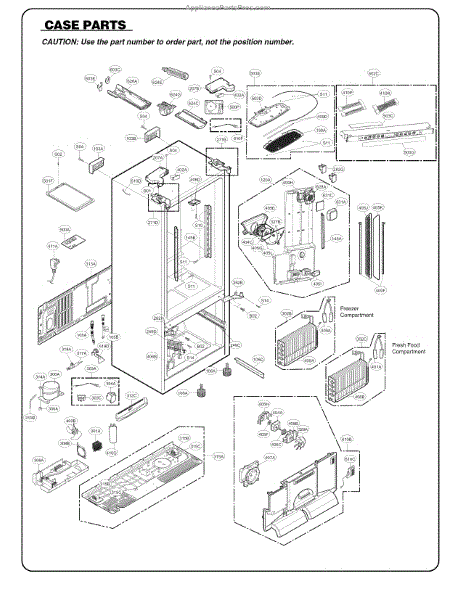

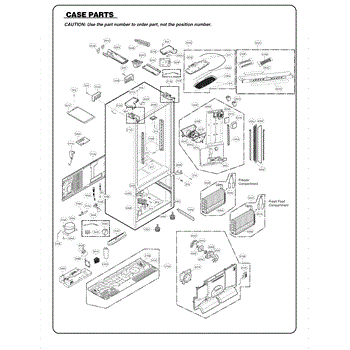

Parts for Kenmore 795.74033410 (79574033410, 795 74033410): Case Parts

The Water Filter is an OEM replacement part for LG refrigerators. It is designed to remove impurities, contaminants, and unwanted particles from the water supply, ensuring that the water dispensed and used for ice making is clean and fresh.

Symptoms of a need to replace the water filter:

• Unpleasant taste or odor in the water or ice
• Decreased water flow from the dispenser
• Discoloration or sediment visible in the dispensed water

Causes of a faulty water filter can include general usage over time, exposure to high levels of contaminants in the water supply, or physical damage or clogging of the filter media.

This OEM LG part is also compatible with some Kenmore refrigerator models.

This hinge bolt secures the hinge to the appliance cabinet or door, keeping alignment true and motion smooth. Replacing a stripped, missing, or corroded bolt helps restore proper door operation and reliable closing.

• Fastens the hinge to support and stabilize the door
• Helps maintain alignment for smooth opening and closing
• Replaces damaged, stripped, or missing hardware

• Disconnect power to the appliance; shut off water supply if applicable
• Support the door to prevent strain on remaining hardware; enlist a second person if needed
• Note the order/orientation of any shims or washers and transfer them during reassembly
• Start threads by hand to avoid cross-threading; tighten securely without overtightening

This customized screw secures internal or external appliance components to restore proper fit and reduce movement. Use it to replace missing or damaged fasteners so panels and assemblies stay firmly attached during normal operation. What it does:

• Fastens panels, brackets, or small assemblies to maintain structural stability
• Prevents rattling, vibration noise, or loose trim caused by missing screws
• Restores correct alignment where a stripped or damaged screw allowed movement
• Works as a direct replacement for the matching screw specified for the repair

• One screw

• Disconnect power and water supply before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but do not overtighten to prevent thread damage
• Keep small parts away from children and retain any removed hardware for reuse if needed

This drain tube assembly channels defrost water from the evaporator to the drain pan, preventing leaks and water buildup. Replace a cracked or clogged tube to restore proper drainage and reduce puddles or ice inside your refrigerator.

• Directs defrost water from the drain outlet to the drain pan
• Helps prevent water leaks inside the fresh food or freezer compartment
• Addresses issues from a tube that is cracked, kinked, or obstructed by debris/ice
• Common symptoms: water under crisper drawers, puddles beneath the unit, or ice forming at the freezer bottom

• Unplug the refrigerator before servicing
• Access the drain outlet and remove any ice or debris from the drain path
• Fully seat the tube at both ends to ensure a secure, leak-free fit
• Test by pouring a small amount of warm water into the drain to confirm proper flow to the pan

This adjustable leveling leg assembly supports and stabilizes your appliance by threading into the base frame. Replacing a worn or missing leg helps you level the unit for smoother, quieter operation on uneven floors.

• Provides height adjustment to level the appliance and distribute weight evenly
• Helps prevent rocking, wobbling, and excess vibration or rattling
• Can improve door alignment and smooth opening/closing when the cabinet is properly leveled
• Useful when a leg is missing, damaged, or threads are stripped

• Disconnect power; if applicable, shut off the water supply
• Use a helper to safely brace or tip the unit; protect flooring when accessing the leg
• Unthread the old leg and hand-thread the new one; tighten as needed
• Adjust front-to-back and side-to-side until stable; all legs bear weight evenly

This duct assembly channels and seals airflow inside the refrigerator, helping deliver cold air to the right places for steady, even temperatures. Replace a cracked or warped duct to restore proper air circulation and cooling performance.

• Directs cooled air from the evaporator through the cabinet to maintain set temperatures
• Helps seal and separate airflow paths to prevent temperature swings and condensation
• Provides a mounting path and pass-throughs for related components, depending on model design
• Helps with symptoms like uneven cooling, weak airflow from vents, frost/ice near vents, or a loose/rattling rear panel

• Disconnect power before servicing; remove food from the affected compartment
• Take out shelves/drawers and inner paneling as needed to access the duct
• Transfer any reusable parts (e.g., seals, sensors, clips) from the old duct
• Ensure foam seals sit flat and vents are unobstructed before reassembly and restoring power

This guide assembly rail is the replacement drawer slide that restores smooth, stable movement for a refrigerator or appliance drawer. It keeps the drawer aligned and reduces sticking or uneven operation for everyday use. What it does:

• Guides and supports the drawer as it opens and closes to maintain proper alignment.
• Reduces sticking, scraping, and uneven travel caused by worn or damaged rails.
• Helps prevent drawer sagging and improves load stability when pulling out the drawer.
• Works with the factory mounting points and keeps the drawer tracking true.

• One guide assembly rail.

• Disconnect power or follow appliance-specific safety procedures before servicing.
• Remove the drawer or access panel to reach the existing rail; keep fasteners for reuse unless replacement required.
• Compare the new rail to the old part to ensure fit and orientation before installing.
• If fasteners are damaged or missing, replace with OEM-specified hardware.

This guide assembly keeps a sliding appliance drawer or rack aligned for smooth, reliable movement and helps prevent sagging or derailment. It restores proper tracking so the drawer/rack opens and closes without binding. What it does:

• Guides and supports a sliding drawer or rack so it stays aligned during use
• Reduces binding, sagging, or derailment when loading or pulling the drawer/rack
• Eliminates scraping or grinding noises caused by a worn guide
• Helps restore smooth, even motion and proper engagement with the slide mechanism

• One guide assembly

• Disconnect power before starting any repair
• Remove the affected drawer/rack to access the guide; keep track of fasteners
• Align the guide with the slide channel and secure per the OEM fastening points; some designs snap in while others use screws
• If mounting hardware is worn or missing, replace with OEM-specified fasteners for safe operation

This center hinge assembly secures and guides the refrigerator doors, restoring correct door alignment and smooth opening. Replaces worn or damaged center hinge hardware to help stop sagging and improve door sealing. What it does:

• Provides the central pivot point between the refrigerator doors for proper alignment and operation
• Restores smooth, even door movement when original hinge is worn or bent
• Helps the doors close fully to maintain the appliance seal and consistent internal temperature
• Fits the factory mounting points and matches OEM form for direct replacement

• Basic removal of trim and temporary support of the doors is required; have a helper to steady doors during replacement
• Use appropriate hand tools; avoid overtightening fasteners to prevent damage
• Disconnect power only if removing electrical components nearby; this part replacement is typically mechanical
• Inspect surrounding hinge screws and door hardware and replace if worn for best results

This center hinge assembly supports the refrigerator door at the mid-hinge position and allows smooth, reliable pivoting. Replacing a worn hinge restores proper alignment so the door closes and seals as designed.

• Provides the pivot point at the center hinge location
• Supports door weight to maintain alignment and clearance
• Helps ensure even gasket contact for an effective seal
• Common symptoms: door sagging or rubbing, squeaking at the hinge, difficulty closing, visible play or damage at the hinge pin

• Unplug the appliance and remove items from the door to reduce weight
• Support the door while removing the center hinge fasteners
• Note and transfer any spacers/washers in the same order and orientation
• After installation, align the door and verify the gasket seals evenly

This upper hinge assembly supports the refrigerator door at the top, providing a smooth pivot and proper alignment. Replacing a worn hinge restores even gaps and a tight seal to help maintain consistent cooling performance.

• Supports the door's weight and provides the top pivot point
• Maintains alignment for correct gasket compression and a tight seal
• Helps the door open and close smoothly without rubbing or binding
• Common signs of wear: door sagging or misalignment, rubbing/clicking noises, and poor sealing or condensation around the gasket

• Unplug the refrigerator before servicing.
• Remove the top hinge cover; retain screws and any shims for reuse.
• Support the door with a helper while removing and installing the hinge.
• Position the new hinge, align the door, then tighten screws and verify smooth swing and full gasket contact all around.

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

The Compressor is an OEM part for LG refrigerators. As the primary component that circulates refrigerant to chill the refrigerator and freezer compartments, it is crucial for proper cooling operation. The compressor works with the condenser fan and evaporator coil to regulate temperatures inside the refrigerator.

Causes of a faulty compressor can include gradual breakdown of motor windings, loss of refrigerant pressure over time, or failure of electrical components vital to operation.

Symptoms of a bad compressor are:

• Elevated fridge/freezer temperatures unable to be maintained
• Frost patterns indicating poor or insufficient cooling
• Abnormal vibrations or sounds upon compressor cycling
• Error codes displayed regarding cooling performance

It is also compatible with Sears/Kenmore refrigerator models.


This evaporator assembly is the sealed coil component that removes heat from the freezer section, helping maintain proper cold temperatures and consistent food preservation. It replaces a worn or damaged evaporator to restore effective cooling. What it does:

• Absorbs heat from inside the freezer compartment so the refrigerant can carry it away
• Supports proper airflow through the freezer evaporator compartment for consistent cooling
• Commonly used when the freezer is not reaching temperature or shows frost/freeze buildup on the evaporator area
• Works with the appliance's defrost system and refrigeration components to maintain correct operation

• Disconnect power before servicing; handle components carefully to avoid sharp fin injury
• Inspect surrounding gaskets, insulation, and mounting hardware during replacement and replace as needed
• Test defrost and fan operation after installation to confirm proper system function

The Thermistor Assembly is an OEM part for LG refrigerators. It serves a crucial function in monitoring and regulating the temperature within the appliance. By sensing temperature changes, the thermistor sends information to the refrigerator’s control board, ensuring the system adjusts cooling to maintain the desired temperature settings.

Symptoms of a failing thermistor assembly include:

• Inconsistent temperatures in the refrigerator or freezer
• Refrigerator running longer than usual or not cooling efficiently
• Frequent fluctuations in temperature readings

Causes of thermistor assembly failure typically involve electrical faults, damage from moisture or frost, or simple wear over time, which can impact its ability to accurately measure and report temperatures.

This OEM LG part is also compatible with Sears/Kenmore.

The Overload Compressor is an OEM part for LG refrigerators. This part protects the refrigerator's compressor from overheating and potential damage by acting as a safety device. It works by monitoring the compressor's electrical current and temperature. If the compressor operates under conditions that could lead to overheating or overcurrent, the overload protector will cut off the power to the compressor, allowing it to cool down before potentially restarting.

Causes of damage to the Overload Compressor can include power surges, electrical faults within the refrigerator, or a malfunctioning compressor that requires more current than usual to operate.

Symptoms of a bad Overload Compressor include:

• The refrigerator not cooling properly or not cooling at all
• The compressor failing to start, indicated by a clicking sound coming from the back of the refrigerator where the compressor is located.
• The refrigerator or freezer section warming up

This OEM LG part is also compatible with some Kenmore models.

This PTC cover is the protective housing that shields a PTC sensor/assembly from debris and physical damage, helping maintain reliable sensor performance and prolong component life in the appliance. What it does:

• Protects the PTC sensor or PTC assembly from dust, impact, and accidental contact
• Helps prevent shorting or intermittent sensor signals caused by contaminants
• Supports proper positioning and mounting of the PTC component
• Can help address symptoms such as visible sensor damage, exposed wiring, or intermittent operation related to a compromised sensor housing

• Disconnect power to the appliance before starting any repair
• Remove the outer panel(s) as needed to access the PTC location; handle surrounding wiring and components carefully
• Replace only with the correct OEM cover to ensure proper fit and protection

This compressor damper is a vibration-isolating mount that sits between the sealed-system compressor and the chassis. It cushions the compressor to reduce noise, limit vibration transfer, and help keep refrigerant lines from being stressed.

• Isolates the compressor from the frame to absorb start/stop shock and vibration
• Helps reduce humming, rattling, or buzzing from the back/bottom of the appliance
• Replaces a damper that's cracked, flattened, hardened, or missing
• Can help if the compressor rocks or the unit vibrates excessively

• Disconnect power and pull the unit forward for access; remove rear/service panel if present
• Support the compressor to relieve load on the mounts before removing fasteners
• Match orientation; transfer any sleeves/spacers from the old damper to the new one
• Ensure the compressor sits level and that tubing is not strained before restoring power

This drip tray catches and channels water runoff inside the appliance to help prevent pooling and minor leaks. It's a direct-fit replacement listed by the manufacturer and sold as the single tray used in the unit. What it does

• Collects condensate or defrost water and directs it to the drain area to prevent pooling.
• Helps stop water from dripping onto lower drawers, shelves or the floor.
• Commonly replaces a cracked, warped or missing tray that causes visible leaks or water buildup.
• Fits into the appliance's lower compartment where the original tray sat.

• Unplug the appliance or disconnect power before servicing.
• Remove any obstructing drawers or shelves to access the tray location; handle glass shelves carefully.
• Lift out the old tray and set the new tray into the same position; no special tools typically required.

Replacement fan guide that directs airflow from the refrigerator fan to improve cooling distribution and help keep the fan blade clear of nearby components. Restores proper airflow and can reduce rubbing or scraping noises. What it does:

• Channels airflow from the fan to promote even temperatures throughout the compartment.
• Keeps the fan blade aligned and away from cabinet walls and other components.
• Commonly replaced when cracked, warped, or broken parts cause rubbing or unusual fan noise.
• Helps maintain efficient cooling by restoring the intended airflow path.

• Disconnect power (unplug or shut off breaker) before servicing the appliance.
• Access typically requires removing the interior cover or rear evaporator cover.
• Handle the plastic guide carefully to avoid cracking; align mounting tabs and secure using the original fasteners.
• Inspect the fan blade and motor for damage while replacing the guide; replace any damaged components to avoid repeat issues.

This cover assembly protects the machine components and helps keep internal machinery free of debris and accessible for repair. It provides a durable barrier that helps extend component life and maintains safe operation. What it does:

• Shields motors, belts and internal linkages from dust and lint that can cause wear
• Helps contain moving parts to reduce pinch or contact hazards during normal use
• Maintains proper component alignment by providing a stable mounting surface
• Commonly replaced when cracked, warped, missing fasteners, or damaged from impact

• One cover assembly as shown

• Disconnect power before attempting service
• Handle gently to avoid cracking plastic tabs; inspect mounting clips and screws for damage
• Reuse original fasteners only if undamaged; replace any stripped screws or broken clips

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

This cabinet roller supports the refrigerator and lets the unit roll in and out of place for cleaning or service. Replace a worn or broken roller to restore smooth movement and help keep the appliance properly positioned.

• Supports the base of the refrigerator and enables rolling movement
• Helps with safe positioning and service access without dragging
• Common failure signs: appliance is hard to move, scraping or rolling noises, a flat-spotted/cracked wheel, or a wheel that won't turn
• Replace when the roller is damaged, seized, or missing

• Disconnect power and shut off water supply; protect flooring before moving the appliance
• With help, pull the refrigerator forward and safely support it to access the roller
• Remove mounting fasteners, install the new roller, and reuse original hardware
• Confirm level and smooth movement before returning the unit to its location

The Drier Assembly is an OEM part for LG refrigerators. This part removes moisture and contaminants from the refrigerant, ensuring the system operates efficiently and effectively. The drier assembly helps maintain the proper function of the compressor and other cooling components, contributing to the longevity and performance of the refrigerator.

Causes of a bad drier assembly can include clogs from debris, wear and tear over time, or contamination from moisture or refrigerant leaks.

Symptoms of a bad drier assembly include:

• The refrigerator not cooling properly
• Frost or ice buildup on the evaporator coils
• Increased noise from the compressor
• Reduced efficiency and higher energy consumption
• You should replace the drier assembly if it becomes faulty or damaged.

This OEM LG part is also compatible with select Sears/Kenmore models.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

This damper controls airflow between compartments to help maintain proper temperatures and consistent cooling. It replaces a worn or broken damper to restore normal airflow and temperature balance inside the appliance. What it does:

• Regulates air flow between compartments so the refrigerator can maintain set temperatures
• Helps reduce uneven cooling and temperature swings caused by a stuck or broken damper
• Works as part of the appliance's air distribution system to route cooled air where needed
• Common symptom: compartment temperature too warm or inconsistent airflow noise from the damper area

• One damper assembly

• High-level replacement; access usually requires removing interior panels or duct covers
• Disconnect power before any repair to avoid shock or injury
• Handle with care to avoid bending or damaging mounting tabs and linkage

The Defrost Control Assembly is an OEM part for LG refrigerators. It is designed to regulate the defrost cycle, ensuring that frost buildup on the evaporator coils is periodically melted away. This helps maintain efficient cooling performance and prevents excessive ice accumulation, which can hinder the refrigerator's functionality.

You should replace the defrost control assembly if it becomes faulty. Causes of a bad defrost control assembly can include electrical failures, regular wear and tear, or damage from power surges. A malfunctioning defrost control can lead to issues such as inadequate defrosting, which results in excessive frost buildup and affects the cooling efficiency of the refrigerator.

Symptoms of a bad defrost control assembly include:

• Frost buildup on the evaporator coils
• The refrigerator not cooling properly
• The defrost cycle not initiating or running too frequently
• Increased energy consumption due to the refrigerator working harder to maintain temperature

This OEM LG part is also compatible with Sears/Kenmore models.

The Refrigerator Control Assembly is an OEM part for LG refrigerators. This component is crucial for managing and regulating the refrigerator's cooling and defrosting cycles. It ensures the proper operation of the refrigerator by controlling the temperature and defrost settings.

Causes of a bad control assembly can include electrical surges, wear and tear over time, or moisture damage. These factors can lead to malfunctioning controls or inconsistent temperature regulation within the refrigerator.

Symptoms of a bad control assembly include:

• Refrigerator not cooling properly
• Unusual noises from the control panel
• Inconsistent temperature readings
• Refrigerator not defrosting automatically

This OEM LG part is also compatible with Sears/Kenmore.

Door switch magnet for reed switch

This DC motor assembly drives the refrigerator's fan to move air across the coils and through the cabinet, helping maintain stable temperatures. Replacing a worn, noisy, or non-running motor restores proper airflow for reliable cooling.

• Powers the fan that circulates air across the coils and throughout the compartment
• Supports even temperatures and consistent cooling performance
• Common symptoms: fan won't run, intermittent or loud fan noise, weak/no airflow, warmer than normal temperatures
• Longer run times when failing due to reduced airflow

• Disconnect power to the appliance before servicing; use cut-resistant gloves
• Access location varies by model; remove the rear cover or interior panel to reach the fan motor
• Note connector orientation before unplugging; secure wiring fully on reassembly
• Ensure the fan spins freely after installation before restoring power

The Fan Motor is an OEM part for LG refrigerators. It is essential for circulating air throughout the refrigerator and freezer compartments to ensure a consistent and even temperature. This air circulation is crucial for proper food preservation and to prevent warm spots or frost buildup, which can occur when air does not circulate properly.

Symptoms of a bad Fan Motor include:

• The refrigerator making unusual noises such as humming or buzzing, which may indicate the motor is struggling.
• Poor cooling performance, with parts of the refrigerator warmer than usual.
• The refrigerator cycling on and off more frequently, which can be a sign of the motor overheating.

Causes of a bad fan motor can include wear and tear from continuous use, accumulation of dust or debris in the fan, or electrical issues such as faulty wiring or a burned-out motor.

This OEM LG part is also compatible with Sears/Kenmore models.

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

The Magnet Switch is an OEM part for LG refrigerators. It plays an important role in monitoring the position of the refrigerator door.

The magnet switch works together with a magnet installed in the door gasket to detect when the door is opened or closed. It communicates this information to the control board which uses it to manage temperatures and fan speeds accordingly.

Causes of a bad magnet switch can include wear and tear over time, physical damage, or failure of internal components.

Symptoms of a bad magnet switch include:

• Improper cooling and freezing performances
• Inability to detect when the door is opened
• Erratic temperature fluctuations
• Errors codes relating to door sensors

This genuine OEM LG magnet switch restores the door monitoring functions of your refrigerator. It is also compatible with Sears/Kenmore refrigerator models.

The Door Bracket is an OEM part for LG refrigerators. This bracket supports the refrigerator door by providing stability and ensuring proper alignment during opening and closing. It plays a crucial role in maintaining the door’s secure fit, which is essential for maintaining the internal temperature and efficiency of the appliance.

Common causes of a bad door bracket include wear and tear from frequent use, impact damage, or corrosion due to moisture.

Symptoms of a bad door bracket include:

• The refrigerator door not closing properly
• The door sagging or being misaligned
• Unusual noises when opening or closing the door
• Gaps in the door seal leading to temperature inconsistencies

This OEM LG part is also compatible with Sears/Kenmore.

The Fan Motor Assembly is an OEM replacement part for LG refrigerators. Located inside the air duct behind the evaporator, it circulates cold air evenly throughout the fridge and freezer compartments. Efficient airflow circulation is vital for maintaining even interior temperatures.

Causes of a bad fan motor can include bearings seizing or lubrication drying up after years of continuous operation. Dust or debris buildup may also obstruct balanced rotation.

Symptoms include:

• Inconsistencies in temperature between fridge shelves
• Frozen items thawing in the freezer or fruit rotting
• Strange noises or vibrations coming from inside
• Compressor or cooling unit constantly running

Compatible models include some Kenmore and Sears fridges.

A heater sheath that houses and protects the dryer's heating element, directing heat into the drum for efficient drying. Replaces a damaged or corroded sheath to restore proper heating performance and reduce safety risks. What it does:

• Encases the heating element and helps channel heat into the dryer air path
• Prevents direct contact between the element and other components or lint
• Commonly replaced when heating is weak, intermittent, or the element is exposed
• Helps reduce risk of shorts or arcing caused by a compromised sheath

• One heater sheath

• Disconnect power before servicing—this part works on high-voltage circuits
• Inspect the element, mounting hardware, and surrounding insulation while replacing the sheath
• Use appropriate fasteners and gaskets; ensure proper alignment so the element doesn't contact other parts
• If you see corrosion, holes, or exposed wiring, replace the sheath rather than patching

The sheath heater is the electric resistance element that produces heat inside the appliance. Replacing a failed element restores reliable heating so the unit reaches temperature and completes its cook or defrost cycles as designed.

• Generates heat when energized to support baking/broiling or defrost functions
• Helps the appliance reach and maintain target temperature for consistent performance
• Typical failure signs: no or weak heat, long preheat/heat recovery, visible cracks/blisters on the element, or breaker tripping when the element energizes
• In defrost use-cases: heavy frost buildup on the evaporator and poor cooling due to iced coils

• Disconnect power at the breaker or unplug the unit; allow all surfaces to cool completely
• Handle the element carefully—do not bend the sheath; wear cut-resistant gloves
• Note wire positions, transfer any brackets/clips from the old part, and make tight, clean connections
• Inspect nearby high-heat wiring and terminals for damage and replace as needed; test operation before fully closing panels

The Capacitor is an OEM part for LG refrigerators. It plays a vital role in the electrical system, providing the necessary power boost to start the compressor and maintain its operation. This component ensures that the refrigerator runs efficiently by stabilizing voltage and improving overall performance.

Common causes of a bad capacitor include electrical surges, wear and tear over time, or exposure to excessive heat.

Symptoms of a bad capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual noises coming from the refrigerator
• The refrigerator cycling on and off frequently

This OEM LG part is also compatible with Sears/Kenmore models.

This power cord assembly supplies AC power from the wall outlet to your appliance. Replacing a frayed, heat-damaged, or loose cord restores safe, reliable operation and can eliminate intermittent power loss.

• Carries line voltage and ground into the unit to power controls and components
• Routes electricity safely into the cabinet to protect internal wiring
• Replace at the first sign of damage to reduce shock or fire risk

• Disconnect power at the outlet/breaker before servicing
• Compare the new cord to the original; transfer any clips or grommets from the old cord if needed
• Route and secure the cord exactly as original; keep clear of sharp edges and moving parts
• Ensure all connections are fully seated and the ground is properly secured before restoring power

This sub PCB assembly is an electronic control board that processes inputs and switches components, coordinating specific appliance functions. Replacing a failed board can restore normal operation and resolve dead controls, error codes, or intermittent, unpredictable behavior. What it does:

• Distributes and regulates control power and switches loads via onboard relays/triacs
• Interprets signals from sensors and the user interface to execute commands
• Coordinates timing and operation of related components per the appliance's program logic
• Failure may present as no power, won't start, unresponsive or flickering display, random beeps, or recurring error codes

• 1 sub PCB assembly

• Disconnect power to the appliance before servicing; verify no voltage is present
• Use ESD protection and handle the board by the edges
• Photograph wiring; transfer connectors one at a time and ensure they are fully seated
• Secure the board with existing fasteners/standoffs; perform any required reset or diagnostic per your model's service info

The Control Board is an OEM part for LG refrigerators, serving as the central hub for managing the appliance's various functions and settings. This sophisticated electronic component controls everything from the temperature settings to the defrost cycle, ensuring your refrigerator operates efficiently and maintains the desired coolness for your food and beverages.

Causes of a bad Control Board can include power surges, electrical shorts, wear and tear over time, or exposure to moisture, which can lead to malfunctions in the refrigerator's operation.

Symptoms of a bad Control Board include:

• The refrigerator not cooling properly
• Irregular or erratic behavior of the refrigerator's display or controls
• The fridge or freezer section becoming too cold or not cold enough
• The ice maker or water dispenser not working correctly

This OEM LG part is also compatible with some Kenmore models.

This sensor PCB assembly detects and relays sensor signals to the appliance control system, restoring accurate sensor feedback and communication when the original sensor board fails or malfunctions. Designed as a direct replacement board. What it does:

• Reads sensor inputs and converts them to signals the main control board can interpret.
• Replaces a failed or intermittent sensor board that causes incorrect readings or sensor-related error codes.
• Can resolve symptoms such as unexpected sensor faults, control errors, or appliances not responding to sensor changes.
• Matches the OEM board function; verify model compatibility before ordering.

• Always disconnect power before servicing to avoid shock or shorting the board.
• Use ESD precautions and handle the PCB by its edges to prevent static damage.
• Ensure all connectors are fully seated and the board is mounted in the original orientation.

This fan grille assembly covers the internal fan and channels airflow through the air ducting, protecting the fan while helping your appliance circulate air efficiently for even, reliable temperatures and quieter operation. What it does:

• Shields the fan and directs airflow through the cabinet
• Helps maintain proper circulation for consistent cooling performance
• Replaces cracked, warped, or missing grille panels that disrupt airflow
• Common symptoms: rattling or scraping near the fan area, broken louvers, weak airflow, temperature fluctuations, or frost/ice buildup around the cover

• One fan grille assembly

• Disconnect power to the appliance before servicing
• Remove shelves/drawers or trim as needed to access the grille
• Remove mounting screws/clips and gently release plastic tabs; disconnect any attached wiring harnesses and note routing
• Transfer any reusable insulation or foam seals from the original part if present; ensure the fan spins freely before reassembly and restoring power

The Refrigerator Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature inside the refrigerator and communicates with the control board to maintain the optimal cooling environment.

Common causes of failure include wear and tear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can lead to inaccurate temperature readings, resulting in improper cooling or freezing.

Symptoms of a bad refrigerator temperature sensor include:

• Inconsistent refrigerator or freezer temperatures
• Food spoiling faster than usual
• Refrigerator running continuously or not running at all
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.

The Temperature Sensor is an OEM part for LG refrigerators, designed to monitor and relay the temperature inside the refrigerator to the control board. This component ensures that your refrigerator maintains the correct temperature to keep your food fresh and safe to eat.

Over time, temperature sensors can fail or become less accurate due to wear and tear, environmental factors, or electrical issues. This can lead to problems such as the refrigerator cooling too much or not enough, resulting in food spoilage or excessive energy consumption.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer is too warm or too cold, despite setting adjustments
• Unusual fluctuations in temperature, indicating the sensor is not accurately detecting or communicating the internal temperature
• The refrigerator runs constantly or more frequently than normal, attempting to reach the desired temperature

This OEM LG part is also compatible with some Kenmore models.

This gas valve assembly controls and shuts off the flow of gas to your appliance's burner system, enabling safe ignition and steady heat. Replacing a sticking or failing valve restores reliable heating performance and consistent flame control.

• Regulates gas flow to the burner(s) as commanded by the control/thermostat
• Works with the igniter to light the flame
• Helps maintain stable gas supply for consistent heating
• Failure symptoms include no ignition, igniter glowing with no flame, intermittent heat, or a weak/uneven flame

• Disconnect power and shut off the gas supply before servicing
• Allow the appliance to cool and work in a well-ventilated area
• Transfer any fittings or brackets from the original valve if required
• After installation, restore gas and check all connections for leaks with a soapy-water solution

This filter cover replaces the damaged or worn cover that holds the air filter in place, helping maintain correct filter position and airflow for proper operation. It's a direct-fit replacement designed for easy swap-out. What it does

• Secures and protects the air filter inside the unit so the filter seals and sits correctly.
• Maintains proper airflow path to help the system run as designed.
• Prevents debris from bypassing the filter and entering internal components.
• Helps reduce rattling or vibration caused by a loose or broken cover.
• Restores the intended fit and finish of the filter compartment.

• One filter cover

• Disconnect power or remove batteries before removing the old cover to avoid fan or electrical hazards.
• Remove the old cover by releasing clips or screws; align replacement and engage clips or reinstall screws securely.
• Do not force the cover—ensure filter is seated correctly before closing to avoid damage.
• Replace hardware with OEM-equivalent parts for proper fit.

This filter assembly head is the replacement water filter housing that secures the cartridge, routes incoming water, and seals the connection to the dispenser/ice system. It restores a proper filter mount and helps prevent leaks or loss of water flow. What it does:

• Holds and seals the water filter cartridge to the refrigerator's water line
• Routes filtered water to the dispenser and ice maker
• Commonly replaces a cracked, leaking, or damaged filter housing
• Can resolve reduced or no water flow when caused by a failed filter head
• Re-establishes a proper seal to prevent drips at the filter connection

• One filter assembly head

• Turn off the refrigerator and shut off the water supply before starting
• Depressurize the water line/dispenser per the refrigerator manufacturer's instructions
• Inspect O-rings/seals and replace if damaged; ensure proper seating when installing the filter
• After installation, turn on water, check for leaks, and run water/dispenser to clear air

The Water Filter Bypass is an OEM part for LG refrigerators. It is used when you choose not to use a water filter in your refrigerator. This bypass plug allows water to flow directly to the dispenser and ice maker without being filtered, ensuring continuous operation even when a filter is not installed.

Causes of a bad water filter bypass can include damage to the bypass plug, clogging from debris, or wear and tear over time. If the bypass plug is not functioning properly, it can disrupt the water flow and lead to issues with the ice maker and water dispenser.

Symptoms of a bad water filter bypass include:

• Reduced water flow or no water flow to the dispenser
• Ice maker not producing ice
• Water leaks around the bypass plug area

This OEM LG part is also compatible with Sears/Kenmore.

This is a replacement filter cover that secures and protects the air filter on compatible LG air-care units. It restores proper filter fit and helps maintain airflow and filtration performance for safer, cleaner operation. What it does:

• Holds the air filter in place and protects it from damage and debris
• Helps maintain correct airflow through the filter assembly
• Prevents gaps that can allow unfiltered air to bypass the filter
• Addresses symptoms such as a cracked, loose, warped, or missing filter cover

• One filter cover (housing) as shown

• Disconnect and unplug the appliance before servicing
• Remove the filter and detach the old cover (typically snaps or screws) before installing the replacement
• Align tabs and secure the cover until it seats firmly; do not force or bend mounting tabs
• If screws are used, tighten evenly to avoid distorting the cover; test fitment before powering on

This LED light cover protects and diffuses the appliance's interior LED, restoring even lighting and a finished appearance. It is a direct-fit replacement designed to match the original factory lens. What it does:

• Protects the LED assembly from debris and impacts
• Diffuses and softens LED output for even interior illumination
• Restores a cracked, yellowed, or missing lens that affects light distribution
• Helps prevent direct contact with the LED board

• One LED light cover

• Disconnect power or unplug the appliance before starting
• Handle the lens carefully to avoid scratches; it typically snaps into place or is retained by a few clips
• Use a small screwdriver only if necessary to release retaining clips; avoid forcing parts

The Ice Bank Door Gasket is an OEM part for LG refrigerators. This gasket is designed to seal the ice bank door, ensuring a tight closure to maintain optimal temperatures inside the ice compartment. By preventing warm air from entering, it helps preserve the quality and quantity of ice produced by the icemaker.

Causes of a bad gasket can include wear and tear from frequent opening and closing of the door, physical damage from cleaning or mishandling, or degradation over time due to exposure to temperature changes.

Symptoms of a bad Ice Bank Door Gasket include:

• Ice melting or clumping in the ice compartment
• Frost buildup around the ice bank door
• Increased energy consumption
• The gasket appearing cracked, brittle, or deformed

This OEM LG part is also compatible with Sears/Kenmore.

This decorative cover restores the finished appearance of the microwave trim and helps protect internal edges from grease and light damage. It's a direct-replacement exterior piece that keeps the front of the unit looking clean and complete. What it does:

• Covers and protects the microwave trim area, hiding mounting points and seams
• Helps prevent grease and debris from collecting on underlying components
• Restores a uniform exterior finish when the original cover is cracked, chipped, or missing
• Improves the overall appearance of the appliance for a finished look

• Disconnect power to the appliance before starting any work
• Remove any trim screws or clips holding the old cover in place; gentle prying may be required
• Align the replacement cover carefully and secure with the original fasteners

The Air Cleaner Filter Assembly is an OEM part for LG refrigerators. This part ensures the air within the appliance remains fresh and free of contaminants. This part minimizes odors and filtering out particulates, thereby maintaining the quality of the air circulating through the refrigerator and its contents.

Over time, the effectiveness of the air cleaner filter can diminish due to the accumulation of particles and odors it has trapped. A decrease in air quality within the refrigerator, persistent odors despite cleaning, and an increase in the spoilage rate of food items can all be signs that the filter assembly may need replacement.

Symptoms of a bad Air Cleaner Filter Assembly include:

• Persistent unpleasant odors inside the refrigerator
• Increased spoilage of food items
• Noticeable reduction in air freshness or quality

This OEM LG part is also compatible with some Kenmore models.
