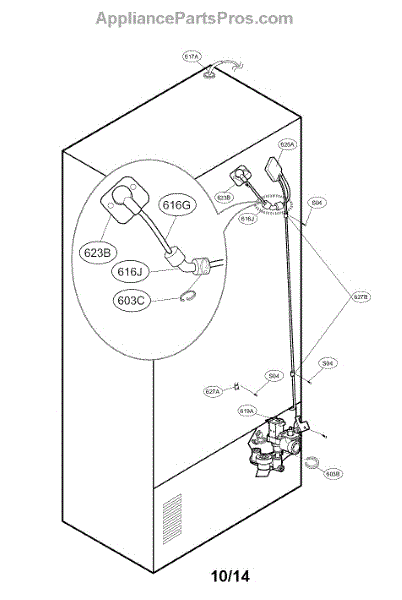

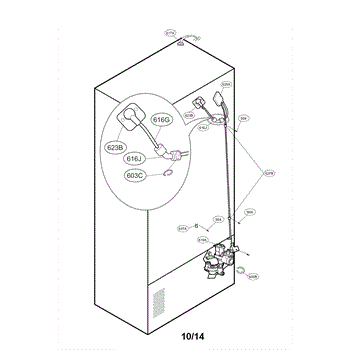

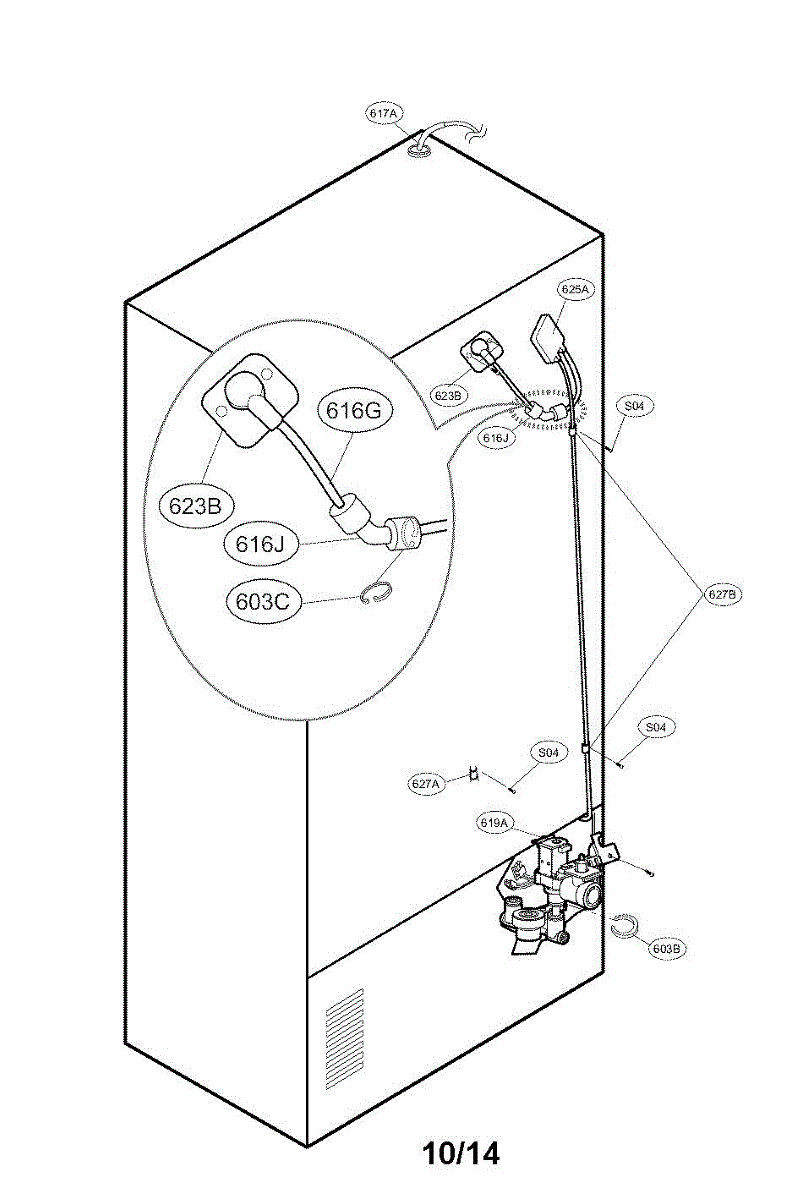

Parts for Kenmore 795.74033410 (79574033410, 795 74033410): Value And Water Tube Parts

The Water Filter is an OEM replacement part for LG refrigerators. It is designed to remove impurities, contaminants, and unwanted particles from the water supply, ensuring that the water dispensed and used for ice making is clean and fresh.

Symptoms of a need to replace the water filter:

• Unpleasant taste or odor in the water or ice
• Decreased water flow from the dispenser
• Discoloration or sediment visible in the dispensed water

Causes of a faulty water filter can include general usage over time, exposure to high levels of contaminants in the water supply, or physical damage or clogging of the filter media.

This OEM LG part is also compatible with some Kenmore refrigerator models.

The Water Line Connector is an OEM replacement part for LG refrigerators. It is responsible for connecting the water supply line from the home plumbing to the refrigerator's internal water distribution system, allowing for ice and water dispenser functionality.

Causes of a bad water line connector can include cracking, leaks, or deterioration of the connector material over time due to regular water pressure and temperature fluctuations. Connectors may also become damaged if exposed to impact.

Symptoms of a bad water line connector include:

• Leaks at the connection point between the line and refrigerator
• Loose, slipping, or disconnected water line fitting
• Reduced water pressure or no water flow to the dispenser
• Error codes related to water flow from the refrigerator diagnostics

 This OEM LG part is also compatible with Sears/Kenmore refrigerators.

The Clip is an OEM part for LG refrigerators. This clip secures the water tube in place, preventing it from moving or becoming disconnected. It plays a crucial role in maintaining the proper flow of water to the ice maker and water dispenser.

Causes of a bad water tube clip can include physical damage, wear and tear from regular use, or brittleness due to temperature fluctuations. If the clip fails, it can result in leaks or disconnections, disrupting the water supply.

Symptoms of a bad water tube clip include:

• Water leaks inside or outside the refrigerator
• The water tube becoming loose or disconnected
• Reduced or no water flow to the ice maker or water dispenser

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

Note: 90 degree elbow coupler (Fits 1/4" diameter tubing on each end) For 5/16" elbow connector, order part# 4932JA3009B.

The Water Line Union is an OEM part for LG refrigerators. This component connects sections of the water line, ensuring a secure and leak-free passage of water to the refrigerator's icemaker and water dispenser. It is an elbow tube union connector, which connects two tubes at a 90-degree angle.

Causes of a bad water line union can include wear and tear from frequent use, damage from high water pressure, or deterioration due to mineral buildup and age. A compromised union can lead to water leaks and disruption in the water supply.

Symptoms of a bad Water Line Union include:

• Water leaks around the connection points
• Reduced water flow to the icemaker or water dispenser
• Puddles or moisture near the refrigerator
• Unusual noises from the water line

This OEM LG part is also compatible with Sears/Kenmore.

The Reservoir Water Supply Line is an OEM part for LG refrigerators. This component is essential for delivering water from the reservoir to the dispenser and ice maker, ensuring a steady and reliable flow.

Symptoms of a bad Reservoir Water Supply Line include:

• Leakage of water at connection points or along the line.
• Reduced water flow to the dispenser or ice maker.
• Unusual tastes or odors in the dispensed water.
• Visible signs of wear, such as kinks or brittleness.

Causes of a bad water supply line can include physical damage from bending or pinching, chemical degradation from exposure to contaminants, or blockages due to sediment or scale buildup.

This OEM LG part is also compatible with Sears/Kenmore.

The Water Inlet Valve Assembly is an OEM part for LG refrigerators. This part controls the flow of water into the refrigerator's ice maker and water dispenser. By opening and closing at specific times, it ensures the proper amount of water is supplied for making ice or dispensing water.

Causes of a bad water inlet valve include clogs from sediment, failure of the solenoids, or cracks in the valve body.

Symptoms of a bad Water Inlet Valve Assembly include:

• No water being dispensed
• Slow or irregular water flow from the dispenser
• Leaks occurring at the back of the refrigerator where the valve is located
• The ice maker not producing ice or producing very small ice cubes

This OEM LG part is also compatible with some Kenmore models.

This cover cap is a small plastic trim piece that protects exposed fasteners and improves the appliance's appearance. It snaps into place to hide mounting posts and help prevent snags or debris buildup. What it does:

• Covers and protects exposed screws, posts, or fasteners for a finished look
• Prevents lint, dust, and debris from collecting around the mounting point
• Reduces the chance of fabric snags or contact with sharp edges
• Restores worn or missing trim for improved cosmetics

• Disconnect power to the appliance before starting any service that exposes electrical components
• Usually installs by snapping over the post or press-fitting into the trim opening — no special tools required
• If needed, remove adjacent trim pieces to gain access, then reinstall trim in reverse order
• Inspect surrounding mounting hardware for damage and replace if necessary

This cover tube is a molded protective housing that shields internal components and wiring from wear, heat, and debris. It helps maintain safe operation and prevents rubbing or chafing that can lead to damage. What it does:

• Covers and protects internal wiring, hoses or assemblies from contact and abrasion
• Helps direct airflow and keeps debris away from sensitive parts
• Reduces noise caused by rubbing or loose components
• Preserves component alignment and prevents premature wear

• Disconnect power to the appliance before beginning any repair.
• Installation requires partial disassembly of the appliance; keep track of screws and clips.
• Use OEM replacement and follow the service manual for correct orientation and torque of fasteners.
• If you see damaged wiring or other compromised parts, replace or repair those items before reinstalling the cover tube.

This pipe holder is a small plastic clip that secures tubing and small pipes inside the appliance, helping keep lines organized and preventing rubbing or disconnection. It restores proper routing and reduces vibration-related noises. What it does:

• Holds and secures water, drain, or refrigerant tubing to prevent sagging and chafing
• Keeps lines routed away from moving parts to reduce wear and noise
• Helps maintain proper tube alignment to avoid strain on fittings
• Commonly replaced when the original clip is cracked, broken, or missing

• Disconnect power and water before working on the appliance
• Inspect surrounding tubing and fittings for damage when replacing the clip
• Typically installs as a push-fit or snap-on clip; use gentle pressure and avoid forcing
• Replace broken or brittle clips to prevent tubing damage or leaks

This holder is a small mounting bracket that secures a mating component in place inside the appliance. Replacing a cracked or missing holder restores a firm, rattle-free fit and proper alignment.

• Provides a stable mount for the designated part
• Prevents shifting and vibration that can cause noise or premature wear
• Common signs of failure: broken tabs, stress cracks, or the attached part sagging or falling out
• When damaged, the connected component may be loose, noisy, or misaligned

• Disconnect power; if working near water tubing, also shut off the water supply
• Note the original orientation and mounting points; take a photo before removal
• Reuse existing fasteners and avoid overtightening to prevent cracking the plastic
• Ensure the attached component is secure and clears any moving parts before restoring power
