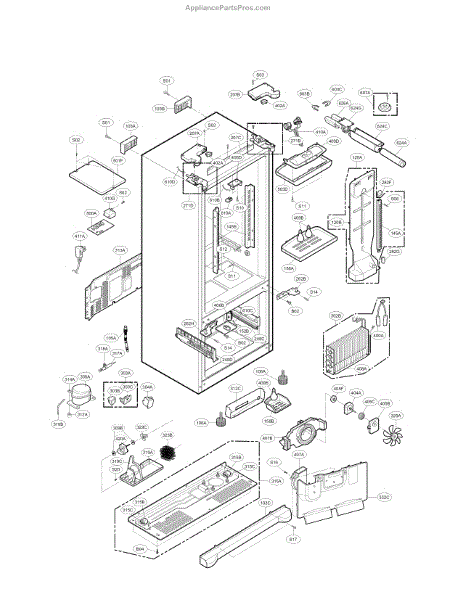

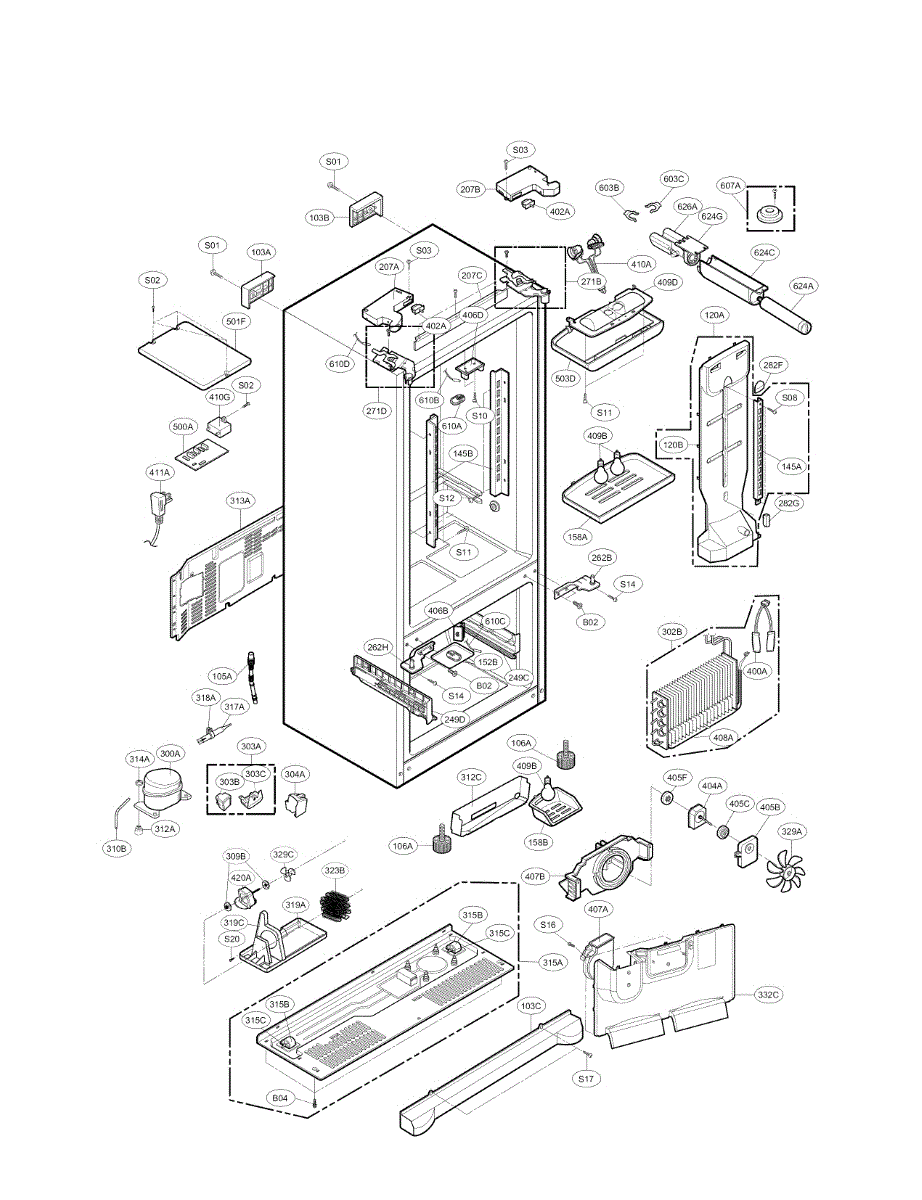

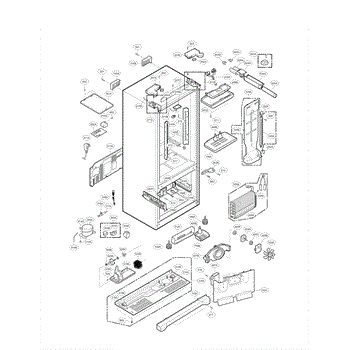

Parts for Kenmore 795.78503802 (79578503802, 795 78503802): Case Parts

The Water Filter is an OEM part for LG refrigerators. It is a component that ensures the purity and quality of your drinking water and ice.

The water filter is designed to effectively reduce contaminants, impurities, and odors from your water supply, providing you with clean and refreshing drinking water. It employs advanced filtration technology to remove substances such as chlorine, sediment, and other potentially harmful particles.

Causes of a faulty water filter can include regular usage over time, expiration of its filtering capacity, or clogging due to sediment buildup. These factors can result in compromised water quality, decreased flow rate, or unpleasant taste and odor.

Symptoms of a bad water filter may include:

• Decreased water flow from the dispenser
• Water with an unusual taste or odor
• Visible discoloration or particles in the water

This OEM LG part can also be used on Kenmore/Sears appliances.

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This hinge bolt secures the hinge to the appliance cabinet or door, keeping alignment true and motion smooth. Replacing a stripped, missing, or corroded bolt helps restore proper door operation and reliable closing.

• Fastens the hinge to support and stabilize the door
• Helps maintain alignment for smooth opening and closing
• Replaces damaged, stripped, or missing hardware

• Disconnect power to the appliance; shut off water supply if applicable
• Support the door to prevent strain on remaining hardware; enlist a second person if needed
• Note the order/orientation of any shims or washers and transfer them during reassembly
• Start threads by hand to avoid cross-threading; tighten securely without overtightening

This is a genuine replacement mounting screw designed to secure appliance panels and internal components, restoring proper fit and stopping movement. Fits specified LG assemblies where the original screw is missing or damaged. What it does:

• Secures panels, brackets, or small components to prevent rattling and misalignment
• Restores proper attachment when original screw is stripped, lost, or broken
• Helps eliminate vibration noise caused by loose fasteners
• Matches OEM fit and thread form for reliable reassembly

• One mounting screw

• Disconnect power and water before beginning any service
• Use the correct driver and do not overtighten to avoid striping threads or cracking components
• Keep removed screws organized to ensure correct replacement locations
• If threads are damaged, replace mating clip or insert as recommended by OEM

This is a replacement mounting bolt used to secure appliance components and assemblies, restoring proper fit and reducing movement that can cause noise or misalignment. Use when a factory fastener is missing or damaged. What it does

• Fastens panels or internal components to maintain correct alignment and structural integrity.
• Prevents vibration-related noise and rubbing by holding parts securely in place.
• Restores secure connections after disassembly for service or repair.
• Helps eliminate intermittent movement that can lead to wear or leaks when a fastener is compromised.

• Use the correct bolt length and thread engagement for the application; do not force a mismatched fastener.
• Tighten to snug, manufacturer-specified torque when available; avoid overtightening to prevent stripping.
• Inspect surrounding parts (washers, nuts, threaded holes) and replace if worn or damaged.
• Disconnect power and follow all safety precautions before servicing the appliance.

This replacement screw secures panels and components on LG appliances to restore proper alignment and prevent rattling or loose parts. It's a direct-fit fastener used where OEM mounting hardware has become stripped, lost, or damaged. What it does:

• Secures panels, brackets, or trim to maintain appliance structure and alignment
• Helps stop vibration noise caused by loose panels or components
• Replaces missing or damaged mounting hardware to prevent parts from shifting
• Restores proper fit where stripped or worn screws no longer hold

• Use the correctly sized screwdriver or bit to avoid stripping the head
• Tighten snugly but do not overtighten; excess torque can strip threads or crack plastic
• If working near electrical components, unplug the appliance first to ensure safety
• Keep removed screws organized during disassembly to match locations on reassembly

This replacement mounting screw secures appliance panels and components to restore proper fit and reduce rattling or loose parts. Simple, direct replacement when a worn or missing screw causes loose panels or intermittent contact. What it does:

• Fastens panels, brackets, or small components to maintain proper alignment and reduce vibration
• Prevents loose trim, covers, or assemblies that can cause noise or improper sealing
• Replaces missing, stripped, or corroded screws that interfere with reliable operation
• Works wherever the OEM screw specification is required for secure mounting

• Use the matching screw hole and tighten until snug; avoid over-torquing to prevent stripping
• Disconnect power to the appliance if accessing electrical or moving parts near the work area
• If multiple screws are missing or panels are damaged, replace all fasteners for even support

This is a replacement mounting screw used to secure appliance panels, trim or components. It restores proper attachment to reduce vibration and rattling and helps keep removable parts firmly in place during operation. What it does:

• Fastens panels, brackets or trim pieces to the appliance frame
• Restores secure fit when original screw is missing, loose, or stripped
• Reduces rattling and vibration caused by loose hardware
• Helps maintain proper alignment of removable covers and control panels

• Disconnect power and water before starting any repair
• Verify size and thread match the original screw before installation
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but do not overtighten — overtightening can strip threads or crack plastic parts
• Keep small parts away from children and pets

This lower cover assembly protects the appliance's lower cabinet area and helps keep internal components free from debris while supporting proper airflow. It restores the unit's finished appearance and helps prevent damage to wiring and controls. What it does:

• Shields lower cabinet components from dust, lint and accidental contact
• Helps maintain correct airflow routing under the appliance
• Prevents foreign objects from reaching motors, pumps or wiring
• Re-establishes the finished exterior where the lower panel is missing or damaged

• One lower cover assembly

• Disconnect power (and water, if applicable) before starting work
• Remove any exterior panels or trim as needed; basic hand tools required
• Handle edges carefully; wear gloves to avoid cuts
• Secure all fasteners; replace any damaged clips or screws

This adjustable leveling leg assembly supports and stabilizes your appliance by threading into the base frame. Replacing a worn or missing leg helps you level the unit for smoother, quieter operation on uneven floors.

• Provides height adjustment to level the appliance and distribute weight evenly
• Helps prevent rocking, wobbling, and excess vibration or rattling
• Can improve door alignment and smooth opening/closing when the cabinet is properly leveled
• Useful when a leg is missing, damaged, or threads are stripped

• Disconnect power; if applicable, shut off the water supply
• Use a helper to safely brace or tip the unit; protect flooring when accessing the leg
• Unthread the old leg and hand-thread the new one; tighten as needed
• Adjust front-to-back and side-to-side until stable; all legs bear weight evenly

This air damper assembly regulates the flow of cold air from the freezer to the fresh food compartment. Replacing a worn or stuck damper restores proper airflow and temperature balance so groceries stay evenly cooled.

• Motorized flap opens and closes the air duct between compartments
• Helps maintain set temperatures and even cooling across shelves
• Common symptoms: refrigerator too warm while freezer is cold; items freezing in fresh food; clicking/buzzing near the damper; weak or no airflow from the vent
• Failure can result from a stuck door, worn gears, or a failed motor

• Disconnect power before servicing; do not work on live circuits
• Access from inside the refrigerator; remove shelves and the damper cover/grille
• Unplug the wire harness, release retaining tabs/screws, and transfer any seals or insulation if required
• After reassembly, restore power and ensure the damper cycles and airflow is present

This duct assembly routes internal airflow in the appliance, replacing damaged or worn vent tubing to restore proper air movement. It helps reduce air leaks and airflow-related performance issues when the original duct is compromised. What it does:

• Channels blower air from the fan housing to the exhaust path to maintain proper ventilation.
• Replaces collapsed, torn or disconnected ducting that can cause poor airflow.
• Addresses symptoms such as reduced drying/cooling performance, longer cycles, or warm cabinet air.
• Helps eliminate drafty or noisy airflow caused by gaps or damaged duct sections.

• Disconnect power (and turn off gas supply for gas appliances) before beginning service.
• Access may require removing rear or lower access panels; keep hardware organized for reassembly.
• Inspect and replace any damaged clamps, seals or gaskets during installation for a proper seal.

The Refrigerator Light Lens is an OEM part for LG refrigerators. It serves as a protective cover for the interior lighting system, shielding the light bulbs or LEDs from dust, moisture, and accidental impacts. The lens measures about 14 inches wide by 5-1/2 inches deep.

Symptoms of a faulty light lens:

• Dim or flickering interior lights
• Light leaks or scattered light distribution
• Cracked, broken, or missing light lens
• Water or moisture buildup inside the light housing

Causes of a bad light lens can include physical damage from impact, exposure to extreme temperatures or moisture, or general wear and tear over time.

This OEM LG part is also compatible with Sears/Kenmore refrigerator models.

The Compressor Overload Protector is an OEM replacement part for LG refrigerators. It plays an important safety role in protecting the compressor from damage due to excessive heat. Located near the compressor unit, the overload protector functions to shut off power to the compressor if temperatures become too high during operation.

Causes can include normal wear over time rendering it less responsive to temperature changes. Mineral or refrigerant deposits may also impede its ability to detect overheating conditions accurately.

Symptoms of a faulty overload protector include:

• Refrigerator fails to properly cool or the compressor does not run
• Circuit board or electrical component failure or burnout
• Lack of cold air production and higher than normal freezer/fridge temperatures

This OEM LG part is also compatible with some Sears/Kenmore models.

The Compressor Start Relay is an OEM part for LG refrigerators, playing a critical role in the starting mechanism of the compressor. This small but crucial component helps to kickstart the compressor, enabling it to begin the refrigeration cycle that cools the interior of the fridge.

Causes of a bad Compressor Start Relay include wear and tear over time, electrical surges that can damage the relay, or overheating of the compressor unit.

Symptoms of a bad Compressor Start Relay include:

• The refrigerator failing to cool properly or maintain the set temperature.
• A noticeable increase in the electric bill due to the refrigerator working harder to maintain temperatures.
• Strange noises, such as clicking sounds from the compressor area
• The compressor not starting at all, leading to a complete lack of cooling within the refrigerator.

This OEM LG part is also compatible with some Kenmore models.

This tray assembly collects and channels defrost and condensation water to the drain, helping prevent leaks and water buildup under the appliance. Designed to fit into the drain path and route moisture away safely. What it does:

• Catches defrost and condensation runoff and directs it toward the drain
• Helps prevent pooling and water damage inside the lower cabinet area
• Supports proper evaporator/drain operation by maintaining the drain path
• Can reduce dripping or puddling symptoms when the original tray is cracked or clogged

• 1 tray assembly

• Inspect surrounding seals and drain lines before installing; replace any damaged components
• Clean drain channel and remove debris to ensure proper flow prior to installation
• Handle gently to avoid cracking plastic tabs; use basic hand tools for removal/installation
• Disconnect power to the appliance before accessing internal components to avoid injury

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

The Defrost Control Assembly is an OEM part for LG refrigerators, crucial for regulating the defrost cycle within the unit. This component plays a pivotal role in ensuring that the evaporator coils are periodically defrosted, preventing the build-up of ice that can impede airflow and cooling efficiency.

Causes of a bad Defrost Control Assembly can include electrical failures, sensor malfunctions, or damage to the assembly itself, which can disrupt the defrost cycle.

Symptoms of a bad Defrost Control Assembly include:

• The refrigerator or freezer compartment becoming too warm due to blocked airflow from ice accumulation
• A noticeable build-up of frost or ice on the evaporator coils or in the freezer compartment
• The refrigerator running continuously without cycling off
• Unusual noises coming from the refrigerator as ice builds up and interferes with the fan

This OEM LG part is also compatible with Sears/Kenmore.

The Door Switch is an OEM part for LG refrigerators. It is located near the door hinge and is activated by the door's movement. When the door is closed, the switch is engaged, allowing the interior light to turn off and other functions to operate normally. When the door is opened, the switch is released, triggering the interior light to turn on and potentially activating other features, such as the ice dispenser or cooling system.

Causes of a faulty door switch can include wear and tear over time, mechanical damage from excessive force, or electrical issues.

Symptoms of a bad door switch may include:

• The interior light not turning on when the door is opened
• The interior light remains on when the door is closed
• Issues with the dispenser or other functions associated with the door switch

The Fan Motor is an OEM part for LG refrigerators. It is essential for circulating air throughout the refrigerator and freezer compartments, ensuring that the temperature is evenly distributed and maintained at the set levels. This motor powers the fan that helps to cool the evaporator coils and dissipate heat, which is vital for the appliance's cooling efficiency.

Symptoms of a failing Fan Motor include:

• The refrigerator not cooling adequately
• Unusual noises coming from the refrigerator, such as humming or buzzing
• Ice buildup in the freezer compartment due to poor air circulation
• The refrigerator cycling on and off more frequently

Causes of a bad fan motor can include wear and tear over time, obstructions in the fan blades, or electrical issues such as faulty wiring or a malfunctioning capacitor.

This OEM LG part is also compatible with Sears/Kenmore.

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

This is a replacement mounting bracket that secures internal appliance components to the cabinet frame, restoring proper alignment and support for moving parts. It helps reduce vibration and prevents loose or sagging assemblies. What it does:

• Provides a stable mounting point for internal components to maintain correct positioning
• Helps stop rattling, knocking, or vibration caused by loose fittings
• Restores support for panels, assemblies, or mechanical linkages that rely on the bracket
• Useful when original bracket is bent, cracked, or otherwise damaged

• Follow manufacturer service manual for correct placement and fastener torque
• Use proper tools and retain all screws/fasteners; replace damaged fasteners as needed
• Disconnect power before accessing internal components to avoid shock or injury

The Freezer Defrost Heater is an OEM part for LG refrigerators. It plays a crucial role in the defrost system by melting any frost or ice buildup on the evaporator coils. This helps maintain the efficiency of the cooling system and ensures the freezer operates properly.

Over time, the defrost heater can wear out or fail due to continuous heating and cooling cycles, electrical issues, or physical damage. Causes of a bad defrost heater include burnouts, electrical faults, and accumulation of frost that hinders its functionality.

Symptoms of a bad freezer defrost heater include:

• Excessive frost buildup in the freezer
• The freezer not maintaining the set temperature
• The refrigerator running continuously or cycling more frequently
• Water leaks inside the freezer from melting ice

This OEM LG part is also compatible with Sears/Kenmore models.

This lamp reflector mounts behind the refrigerator light to direct and spread illumination throughout the compartment. Replacing a cracked, melted, or missing reflector helps restore bright, even lighting so you can clearly see food and shelves. What it does

• Sits behind the interior lamp to reflect light forward into the compartment
• Helps maintain even, consistent illumination and reduces shadows
• Typical symptoms: dim or uneven lighting with a good bulb, yellowed/melted reflector, cracked or missing reflector
• Supports proper visibility around shelves and bins

• 1 lamp reflector

• Disconnect power before servicing to avoid electric shock
• Remove the light lens/cover and bulb to access the reflector
• Reuse existing screws or clips as applicable
• Do not overtighten fasteners; reinstall bulb and lens, restore power, and test

The Light Bulb is an OEM part for LG refrigerators. It can be used in either the fresh food section or freezer compartment, providing illumination for easy visibility of the stored items.

Causes of a faulty light bulb can include regular wear and tear, reaching the end of its lifespan, or accidental breakage. These factors can result in issues such as a dark or poorly lit interior, making it difficult to see the contents of the refrigerator.

Symptoms of a bad light bulb may include:

• No illumination or dim lighting inside the refrigerator
• A flickering or intermittent light
• Visible damage or broken filament inside the bulb

This LG OEM bulb is also compatible with Sears/Kenmore models.

The Run Capacitor is an OEM part for LG refrigerators. It is located near the compressor in the appliance's cooling system. It stores electrical energy and provides a boost to the motor during startup, ensuring smooth and efficient operation. The capacitor helps maintain the required power levels, stabilizes voltage, and supports the proper functioning of the compressor.

Causes of a faulty run capacitor can include electrical issues, capacitor aging or degradation, or damage due to power surges. These factors can result in issues such as the compressor not starting, the appliance not cooling properly, or unusual noises coming from the appliance.

Symptoms of a bad run capacitor may include:

• Compressor failing to start or delayed startup
• Inadequate cooling or no cooling at all
• Unusual noises, such as buzzing or clicking sounds

This OEM LG part can also be used on Kenmore/Sears appliances.

This replacement lamp socket holds and powers the appliance light bulb, restoring clear, reliable illumination when the light is switched on. Replace a heat-damaged, cracked, or loose socket to stop flickering or a light that won't come on.

• Holds the bulb securely and supplies electrical power
• Restores consistent interior lighting for visibility
• Replaces sockets with heat damage, cracks, or worn contacts
• Symptoms: light stays off with a good bulb, flickers intermittently, or the bulb feels loose

• Disconnect power before servicing and allow the area to cool
• Remove the lens/cover and bulb; release the socket (tabs or screws) to remove
• Transfer wires one at a time to the new socket; ensure tight, correct connections
• Use only the bulb type and wattage specified for your model; test before reassembly

This fan motor assembly circulates air across the evaporator coils to keep temperatures even inside the refrigerator. Replacing a worn or noisy motor restores proper airflow for consistent cooling performance.

• Drives the evaporator fan to move chilled air through the cabinet and vents
• Helps maintain stable temperatures and reduces frost from stagnant air
• Common symptoms: weak or no airflow, loud or intermittent fan noise, temperature fluctuations, refrigerator section warmer than expected
• Failures may result from worn bearings, moisture exposure, or an open motor winding

• Disconnect power before servicing; wear cut-resistant gloves and eye protection
• Access the fan behind the interior rear panel; remove shelves/drawers as needed and avoid bending evaporator fins
• Note wire connector orientation and mounting order; transfer any reusable hardware from the original assembly as needed
• After reassembly, verify the fan spins freely and confirm operation before reloading the compartment

The Light Housing Cover is an OEM replacement part for LG refrigerators. It houses electrical components for refrigerator lighting and provides protection from spills and accidental impacts.

Causes of a damaged light housing can include normal wear and tear over time or impacts from moving décor items or bumping interior surfaces. Covers shield-sensitive components.

Symptoms of a failed housing include:

• Dim or flickering interior lights that do not illuminate properly
• Exposed wiring or electronics that pose a potential shock hazard
• Broken clips or screws that do not securely fasten the cover

This cover is also compatible with some Kenmore Side-by-Side models for versatile installations.

This holder assembly is a structural mounting piece that supports and secures an internal component in your appliance. Replacing a cracked or worn bracket helps restore proper alignment and keeps parts stable during everyday use.

• Provides a rigid mounting point for the attached component
• Keeps parts aligned to reduce movement and vibration
• Helps prevent rattling or noise from loose mounts
• Common signs of failure: visible cracks/broken tabs, looseness, or parts that won't stay seated

• Disconnect power and, if applicable, turn off the water supply before service
• Note the orientation of the original part to match fitment
• Reuse existing mounting screws or hardware unless the manufacturer specifies otherwise
• Do not overtighten fasteners; the secured component is fully seated and stable

This temperature sensor is the thermistor that monitors compartment temperature and reports it to the control. Replacing a failed sensor helps restore accurate cooling and steady, reliable temperatures in your refrigerator.

• Detects refrigerator or freezer air temperature and sends a resistance signal to the control board
• Helps the control regulate compressor, evaporator fan, and air damper operation
• Also called a thermistor; critical for maintaining stable, set-point temperatures
• Failure symptoms can include sections that are too warm or too cold, erratic temperature swings, or frequent cycling

• Unplug the refrigerator before servicing
• Access location varies by model (often behind an interior cover or air duct); note routing and placement before removal
• Reinstall in the original position and route wiring in the factory path; ensure the connector is fully seated
• Restore power and allow up to 24 hours for temperatures to stabilize

The Freezer Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature within the freezer compartment, sending readings to the refrigerator’s control board to maintain optimal temperature levels. It plays a crucial role in ensuring that the freezer operates efficiently and keeps food items properly frozen.

Over time, the temperature sensor can fail due to regular wear and tear, electrical issues, or exposure to extreme temperatures. A faulty sensor can lead to inaccurate temperature readings, affecting the freezer's performance.

Symptoms of a bad freezer temperature sensor include:

• Inconsistent freezer temperatures
• The freezer running continuously or not running at all
• Frost buildup in the freezer compartment
• The control board displaying error codes related to temperature

This OEM LG part is also compatible with Sears/Kenmore.

The Refrigerator Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature inside the refrigerator and communicates with the control board to maintain the optimal cooling environment.

Common causes of failure include wear and tear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can lead to inaccurate temperature readings, resulting in improper cooling or freezing.

Symptoms of a bad refrigerator temperature sensor include:

• Inconsistent refrigerator or freezer temperatures
• Food spoiling faster than usual
• Refrigerator running continuously or not running at all
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.

The Water Filter is an OEM part for LG refrigerators. It is a component that ensures the purity and quality of your drinking water and ice.

The water filter is designed to effectively reduce contaminants, impurities, and odors from your water supply, providing you with clean and refreshing drinking water. It employs advanced filtration technology to remove substances such as chlorine, sediment, and other potentially harmful particles.

Causes of a faulty water filter can include regular usage over time, expiration of its filtering capacity, or clogging due to sediment buildup. These factors can result in compromised water quality, decreased flow rate, or unpleasant taste and odor.

Symptoms of a bad water filter may include:

• Decreased water flow from the dispenser
• Water with an unusual taste or odor
• Visible discoloration or particles in the water

This OEM LG part can also be used on Kenmore/Sears appliances.
