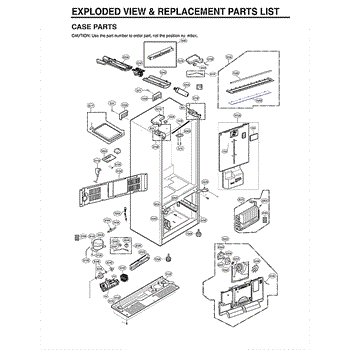

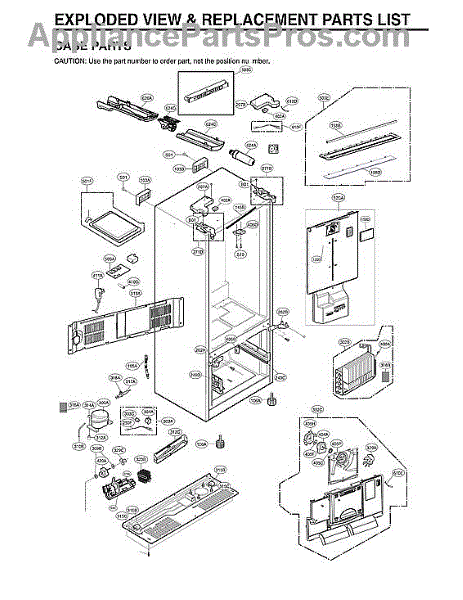

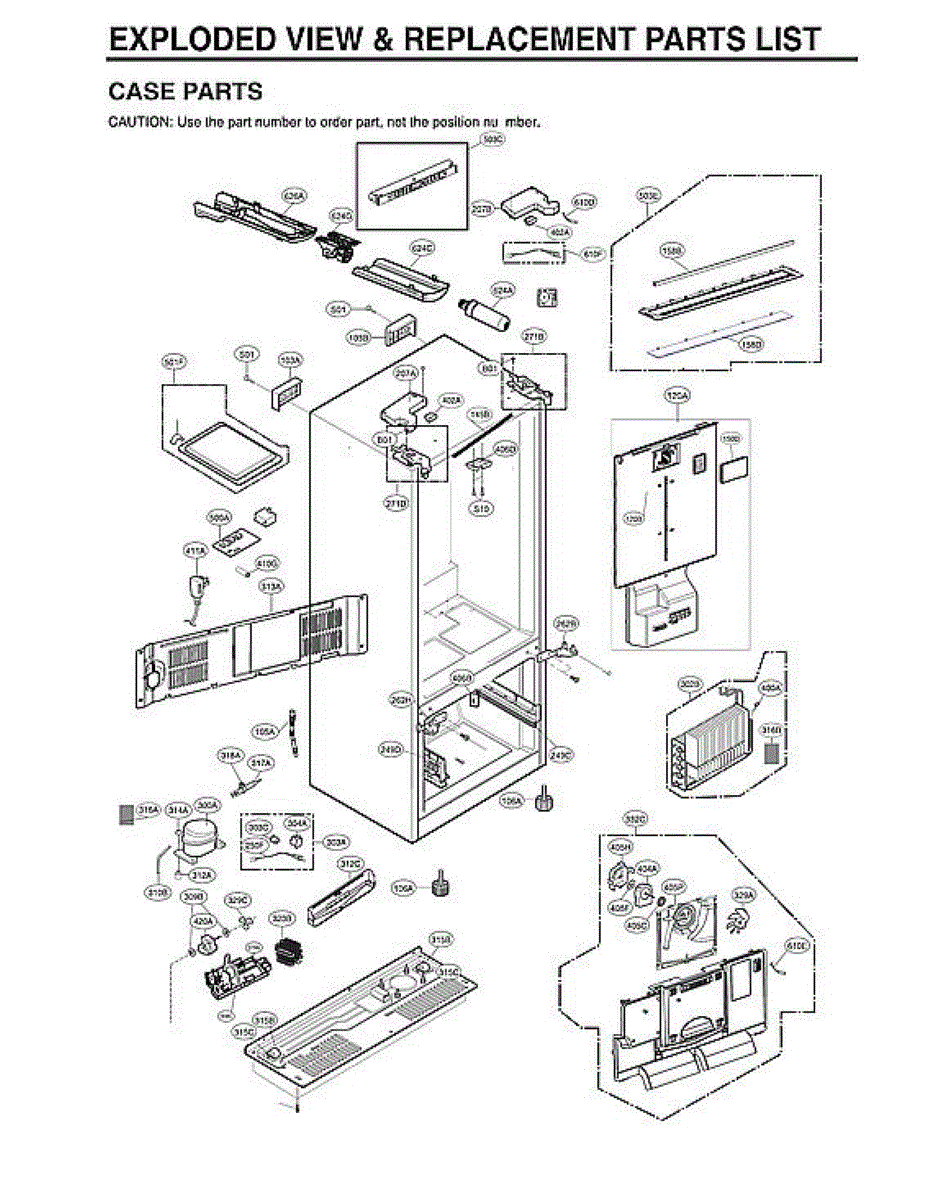

Parts for Kenmore Elite 79574102812: Case Parts

This is a replacement screw designed to secure appliance components where the original customized fastener is required. It restores proper fit and stability for panels, brackets, or assemblies that use this specific fastener. What it does:

• Replaces a missing, stripped, or damaged customized screw to restore secure attachment of parts.
• Helps eliminate rattling, loose panels, or misaligned assemblies caused by a faulty fastener.
• Matches the OEM mounting point to maintain correct part alignment and function.
• Suitable where the appliance design calls for this specific customized screw type.

• Turn off and unplug the appliance before servicing to avoid shock or injury.
• Use the correct screwdriver or bit to avoid stripping the screw head; do not force.
• Keep track of small parts during disassembly and reassembly; work on a stable surface.
• If threads are damaged or the mounting hole is stripped, inspect the mating component for repair before installing the new screw.

The Handle Mounting Stud is an OEM replacement part for LG refrigerator doors. It provides a sturdy mounting point for the door handle assembly. Reliable handle connection and support is crucial for dependable door function and access.

Causes of a faulty stud can include damage from excess weight or impact over time rendering the stud loose or unstable.

Symptoms of a bad stud include:

• Loose or sagging door handle
• Difficulty opening and closing the refrigerator door
• Potential for the handle to detach completely
• Safety concerns if the handle connection fails

This OEM LG replacement stud is also compatible with Sears/Kenmore models.

This customized replacement screw secures appliance components and restores proper fit and function. It's a direct-fit fastener designed for use where the OEM specifies a tailored screw to replace a worn, stripped, or missing fastener. What it does

• Fastens panels, brackets, or assemblies that use a manufacturer-specified customized screw
• Stops rattling or loose parts caused by worn or missing hardware
• Restores secure mounting for affected components
• Matches the OEM shape and thread pattern to prevent damage when used as directed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Install by hand initially, then tighten snugly—do not overtighten to avoid thread damage
• Keep removed hardware organized so you replace parts in their original locations

This rear door handle replaces a worn or damaged handle on compatible LG appliances, restoring a secure grip and smooth opening. It's a direct-fit exterior handle that keeps the appliance door operating and looking right. What it does

• Provides a secure gripping point to open and close the appliance door
• Replaces cracked, loose, or broken rear handle hardware
• Restores correct alignment and feel when the door is operated
• Helps prevent further damage to the door edge from makeshift handles

• Power off and unplug the appliance before starting work; remove food or shelves as needed for access
• Keep fasteners and mounting clips; transfer original hardware unless new hardware is explicitly included
• Test door operation and alignment after installation; tighten fasteners evenly to avoid stress

The Drain Pipe Assembly is an OEM replacement part for LG refrigerators. It is a plastic tubing system that collects and removes liquid condensation from evaporator coils. Proper drainage is crucial to minimizing frost buildup and ensuring optimal cooling of food storage areas.

Symptoms of a bad drain pipe assembly include:

• Excessive frost or ice accumulation inside the refrigerator
• Puddling or leaks detected near evaporator housing
• Slow draining allowing water to pool versus emptying fully
• Cracks or breaks in the tubing prevent complete fluid removal

Causes are typically mineral sediment clogging drainage paths or deteriorating plastic from constant use. This OEM LG replacement pipe restores reliable condensate removal to maintain peak efficiency.

This OEM LG part is also compatible with Sears/Kenmore.

This adjustable leveling leg assembly supports and stabilizes your appliance by threading into the base frame. Replacing a worn or missing leg helps you level the unit for smoother, quieter operation on uneven floors.

• Provides height adjustment to level the appliance and distribute weight evenly
• Helps prevent rocking, wobbling, and excess vibration or rattling
• Can improve door alignment and smooth opening/closing when the cabinet is properly leveled
• Useful when a leg is missing, damaged, or threads are stripped

• Disconnect power; if applicable, shut off the water supply
• Use a helper to safely brace or tip the unit; protect flooring when accessing the leg
• Unthread the old leg and hand-thread the new one; tighten as needed
• Adjust front-to-back and side-to-side until stable; all legs bear weight evenly

This replacement freezer tray holds water to form ice and fits into the freezer compartment to restore ice production and keep cubes contained. It's a simple swap that brings back reliable ice-making without tools. What it does:

• Holds water in molded cavities so ice cubes form evenly
• Replaces cracked, warped, or missing trays that leak or fail to produce ice
• Keeps ice contained and easier to remove from the freezer
• Helps prevent spills and pooling inside freezer shelves

• Remove the old tray, clean the cavity area, and slide or set the new tray into place per your freezer's shelf layout
• Wash the tray with warm, soapy water and rinse before first use
• Do not use sharp tools to pry ice from the tray; twist gently or run under cold water to release cubes
• Keep away from direct heat or stovetop surfaces and avoid using abrasive cleaners

This is a refrigerator shelf assembly that provides a stable, easy-to-clean surface for storing food and organizing items inside the fresh food compartment. Replacing a damaged or missing shelf restores usable space and proper support.

• Supports food items and containers on a rigid, flat surface
• Helps maintain organized storage and visibility in the compartment
• Replace if the glass is cracked, frame is broken, or shelf sags/doesn't seat properly
• Can also address rattling or instability from a warped or damaged shelf

• Unplug the appliance or disconnect power before servicing
• Remove contents and carefully lift out the old shelf
• Align the new shelf with the side rails and fully seat it in the supports
• Handle glass with care; avoid impact and uneven pressure during installation

This replacement shelf assembly restores usable storage space and provides a stable surface for food and containers in the refrigerator. It's a direct-fit shelf designed to match the original form and function for easy restoration. What it does:

• Provides a flat, stable shelf surface so food and containers sit level and secure
• Replaces cracked, chipped, or missing shelves that cause items to slide or break
• Restores proper shelving layout to help organize interior storage
• Helps maintain even airflow and access to stored items when positioned correctly

• One shelf assembly

• Remove food and unplug the appliance before beginning any service
• Handle glass or trim sections carefully to avoid chipping or injury
• Slide into the existing shelf supports; no special tools typically required
• Replace shelf clips or supports if damaged before installing the new shelf

Vegetable Tray Assembly keeps produce organized and supported inside the refrigerator's crisper area. Replace a damaged or warped tray to restore proper storage, prevent produce from sliding, and help maintain interior organization. What it does:

• Supports and contains fruits and vegetables in the refrigerator crisper area.
• Restores a stable surface when the original tray is cracked, chipped, or warped.
• Helps prevent items from sliding or catching while opening and closing the drawer.
• Intended as a direct replacement to return the crisper section to normal use.

• Remove produce and slide the crisper drawer out before replacing the tray.
• Inspect drawer guides and seating points for debris; seat the new tray fully into the guides.
• Handle carefully to avoid damage; wear gloves if surfaces are sharp or dirty.

This rail guide assembly supports smooth in-and-out movement of a dishwasher rack, keeping the rack aligned and preventing binding for reliable loading and unloading. Fits where the rack slides on the lower/upper rail system. What it does:

• Replaces worn or broken rack rail guides that cause rough or uneven sliding
• Keeps the rack track aligned to prevent tipping or jamming during use
• Restores smooth rack travel and reduces noise from metal-on-metal contact
• Common symptom: rack falls out of track, binds, or slides unevenly

• One rail guide assembly as shown

• Disconnect power and water supply before starting repairs
• Remove the affected rack and slide to access the guide; reinstall hardware in reverse order
• Use basic hand tools; avoid forcing parts to prevent breakage
• If clips or rollers are damaged, inspect and replace them as needed

This freezer door foam assembly replaces the insulation layer inside a freezer door to help restore proper temperature control and reduce condensation. It fits into the inner door cavity to improve cold retention and door performance. What it does:

• Replaces deteriorated or waterlogged door insulation that can lead to warm spots
• Helps reduce frost or ice buildup inside the freezer by restoring proper insulation
• Limits condensation and moisture between door panels that can cause odors or corrosion
• Supports overall temperature stability for better freezer efficiency

• One freezer door foam assembly

• Disconnect power before servicing and work on a dry, level surface
• Remove the inner door panel to access the foam; keep fasteners and clips organized
• Insert foam carefully to avoid tearing; align with locating features in the door cavity
• If the door uses adhesive or retention clips, reuse original hardware or OEM-recommended replacements

This freezer door foam assembly replaces the insulating foam inside a freezer door to help restore the door's sealed fit and reduce air leakage. It helps improve temperature stability and reduces frost buildup when the existing foam is damaged. What it does:

• Replaces deteriorated or compressed insulation inside the freezer door
• Restores a tighter door seal to reduce warm air infiltration
• Helps reduce excessive frost or ice buildup caused by air leaks
• Supports consistent freezer temperatures and efficient operation

• Disconnect power before starting and work with the door supported or removed to avoid injury.
• Remove the inner door panel or liner carefully to access the foam; keep fasteners and clips organized.
• Fit the foam into the door cavity without overstretching; ensure even contact with mating surfaces for a proper seal.
• If adhesive, clips, or a door liner are required, replace or reinstall them as needed.

This door gasket assembly replaces a damaged or worn refrigerator door seal to restore an airtight closure and improve cooling efficiency. It fits the door and provides a continuous seal to help maintain consistent internal temperature. What it does:

• Seals the refrigerator door to prevent warm air from entering and cold air from escaping.
• Helps reduce frost buildup and excessive compressor run time caused by a failed seal.
• Addresses symptoms like visible gaps, torn or deformed rubber, and poor door closure.
• Restores proper door alignment and contact for even cooling across compartments.

• One door gasket assembly

• Disconnect power and remove stored items from the door before starting.
• Replace gasket by removing retaining clips or trim, seat new gasket fully into the channel, and reattach trim/clips per manufacturer guidance.
• Avoid sharp tools that can damage the gasket; warm the gasket slightly if needed for easier seating.
• After installation, allow the gasket to set and check the door seal on all sides; adjust alignment if necessary.

This door gasket assembly seals the refrigerator/freezer door to help maintain proper temperature and reduce energy loss. It replaces a worn or damaged seal to improve cooling performance and prevent moisture buildup. What it does:

• Creates an airtight seal between the door and cabinet to keep cold air in and warm air out
• Helps prevent frost buildup, water leaks, and fluctuating internal temperatures
• Reduces compressor run time by maintaining consistent internal temperature
• Restores proper magnetic engagement where applicable to ensure the door closes fully

• Inspect the door flange for damage and clean thoroughly before installing the new gasket.
• Remove the old gasket carefully to avoid bending the door; align the new gasket evenly around the door perimeter.
• Warm the gasket slightly if needed to help seat it into the channel; avoid open flames or excessive heat.
• If the door still does not seal after installation, check hinge alignment and adjust.

This replacement door gasket creates a heat-resistant seal between the oven door and the front frame. A tight seal helps the oven maintain temperature and cook evenly while keeping heat from escaping into the kitchen.

• Seals the oven cavity to reduce heat loss and temperature fluctuations
• Helps improve preheat times and baking performance
• Worn seals can cause heat leakage, longer cook times, or hot air felt around the door
• Cracks, flattening, or fraying indicate the gasket should be replaced

• Disconnect power before servicing; allow the oven to cool completely
• Open the door and carefully release the old gasket from its mounting clips
• Align and press the new gasket into the channel, seating each clip fully
• After installation, check for even contact around the door

The Hinge Cover Assembly conceals and protects the door hinge area on your refrigerator. It safeguards wiring harnesses while restoring a clean, finished appearance, helping keep the hinge area secure and free of dust and damage.

• Protects the hinge mechanism and wiring for a clean, finished look
• Helps keep harnesses routed correctly and prevents snagging/abrasion near the hinge
• Replaces cracked, broken, loose, or missing hinge covers
• Helps reduce rattling or vibration noise from a loose/damaged cover

• Disconnect power before servicing.
• Support the door as needed; remove any screws or clips securing the old cover.
• Transfer and reuse existing hardware or clips if required; align the new cover and secure in place.
• Ensure wiring is not pinched; ensure smooth door movement before restoring power.

The Refrigerator Door Gasket is an OEM part for LG refrigerators. It's designed to create an airtight seal around the refrigerator door, preventing warm air from entering and cold air from escaping. The gasket is made from a flexible material that conforms to the door's edges, ensuring a snug fit against the refrigerator frame.

Causes of a bad door gasket include frequent opening and closing of the refrigerator door, exposure to harsh cleaning chemicals that can degrade the material, and natural wear and tear.

Symptoms of a bad Refrigerator Door Gasket include:

• Condensation or frost buildup near the door edges.
• The refrigerator runs more frequently or for longer periods.
• A noticeable increase in your electricity bill.
• The gasket feels brittle or has visible cracks, tears, or gaps.

This OEM LG part can also be used on Kenmore/Sears appliances.

The Refrigerator Door Gasket is an OEM replacement part for LG refrigerators. It is a crucial component that seals the gap between the refrigerator door and the main body, creating an airtight seal to maintain the desired temperature and humidity levels inside the appliance. It has approximate dimensions of 2" x 41" x 20".

Symptoms of a bad refrigerator door gasket include:

• Warm air leaking into the refrigerator compartment
• Excessive frost or ice buildup in the freezer
• Condensation forming on the interior walls or shelves
• Higher energy consumption due to the refrigerator working harder to maintain the set temperature

Causes of a bad door gasket can include physical damage, such as tears or cracks, due to impact or wear and tear over time. It can also become stiff or lose its pliability, preventing a proper seal.

This OEM LG part is also compatible with Sears/Kenmore models.

The Refrigerator Flipper Assembly is an OEM part for LG refrigerators. This assists in the smooth opening and closing of the refrigerator door. It ensures an airtight seal when the door is closed, preventing cool air from escaping and maintaining the refrigerator's internal temperature.

Causes of a malfunctioning Refrigerator Flipper Assembly can range from physical damage, such as cracks or breakage, to wear and tear from regular use.

Symptoms of a bad Refrigerator Flipper Assembly include:

• Difficulty in opening or closing the refrigerator door
• A noticeable gap when the door is supposed to be sealed shut
• Increased energy consumption as the refrigerator works harder to maintain its temperature
• Spoilage of food items quicker than expected due to poor temperature regulation

This OEM LG part is also compatible with some Kenmore models.

This replacement drawer guide restores proper tracking and smooth operation to a refrigerator or freezer drawer. It helps keep the drawer aligned and reduces scraping, sticking, or uneven movement for reliable daily use. What it does:

• Guides the drawer along its track so it opens and closes smoothly
• Replaces a worn, cracked, or bent guide that can cause sticking or misalignment
• Reduces drawer rattling and scraping against the cabinet
• Helps prevent drawer drops or catching when pulling open or pushing closed

• Unplug the appliance or switch off power before servicing to avoid electrical hazards
• Remove the drawer and any screws or retaining clips holding the old guide; keep hardware if it's reusable
• Align the new guide on the track and secure with the original screws or clips; do not force parts into place
• Test the drawer operation before returning contents; recheck alignment and hardware if movement is still obstructed

The Door Basket is an OEM part for LG refrigerators. It is used to organize small items and provide additional storage directly on the refrigerator door.

Symptoms of a bad door basket include:

• Items no longer stay securely in place during opening and closing
• Sagging or misshapen basket that no longer organizes properly
• Detached basket that no longer mounts firmly on the door

Causes of a bad door basket can include warped or broken plastic, cracks or fractures in the plastic construction, or failure of the mounting brackets over time.

This OEM LG replacement is also compatible with select Sears/Kenmore models.

STOPPER ASSEMBLY,DOOR

STOPPER ASSEMBLY,DOOR

This hinge cam fits the door hinge and provides the lift/settle action that helps the door open and close smoothly. Replacing a worn cam can reduce clicking and restore consistent door movement and alignment.

• Provides cam action at the hinge for smooth door travel
• Helps the door seat closed and maintain alignment
• Common symptoms include clicking/knocking at the hinge, rough or uneven door movement, or slight door sag
• Visual wear such as flat spots or grooves on the cam is a typical failure sign

• Disconnect power to the appliance before servicing
• Support the door to prevent injury; remove hinge cover and hardware as needed
• Note the cam's orientation and any washers/spacers and transfer them to the new part
• After installation, verify door operation and gasket alignment; adjust hinge if needed

The Lower Refrigerator Door Hinge is an OEM part for LG refrigerators. This hinge supports the refrigerator door, allowing it to open and close smoothly while maintaining proper alignment. It is designed to handle the weight of the door and ensure a secure and stable operation over time.

Causes of a bad lower refrigerator door hinge can include regular wear and tear, physical damage from overloading or impacts, and gradual loosening over time. A faulty hinge can lead to misalignment, difficulty in opening or closing the door, and potential damage to the door seal.

Symptoms of a bad lower refrigerator door hinge include:

• The door not closing properly or staying open
• Sagging or misaligned door
• Unusual noises when opening or closing the door
• Gaps in the door seal, causing cooling inefficiency

This OEM LG part is also compatible with Sears/Kenmore models.

The Door closer is an OEM part for LG refrigerators, this part prevents the refrigerator door from swinging open too widely. By limiting the door's range of motion, the Door Stop ensures that the door opens smoothly and safely, contributing to the longevity of the appliance and maintaining the aesthetic integrity of your kitchen space.

Causes of a bad Door closer can stem from physical damage, wear and tear over time, or loosening of the component due to repeated use.

Symptoms of a bad Door closer include:

• The refrigerator door swinging open too far
• Damage or marks on adjacent walls or furniture from the door hitting them
• Increased wear on the refrigerator's hinges due to uncontrolled door movement

This OEM LG part is also compatible with some Kenmore models.

This handle assembly is the exterior door pull that provides a secure grip and restores proper door operation and appearance. It replaces damaged, cracked, or loose handles so the refrigerator door opens and closes reliably. What it does:

• Replaces a broken, cracked, loose, or worn door handle to restore grip and function
• Provides the structural mounting point for opening the refrigerator door
• Helps maintain a finished exterior appearance and proper door alignment
• Works with the door's existing mounting hardware and trim where applicable

• One refrigerator door handle assembly

• Disconnect power and remove food from the door area before beginning work
• Support the door while removing mounting screws to prevent dropping or damage
• Retain and reuse any existing screws, inserts, or trim unless replacements are explicitly listed

This rail slide replaces a worn or broken drawer track to restore smooth opening and reliable support for a refrigerator or freezer drawer. It helps the drawer glide smoothly and keeps contents stable during use. What it does:

• Guides and supports the drawer for smooth, linear movement
• Restores even alignment to prevent sticking, binding, or uneven travel
• Reduces rattling and helps the drawer stay fully seated when closed
• Addresses symptoms like a sagging, hard-to-pull, or off-track drawer

• High-level replacement — remove the drawer and fasteners to swap the rail
• Keep small screws and clips organized and reuse original hardware unless replacements are provided
• Wear gloves to protect hands and avoid damaging painted surfaces

This slide rail restores smooth, stable drawer or rack movement so the compartment opens and closes without binding. It replaces a worn or damaged rail to improve alignment and support. What it does

• Guides and supports a drawer or oven/rack for even, controlled sliding
• Reduces sticking, scraping, or uneven travel when opening or closing
• Helps prevent the drawer or rack from sagging or coming off the track
• Works as a mechanical replacement when the original rail is bent, cracked, or worn

• One slide rail

• Disconnect power or unplug the appliance before beginning any repair
• Remove the affected drawer or rack to access mounting screws and clips
• Match rail orientation and secure with the original fasteners; do not overtighten
• Test operation after installation and reassemble any removed components

This harness assembly is a factory-style wiring harness that routes power and control signals between the dispenser, ice maker and main control—restoring electrical connections for reliable dispenser and ice-maker operation. What it does

• Carries power and signal lines between the refrigerator control board, dispenser and ice maker
• Restores lost or intermittent dispenser power and control communication
• Helps stop intermittent ice-maker cycling or dispenser failures caused by damaged wiring
• Eliminates loose, corroded or broken connector problems on the original harness

• One harness assembly as shown

• Disconnect power to the appliance before starting any repair
• Handle connectors gently and match keyed plugs to their mating sockets
• Inspect connector pins and wiring routing; replace any damaged clips or grommets

This connector assembly secures and drives the freezer drawer bar so the drawer opens and closes smoothly. Replaces a worn or broken bar/gear assembly to restore proper drawer movement and alignment. What it does:

• Transfers drawer motion to the slide mechanism so the freezer drawer glides correctly
• Replaces worn or stripped gears that cause slipping, grinding, or uneven movement
• Secures the drawer bar to the internal slide/track to prevent misalignment or sagging
• Useful when a drawer won't open/close smoothly, catches, or rattles during operation

• Disconnect power before servicing and remove stored items from the drawer
• Generally replaces with basic hand tools; support the drawer while detaching and installing the assembly
• Inspect surrounding slide components for wear and replace if needed for reliable operation

This is a service spanner designed for appliance maintenance, giving a secure grip for loosening and tightening service fittings and retaining nuts. It helps access and remove service components safely and efficiently. What it does

• Provides the correct fit and leverage for specific appliance service fittings and retaining nuts.
• Helps free seized or over-tightened fittings that cause vibration or poor connections.
• Allows safe removal and reinstallation of components during repairs or routine maintenance.
• Reduces risk of damaging fasteners compared with improper or makeshift tools.

• Disconnect power and gas before servicing the appliance.
• Use proper hand protection and eye protection; hold the tool securely and apply steady force.
• Refer to the appliance service manual for the correct access points and torque specifications.
• Do not use as a substitute for other specialty tools unless specified by the manufacturer.

This center hinge assembly secures and allows smooth pivoting of the refrigerator's center door, restoring proper door alignment and closing. It replaces a worn or damaged hinge to reduce sagging and improve sealing. What it does:

• Provides the pivot point for the refrigerator's center door, maintaining correct door movement and alignment
• Helps the door close evenly to preserve the gasket seal and internal temperature
• Replaces broken, bent, or worn hinge hardware that can cause door sag or rubbing
• Works with existing hinge pins and mounting points to restore original function

• One center hinge assembly

• Requires basic hand tools; follow manufacturer instructions for removal and installation
• Support the door while removing or installing the hinge to prevent injury or damage
• Ensure all fasteners are tightened securely and door alignment is checked after installation
• Disconnect power if required by the appliance manufacturer before servicing

This center hinge assembly secures and pivots the upper/center refrigerator door, restoring proper door alignment and smooth opening. Designed to replace a worn, bent or broken center hinge to improve sealing and operation. What it does:

• Provides a mounting pivot for the upper/center refrigerator door to ensure correct swing and alignment
• Helps maintain an even door gap for a proper seal and consistent cooling
• Replaces damaged, bent or worn hinge components that cause rubbing, sagging, or noisy door movement
• Works with factory hinge pins and covers to restore original door function

• One center hinge assembly

• Installation requires removing the door and supporting it; have a helper to prevent damage or injury
• Use appropriate hand tools; avoid overtightening fasteners which can bind the hinge
• Inspect adjoining hinge pins and mounting screws; replace if worn for best results
• Disconnect power or follow manufacturer safety steps if working near electrical components

Left side upper hinge.

Right side upper hinge.

This duct cap assembly seals and directs an appliance's exhaust airflow to maintain proper venting and reduce air or moisture leakage. It replaces a damaged or worn cap to help restore correct ventilation and safe operation. What it does:

• Seals the duct connection to prevent air, moisture, and debris from escaping the vent path.
• Directs exhaust airflow out of the appliance for consistent ventilation performance.
• Common replacement if you notice reduced airflow, lingering odors, visible cracks, or air/water leaking around the vent.
• Helps reduce lint buildup at the duct connection when installed and maintained properly.

• Disconnect power (and gas, if applicable) to the appliance before servicing; follow all safety precautions.
• Remove old vent cap and clean surrounding area; install new cap with correct orientation and secure fasteners or clamps.
• Wear gloves to protect hands from sharp sheet metal; verify a tight seal and clear exterior vent path after installation.

This replacement lever spring restores tension to a lever-style mechanism so the lever returns and operates reliably. Use it when a worn spring causes the lever to stick, slip, or fail to engage properly. What it does

• Replaces the worn or weakened spring in a lever assembly to restore proper return tension
• Helps prevent the lever from sticking, slipping, or failing to stay engaged
• Restores consistent mechanical movement for reliable operation
• Reduces intermittent or flaky lever behavior caused by a damaged spring

• Disconnect power to the appliance before starting any repair
• Inspect the lever assembly and mounting points; replace only the spring explicitly listed
• Use appropriate hand tools and pliers; avoid overstretching the spring during installation

This lever-style control button replaces a worn or broken control-panel button to restore reliable push-button operation and user input. Designed to match OEM fit and tactile feel for proper engagement with the switch mechanism. What it does:

• Acts as the user-facing push lever for a control switch or button assembly
• Restores proper button travel and tactile feedback when the original is cracked, loose, or missing
• Prevents intermittent or unregistered button presses caused by damaged button hardware
• Works with the existing switch and bezel to complete control-panel input

• Disconnect power (unplug appliance or turn off breaker) before starting any repair.
• Remove the control panel or bezel per your model's service instructions to access and replace the button.
• Inspect the mating switch and surrounding clips; replace any damaged retainers for secure fit.

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

The Compressor is an OEM part for LG refrigerators. As the primary component that circulates refrigerant to chill the refrigerator and freezer compartments, it is crucial for proper cooling operation. The compressor works with the condenser fan and evaporator coil to regulate temperatures inside the refrigerator.

Causes of a faulty compressor can include gradual breakdown of motor windings, loss of refrigerant pressure over time, or failure of electrical components vital to operation.

Symptoms of a bad compressor are:

• Elevated fridge/freezer temperatures unable to be maintained
• Frost patterns indicating poor or insufficient cooling
• Abnormal vibrations or sounds upon compressor cycling
• Error codes displayed regarding cooling performance

It is also compatible with Sears/Kenmore refrigerator models.


The Thermistor Assembly is an OEM part for LG refrigerators. As a key component, it plays an integral role in monitoring and regulating interior temperatures. Consisting of a thermistor sensor and connection wire harness, it communicates real-time temperature readings to the control board.

Symptoms of a bad thermistor assembly can include failure to properly detect temperature changes, causing inaccurate interior conditions, or affecting automatic defrost cycles. Breaks or shorts in the wiring can interrupt readings.

Causes of failure include general wear over time, damage from moisture exposure, or loose connections inhibiting communication. Thermistors may also fail prematurely in high-humidity environments.

Symptoms of a bad thermistor assembly include:

• Inability to maintain set interior temperatures
• Frost or ice buildup inside with poor defrosting
• Refrigerator failing to cool or cooling excessively
• Control panels displaying error codes relating to sensors

This OEM LG part is also compatible with Sears/Kenmore.


The Overload Compressor is an OEM part for LG refrigerators. This part protects the refrigerator's compressor from overheating and potential damage by acting as a safety device. It works by monitoring the compressor's electrical current and temperature. If the compressor operates under conditions that could lead to overheating or overcurrent, the overload protector will cut off the power to the compressor, allowing it to cool down before potentially restarting.

Causes of damage to the Overload Compressor can include power surges, electrical faults within the refrigerator, or a malfunctioning compressor that requires more current than usual to operate.

Symptoms of a bad Overload Compressor include:

• The refrigerator not cooling properly or not cooling at all
• The compressor failing to start, indicated by a clicking sound coming from the back of the refrigerator where the compressor is located.
• The refrigerator or freezer section warming up

This OEM LG part is also compatible with some Kenmore models.

This molded fan guide positions and supports the evaporator/air-circulation fan to keep airflow steady and reduce noise for proper refrigerator cooling. Replaces a cracked or broken guide to restore stable fan movement. What it does:

• Holds the fan blade or motor shaft in the correct position for consistent airflow
• Prevents rubbing, wobble, and vibration that cause noise or premature fan wear
• Helps maintain even cooling through unrestricted circulation in the freezer/refrigerator
• Common symptom: rattling, scraping, or noisy fan; reduced airflow or uneven temperatures

• One fan guide

• Disconnect power to the appliance before starting any repair
• Part typically installs behind interior panels; remove cover panels and the fan assembly to access
• Handle plastic tabs and clips gently to avoid breakage; use appropriate tools if clips are tight

Replacement front cover that restores your appliance's exterior finish and helps protect controls and internal components from everyday wear, spills, and minor impacts, delivering a clean, finished look and proper front-panel fit. What it does:

• Covers and protects the appliance's front area, helping shield controls and wiring from dirt and moisture.
• Restores damaged or cracked front trim for improved appearance.
• Helps maintain proper alignment and fit of the front assembly.
• Common symptom: cracked, chipped, warped, or loose front panel that exposes internal parts or looks worn.

• Disconnect power (unplug or switch off breaker) before starting any repair.
• Basic hand tools (screwdriver set) may be required to remove the old cover and install the replacement.
• Handle edges carefully to avoid cuts; align tabs/clips and secure fasteners snugly but do not overtighten.

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

This customized pin is a precision fastener that serves as a pivot or locating point within your appliance. It helps keep mating parts aligned and moving smoothly. Replace a bent, worn, or missing pin to restore proper operation. What it does

• Acts as a pivot/axle or locating pin between connected parts
• Maintains alignment to reduce wobble and uneven movement
• Supports smooth opening/closing or rotation at the joint
• Common signs it's needed: looseness, sagging or misalignment, scraping/squeaking at the pivot, or a visibly worn/bent/missing pin

• One customized pin

• Disconnect power (and shut off water supply, if applicable) before servicing
• Support the door/panel/assembly to remove load from the pin during removal/installation
• Note the orientation and order of any spacers, bushings, or washers and transfer them to the new pin
• Apply a light lubricant and verify smooth movement before restoring power

This cabinet roller supports the refrigerator and lets the unit roll in and out of place for cleaning or service. Replace a worn or broken roller to restore smooth movement and help keep the appliance properly positioned.

• Supports the base of the refrigerator and enables rolling movement
• Helps with safe positioning and service access without dragging
• Common failure signs: appliance is hard to move, scraping or rolling noises, a flat-spotted/cracked wheel, or a wheel that won't turn
• Replace when the roller is damaged, seized, or missing

• Disconnect power and shut off water supply; protect flooring before moving the appliance
• With help, pull the refrigerator forward and safely support it to access the roller
• Remove mounting fasteners, install the new roller, and reuse original hardware
• Confirm level and smooth movement before returning the unit to its location

The Drier Assembly is an OEM part for LG refrigerators. This part removes moisture and contaminants from the refrigerant, ensuring the system operates efficiently and effectively. The drier assembly helps maintain the proper function of the compressor and other cooling components, contributing to the longevity and performance of the refrigerator.

Causes of a bad drier assembly can include clogs from debris, wear and tear over time, or contamination from moisture or refrigerant leaks.

Symptoms of a bad drier assembly include:

• The refrigerator not cooling properly
• Frost or ice buildup on the evaporator coils
• Increased noise from the compressor
• Reduced efficiency and higher energy consumption
• You should replace the drier assembly if it becomes faulty or damaged.

This OEM LG part is also compatible with select Sears/Kenmore models.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

This replacement drip tray catches and channels water beneath the appliance to prevent leaks and pooling. It helps maintain proper drainage and reduces the chance of water damage under your refrigerator or freezer. What it does:

• Collects condensation, defrost water, or minor leaks to keep the cabinet floor dry
• Directs water to the evaporator or drain system so it can safely evaporate
• Helps prevent pooling that can lead to odors or mildew
• Restores a damaged or missing tray to stop water from dripping onto the floor

• For safety, unplug the appliance and shut off water supply (if applicable) before installing
• Slide or snap the tray into the designated location; ensure it seats fully and aligns with the drain path
• Inspect surrounding seals and drain channels for blockages or damage while the tray is accessible

Restore proper airflow with this replacement fan assembly. It circulates air across the coils and through the cabinet so your refrigerator can move heat effectively and maintain consistent temperatures throughout. What it does:

• Drives airflow to support heat exchange at the coils
• Helps maintain stable, even temperatures inside the compartments
• Supports proper cooling performance and system reliability
• Common symptoms: fan not running or intermittent, unusual rattling/scraping noise, reduced airflow, warmer-than-normal temps or extended run times

• 1 fan assembly

• Disconnect power before servicing; wear cut-resistant gloves
• Access the fan compartment; remove covers/panels as designed
• Note wire orientation and transfer any reusable hardware from the old unit
• Secure the assembly; ensure the blade spins freely before restoring power and testing

The Evaporator Fan Blade is an OEM replacement part for LG refrigerators. It is a key component located inside the refrigerator that works to circulate cold air evenly throughout. The fan blade spins rapidly to distribute chilled air from the evaporator coil and refrigeration system, ensuring proper airflow and consistent temperatures across all shelves and compartments.

Symptoms of a bad evaporator fan blade include:

• Inconsistent or improper interior cooling temperatures
• Hot or warm spots developing inside the refrigerator
• Strange noises such as clicking or grinding emanating from the rear wall

Causes of a bad evaporator fan blade can be wear and tear over time, an accumulation of dust or debris on the blades restricting airflow, or accidental damage like dents or cracks to the blades affecting their ability to spin smoothly.

This OEM LG part is also compatible with select Sears/Kenmore brand models.

This fan grille assembly covers and protects the appliance fan while helping direct airflow and minimize noise. It's a direct-fit replacement component that restores proper ventilation and keeps debris away from the fan blades. What it does:

• Shields fan blades from objects and debris that can cause damage or binding
• Directs airflow for more consistent ventilation and cooling performance
• Helps reduce rattle or vibration caused by cracked or loose grille pieces
• Restores proper fan clearance when the original grille is warped or broken

• Disconnect power to the appliance before starting any work.
• Handle the grille carefully to avoid damaging mounting tabs; small plastic clips are common.
• Installation typically requires basic hand tools (screwdriver); align tabs and secure fasteners snugly.

This sheath-style heater melts frost from the evaporator during automatic defrost cycles to keep airflow clear and temperatures stable. Replacing a failed heater helps stop recurring ice buildup and restore consistent cooling performance.

• Heats the evaporator to melt accumulated frost/ice during defrost
• Keeps air passages clear to maintain proper temperatures
• Helps prevent frost-packed evaporator covers and reduced cooling
• Common symptoms: heavy frost behind the freezer panel, fan noise from ice contact, weak cooling, long run times

• Disconnect power before servicing; allow any sharp edges to be avoided with cut-resistant gloves
• Access is typically behind the freezer's rear interior panel; remove shelves/drawers and panel to reach the evaporator
• Transfer any clips/sensors attached to the heater in the same positions; avoid bending fins or puncturing refrigerant lines
• Ensure connectors are fully seated and the heater is secured before restoring power and monitoring operation

This magnet-activated switch is a small sensor that tells the appliance when a door or lid is open or closed. Replacing a faulty switch restores proper lighting, door-ajar alerts, and safety interlocks for normal operation.

• Senses a nearby magnet to report door/lid open/closed status to the control
• Helps control interior lights, alarms, fans, and dispenser/ice interlocks on applicable units
• Failure symptoms can include lights staying on or off, false door-ajar beeps, or dispenser/ice disabled
• Common causes: moisture intrusion, damaged leads, or stuck internal contacts

• Disconnect power before servicing
• Access the switch at the door opening (behind trim/control housing or liner, location varies by model)
• Release locking tabs/fasteners, move wiring carefully, and install the new switch in the same orientation
• Restore power and verify operation by bringing a magnet near the switch to toggle

The Dispenser Micro Switch is an OEM part for LG refrigerators. It is a component of the ice and water dispensing system, responsible for activating the dispenser when the lever is pressed.

Causes of a bad Dispenser Micro Switch can include mechanical wear from frequent use, failure due to moisture or debris affecting the switch’s contacts, or electrical faults that prevent proper signaling.

Symptoms of a bad Dispenser Micro Switch include:

• The dispenser not releasing ice or water when the lever is pressed.
• Continuous dispensing or dripping after the lever is released.
• Intermittent or no response from the dispenser controls.

This OEM LG part is also compatible with Sears/Kenmore.

The Evaporator Fan Motor Assembly is an OEM replacement part for LG refrigerators. This assembly is responsible for circulating cold air from the evaporator coils throughout the refrigerator and freezer compartments. By doing so, it ensures that both compartments maintain the desired temperatures and that the cooling process is efficient.

Causes for a malfunctioning Evaporator Fan Motor Assembly can include motor wear from continuous operation, electrical issues like faulty wiring, obstructions preventing the fan blades from turning, or damage to the fan blades themselves.

Symptoms of a bad Evaporator Fan Motor Assembly include:

• Inconsistent temperatures in the refrigerator or freezer compartments
• Unusual noises, such as humming or buzzing, coming from the back of the refrigerator
• Reduced cooling efficiency, leading to food spoiling faster
• Frost buildup in the freezer due to poor air circulation

This OEM LG part is also compatible with Sears/Kenmore model refrigerators.

A replacement cover motor that powers the refrigerator's dispenser cover, allowing the door to open and close so you can access ice and water. Replaces a worn or failed motor to restore normal dispenser cover operation. What it does:

• Drives the dispenser cover mechanism so the cover opens when dispensing and closes when idle
• Helps keep the dispenser sealed to reduce drafts and prevent pests or debris from entering
• Stops or fails to move when worn, causing a stuck, slow, or noisy dispenser cover
• Works with the dispenser linkage and gears to coordinate cover motion with user controls

• One cover motor

• Disconnect power to the appliance before beginning any repair
• Remove dispenser trim and access panel per your model's service instructions to reach the motor
• Handle gears and linkage carefully; ensure proper alignment during reassembly and test cover operation before finishing

Damper motor support secures the damper motor assembly inside the refrigerator, keeping the air-control damper aligned so it opens and closes correctly. Replacing a damaged support restores proper airflow control and reduces noise. What it does:

• Secures and positions the damper motor assembly so the air-control damper moves smoothly.
• Keeps the motor and damper aligned to help prevent rattling, grinding, or loose motor noise.
• Supports consistent airflow between compartments to assist with even cooling.
• Resolve damper movement problems like the damper not opening or closing fully.

• Disconnect power to the appliance before starting work; remove food and shelves as needed for access.
• Remove the interior access panel to reach the damper assembly; handle plastic tabs and clips gently to avoid breakage.
• Align the motor and damper during reassembly and secure all fasteners; test damper operation before replacing panels and shelving.

This damper motor support replaces a broken or warped mount for the refrigerator's air damper assembly. It holds the damper motor and door securely so the system can meter freezer air into the fresh food compartment.

• Secures and aligns the air damper motor/door within the duct
• Helps ensure proper opening/closing of the damper to regulate airflow and temperature
• Damage can contribute to a warm or too-cold refrigerator and inconsistent temperatures
• May cause clicking or buzzing from the damper area or a visibly loose assembly

• Disconnect power to the refrigerator before servicing
• Access the damper behind the fresh food compartment duct/cover; remove shelves as needed
• Note wiring and orientation; transfer the existing damper motor and door to the new support and reuse fasteners
• Ensure the door moves freely and seals before reassembly; restore power and verify airflow

The Ice Dispenser Door Motor is an OEM part for LG refrigerators. This motor is responsible for the operation of the ice dispenser door, controlling its opening and closing mechanism to allow ice to be dispensed without letting warm air into the freezer.

Symptoms of a bad Ice Dispenser Door Motor include:

• The dispenser door not opening or closing properly,
• Ice not being dispensed when activated,
• Unusual noises coming from the dispenser mechanism.

Causes of ice dispenser door motor failure can include electrical issues such as shorts or wiring problems, mechanical wear over time, or blockages that strain the motor.

This OEM LG part is also compatible with Sears/Kenmore.

The Door Bracket is an OEM part for LG refrigerators. This bracket supports the refrigerator door by providing stability and ensuring proper alignment during opening and closing. It plays a crucial role in maintaining the door’s secure fit, which is essential for maintaining the internal temperature and efficiency of the appliance.

Common causes of a bad door bracket include wear and tear from frequent use, impact damage, or corrosion due to moisture.

Symptoms of a bad door bracket include:

• The refrigerator door not closing properly
• The door sagging or being misaligned
• Unusual noises when opening or closing the door
• Gaps in the door seal leading to temperature inconsistencies

This OEM LG part is also compatible with Sears/Kenmore.

This LED assembly is a backlight strip used to illuminate the display for clear, even picture brightness. Replacing a faulty strip restores proper screen illumination and can eliminate dark spots or missing segments. What it does:

• Provides the LED illumination source behind the LCD panel for even brightness
• Restores lost or uneven backlighting caused by failed LEDs or damaged strips
• Commonly replaces parts that cause dimming, flickering, or no light on power-up
• Connects to the display's LED driver board to receive power and signals

• Disconnect power and remove the display panel before replacing
• Handle the strip and connector carefully to avoid bending or damaging LEDs and flex cables
• Observe ESD precautions and avoid touching LED surfaces or circuit traces
• Reassemble panels and test before finalizing to ensure proper alignment and function

The Capacitor is an OEM part for LG refrigerators. It plays a vital role in the electrical system, providing the necessary power boost to start the compressor and maintain its operation. This component ensures that the refrigerator runs efficiently by stabilizing voltage and improving overall performance.

Common causes of a bad capacitor include electrical surges, wear and tear over time, or exposure to excessive heat.

Symptoms of a bad capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual noises coming from the refrigerator
• The refrigerator cycling on and off frequently

This OEM LG part is also compatible with Sears/Kenmore models.

Power cord assembly that restores the appliance's connection to household mains. Replaces a damaged or worn cord to help stop power loss, sparking, or intermittent operation and restore a safe power feed. What it does:

• Provides the main electrical connection from the wall outlet to the appliance so internal components receive line voltage.
• Replaces cords with visible damage, frayed insulation, exposed wires, or broken plug prongs.
• Can resolve symptoms such as no power, intermittent power, sparks at the plug, or breaker trips caused by a faulty cord.
• Restores the original style of power connection and strain-relief routing for a secure fit.

• Always disconnect power at the wall before attempting service.
• Basic hand tools may be required; secure the cord firmly with the appliance's strain relief and tighten screws.

This DC motor assembly powers a fan inside your appliance to move air where it's needed. Replacing a weak or failed motor restores proper airflow for stable temperatures and reliable performance. What it does:

• Drives a fan blade to circulate air within the appliance
• Supports consistent temperatures and efficient airflow
• Common failure signs: fan not running, intermittent operation, or grinding/squealing noises
• Contribute to poor cooling/heating and fan/motor-related error codes

• Includes: 1 DC motor assembly

• Disconnect power to the appliance before servicing
• Access the fan area, note wire routing/orientation, and remove mounting fasteners
• Transfer the fan blade and any mounting hardware from the original motor if needed
• Ensure the blade spins freely and connectors are fully seated before reassembly and power-up

The Electronic Control Board is an OEM component designed specifically for LG refrigerators. It acts as the central processing unit, regulating all mechanical and electrical functions within. The control board receives input from temperature sensors and door switches located throughout the unit.

Symptoms of a bad control board include:

• Failure to adequately cool or freeze foods over time
• Inability to sense and adjust for temperature variances
• Malfunctions in digital displays, ice/water functions
• Repeated tripping of compressor and condenser units

Causes are typically related to liquid leaks damaging circuitry or loose/broken solder joints due to vibration.

This cover assembly protects a control board's printed circuit board (PCB) by shielding it from dust, moisture, and accidental contact. It helps keep the PCB secured and reduces the chance of shorting or damage during normal use. What it does:

• Shields the PCB from dirt, splashes, and foreign objects that can cause shorts or corrosion
• Secures the board in place to prevent movement and stress on connectors
• Helps maintain safe separation between live circuitry and user-accessible areas
• Reduces intermittent electrical issues caused by debris or loose components

• Always disconnect power to the appliance before starting any repair
• Handle the PCB and cover with care to avoid static discharge; use proper ESD precautions if available
• Align the cover to the board and fasten using the existing mounting points; do not overtighten screws
• After installation, restore power and verify normal operation

The Ice Maker Assembly Kit is an OEM part for LG refrigerators. This kit includes all the necessary components to produce ice efficiently, ensuring your refrigerator maintains a steady supply of ice for your household. The kit also features a 20-pin and 3-pin wiring harness.

Causes of a bad ice maker assembly can include wear and tear over time, mineral buildup from hard water, or electrical malfunctions. Additionally, damage can occur due to improper handling or issues with other components in the ice-making system.

Symptoms of a bad ice maker assembly include:

• No ice production
• Slow ice production or smaller ice cubes
• Ice cubes that are misshapen or irregular
• Leaking water around the ice maker
•  Unusual noises during the ice-making process

This OEM LG part is also compatible with Sears/Kenmore.

This indoor AC motor powers the evaporator–side fan in compatible split-system indoor units, circulating air across the coil to maintain cooling comfort. Designed as a direct replacement to restore proper airflow and indoor cooling performance. What it does:

• Spins the indoor fan/blower to move conditioned air through the evaporator coil and into the living space
• Restores normal airflow when a failed motor causes weak or no indoor air movement
• Helps prevent uneven cooling and assists in proper refrigerant heat exchange
• Works with the indoor blower assembly and motor mounting hardware

• Disconnect power at the breaker before attempting any repair to avoid shock
• Mounting screws, wiring connectors, or brackets may be required—reuse existing hardware unless replacements are specified

This sensor PCB assembly detects and relays sensor signals to the appliance control system, restoring accurate sensor feedback and communication when the original sensor board fails or malfunctions. Designed as a direct replacement board. What it does:

• Reads sensor inputs and converts them to signals the main control board can interpret.
• Replaces a failed or intermittent sensor board that causes incorrect readings or sensor-related error codes.
• Can resolve symptoms such as unexpected sensor faults, control errors, or appliances not responding to sensor changes.
• Matches the OEM board function; verify model compatibility before ordering.

• Always disconnect power before servicing to avoid shock or shorting the board.
• Use ESD precautions and handle the PCB by its edges to prevent static damage.
• Ensure all connectors are fully seated and the board is mounted in the original orientation.

This sub PCB assembly is an electronic control board that processes inputs and switches components, coordinating specific appliance functions. Replacing a failed board can restore normal operation and resolve dead controls, error codes, or intermittent, unpredictable behavior. What it does:

• Distributes and regulates control power and switches loads via onboard relays/triacs
• Interprets signals from sensors and the user interface to execute commands
• Coordinates timing and operation of related components per the appliance's program logic
• Failure may present as no power, won't start, unresponsive or flickering display, random beeps, or recurring error codes

• 1 sub PCB assembly

• Disconnect power to the appliance before servicing; verify no voltage is present
• Use ESD protection and handle the board by the edges
• Photograph wiring; transfer connectors one at a time and ensure they are fully seated
• Secure the board with existing fasteners/standoffs; perform any required reset or diagnostic per your model's service info

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.

This dispenser lever is the replacement push paddle that activates a refrigerator's water and ice dispenser. It restores a solid, responsive surface for pressing the dispenser controls to deliver water or ice. What it does:

• Replaces a cracked, loose, or worn dispenser paddle that won't reliably trigger dispensing
• Provides a firm surface that engages the dispenser switch when pressed
• Helps stop leaks or jams caused by a broken or misshapen lever
• Restores normal dispenser operation and user control

• Disconnect power and turn off the water supply before starting any work
• Remove the dispenser bezel or cover as needed to access and remove the old lever
• Handle plastic parts carefully to avoid cracking; align tabs and clips before snapping into place
• Inspect the switch and actuator for damage

The Ice Maker Assembly is an OEM component specifically designed for LG refrigerators. It is responsible for automatically producing batches of ice cubes on demand.

Causes of a bad ice maker assembly can include failures in the ejector mechanism that dispenses ice, damage or leaks in the water supply components, or issues with the control board that manages the timing of each cycle.

Symptoms of a bad ice maker assembly include:

• Failure to produce ice cubes
• Incomplete or misshapen ice cubes
• Excessive noise during operation
• Water leaks from the ice maker area

This OEM LG replacement part is also compatible with Sears/Kenmore models.

An in-line union for appliance tubing, this tube connector joins two sections of plastic line to create a secure, leak-resistant connection in the water circuit, ideal for restoring flow after a repair, trim, or reroute. What it does:

• Connects two lengths of compatible plastic tubing to form a continuous run
• Helps maintain proper water delivery through the appliance's water system
• Can address leaks, drips, or loose/failed connections at a splice point
• Useful when replacing, shortening, or rerouting tubing during service

• 1 tube connector

• Disconnect power and shut off the water supply before servicing
• Cut tubing square; ensure ends are clean, round, and free of gouges
• Insert tubing fully into the connector until seated, then perform a gentle pull test
• Restore water and inspect all joints for leaks; use the connector size that matches your tubing's outer diameter

This tube assembly directs water through the appliance, restoring a secure, leak-resistant path when the original line is brittle, kinked, or damaged. Replacing it helps stop leaks and restores normal water flow.

• Routes water from the inlet valve to internal components
• Maintains sealed connections to reduce drips and seepage
• Replaces tubing that is cracked, kinked, or clogged with mineral deposits
• Common symptoms: visible leaks, puddling, low flow, or intermittent water delivery

• Disconnect power and shut off the water supply before servicing
• Place a towel to catch residual water and relieve line pressure
• Note the routing and connection points; transfer any retainers from the old part if needed
• Insert tubing fully into fittings and tug gently to confirm engagement; restore water and check for leaks

This tube assembly directs water through the appliance, restoring a secure, leak-resistant path when the original line is brittle, kinked, or damaged. Replacing it helps stop leaks and restores normal water flow.

• Routes water from the inlet valve to internal components
• Maintains sealed connections to reduce drips and seepage
• Replaces tubing that is cracked, kinked, or clogged with mineral deposits
• Common symptoms: visible leaks, puddling, low flow, or intermittent water delivery

• Disconnect power and shut off the water supply before servicing
• Place a towel to catch residual water and relieve line pressure
• Note the routing and connection points; transfer any retainers from the old part if needed
• Insert tubing fully into fittings and tug gently to confirm engagement; restore water and check for leaks

This water tank assembly is the refrigerator's internal reservoir that stores and delivers water to the dispenser and ice-making system, restoring proper water flow and reducing service calls for lost dispensing or poor ice production. What it does:

• Holds and routes fresh water from the household supply to the dispenser and ice maker
• Replaces cracked, warped, or leaking reservoirs that cause visible leaks or loss of water pressure
• Restores normal dispensing when the original tank is blocked, damaged, or failing
• Works with the refrigerator's water pump/valve system to maintain steady water delivery

• Disconnect refrigerator power and shut off the water supply before beginning work
• Drain remaining water from lines and tank to avoid spills; keep towels handy
• Inspect and replace any worn gaskets, hoses, or clamps for a complete seal

The Water Valve Assembly is an OEM part for LG refrigerators. It is essential for controlling the flow of water to the ice maker and the water dispenser. This solenoid-operated valve responds to signals from the refrigerator’s electronic control system to accurately manage the release of water, ensuring efficient operation and reliability.

Symptoms of a bad Water Valve Assembly include:

• The ice maker not producing ice or producing very small cubes
• The water dispenser not functioning or dispensing a trickle instead of a steady flow
• Water leaking from the refrigerator

Causes of a bad water valve assembly can stem from mineral deposits that clog the valve, electrical failures that impair the valve’s operation, or wear and tear from normal usage leading to leaks or malfunctions.

This OEM LG part is also compatible with Sears/Kenmore.

Note: Flow meter is not needed on all models, remove if necessary. Redesigned single valve replaces older dual solenoid valves. Wiring harness is included. Located behind the refrigerator.

The Filter Head Assembly is an OEM replacement part for LG French door refrigerators. The component that houses the built-in water filter responsible for cleaning water delivered through the refrigerator’s internal dispenser and ice maker. With its precise fit, the filter head assembly ensures the water filter is securely held in place to do its job properly.

Symptoms of a bad filter head assembly include:

• Water dispensing or ice making issues
• Water leaks around the filter area
• Error messages related to filter replacement
• Inability to change or install a new filter

Causes of failure can be cracks, cracks, mineral buildup, or normal wear over time. Filter head assemblies in continuous use may need periodic replacement.

This OEM part is also compatible with some Kenmore side-by-side refrigerators.

The Water Filter is an OEM part for LG refrigerators. This filter is designed to remove impurities and contaminants from the water, providing clean and fresh-tasting water and ice. It fits into the water filtration system of the refrigerator, ensuring that the water supplied to the dispenser and ice maker is of high quality.

Common causes of a bad water filter include regular wear and tear, accumulation of sediment and impurities, or damage to the filter housing. Over time, the filter's effectiveness diminishes, requiring replacement to maintain optimal performance.

Symptoms of a bad water filter include:

• Decreased water flow from the dispenser
• Unpleasant taste or odor in the water or ice
• The refrigerator indicating a need for filter replacement
• Visible sediment or discoloration in the water

This OEM LG part is also compatible with Sears/Kenmore.

This replacement pipe holder secures a small appliance pipe or tube in place, reducing movement and vibration to help prevent noise, wear, or accidental disconnection. It restores proper routing and support for the pipe. What it does:

• Secures a pipe or tubing to the appliance frame or chassis to keep it from shifting
• Reduces rattling or vibration caused by loose plumbing or tubing
• Helps maintain proper alignment to avoid chafing or contact with other components
• Useful when a cracked, broken, or missing clip allows pipe movement

• Turn off and unplug the appliance before accessing internal components
• Remove any panels or covers to reach the pipe clip location
• Snap the clip over the pipe into the existing mounting tab; replace any damaged mounting hardware

This lower ice bank door hinge secures and pivots the freezer's ice bank door so it opens and closes smoothly, helping maintain proper sealing and ice dispensing alignment. Designed as a direct replacement for the original hinge. What it does:

• Supports the ice bank door, providing a stable pivot point for opening and closing
• Keeps the ice bank door aligned to maintain an effective seal and proper operation
• Prevents sagging or binding that can interfere with ice dispensing or door function
• Restores correct door movement after hinge wear or damage

• Use basic hand tools; keep power to the appliance off and unplug before starting
• Handle the ice bank and door carefully to avoid damaging the trim or ice chute
• Reuse original fasteners only if undamaged; replace damaged screws to ensure secure mounting

This cover lever is a direct-fit replacement part that protects and operates the appliance's lever mechanism, restoring secure lever movement and preventing debris entry. It's a small service part that helps maintain normal door/lever function. What it does:

• Covers and protects the lever assembly from wear and debris
• Provides the proper surface for the lever to engage and operate smoothly
• Replaces cracked, broken, or missing lever covers that can catch or stick
• Helps restore proper user control when lever trim is damaged

• One cover lever (single piece)

• Disconnect power before performing any service
• Installation is typically a panel-level repair; remove access panel or trim to reach the lever area
• May snap or screw into place; keep fasteners and alignment tabs in mind during reassembly

This ice bank door gasket is the flexible door seal that keeps the ice bin compartment closed to limit warm air and moisture intrusion. Replacing a worn or torn gasket restores a tighter seal and helps reduce frost buildup and ice clumping. What it does:

• Forms an airtight seal around the ice bank/ice bin door to help prevent warm air and moisture from entering the compartment
• Reduces frost buildup, ice clumping, and excessive condensation inside the ice bin area
• Helps stop water or drips that can occur when the door seal is cracked or deformed
• Restores even door contact for proper closing and retention of ice quality

• Disconnect power to the refrigerator and remove the ice bin and any loose items before beginning.
• Inspect the door mounting channel; clean residue and old adhesive so the new gasket seats fully.
• Press the gasket evenly into the door channel, aligning any tabs or locator features; avoid stretching the gasket excessively.
• Use only non-sharp tools to ease the gasket into place; if the model uses clips or adhesive, replace or reapply per the manufacturer's instructions.

This door gasket seals the refrigerator door to the cabinet to keep cold air in and moisture out. Replacing a worn or deformed gasket restores a tight seal for proper cooling and helps reduce frost and condensation around the door opening. What it does:

• Forms an airtight seal between the door and cabinet frame
• Helps maintain stable internal temperature and humidity
• Helps prevent frost, icing, and condensation near the door
• Helps with symptoms like visible tears, gaps, poor door sealing, or warm spots/frost near the gasket

• 1 refrigerator door gasket

• Disconnect power before servicing
• Warm the new gasket (soak in warm water or gently heat) to improve flexibility
• Remove the old gasket and clean the mounting groove/sealing surface
• Press the new gasket fully into the groove/retainer; adjust door alignment if needed
