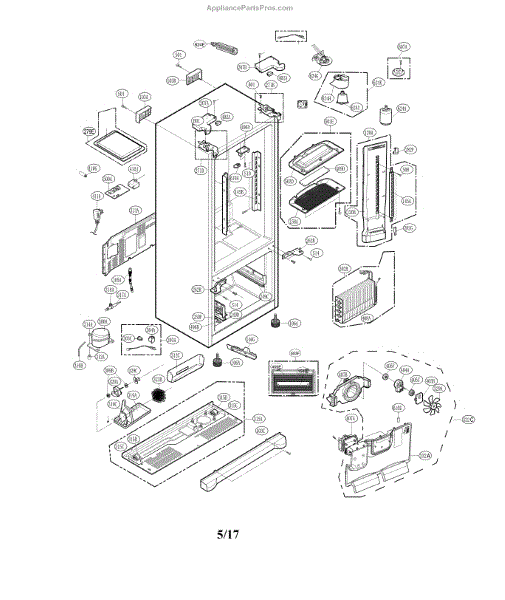

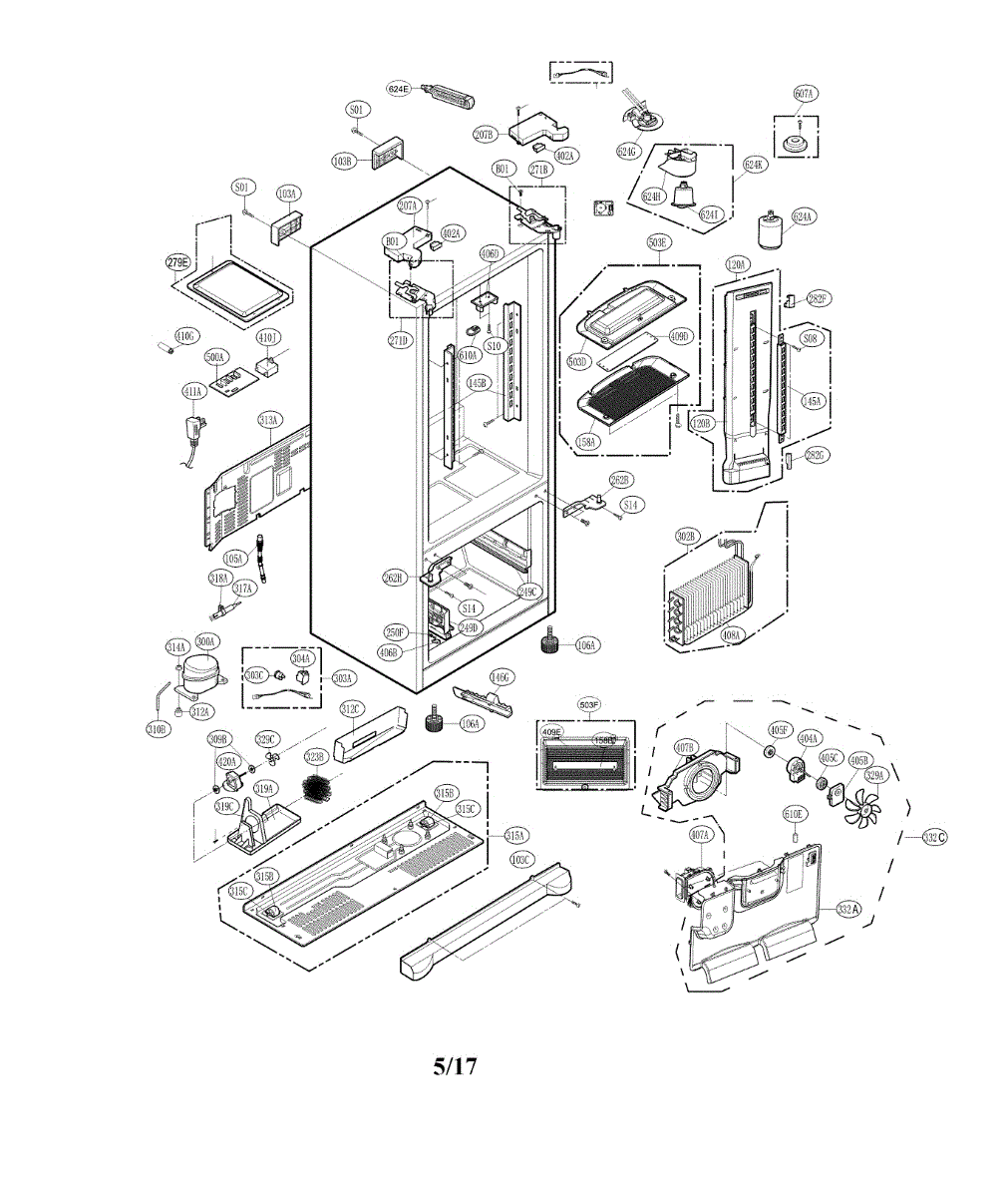

Parts for Lg LFXS24566S/00: Case Parts

The LG Refrigerator Water Filter is an OEM Replacement Part. It is designed to improve the quality of water and protect refrigerators and ice machines from sediment deposits. This NSF-Certified filter effectively reduces iron and particulates. It also preserves beneficial minerals like fluoride. The filter measures 5.6 inches high and 3.3 inches in diameter.

It is installed by removing the top shelf and pulling the old filter downward. Then turn it counter-clockwise, and replace it with the new filter aligned in a horizontal position. To ensure the best performance and the removal of trapped air and contaminants, it's recommended to flush the dispenser with 2.5 gallons of water in alternating cycles. If your model includes a water filter indicator, press and hold the Filter or Reset button for 5 seconds after installation. With a lifespan of 6 months and a 500-gallon capacity, this filter provides both quality and longevity.

This is a replacement screw designed to secure appliance components where the original customized fastener is required. It restores proper fit and stability for panels, brackets, or assemblies that use this specific fastener. What it does:

• Replaces a missing, stripped, or damaged customized screw to restore secure attachment of parts.
• Helps eliminate rattling, loose panels, or misaligned assemblies caused by a faulty fastener.
• Matches the OEM mounting point to maintain correct part alignment and function.
• Suitable where the appliance design calls for this specific customized screw type.

• Turn off and unplug the appliance before servicing to avoid shock or injury.
• Use the correct screwdriver or bit to avoid stripping the screw head; do not force.
• Keep track of small parts during disassembly and reassembly; work on a stable surface.
• If threads are damaged or the mounting hole is stripped, inspect the mating component for repair before installing the new screw.

This lower cover assembly protects the appliance's lower cabinet area and helps keep internal components free from debris while supporting proper airflow. It restores the unit's finished appearance and helps prevent damage to wiring and controls. What it does:

• Shields lower cabinet components from dust, lint and accidental contact
• Helps maintain correct airflow routing under the appliance
• Prevents foreign objects from reaching motors, pumps or wiring
• Re-establishes the finished exterior where the lower panel is missing or damaged

• One lower cover assembly

• Disconnect power (and water, if applicable) before starting work
• Remove any exterior panels or trim as needed; basic hand tools required
• Handle edges carefully; wear gloves to avoid cuts
• Secure all fasteners; replace any damaged clips or screws

This adjustable leveling leg assembly supports and stabilizes your appliance by threading into the base frame. Replacing a worn or missing leg helps you level the unit for smoother, quieter operation on uneven floors.

• Provides height adjustment to level the appliance and distribute weight evenly
• Helps prevent rocking, wobbling, and excess vibration or rattling
• Can improve door alignment and smooth opening/closing when the cabinet is properly leveled
• Useful when a leg is missing, damaged, or threads are stripped

• Disconnect power; if applicable, shut off the water supply
• Use a helper to safely brace or tip the unit; protect flooring when accessing the leg
• Unthread the old leg and hand-thread the new one; tighten as needed
• Adjust front-to-back and side-to-side until stable; all legs bear weight evenly

This duct assembly routes internal airflow in the appliance, replacing damaged or worn vent tubing to restore proper air movement. It helps reduce air leaks and airflow-related performance issues when the original duct is compromised. What it does:

• Channels blower air from the fan housing to the exhaust path to maintain proper ventilation.
• Replaces collapsed, torn or disconnected ducting that can cause poor airflow.
• Addresses symptoms such as reduced drying/cooling performance, longer cycles, or warm cabinet air.
• Helps eliminate drafty or noisy airflow caused by gaps or damaged duct sections.

• Disconnect power (and turn off gas supply for gas appliances) before beginning service.
• Access may require removing rear or lower access panels; keep hardware organized for reassembly.
• Inspect and replace any damaged clamps, seals or gaskets during installation for a proper seal.

This duct assembly routes internal airflow in the appliance, replacing damaged or worn vent tubing to restore proper air movement. It helps reduce air leaks and airflow-related performance issues when the original duct is compromised. What it does:

• Channels blower air from the fan housing to the exhaust path to maintain proper ventilation.
• Replaces collapsed, torn or disconnected ducting that can cause poor airflow.
• Addresses symptoms such as reduced drying/cooling performance, longer cycles, or warm cabinet air.
• Helps eliminate drafty or noisy airflow caused by gaps or damaged duct sections.

• Disconnect power (and turn off gas supply for gas appliances) before beginning service.
• Access may require removing rear or lower access panels; keep hardware organized for reassembly.
• Inspect and replace any damaged clamps, seals or gaskets during installation for a proper seal.

This lamp cover is the replacement light lens that protects and diffuses the refrigerator's interior lamp, restoring even illumination and preventing direct bulb contact. Fits the original mounting for a clean, finished appearance. What it does:

• Protects the interior lamp from spills, splashes, and incidental contact
• Diffuses light for more even interior illumination
• Helps prevent direct exposure to the lamp bulb
• Restores a damaged, cracked, or yellowed lens to improve visibility

• One lamp cover / light lens

• Turn off power or unplug the appliance before replacing the lamp cover to avoid electric shock
• Handle the cover carefully to avoid cracking; use a soft cloth to seat into mounting tabs
• Remove and retain any fasteners or clips from the old cover for reinstallation if applicable
• Replace the bulb before seating the new cover

The Hinge Cover Assembly conceals and protects the door hinge area on your refrigerator. It safeguards wiring harnesses while restoring a clean, finished appearance, helping keep the hinge area secure and free of dust and damage.

• Protects the hinge mechanism and wiring for a clean, finished look
• Helps keep harnesses routed correctly and prevents snagging/abrasion near the hinge
• Replaces cracked, broken, loose, or missing hinge covers
• Helps reduce rattling or vibration noise from a loose/damaged cover

• Disconnect power before servicing.
• Support the door as needed; remove any screws or clips securing the old cover.
• Transfer and reuse existing hardware or clips if required; align the new cover and secure in place.
• Ensure wiring is not pinched; ensure smooth door movement before restoring power.

This rail holder secures the sliding rail assembly so drawers or internal components move smoothly and stay aligned. It replaces a worn or broken holder to restore stable operation and reduce noisy or uneven movement. What it does

• Anchors the rail or track so drawer-like parts slide evenly
• Prevents rail wobble, binding, or misalignment during use
• Helps stop noisy or jerky movement caused by a damaged holder
• Commonly replaced when the rail detaches, cracks, or no longer secures properly

• Disconnect power and remove any obstructing panels before beginning work
• Replace with the matching OEM holder and reuse factory fasteners unless replacements are provided
• Minor disassembly of the surrounding trim or drawer may be required to access the rail
• Inspect the rail and rollers for wear

This center hinge assembly secures and guides the refrigerator doors, restoring correct door alignment and smooth opening. Replaces worn or damaged center hinge hardware to help stop sagging and improve door sealing. What it does:

• Provides the central pivot point between the refrigerator doors for proper alignment and operation
• Restores smooth, even door movement when original hinge is worn or bent
• Helps the doors close fully to maintain the appliance seal and consistent internal temperature
• Fits the factory mounting points and matches OEM form for direct replacement

• Basic removal of trim and temporary support of the doors is required; have a helper to steady doors during replacement
• Use appropriate hand tools; avoid overtightening fasteners to prevent damage
• Disconnect power only if removing electrical components nearby; this part replacement is typically mechanical
• Inspect surrounding hinge screws and door hardware and replace if worn for best results

This center hinge assembly supports the refrigerator door at the mid-hinge position and allows smooth, reliable pivoting. Replacing a worn hinge restores proper alignment so the door closes and seals as designed.

• Provides the pivot point at the center hinge location
• Supports door weight to maintain alignment and clearance
• Helps ensure even gasket contact for an effective seal
• Common symptoms: door sagging or rubbing, squeaking at the hinge, difficulty closing, visible play or damage at the hinge pin

• Unplug the appliance and remove items from the door to reduce weight
• Support the door while removing the center hinge fasteners
• Note and transfer any spacers/washers in the same order and orientation
• After installation, align the door and verify the gasket seals evenly

This upper hinge assembly supports the refrigerator door at the top, providing a smooth pivot and proper alignment. Replacing a worn hinge restores even gaps and a tight seal to help maintain consistent cooling performance.

• Supports the door's weight and provides the top pivot point
• Maintains alignment for correct gasket compression and a tight seal
• Helps the door open and close smoothly without rubbing or binding
• Common signs of wear: door sagging or misalignment, rubbing/clicking noises, and poor sealing or condensation around the gasket

• Unplug the refrigerator before servicing.
• Remove the top hinge cover; retain screws and any shims for reuse.
• Support the door with a helper while removing and installing the hinge.
• Position the new hinge, align the door, then tighten screws and verify smooth swing and full gasket contact all around.

Left side upper hinge.

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

The Evaporator Assembly is an OEM component specifically designed for LG refrigerator systems utilizing rear evaporator coils. Located inside the fridge compartment, this assembly helps chill air for balanced and efficient cooling throughout storage areas.

Causes of a bad evaporator can include mineral or frost buildup on coil surfaces over time restricting heat exchange abilities, ruptured or leaking refrigerant lines affecting cooling cycle performance, or physical damage to fragile coil fins.

Symptoms of a bad evaporator assembly include:

• Inability to lower temperatures into the recommended ranges
• Cycling of compressor more frequently than normal operation
• Frost accumulating in the interior cabinet instead of on coils
• Mold or odors developing inside if temperatures fluctuate

This replacement assembly is compatible with Samsung, GE, and Frigidaire side-by-side refrigerator models.

This overload protector is a compressor safety device that helps stop compressor damage by interrupting power during electrical overload or overheating. It restores normal operation once conditions return to safe levels. What it does:

• Detects electrical overloads or excess heat at the compressor and temporarily cuts power to prevent motor damage
• Common symptom: compressor runs briefly then stops, or refrigerator cools intermittently
• Works with the compressor start system to protect against burnout and electrical faults
• Passive mechanical/electrical device—no user controls

• Disconnect power to the appliance before accessing the compressor or electrical components
• Handle terminals and mounting carefully to avoid bending or damaging connections

The Thermistor Assembly is an OEM part for LG refrigerators. It serves a crucial function in monitoring and regulating the temperature within the appliance. By sensing temperature changes, the thermistor sends information to the refrigerator’s control board, ensuring the system adjusts cooling to maintain the desired temperature settings.

Symptoms of a failing thermistor assembly include:

• Inconsistent temperatures in the refrigerator or freezer
• Refrigerator running longer than usual or not cooling efficiently
• Frequent fluctuations in temperature readings

Causes of thermistor assembly failure typically involve electrical faults, damage from moisture or frost, or simple wear over time, which can impact its ability to accurately measure and report temperatures.

This OEM LG part is also compatible with Sears/Kenmore.

This PTC cover is the protective housing that shields a PTC sensor/assembly from debris and physical damage, helping maintain reliable sensor performance and prolong component life in the appliance. What it does:

• Protects the PTC sensor or PTC assembly from dust, impact, and accidental contact
• Helps prevent shorting or intermittent sensor signals caused by contaminants
• Supports proper positioning and mounting of the PTC component
• Can help address symptoms such as visible sensor damage, exposed wiring, or intermittent operation related to a compromised sensor housing

• Disconnect power to the appliance before starting any repair
• Remove the outer panel(s) as needed to access the PTC location; handle surrounding wiring and components carefully
• Replace only with the correct OEM cover to ensure proper fit and protection

This tray assembly collects and channels defrost and condensation water to the drain, helping prevent leaks and water buildup under the appliance. Designed to fit into the drain path and route moisture away safely. What it does:

• Catches defrost and condensation runoff and directs it toward the drain
• Helps prevent pooling and water damage inside the lower cabinet area
• Supports proper evaporator/drain operation by maintaining the drain path
• Can reduce dripping or puddling symptoms when the original tray is cracked or clogged

• 1 tray assembly

• Inspect surrounding seals and drain lines before installing; replace any damaged components
• Clean drain channel and remove debris to ensure proper flow prior to installation
• Handle gently to avoid cracking plastic tabs; use basic hand tools for removal/installation
• Disconnect power to the appliance before accessing internal components to avoid injury

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

This customized pin is a precision fastener that serves as a pivot or locating point within your appliance. It helps keep mating parts aligned and moving smoothly. Replace a bent, worn, or missing pin to restore proper operation. What it does

• Acts as a pivot/axle or locating pin between connected parts
• Maintains alignment to reduce wobble and uneven movement
• Supports smooth opening/closing or rotation at the joint
• Common signs it's needed: looseness, sagging or misalignment, scraping/squeaking at the pivot, or a visibly worn/bent/missing pin

• One customized pin

• Disconnect power (and shut off water supply, if applicable) before servicing
• Support the door/panel/assembly to remove load from the pin during removal/installation
• Note the orientation and order of any spacers, bushings, or washers and transfer them to the new pin
• Apply a light lubricant and verify smooth movement before restoring power

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This condenser assembly replaces the condenser wiring and support used in compatible refrigerators to restore proper condenser connections and airflow. It helps re-establish electrical routing and secure mounting so the cooling system can run reliably. What it does:

• Replaces damaged or corroded condenser wiring and associated mounting hardware
• Restores electrical connection between condenser components and the control circuitry
• Helps resolve symptoms such as cooling loss, intermittent compressor operation, or visible wiring damage
• Maintains proper condenser positioning for adequate airflow and heat dissipation

• Disconnect power and unplug the appliance before starting work
• Inspect surrounding components (fan, compressor, terminals) for related damage
• Use manufacturer-recommended torque and routing to avoid pinched wires

This fan grille assembly replaces the outer grill that covers and protects the appliance cooling fan, restoring airflow management and protecting internal components from debris. Designed for a direct fit where specified. What it does:

• Provides a protective cover for the cooling fan to prevent foreign objects from contacting the blades
• Helps direct airflow for proper cooling and ventilation
• Reduces noise caused by turbulent airflow around the fan area
• Can resolve issues like rattling sounds or reduced airflow caused by damaged or missing grille

• Disconnect power to the appliance before beginning any repairs
• Replacement typically requires removing a few fasteners; keep hardware for reinstallation
• Handle the grille carefully to avoid scratching or bending mounting tabs during installation
• After installation, restore power and verify fan operation and that the grille is secure

This fan grille assembly covers the interior compartment fan and helps direct airflow. Replacing a damaged grille restores safe, consistent air movement and protects the fan from contact with food items or debris. What it does:

• Shields the compartment fan to prevent accidental contact
• Guides airflow for more even cooling across shelves
• Helps keep packaging and loose items from striking the fan blades
• Replaces cracked, missing, or rattling fan cover components

• 1 fan grille assembly

• Disconnect power to the appliance before servicing
• Remove shelves/drawers as needed to access the fan cover area
• Remove screws or release tabs and pull the old grille straight out
• Seat the new assembly, reuse existing hardware, and verify the fan spins freely before restoring power

The Dispenser Switch is an OEM part for LG refrigerators. It is responsible for controlling the operation of the dispenser, allowing you to dispense water or ice from the refrigerator door. This switch is located in the dispenser house and activates the dispenser when pressed.

Causes of a bad dispenser switch can include wear and tear over time, electrical malfunctions, or damage due to accidental mishandling or impact.

Symptoms of a bad dispenser switch include:

• Inability to dispense water or ice when pressing the buttons.
• The dispenser works intermittently.
• No response or delayed response when pressing the dispenser buttons.

This LG part can also be used on Kenmore/Sears appliances.

The Fan Motor is an OEM part for LG refrigerators. It is essential for circulating air throughout the refrigerator and freezer compartments, ensuring that the temperature is evenly distributed and maintained at the set levels. This motor powers the fan that helps to cool the evaporator coils and dissipate heat, which is vital for the appliance's cooling efficiency.

Symptoms of a failing Fan Motor include:

• The refrigerator not cooling adequately
• Unusual noises coming from the refrigerator, such as humming or buzzing
• Ice buildup in the freezer compartment due to poor air circulation
• The refrigerator cycling on and off more frequently

Causes of a bad fan motor can include wear and tear over time, obstructions in the fan blades, or electrical issues such as faulty wiring or a malfunctioning capacitor.

This OEM LG part is also compatible with Sears/Kenmore.

Motor Bracket secures the motor assembly, keeping it aligned and reducing vibration for reliable operation. Replacing a damaged bracket restores stable motor mounting and helps reduce noise and premature motor wear. What it does:

• Secures and supports the motor to maintain correct alignment and stable operation.
• Reduces motor vibration and operational noise when properly installed.
• A cracked, bent, or broken bracket can cause increased noise, vibration, or motor misalignment.
• Use when the existing bracket is bent, damaged, or failing to hold the motor securely.

• Disconnect power to the appliance before starting any repair.
• Access may require removing the cabinet or an access panel; keep track of fasteners.
• Installation typically requires basic hand tools; avoid forcing parts into position.

Damper motor support secures the damper motor assembly inside the refrigerator, keeping the air-control damper aligned so it opens and closes correctly. Replacing a damaged support restores proper airflow control and reduces noise. What it does:

• Secures and positions the damper motor assembly so the air-control damper moves smoothly.
• Keeps the motor and damper aligned to help prevent rattling, grinding, or loose motor noise.
• Supports consistent airflow between compartments to assist with even cooling.
• Resolve damper movement problems like the damper not opening or closing fully.

• Disconnect power to the appliance before starting work; remove food and shelves as needed for access.
• Remove the interior access panel to reach the damper assembly; handle plastic tabs and clips gently to avoid breakage.
• Align the motor and damper during reassembly and secure all fasteners; test damper operation before replacing panels and shelving.

This damper motor support replaces a broken or warped mount for the refrigerator's air damper assembly. It holds the damper motor and door securely so the system can meter freezer air into the fresh food compartment.

• Secures and aligns the air damper motor/door within the duct
• Helps ensure proper opening/closing of the damper to regulate airflow and temperature
• Damage can contribute to a warm or too-cold refrigerator and inconsistent temperatures
• May cause clicking or buzzing from the damper area or a visibly loose assembly

• Disconnect power to the refrigerator before servicing
• Access the damper behind the fresh food compartment duct/cover; remove shelves as needed
• Note wiring and orientation; transfer the existing damper motor and door to the new support and reuse fasteners
• Ensure the door moves freely and seals before reassembly; restore power and verify airflow

The Door Bracket is an OEM part for LG refrigerators. This bracket supports the refrigerator door by providing stability and ensuring proper alignment during opening and closing. It plays a crucial role in maintaining the door’s secure fit, which is essential for maintaining the internal temperature and efficiency of the appliance.

Common causes of a bad door bracket include wear and tear from frequent use, impact damage, or corrosion due to moisture.

Symptoms of a bad door bracket include:

• The refrigerator door not closing properly
• The door sagging or being misaligned
• Unusual noises when opening or closing the door
• Gaps in the door seal leading to temperature inconsistencies

This OEM LG part is also compatible with Sears/Kenmore.

This is a replacement mounting bracket that secures internal appliance components to the cabinet frame, restoring proper alignment and support for moving parts. It helps reduce vibration and prevents loose or sagging assemblies. What it does:

• Provides a stable mounting point for internal components to maintain correct positioning
• Helps stop rattling, knocking, or vibration caused by loose fittings
• Restores support for panels, assemblies, or mechanical linkages that rely on the bracket
• Useful when original bracket is bent, cracked, or otherwise damaged

• Follow manufacturer service manual for correct placement and fastener torque
• Use proper tools and retain all screws/fasteners; replace damaged fasteners as needed
• Disconnect power before accessing internal components to avoid shock or injury

This fan grille assembly covers the interior compartment fan and helps direct airflow. Replacing a damaged grille restores safe, consistent air movement and protects the fan from contact with food items or debris. What it does:

• Shields the compartment fan to prevent accidental contact
• Guides airflow for more even cooling across shelves
• Helps keep packaging and loose items from striking the fan blades
• Replaces cracked, missing, or rattling fan cover components

• 1 fan grille assembly

• Disconnect power to the appliance before servicing
• Remove shelves/drawers as needed to access the fan cover area
• Remove screws or release tabs and pull the old grille straight out
• Seat the new assembly, reuse existing hardware, and verify the fan spins freely before restoring power

The Heater Sheath is an OEM replacement part for LG refrigerators. This component is responsible for defrosting the evaporator coils, preventing frost buildup that can impair the refrigerator's cooling efficiency. The heater sheath ensures that the defrost cycle runs effectively, maintaining optimal performance and energy efficiency of the refrigerator.

Causes of a bad heater sheath can include electrical malfunctions, wear and tear over time, or damage to the heating element itself. These issues can result in the heater sheath failing to activate, leading to frost accumulation.

Symptoms of a bad Heater Sheath include:

• Frost or ice buildup on the evaporator coils
• The refrigerator or freezer section not cooling properly
• Longer defrost cycles or the refrigerator running continuously
• Water leaks inside the refrigerator from excess frost melting

This OEM LG part is also compatible with Sears/Kenmore models.

This LED backlight assembly restores screen illumination for compatible LG LCD/LED TVs, improving picture brightness and uniformity. Use it to replace damaged or failing backlight components and recover visible image lighting. What it does:

• Provides backlight illumination for the TV LCD panel so the picture is visible and evenly lit.
• Replaces damaged or non-functioning LED strips that cause dim screens or dark bands.
• Can address symptoms such as no backlight while image is still present, flickering or uneven brightness.
• Restores overall screen brightness and reduces backlight-related artifacts.

• Disconnect the TV from power and discharge capacitors before beginning any repair.
• Screen and internal components are fragile; handle the panel and LED strips carefully to avoid damage.
• Use ESD-safe precautions and follow manufacturer service instructions where available.

The Capacitor is an OEM replacement part for  LG refrigerators. It is an electronic component located next to the refrigerator compressor that stores electric charge between cycles of the power supply circuit. The capacitor plays an important role in providing stable starting power to the compressor motor.

Causes of a bad capacitor next to the compressor can include heat distress over thousands of start/stop cycles of the refrigerator.

Symptoms of a bad capacitor include:

• The compressor makes loud buzzing or grinding noises during the operation
• The compressor fails to start or cycles on and off frequently
• Temperature fluctuations inside the refrigerator
• Error codes related to compressor issues

This genuine LG replacement is compatible also with Kenmore Elite model refrigerators

The Compressor Run Capacitor is an OEM part for LG refrigerators. It plays a critical role in the operation of the refrigerator's compressor by providing the necessary electrical boost to start and maintain the compressor's operation.

Causes of a bad compressor run capacitor can include electrical surges, overheating, or simply wear and tear over time. When the capacitor fails, it can no longer deliver the required electrical charge, which impacts the compressor's ability to start and run efficiently.

Symptoms of a bad compressor run capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual humming or clicking noises from the compressor area
• The refrigerator cycling on and off frequently

This OEM LG part is also compatible with Sears/Kenmore models.

Power cord assembly that restores the appliance's connection to household mains. Replaces a damaged or worn cord to help stop power loss, sparking, or intermittent operation and restore a safe power feed. What it does:

• Provides the main electrical connection from the wall outlet to the appliance so internal components receive line voltage.
• Replaces cords with visible damage, frayed insulation, exposed wires, or broken plug prongs.
• Can resolve symptoms such as no power, intermittent power, sparks at the plug, or breaker trips caused by a faulty cord.
• Restores the original style of power connection and strain-relief routing for a secure fit.

• Always disconnect power at the wall before attempting service.
• Basic hand tools may be required; secure the cord firmly with the appliance's strain relief and tighten screws.

This fan motor assembly circulates air across the evaporator coils to keep temperatures even inside the refrigerator. Replacing a worn or noisy motor restores proper airflow for consistent cooling performance.

• Drives the evaporator fan to move chilled air through the cabinet and vents
• Helps maintain stable temperatures and reduces frost from stagnant air
• Common symptoms: weak or no airflow, loud or intermittent fan noise, temperature fluctuations, refrigerator section warmer than expected
• Failures may result from worn bearings, moisture exposure, or an open motor winding

• Disconnect power before servicing; wear cut-resistant gloves and eye protection
• Access the fan behind the interior rear panel; remove shelves/drawers as needed and avoid bending evaporator fins
• Note wire connector orientation and mounting order; transfer any reusable hardware from the original assembly as needed
• After reassembly, verify the fan spins freely and confirm operation before reloading the compartment

This main PCB powers and controls the appliance's electronic functions, restoring responsive controls and timed cycles when the original board fails. Use it to replace a damaged or non-responsive control board and regain normal operation. What it does:

• Regulates power distribution to motors, valves, and sensors to enable correct cycle operation.
• Processes user inputs from the control panel so buttons and settings respond properly.
• Helps resolve symptoms such as no power to controls, unresponsive buttons, or intermittent operation.
• Works with other control and sensor assemblies to coordinate cycle timing and safety features.

• Power off and unplug the appliance before accessing electrical components.
• Handle the PCB by the edges and avoid static discharge; consider using an anti-static wrist strap.

This lamp cover assembly protects and diffuses the interior light so the appliance illuminates evenly while shielding the bulb from spills and impact. It restores a finished look and helps keep the light working safely. What it does:

• Shields the interior light bulb from food, moisture, and accidental contact
• Diffuses light for more even illumination inside the compartment
• Prevents direct bulb exposure that can cause glare or damage
• Replaces cracked, yellowed, or missing lens that reduces light output

• Disconnect power to the appliance before servicing to avoid shock
• Handle the lens carefully to avoid scratches or cracking during install
• Typically secures with simple clips or screws; have a screwdriver handy
• Avoid touching the bulb with bare hands

This cover assembly protects and diffuses the interior lamp so the appliance is evenly lit while keeping the bulb shielded from food and debris. It restores proper lighting visibility inside the compartment. What it does:

• Protects the interior lamp from spills, impacts, and contaminants
• Diffuses light for more even illumination of the compartment
• Helps prevent direct contact with the bulb for safer operation
• Commonly replaces cracked, discolored, or missing lamp covers that reduce light output

• Disconnect power to the appliance before servicing to avoid shock
• Remove and replace the cover gently; avoid excessive force that can crack the lens
• Handle and dispose of any broken plastic safely; inspect the lamp/bulb for damage
• After installation, restore power and verify the lamp operates and the cover sits securely

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.

This filter assembly head secures the refrigerator water filter and routes filtered water to the dispenser and icemaker. It restores proper filter seating and helps stop leaks or loss of water flow when the head is damaged or worn. What it does:

• Holds and seals the water filter cartridge so water passes through the filter element before dispensing
• Directs filtered water to the dispenser and icemaker plumbing
• Replaces cracked or warped housing that can cause leaks or poor filter seating
• Helps resolve intermittent water flow, leaks, or a filter that won't stay locked in place

• One filter assembly head as shown

• Turn off the refrigerator water supply and run the dispenser until flow stops to relieve pressure before removing the old head
• Inspect and lubricate O-rings with a food-safe silicone grease if reusing, or replace O-rings if damaged
• Hand-tighten the filter per manufacturer guidance; check all fittings for leaks after restoring water

The LG Refrigerator Water Filter is an OEM Replacement Part. It is designed to improve the quality of water and protect refrigerators and ice machines from sediment deposits. This NSF-Certified filter effectively reduces iron and particulates. It also preserves beneficial minerals like fluoride. The filter measures 5.6 inches high and 3.3 inches in diameter.

It is installed by removing the top shelf and pulling the old filter downward. Then turn it counter-clockwise, and replace it with the new filter aligned in a horizontal position. To ensure the best performance and the removal of trapped air and contaminants, it's recommended to flush the dispenser with 2.5 gallons of water in alternating cycles. If your model includes a water filter indicator, press and hold the Filter or Reset button for 5 seconds after installation. With a lifespan of 6 months and a 500-gallon capacity, this filter provides both quality and longevity.
