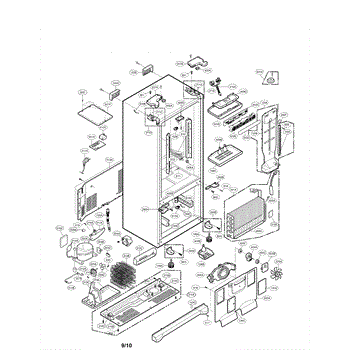

Parts for Lg LRFC21755TT/00: Case Parts

This replacement screw secures specified panels or components inside your appliance. Refreshing worn or missing hardware helps restore a tight fit, reduce rattling, and keep assemblies properly aligned for reliable performance.

• Provides secure fastening for brackets, panels, or internal assemblies
• Replaces stripped, rusted, or lost hardware
• Helps reduce vibration and rattling noises
• Symptoms include loose panels, shifting components, or a screw that won't tighten

• Disconnect power and allow any hot surfaces to cool before servicing
• Wear cut-resistant gloves and eye protection
• Match length and thread to the original; replace like-for-like
• Start threads by hand to avoid cross-threading; do not overtighten

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This hinge bolt secures the hinge to the appliance cabinet or door, keeping alignment true and motion smooth. Replacing a stripped, missing, or corroded bolt helps restore proper door operation and reliable closing.

• Fastens the hinge to support and stabilize the door
• Helps maintain alignment for smooth opening and closing
• Replaces damaged, stripped, or missing hardware

• Disconnect power to the appliance; shut off water supply if applicable
• Support the door to prevent strain on remaining hardware; enlist a second person if needed
• Note the order/orientation of any shims or washers and transfer them during reassembly
• Start threads by hand to avoid cross-threading; tighten securely without overtightening

This is a replacement mounting bolt used to secure appliance components and assemblies, restoring proper fit and reducing movement that can cause noise or misalignment. Use when a factory fastener is missing or damaged. What it does

• Fastens panels or internal components to maintain correct alignment and structural integrity.
• Prevents vibration-related noise and rubbing by holding parts securely in place.
• Restores secure connections after disassembly for service or repair.
• Helps eliminate intermittent movement that can lead to wear or leaks when a fastener is compromised.

• Use the correct bolt length and thread engagement for the application; do not force a mismatched fastener.
• Tighten to snug, manufacturer-specified torque when available; avoid overtightening to prevent stripping.
• Inspect surrounding parts (washers, nuts, threaded holes) and replace if worn or damaged.
• Disconnect power and follow all safety precautions before servicing the appliance.

This replacement screw secures panels and components on LG appliances to restore proper alignment and prevent rattling or loose parts. It's a direct-fit fastener used where OEM mounting hardware has become stripped, lost, or damaged. What it does:

• Secures panels, brackets, or trim to maintain appliance structure and alignment
• Helps stop vibration noise caused by loose panels or components
• Replaces missing or damaged mounting hardware to prevent parts from shifting
• Restores proper fit where stripped or worn screws no longer hold

• Use the correctly sized screwdriver or bit to avoid stripping the head
• Tighten snugly but do not overtighten; excess torque can strip threads or crack plastic
• If working near electrical components, unplug the appliance first to ensure safety
• Keep removed screws organized during disassembly to match locations on reassembly

This genuine replacement screw secures panels and components on compatible LG appliances, restoring a proper fit and preventing rattles or loose parts. Use it when original screws are missing, stripped, or corroded. What it does:

• Fastens trim, access panels, brackets or small components to appliance chassis
• Helps stop vibration noise and prevents panels from shifting or falling
• Replaces missing, worn, or corroded screws that cause loose parts
• Matches OEM fit and function for reliable reassembly

• Use the correct driver bit to avoid cam-out or stripped heads
• Hand-start threads before final tightening to ensure proper alignment
• Tighten securely but avoid over-tightening, which can strip threads or crack plastic
• Disconnect power before working on electrical components

This is a factory-style screw used to secure components and panels on compatible LG appliances. It restores proper fit and reduces movement where a missing or stripped screw causes parts to sit loose. What it does:

• Fastens panels, brackets, or trim to appliance chassis to restore secure attachment
• Stops rattling or vibration caused by loose or missing fasteners
• Helps maintain proper alignment of removable parts for safe operation
• Serves as a direct replacement when the original screw is lost or damaged

• Screw

• Use the matching screwdriver or driver bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent damage to threads or plastic parts
• Replace only with the specified OEM screw to ensure fit and function
• Disconnect power to the appliance before accessing internal components when applicable

This is a replacement mounting screw used to secure appliance panels, trim or components. It restores proper attachment to reduce vibration and rattling and helps keep removable parts firmly in place during operation. What it does:

• Fastens panels, brackets or trim pieces to the appliance frame
• Restores secure fit when original screw is missing, loose, or stripped
• Reduces rattling and vibration caused by loose hardware
• Helps maintain proper alignment of removable covers and control panels

• Disconnect power and water before starting any repair
• Verify size and thread match the original screw before installation
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but do not overtighten — overtightening can strip threads or crack plastic parts
• Keep small parts away from children and pets

This duct assembly routes internal airflow in the appliance, replacing damaged or worn vent tubing to restore proper air movement. It helps reduce air leaks and airflow-related performance issues when the original duct is compromised. What it does:

• Channels blower air from the fan housing to the exhaust path to maintain proper ventilation.
• Replaces collapsed, torn or disconnected ducting that can cause poor airflow.
• Addresses symptoms such as reduced drying/cooling performance, longer cycles, or warm cabinet air.
• Helps eliminate drafty or noisy airflow caused by gaps or damaged duct sections.

• Disconnect power (and turn off gas supply for gas appliances) before beginning service.
• Access may require removing rear or lower access panels; keep hardware organized for reassembly.
• Inspect and replace any damaged clamps, seals or gaskets during installation for a proper seal.

The LG light lens is an OEM replacement part responsible for protecting and diffusing the light emitted by the refrigerator's interior light bulb. The light lens cover helps create a well-lit interior environment, allowing users to see and access their stored food items clearly. It measures about 15 inches wide by 6 inches deep.

Over time, the light lens can become discolored, cracked, or damaged due to regular use and exposure to temperature changes. Causes of a bad light lens include wear and tear, impact from food items, or damage during cleaning.

Symptoms of a bad light lens include:

• Cracks or breaks in the lens
• Discoloration or clouding that reduces light clarity
• The lens not staying securely in place

This LG part can also be used on Kenmore/Sears appliances.

This center hinge assembly secures and pivots the refrigerator's middle door, restoring smooth door movement and proper alignment to help keep interior temperatures stable. It replaces a worn or damaged center hinge on compatible LG refrigerators. What it does:

• Provides the pivot point and structural support for the refrigerator's middle/center door
• Restores proper door alignment to help prevent gaps that can cause cooling loss
• Eliminates sagging, binding, or noisy door operation caused by a damaged hinge
• Works with existing door and frame components to maintain smooth opening/closing

• One center hinge assembly

• Requires basic hand tools and removing the door(s) for safe access; follow the refrigerator's service manual
• Support the door while removing and installing the hinge to prevent injury or damage
• Inspect mounting screws and surrounding trim; replace any damaged fasteners before reassembly
• Disconnect power if required by your repair steps

Right side upper hinge.

The Compressor Overload Protector is an OEM part for LG refrigerators. This critical component safeguards the compressor, which is the heart of the refrigeration system, from potential damage caused by excessive current draw or overheating.

Symptoms of a faulty compressor overload protector:

• Refrigerator not cooling properly or not running at all
• Compressor failing to start or repeatedly cycling on and off
• Buzzing or humming noises from the compressor area

Causes of a bad compressor overload protector can include electrical surges, wiring issues, or simply wear and tear over an extended period.

This OEM LG part is also compatible with Sears/Kenmore refrigerator models.

The Compressor Start Relay is an OEM part for LG refrigerators, playing a critical role in the starting mechanism of the compressor. This small but crucial component helps to kickstart the compressor, enabling it to begin the refrigeration cycle that cools the interior of the fridge.

Causes of a bad Compressor Start Relay include wear and tear over time, electrical surges that can damage the relay, or overheating of the compressor unit.

Symptoms of a bad Compressor Start Relay include:

• The refrigerator failing to cool properly or maintain the set temperature.
• A noticeable increase in the electric bill due to the refrigerator working harder to maintain temperatures.
• Strange noises, such as clicking sounds from the compressor area
• The compressor not starting at all, leading to a complete lack of cooling within the refrigerator.

This OEM LG part is also compatible with some Kenmore models.

This tray assembly collects and channels defrost and condensation water to the drain, helping prevent leaks and water buildup under the appliance. Designed to fit into the drain path and route moisture away safely. What it does:

• Catches defrost and condensation runoff and directs it toward the drain
• Helps prevent pooling and water damage inside the lower cabinet area
• Supports proper evaporator/drain operation by maintaining the drain path
• Can reduce dripping or puddling symptoms when the original tray is cracked or clogged

• 1 tray assembly

• Inspect surrounding seals and drain lines before installing; replace any damaged components
• Clean drain channel and remove debris to ensure proper flow prior to installation
• Handle gently to avoid cracking plastic tabs; use basic hand tools for removal/installation
• Disconnect power to the appliance before accessing internal components to avoid injury

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

The Defrost Sensor Assembly is an OEM part for LG refrigerators. This integral component plays a key role in monitoring the temperature within the refrigerator's freezer section, particularly during the defrost cycle. It ensures that the defrost system activates and deactivates at appropriate temperatures to maintain efficient operation and prevent frost buildup.

Symptoms of a faulty defrost sensor assembly include:

• Excessive frost or ice accumulation in the freezer
• Refrigerator or freezer section experiencing temperature fluctuations
• Defrost cycle not running or running too frequently

Causes of defrost sensor failure often involve damage from moisture or ice, electrical faults, or degradation over time, which can lead to inaccurate temperature readings and improper defrost cycle regulation.

This OEM LG part is also compatible with Sears/Kenmore.

The Door Switch is an OEM part for LG refrigerators. It is located near the door hinge and is activated by the door's movement. When the door is closed, the switch is engaged, allowing the interior light to turn off and other functions to operate normally. When the door is opened, the switch is released, triggering the interior light to turn on and potentially activating other features, such as the ice dispenser or cooling system.

Causes of a faulty door switch can include wear and tear over time, mechanical damage from excessive force, or electrical issues.

Symptoms of a bad door switch may include:

• The interior light not turning on when the door is opened
• The interior light remains on when the door is closed
• Issues with the dispenser or other functions associated with the door switch

The Evaporator Fan Motor is an OEM part for LG refrigerators. It is located in the freezer compartment, near the evaporator coil. It works to circulate cold air throughout the refrigerator, ensuring efficient cooling and proper temperature distribution.

Causes of a faulty evaporator fan motor can include regular wear and tear, electrical malfunctions, or physical damage. These factors can result in issues such as insufficient cooling, improper temperature regulation, or unusual noises coming from the refrigerator.

Symptoms of a bad evaporator fan motor may include:

• Inadequate cooling performance in the refrigerator compartment
• Freezer section cooling properly while the refrigerator remains warm
• Unusual noises, such as grinding or rattling, coming from the appliance

This OEM LG part can also be used on Kenmore/Sears appliances.

Motor Bracket secures the motor assembly, keeping it aligned and reducing vibration for reliable operation. Replacing a damaged bracket restores stable motor mounting and helps reduce noise and premature motor wear. What it does:

• Secures and supports the motor to maintain correct alignment and stable operation.
• Reduces motor vibration and operational noise when properly installed.
• A cracked, bent, or broken bracket can cause increased noise, vibration, or motor misalignment.
• Use when the existing bracket is bent, damaged, or failing to hold the motor securely.

• Disconnect power to the appliance before starting any repair.
• Access may require removing the cabinet or an access panel; keep track of fasteners.
• Installation typically requires basic hand tools; avoid forcing parts into position.

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

The Refrigerator Door Switch is an OEM part for LG refrigerators, designed to signal the control system when the door is open or closed. This small but essential component plays a critical role in the overall operation of your refrigerator, including the activation of interior lights and the control of cooling functions.

Over time, the door switch can fail due to mechanical wear, accidental damage, or a buildup of debris that may prevent it from functioning correctly.

Symptoms of a bad Refrigerator Door Switch include:

• Interior lights not turning on or off appropriately with the door's position
• The refrigerator running longer than necessary, potentially leading to increased energy bills
• Unusual fluctuations in temperature inside the fridge, affecting food preservation

This OEM LG part can also be used on Kenmore/Sears appliances.

This lamp reflector mounts behind the refrigerator light to direct and spread illumination throughout the compartment. Replacing a cracked, melted, or missing reflector helps restore bright, even lighting so you can clearly see food and shelves. What it does

• Sits behind the interior lamp to reflect light forward into the compartment
• Helps maintain even, consistent illumination and reduces shadows
• Typical symptoms: dim or uneven lighting with a good bulb, yellowed/melted reflector, cracked or missing reflector
• Supports proper visibility around shelves and bins

• 1 lamp reflector

• Disconnect power before servicing to avoid electric shock
• Remove the light lens/cover and bulb to access the reflector
• Reuse existing screws or clips as applicable
• Do not overtighten fasteners; reinstall bulb and lens, restore power, and test

The Light Bulb is an OEM part for LG refrigerators. It can be used in either the fresh food section or freezer compartment, providing illumination for easy visibility of the stored items.

Causes of a faulty light bulb can include regular wear and tear, reaching the end of its lifespan, or accidental breakage. These factors can result in issues such as a dark or poorly lit interior, making it difficult to see the contents of the refrigerator.

Symptoms of a bad light bulb may include:

• No illumination or dim lighting inside the refrigerator
• A flickering or intermittent light
• Visible damage or broken filament inside the bulb

This LG OEM bulb is also compatible with Sears/Kenmore models.

The Capacitor is an OEM replacement part for  LG refrigerators. It is an electronic component located next to the refrigerator compressor that stores electric charge between cycles of the power supply circuit. The capacitor plays an important role in providing stable starting power to the compressor motor.

Causes of a bad capacitor next to the compressor can include heat distress over thousands of start/stop cycles of the refrigerator.

Symptoms of a bad capacitor include:

• The compressor makes loud buzzing or grinding noises during the operation
• The compressor fails to start or cycles on and off frequently
• Temperature fluctuations inside the refrigerator
• Error codes related to compressor issues

This genuine LG replacement is compatible also with Kenmore Elite model refrigerators

This replacement lamp socket holds and powers the appliance light bulb, restoring clear, reliable illumination when the light is switched on. Replace a heat-damaged, cracked, or loose socket to stop flickering or a light that won't come on.

• Holds the bulb securely and supplies electrical power
• Restores consistent interior lighting for visibility
• Replaces sockets with heat damage, cracks, or worn contacts
• Symptoms: light stays off with a good bulb, flickers intermittently, or the bulb feels loose

• Disconnect power before servicing and allow the area to cool
• Remove the lens/cover and bulb; release the socket (tabs or screws) to remove
• Transfer wires one at a time to the new socket; ensure tight, correct connections
• Use only the bulb type and wattage specified for your model; test before reassembly

This replacement lamp socket holds and powers the appliance light bulb, restoring clear, reliable illumination when the light is switched on. Replace a heat-damaged, cracked, or loose socket to stop flickering or a light that won't come on.

• Holds the bulb securely and supplies electrical power
• Restores consistent interior lighting for visibility
• Replaces sockets with heat damage, cracks, or worn contacts
• Symptoms: light stays off with a good bulb, flickers intermittently, or the bulb feels loose

• Disconnect power before servicing and allow the area to cool
• Remove the lens/cover and bulb; release the socket (tabs or screws) to remove
• Transfer wires one at a time to the new socket; ensure tight, correct connections
• Use only the bulb type and wattage specified for your model; test before reassembly

This condenser fan motor spins the cooling fan that draws air across the condenser coils and around the compressor. Replacing a weak or seized motor restores proper heat removal so the refrigerator can hold temperature and run more efficiently. What it does:

• Drives the condenser fan to move air through the rear condenser/compressor compartment
• Helps dissipate heat from the refrigerant and protects the compressor from overheating
• Supports stable internal temperatures and efficient cooling performance
• Common symptoms: fan not running, louder rattling/grinding at the back-bottom, hot cabinet sides, warmer-than-normal refrigerator temperatures

• Includes 1 cooling fan motor

• Disconnect power before servicing; pull the unit away from the wall for access
• Remove the rear lower access panel to reach the condenser fan area
• Note wiring and fan-blade orientation; transfer the blade and any mounting hardware from the old motor as needed
• The fan spins freely and airflow direction matches the original before reassembly

This display cover protects the appliance's control board and display while keeping the control area visible and clean. It restores the finished look of the control panel and shields buttons and the display from spills and wear. What it does:

• Protects the electronic display and control buttons from moisture, dust, and everyday wear
• Keeps the control area visible and easy to read
• Helps prevent accidental contact with control board components
• Restores a worn, cracked, or discolored control panel for improved appearance

• Disconnect power to the appliance before removing or installing the cover to avoid shock or damage
• Remove any retainers or control panel screws as needed; handle the cover carefully to avoid scratching
• Align the cover to the control panel and secure all fasteners; test controls after reassembly
• Replace those components before installing the cover

Note: Includes PCB Display

This display case is the molded housing for the refrigerator's control panel. It supports and aligns the user interface components and trim, restoring a secure, finished fit when the original case is cracked, broken, or out of shape.

• Positions and supports the display/selector board and buttons in the panel opening
• Provides mounting points for panel trim and fasteners
• Helps shield internal components from dust and incidental moisture
• Common signs it's needed: cracked or broken plastic, missing tabs, loose or misaligned control panel

• Unplug the refrigerator before servicing
• Remove the panel/trim per your model's procedure; note screw and clip locations
• Carefully handle the user interface board and wiring; avoid static discharge and pinched harnesses
• Transfer any brackets or clips from the old case to the new one, then reassemble and test

This temperature sensor (thermistor) detects internal appliance temperature and sends readings to the control board so the unit maintains proper cooling. Replacing a failing sensor restores accurate temperature monitoring and helps prevent spoilage. What it does:

• Measures internal temperature and provides a resistance-based signal to the control board
• Helps the control system regulate compressor and defrost cycles
• Commonly causes warm or fluctuating temperatures, prolonged cooling, or temperature-related error codes when failing
• Works as a direct-sensing temperature input — not a user control or switch

• One temperature sensor/thermistor (single part as shown)

• Unplug the appliance or switch off power at the breaker before servicing
• Handle the sensor and its thin leads carefully to avoid damage during removal and installation
• Route and secure wiring so it does not contact moving parts or sharp edges

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.
