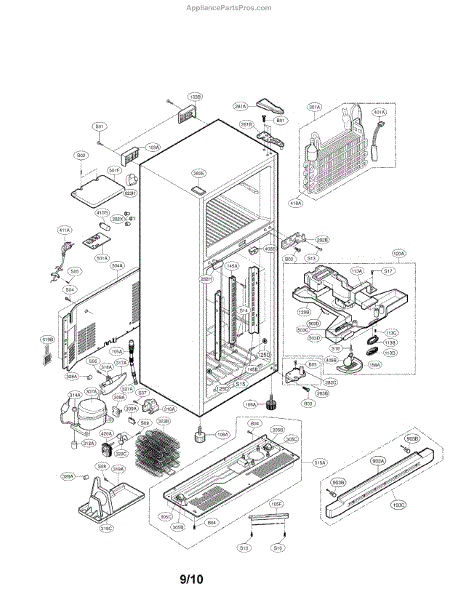

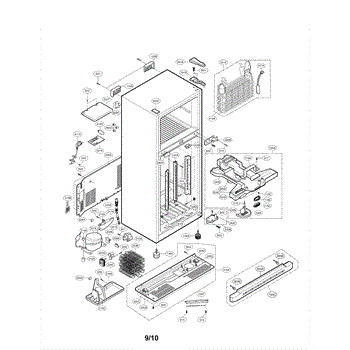

Parts for Lg LRTN22310TT: Case Parts

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

A single mounting screw used to secure panels, brackets, or components in place so assemblies stay stable during normal appliance use. Simple replacement for stripped or missing fasteners. What it does:

• Secures panels, trim, brackets or interior components to prevent rattling or movement
• Restores proper fit and alignment after service or accidental damage
• Helps reattach parts removed during maintenance or part replacement
• Small, durable fastener designed for appliance interior mounting applications

• Use the correct screw driver or bit to avoid stripping the head
• Match screw length and thread engagement to the original location before tightening
• Tighten until snug—do not overtighten to avoid cracking plastic or damaging threads
• Disconnect power and follow appliance safety procedures before performing repairs

This is a replacement mounting bolt used to secure appliance components and assemblies, restoring proper fit and reducing movement that can cause noise or misalignment. Use when a factory fastener is missing or damaged. What it does

• Fastens panels or internal components to maintain correct alignment and structural integrity.
• Prevents vibration-related noise and rubbing by holding parts securely in place.
• Restores secure connections after disassembly for service or repair.
• Helps eliminate intermittent movement that can lead to wear or leaks when a fastener is compromised.

• Use the correct bolt length and thread engagement for the application; do not force a mismatched fastener.
• Tighten to snug, manufacturer-specified torque when available; avoid overtightening to prevent stripping.
• Inspect surrounding parts (washers, nuts, threaded holes) and replace if worn or damaged.
• Disconnect power and follow all safety precautions before servicing the appliance.

This replacement screw secures specified panels or components inside your appliance. Refreshing worn or missing hardware helps restore a tight fit, reduce rattling, and keep assemblies properly aligned for reliable performance.

• Provides secure fastening for brackets, panels, or internal assemblies
• Replaces stripped, rusted, or lost hardware
• Helps reduce vibration and rattling noises
• Symptoms include loose panels, shifting components, or a screw that won't tighten

• Disconnect power and allow any hot surfaces to cool before servicing
• Wear cut-resistant gloves and eye protection
• Match length and thread to the original; replace like-for-like
• Start threads by hand to avoid cross-threading; do not overtighten

This replacement screw secures panels and components on LG appliances to restore proper alignment and prevent rattling or loose parts. It's a direct-fit fastener used where OEM mounting hardware has become stripped, lost, or damaged. What it does:

• Secures panels, brackets, or trim to maintain appliance structure and alignment
• Helps stop vibration noise caused by loose panels or components
• Replaces missing or damaged mounting hardware to prevent parts from shifting
• Restores proper fit where stripped or worn screws no longer hold

• Use the correctly sized screwdriver or bit to avoid stripping the head
• Tighten snugly but do not overtighten; excess torque can strip threads or crack plastic
• If working near electrical components, unplug the appliance first to ensure safety
• Keep removed screws organized during disassembly to match locations on reassembly

This is a replacement retaining pin used to secure small moving parts and assemblies in compatible LG appliances. It restores proper alignment and holds components in place so assemblies operate smoothly. What it does:

• Secures and locates components within an assembly to prevent shifting or disengagement
• Helps maintain proper alignment for moving parts that can cause noise or malfunction when loose
• Commonly used where a small, durable metal pin is needed to retain clips, levers, or linkages
• Simple, single-purpose part — replacement when the original is bent, worn, or missing

• One retaining pin

• Unplug the appliance or disconnect power before servicing
• Access the affected assembly per the appliance service instructions; small fasteners or clips may need removal
• Use pliers or appropriate hand tools to remove/install the pin; avoid forcing to prevent damage
• Keep track of orientation and any associated clips or washers during disassembly

The Compressor Start Relay is an OEM part for LG refrigerators, playing a critical role in the starting mechanism of the compressor. This small but crucial component helps to kickstart the compressor, enabling it to begin the refrigeration cycle that cools the interior of the fridge.

Causes of a bad Compressor Start Relay include wear and tear over time, electrical surges that can damage the relay, or overheating of the compressor unit.

Symptoms of a bad Compressor Start Relay include:

• The refrigerator failing to cool properly or maintain the set temperature.
• A noticeable increase in the electric bill due to the refrigerator working harder to maintain temperatures.
• Strange noises, such as clicking sounds from the compressor area
• The compressor not starting at all, leading to a complete lack of cooling within the refrigerator.

This OEM LG part is also compatible with some Kenmore models.

This overload protector is a safety device that helps prevent compressor damage by stopping electrical current during overheating or locked-rotor conditions. It's a direct-fit replacement that restores proper compressor protection and helps keep the appliance running safely. What it does:

• Protects the compressor by interrupting power if the motor overheats or experiences an electrical fault
• Common symptom: refrigerator runs but compressor won't start or only hums
• Common symptom: fridge cycles frequently or doesn't maintain temperature due to compressor protection tripping
• Works with the start device to help ensure reliable compressor startup

• Disconnect power before servicing; work only with the appliance unplugged
• Access typically requires removing the rear access panel to reach the compressor area
• Replace using the same mounting and terminal connections; ensure secure electrical connections

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

The Light Bulb is an OEM part for LG refrigerators. It can be used in either the fresh food section or freezer compartment, providing illumination for easy visibility of the stored items.

Causes of a faulty light bulb can include regular wear and tear, reaching the end of its lifespan, or accidental breakage. These factors can result in issues such as a dark or poorly lit interior, making it difficult to see the contents of the refrigerator.

Symptoms of a bad light bulb may include:

• No illumination or dim lighting inside the refrigerator
• A flickering or intermittent light
• Visible damage or broken filament inside the bulb

This LG OEM bulb is also compatible with Sears/Kenmore models.

This power cord assembly supplies AC power from the wall outlet to your appliance. Replacing a frayed, heat-damaged, or loose cord restores safe, reliable operation and can eliminate intermittent power loss.

• Carries line voltage and ground into the unit to power controls and components
• Routes electricity safely into the cabinet to protect internal wiring
• Replace at the first sign of damage to reduce shock or fire risk

• Disconnect power at the outlet/breaker before servicing
• Compare the new cord to the original; transfer any clips or grommets from the old cord if needed
• Route and secure the cord exactly as original; keep clear of sharp edges and moving parts
• Ensure all connections are fully seated and the ground is properly secured before restoring power

The Toe Grille Clip is an OEM part for LG refrigerators. This part secures the toe grille to the base of the refrigerator, ensuring it remains in place while providing easy access for cleaning and maintenance.

Causes of a bad Toe Grille Clip can include breakage due to accidental impacts during cleaning or general wear and tear over time.

Symptoms of a faulty Toe Grille Clip include:

• The toe grille coming loose or falling off
• Difficulty attaching or detaching the grille for routine maintenance
• Visible damage or deformation of the clip
• Unusual gaps between the grille and the refrigerator base

This OEM LG part is also compatible with some Kenmore models.

The Refrigerator Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature inside the refrigerator and communicates with the control board to maintain the optimal cooling environment.

Common causes of failure include wear and tear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can lead to inaccurate temperature readings, resulting in improper cooling or freezing.

Symptoms of a bad refrigerator temperature sensor include:

• Inconsistent refrigerator or freezer temperatures
• Food spoiling faster than usual
• Refrigerator running continuously or not running at all
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.
