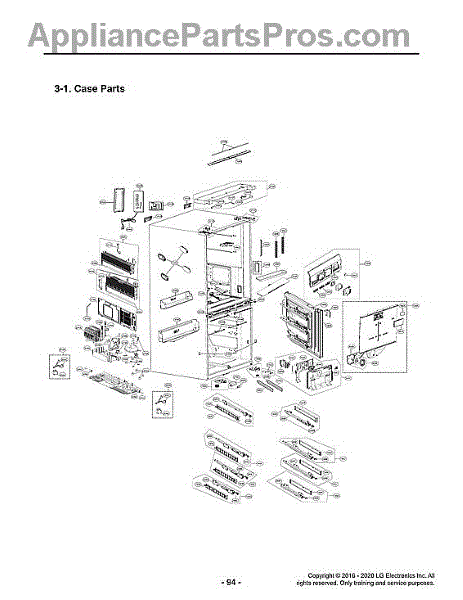

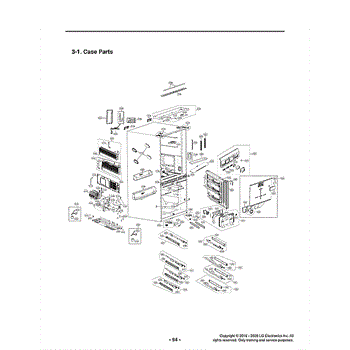

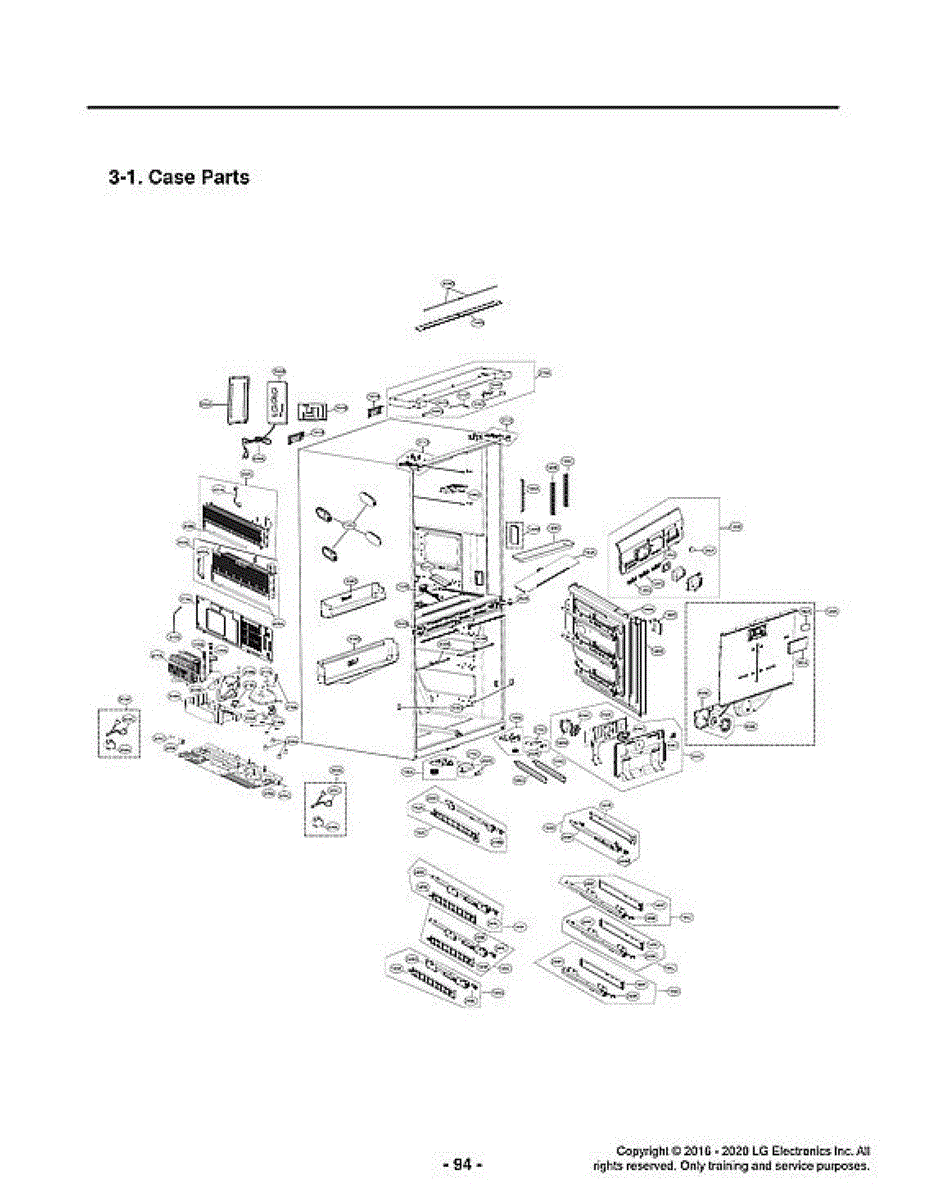

Parts for Lg LUPXC2386N/00: Case Parts

This rear door handle replaces a worn or damaged handle on compatible LG appliances, restoring a secure grip and smooth opening. It's a direct-fit exterior handle that keeps the appliance door operating and looking right. What it does

• Provides a secure gripping point to open and close the appliance door
• Replaces cracked, loose, or broken rear handle hardware
• Restores correct alignment and feel when the door is operated
• Helps prevent further damage to the door edge from makeshift handles

• Power off and unplug the appliance before starting work; remove food or shelves as needed for access
• Keep fasteners and mounting clips; transfer original hardware unless new hardware is explicitly included
• Test door operation and alignment after installation; tighten fasteners evenly to avoid stress

This is a replacement drain tube assembly that directs water from the appliance tub to the drain pump or household drain, helping restore proper water removal and reduce leaks. It's a direct-fit service part used in the drainage system. What it does:

• Channels wastewater away from the tub to the drain pump or drain line
• Helps prevent pooling or slow draining caused by a damaged or disconnected tube
• Restores a sealed path to reduce leaks at the tub-to-pump connection
• Suitable when the original drain tube is cracked, split, collapsed, or leaking

• One drain tube assembly as shown

• Disconnect power and water before beginning any repair to avoid shock or flooding
• Inspect and clean mating surfaces and clamps; replace clamps if corroded or damaged
• Ensure correct routing and secure connections to prevent kinks and leaks

This shelf holder is the mounting bracket that secures a refrigerator shelf in place, restoring stable shelf support and proper shelf alignment for safe storage. Designed to replace a worn, cracked, or broken holder. What it does

• Secures a refrigerator shelf edge to the cabinet, preventing the shelf from shifting or tilting
• Restores proper shelf alignment so glass or wire shelves sit level and support stored items
• Replaces holders that are cracked, broken, or no longer gripping the shelf
• Helps eliminate shelf sagging, rattling, or unexpected slips when loading items

• Remove power and empty the shelf area before beginning work to avoid injury or damage
• Typically installs by snapping or sliding into the cabinet track—retain any original clips or screws and reuse if specified by your model
• Inspect the mating shelf edge and cabinet track for damage; replace any additional damaged hardware

This shelf holder is a replacement support designed to secure a refrigerator or appliance shelf in place, restoring a stable surface for food storage and organization. It replaces a broken or worn shelf support to help shelves sit level and lock into position. What it does:

• Secures and supports a shelf so items remain stable and level
• Replaces cracked, broken, or loose shelf supports to stop shelf sagging or shifting
• Restores proper shelf engagement with existing track or mounting points
• Helps prevent stored items from tipping or sliding due to an unstable shelf

• Inspect adjoining shelf, track, and mounting clips for damage before installing
• Typically installs by snapping or sliding into the existing shelf track; use gentle pressure to avoid cracking adjacent parts
• Disconnect power only if working near electrical components; otherwise, work with the appliance empty and stable

This motor cover assembly protects the appliance motor and nearby components from dust, lint and accidental contact, helping maintain reliable operation and reduce wear. It's a direct-fit replacement that restores proper motor enclosure. What it does

• Shields the motor and wiring from lint, debris and accidental contact
• Helps prevent rubbing or interference between the motor and other parts
• Reduces risk of foreign objects entering the motor area, which can cause noise or damage
• Restores proper airflow routing around the motor where applicable

• One motor cover assembly

• Disconnect power (unplug or switch off breaker) before starting any repair
• Removal typically requires basic hand tools; keep track of fasteners and orientation
• Inspect adjacent seals, mounts and wiring while replacing the cover
• Do not operate the appliance with the cover loose or missing

This cover assembly protects the appliance motor and nearby wiring from debris and accidental contact, restoring the motor enclosure to its original condition for safer, quieter operation. What it does

• Shields the motor and terminals from lint, dust, and physical damage
• Helps reduce noise by covering exposed motor components
• Prevents accidental contact with moving or energized parts
• Restores proper airflow path around the motor housing when damaged or missing

• One motor cover assembly as shown

• Disconnect power before starting any work to avoid shock or injury
• Requires basic disassembly (remove rear/front panel or shroud depending on model); keep track of screws and clips
• Handle edges carefully; use gloves to avoid cuts on sheet-metal or plastic edges
• Secure all fasteners; do not modify part or electrical connections

This guide rail replaces a damaged or worn drawer slide to restore smooth opening and closing and keep the drawer aligned. Designed to match the OEM mounting points for a secure fit and reliable movement. What it does:

• Supports and guides the refrigerator/freezer drawer or shelf as it opens and closes
• Restores smooth sliding action when original rail is bent, cracked, or worn
• Helps prevent drawer jams, sticking, or uneven alignment
• Reduces noise from rubbing or scraping caused by a damaged rail

• Unplug the appliance or disconnect power before starting any repair
• Remove the drawer/shelf to access the rail mounting screws
• Retain all fasteners and note original orientation; install replacement in the same position
• If both sides show wear, replace both rails for best alignment and performance

This ferrite magnet is a replacement magnetic element used in compatible appliance assemblies to help secure components and maintain proper alignment. It restores magnetic retention and reduces shifting or misalignment during operation. What it does:

• Provides magnetic retention for panels, assemblies or components that rely on ferrite magnets
• Helps maintain proper alignment and secure closure where magnets are used
• Can reduce noise and vibration related to loose magnetic components
• Useful when a brittle, cracked or weak magnet no longer holds parts in place

• Disconnect power and follow the appliance manufacturer's safety instructions before servicing
• Handle the magnet carefully; ferrite material is brittle and can chip or shatter if dropped or struck
• Keep magnets away from sensitive electronics and credit cards; avoid pinching fingers between strong magnets
• If the original magnet is bonded or embedded, some adhesive or light trim may be needed for proper fit.

This air filter assembly replaces the interior deodorizing/air-cleaning element to help reduce odors and keep stored food smelling fresher. Designed as a direct-fit service part for compatible LG refrigeration systems. What it does:

• Adsorbs and reduces common refrigerator odors to improve interior air quality
• Helps maintain a neutral-smelling compartment when the refrigerator door is closed
• Restores proper operation when an old or saturated filter no longer controls smells
• Works as part of the fridge's air-circulation/deodorizing system

• Disconnect power to the appliance before servicing; follow manufacturer safety instructions
• Replace only with the exact part number for your model
• Typically accesses from inside the fresh-food compartment or filter housing
• Dispose of the old filter per local regulations

This front plate assembly replaces a damaged or worn front-facing trim piece to restore the appliance's appearance and help protect underlying controls and components. It's a direct-fit exterior panel designed for an exact OEM match. What it does

• Replaces cracked, dented, or scratched front trim to improve appearance
• Covers and protects controls, switches, and internal components from debris
• Restores proper alignment and gaps on the appliance face
• Helps prevent drafts and keeps insulation and internal parts secure

• Disconnect power (unplug or switch off breaker) before starting any work.
• Remove nearby trim or bezels as needed to access mounting screws; keep hardware organized.
• Handle edges carefully—panels and metal trim can have sharp edges.
• Verify part fit and orientation before final fastening; do not force into place.

This door gasket assembly replaces the refrigerator door seal to restore a proper seal and help maintain consistent internal temperatures. It's a direct-fit part used where a damaged, cracked, or torn gasket lets cold air escape. What it does

• Seals the refrigerator/freezer door edge to reduce air leaks and maintain cooling efficiency.
• Helps prevent moisture buildup and frost inside the compartment by keeping a tight seal.
• Reduces compressor run time caused by poor door sealing.
• Appropriate when you see visible gaps, rips, warping, or persistent condensation at the door edge.

• One door gasket assembly

• Disconnect power to the appliance before starting any repair to avoid electrical hazard.
• Handle the gasket gently to avoid stretching or damaging the sealing surface during installation.
• Warm the gasket slightly if needed to ease installation and ensure an even fit; inspect door alignment and strike plate after replacement.

This door basket assembly replaces a damaged or cracked refrigerator door bin to restore secure storage and keep bottles, condiments and small items from shifting. Durable plastic construction designed to match the original fit. What it does

• Replaces a broken, cracked or warped door bin that won't hold items securely
• Restores storage capacity and prevents items from falling when the door opens
• Fits into the door rail to provide stable shelving for bottles and containers
• Helps maintain interior organization and easy access to frequently used items

• One door basket assembly

• Disconnect power (unplug or shut off breaker) before servicing to avoid electrical hazard
• Remove the existing bin by lifting or unhooking per the fridge's service instructions; slide the new basket into place until it locks
• Inspect door rails and mounting tabs for damage; replace any broken hardware before installing

This replacement spring provides the tension for a door hinge, helping the door open smoothly and stay closed for a proper seal and consistent appliance performance.

• Applies controlled tension to the hinge mechanism for smooth door movement
• Helps the door stay closed and aligned against the gasket
• Worn or broken spring symptoms can include the door dropping open, not staying closed, an uneven gap, or squeaking/binding at the hinge
• Restores normal feel and operation to the door

• Disconnect power and allow the appliance to cool completely before servicing
• Support the door; removal of the door or hinge arm may be required
• Use caution—hinge springs are under significant tension; wear gloves and eye protection
• Replacing both springs together helps maintain balanced tension

This replacement lever spring restores tension to a lever-style mechanism so the lever returns and operates reliably. Use it when a worn spring causes the lever to stick, slip, or fail to engage properly. What it does

• Replaces the worn or weakened spring in a lever assembly to restore proper return tension
• Helps prevent the lever from sticking, slipping, or failing to stay engaged
• Restores consistent mechanical movement for reliable operation
• Reduces intermittent or flaky lever behavior caused by a damaged spring

• Disconnect power to the appliance before starting any repair
• Inspect the lever assembly and mounting points; replace only the spring explicitly listed
• Use appropriate hand tools and pliers; avoid overstretching the spring during installation

This lever spring is a small replacement tension spring that restores proper return and engagement for a lever assembly. It helps maintain reliable lever movement and secure latching where a worn or broken spring causes play or non-return. What it does:

• Provides return tension for a lever or latch assembly so the lever snaps back into place
• Helps maintain proper engagement of latch/actuator mechanisms
• Common remedy for a loose, sagging, or non-returning lever
• Works as a direct-fit replacement when the original lever spring is damaged or fatigued

• One replacement lever spring

• Disconnect power and/or unplug the appliance before starting any disassembly
• Handle small springs carefully; keep track of orientation and any retaining clips during removal
• Installation may require partial disassembly of the trim or latch assembly

This lever holder is the replacement mounting bracket that secures the door lever so the microwave door operates smoothly and reliably. It restores proper lever alignment to help the door latch and release as intended. What it does:

• Secures the door lever assembly so the door can latch and release properly
• Keeps the lever aligned to prevent binding, sticking, or loose movement
• Helps restore normal door operation and user access to the oven cavity
• Common symptom: door feels loose, lever moves freely, or door will not latch

• Disconnect power before beginning any repair to avoid shock or injury
• Remove the outer cabinet or door trim only as needed to access the lever area
• Handle door components and glass carefully to avoid damage or injury

This button assembly replaces a worn or damaged control panel button, restoring reliable press-and-release operation so the appliance responds correctly to user input. It's a direct-fit replacement for the panel control buttons. What it does

• Provides a functioning push-button interface for the appliance control panel
• Restores responsive button presses when existing buttons are stuck, cracked, or unresponsive
• Helps eliminate intermittent control issues caused by damaged button contacts
• Improves cosmetic appearance of the control panel when original buttons are worn

• One button assembly as shown

• Disconnect power (unplug or turn off breaker) before starting any repair
• Remove the control panel trim or front console to access and replace the assembly; retain screws and fasteners
• Handle electrical connectors and ribbon cables gently to avoid damage
• Test button operation before reassembling the panel

The Compressor is an OEM component specifically designed for LG refrigerators. Located inside the refrigerator compartment, the compressor pressurizes and circulates refrigerant through the cooling system. Through precisely timed operation, the compressor maintains optimal freshness.

Symptoms of a bad compressor include:

• Elevated interior temperatures failing to efficiently chill
• Loud buzzing or vibrating noises coming from inside the walls
• Frost buildup indicating ineffective cooling cycles
• Complete cooling system failure leaving foods unpreserved

Causes involve refrigerant leaks, blocked airflow to the compressor, or simply wear over tens of thousands of hours of use breaking down moving components.

This OEM LG part is also compatible with some refrigerator models from Kenmore and Sears. Replace to restore reliable, long-term temperature control keeping contents at peak freshness.

This overload protector is a compressor safety device that helps stop the compressor if it draws too much current or overheats, preventing damage and helping the refrigerator system run safely. What it does:

• Interrupts compressor power during excessive current draw or overheating to protect the compressor motor
• Can prevent short cycling and repeated restart attempts that damage the compressor
• Commonly replaced when compressor hums but will not start, or when the appliance stops cooling due to compressor protection
• Works as part of the compressor start/protection assembly alongside the start relay and capacitor

• Disconnect power to the appliance before accessing the compressor or electrical components
• Handle terminals carefully and reconnect to the matching terminals only; do not modify leads
• Verify the part number against the existing component before installation

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

This cabinet roller supports the refrigerator and lets the unit roll in and out of place for cleaning or service. Replace a worn or broken roller to restore smooth movement and help keep the appliance properly positioned.

• Supports the base of the refrigerator and enables rolling movement
• Helps with safe positioning and service access without dragging
• Common failure signs: appliance is hard to move, scraping or rolling noises, a flat-spotted/cracked wheel, or a wheel that won't turn
• Replace when the roller is damaged, seized, or missing

• Disconnect power and shut off water supply; protect flooring before moving the appliance
• With help, pull the refrigerator forward and safely support it to access the roller
• Remove mounting fasteners, install the new roller, and reuse original hardware
• Confirm level and smooth movement before returning the unit to its location

This compressor damper is a vibration-isolating mount that sits between the sealed-system compressor and the chassis. It cushions the compressor to reduce noise, limit vibration transfer, and help keep refrigerant lines from being stressed.

• Isolates the compressor from the frame to absorb start/stop shock and vibration
• Helps reduce humming, rattling, or buzzing from the back/bottom of the appliance
• Replaces a damper that's cracked, flattened, hardened, or missing
• Can help if the compressor rocks or the unit vibrates excessively

• Disconnect power and pull the unit forward for access; remove rear/service panel if present
• Support the compressor to relieve load on the mounts before removing fasteners
• Match orientation; transfer any sleeves/spacers from the old damper to the new one
• Ensure the compressor sits level and that tubing is not strained before restoring power

This fan guide directs airflow from the blower/fan assembly to improve cooling and airflow routing in the appliance. Replaces a cracked or missing guide to restore proper airflow and reduce noise from misdirected air. What it does:

• Channels air from the fan/blower to the correct vents or components
• Helps maintain even cooling and prevents hot spots near electronics or food compartments
• Reduces vibration-related rattles by securing the fan's airflow path
• Common symptom: airflow is weak, noisy, or misdirected when the guide is damaged or missing

• One fan guide

• High-level replacement — remove access panels and unplug appliance before starting
• Confirm correct orientation and secure mounting tabs/screws; avoid forcing plastic clips
• Use gloves to protect hands from sharp sheet metal edges inside the cabinet
• If airflow or noise persists after installation, inspect fan/blower and motor assembly for damage

This drip tray catches and channels water runoff inside the appliance to help prevent pooling and minor leaks. It's a direct-fit replacement listed by the manufacturer and sold as the single tray used in the unit. What it does

• Collects condensate or defrost water and directs it to the drain area to prevent pooling.
• Helps stop water from dripping onto lower drawers, shelves or the floor.
• Commonly replaces a cracked, warped or missing tray that causes visible leaks or water buildup.
• Fits into the appliance's lower compartment where the original tray sat.

• Unplug the appliance or disconnect power before servicing.
• Remove any obstructing drawers or shelves to access the tray location; handle glass shelves carefully.
• Lift out the old tray and set the new tray into the same position; no special tools typically required.

This cover assembly protects the machine components and helps keep internal machinery free of debris and accessible for repair. It provides a durable barrier that helps extend component life and maintains safe operation. What it does:

• Shields motors, belts and internal linkages from dust and lint that can cause wear
• Helps contain moving parts to reduce pinch or contact hazards during normal use
• Maintains proper component alignment by providing a stable mounting surface
• Commonly replaced when cracked, warped, missing fasteners, or damaged from impact

• One cover assembly as shown

• Disconnect power before attempting service
• Handle gently to avoid cracking plastic tabs; inspect mounting clips and screws for damage
• Reuse original fasteners only if undamaged; replace any stripped screws or broken clips

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

The Drier Assembly is an OEM part for LG refrigerators. This part removes moisture and contaminants from the refrigerant, ensuring the system operates efficiently and effectively. The drier assembly helps maintain the proper function of the compressor and other cooling components, contributing to the longevity and performance of the refrigerator.

Causes of a bad drier assembly can include clogs from debris, wear and tear over time, or contamination from moisture or refrigerant leaks.

Symptoms of a bad drier assembly include:

• The refrigerator not cooling properly
• Frost or ice buildup on the evaporator coils
• Increased noise from the compressor
• Reduced efficiency and higher energy consumption
• You should replace the drier assembly if it becomes faulty or damaged.

This OEM LG part is also compatible with select Sears/Kenmore models.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

The Dispenser Micro Switch is an OEM part for LG refrigerators. It is a component of the ice and water dispensing system, responsible for activating the dispenser when the lever is pressed.

Causes of a bad Dispenser Micro Switch can include mechanical wear from frequent use, failure due to moisture or debris affecting the switch’s contacts, or electrical faults that prevent proper signaling.

Symptoms of a bad Dispenser Micro Switch include:

• The dispenser not releasing ice or water when the lever is pressed.
• Continuous dispensing or dripping after the lever is released.
• Intermittent or no response from the dispenser controls.

This OEM LG part is also compatible with Sears/Kenmore.

This DC motor drives the refrigerator's circulation fan, moving air across the coils and through the compartments for steady, efficient cooling. Replacing a weak, noisy, or seized motor restores airflow and temperature stability. What it does:

• Converts DC power into rotation to spin the attached fan and promote airflow
• Supports efficient heat exchange for even compartment temperatures
• Common symptoms: fan not running or intermittent, loud humming/squealing/grinding, warm spots or frost buildup, longer run times
• Contributes to reduced ice production or error codes in some models

• 1 DC motor

• Disconnect power and wear cut-resistant gloves; internal panels may have sharp edges
• Access the motor behind the interior panel or rear service panel; note connector orientation and wire routing
• Transfer the fan blade, grommets, and any mounting hardware from the old motor if needed
• Seat the blade fully and verify it spins freely before reassembly and restoring power

The Ice Dispenser Door Motor is an OEM part for LG refrigerators. This motor is responsible for the operation of the ice dispenser door, controlling its opening and closing mechanism to allow ice to be dispensed without letting warm air into the freezer.

Symptoms of a bad Ice Dispenser Door Motor include:

• The dispenser door not opening or closing properly,
• Ice not being dispensed when activated,
• Unusual noises coming from the dispenser mechanism.

Causes of ice dispenser door motor failure can include electrical issues such as shorts or wiring problems, mechanical wear over time, or blockages that strain the motor.

This OEM LG part is also compatible with Sears/Kenmore.

This holder assembly secures a component inside the appliance, keeping parts aligned and stable for reliable operation. Replaces a worn or broken bracket to restore proper part positioning and reduce rattling or movement. What it does

• Provides a stable mounting point for the associated component to prevent shifting during operation.
• Restores proper alignment that can stop noise, vibration, or intermittent connections caused by a loose bracket.
• Maintains correct spacing to help the connected component operate as intended.
• Durable molded/metal construction resists deformation under normal use.

• One holder assembly as pictured and specified by the manufacturer.

• Basic hand tools are typically required; remove power and any attached panels before starting.
• Keep track of screws and small fasteners; compare new part to the original for correct orientation.
• Ensure wiring or hoses near the bracket are secured and not pinched during reassembly.

This drain tray assembly collects and channels defrost and condensation water away from the appliance to prevent interior pooling and leaking. It fits into the appliance base and helps maintain normal drainage during cooling cycles. What it does

• Catches defrost/condensation runoff and directs it to the drain path
• Prevents water from pooling under components or inside the cabinet
• Reduces risk of odors and mildew by keeping drainage contained
• Restores proper drainage when original tray is cracked, warped, or missing

• One drain tray assembly

• Disconnect power before starting any repair
• Remove access panels or shelving as needed to reach the tray; handle panels and edges carefully
• Ensure the tray is seated and aligned to the drain channel and any mounting tabs are engaged
• Inspect associated drain tube and seals; replace if damaged to ensure proper function

This sheath heater assembly supplies the heating element used to warm air in the dryer, restoring proper drying performance when the original element fails. It's a direct-replacement part that fits into the dryer's heater housing. What it does:

• Heats incoming air so the dryer can remove moisture from clothes
• Replaces a damaged or open heating element that prevents the dryer from producing heat
• Addresses symptoms like no heat, long drying times, or intermittent heating
• Works with the dryer's thermostats and safety devices to regulate temperature

• Disconnect power (and gas supply if applicable) before beginning work
• Allow the appliance to cool and drain any stored energy before touching internal components
• Handle the heater carefully to avoid bending or damaging the element or terminals
• Check thermostats, thermal fuses, and wiring for related faults when replacing the heater
