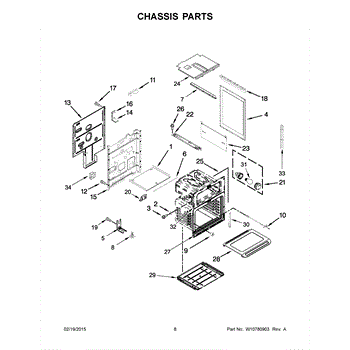

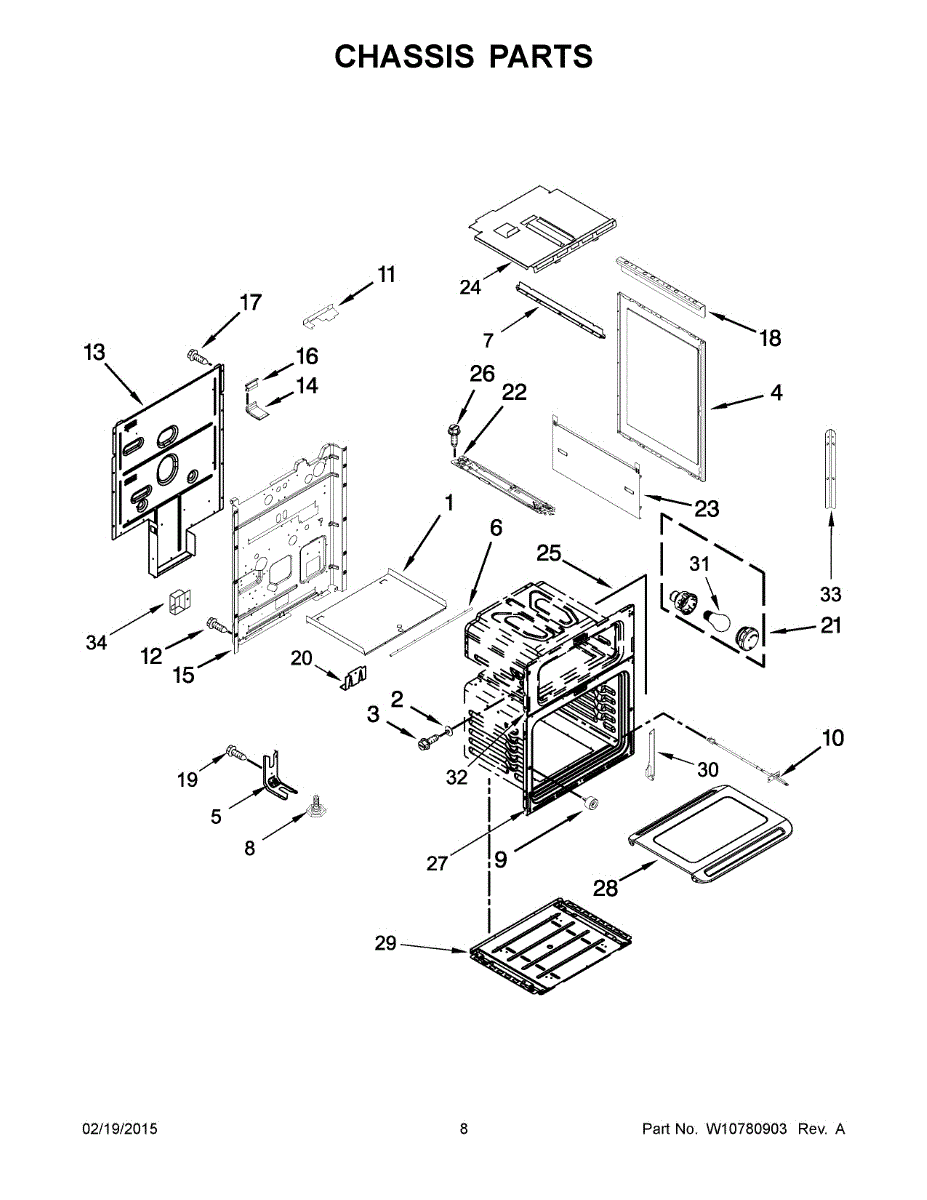

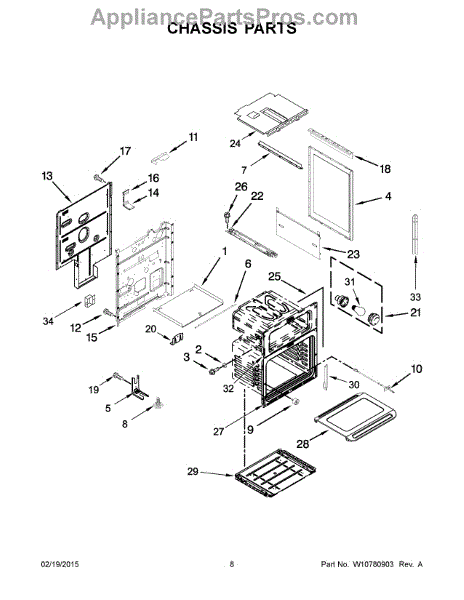

Parts for Whirlpool KFGD500EWH00: 05 - Chassis Parts

Heat shield for gas range. Protects internal components from excessive heat. Replace if cracked, warped, or damaged to maintain proper insulation.

Positions and supports the side panel for proper alignment and spacing. Replace when the original spacer is cracked, broken, or missing to restore fit.

Replacement screw for electric and gas ranges. Secures internal components and panels. Order a new screw if yours is stripped, missing, or damaged.

Replacement side panel assembly for gas ranges and ovens. Restores exterior appearance when original panel is cracked, dented, rusted, or bent. Mounts to frame.

Replace your damaged or missing range side panel. This exterior panel covers the side of your oven, restoring the finished look after wear or damage.

Anti-tip bracket bolts to the floor behind your range to prevent tipping. Replace if missing, bent, or damaged during moving or installation.

Replace your gas range oven door gasket to restore proper heat seal and improve cooking efficiency. Verify fit with your model number before ordering.

Adjustable leveling leg that stabilizes and balances your range. Replace if cracked, broken, bent, or threads are stripped from wear or impact damage.

Small cushioning bumper that installs on range doors or panels. Replaces worn, cracked, or missing bumpers to reduce noise and ensure quiet closing.

Oven displaying error codes or baking unevenly? The temperature sensor monitors cavity heat and signals the control. Moderate DIY repair in 30-45 minutes.

Mounting screw secures panels, brackets, and components inside your oven. Replace missing, stripped, or damaged screws to restore proper fit.

Wire cover for gas ranges and vacuums. Installs to protect and conceal wiring. Replace if cracked, broken, or missing to restore proper coverage.

Replace your gas range's oven flue cover if it's cracked, damaged, or missing. Installs at the rear top of the oven under the cooktop area. Essential part.

Oven flue duct for gas ranges. Vents hot air from the oven cavity to the cooktop. Replace if cracked, damaged, or missing to restore proper ventilation.

Replacement mounting screw for securing components and housings in place. Order a new screw if yours is stripped, missing, or damaged during repairs.

Secures and stabilizes internal range components, keeping panels and assemblies properly aligned. Replace when your mounting bracket is broken, bent, or missing.

Replace missing or stripped screws for your range anti-tip bracket. This 2-piece hardware set secures the bracket to the wall or floor for stability.

Light socket assembly houses your oven bulb and provides electrical connections to illuminate the interior. Replace when bulb won't stay secure or light fails.

Oven door won't close or displays F5/E1 error? This door latch assembly secures the door and engages the safety interlock for proper operation.

Seals your oven door to retain heat and moisture for even baking. Replace when worn, cracked, or causing heat loss. Verify fit with your model number.

Seals oven door to prevent heat and smoke leaks for even baking. Replace if worn, torn, or causing heat loss. Includes mounting hooks. Verify fit.

Replacement screw for range and oven assemblies. Secures panels, brackets, and internal components. Order if original is stripped, missing, or damaged.

Front frame for electric ranges. Surrounds the door opening and attaches to the main cabinet. Replace if dented, cracked, or damaged from impact.

Replacement bottom broiler pan for gas ranges. Catches grease and drippings during broiling. Order a new pan if yours is warped, damaged, or missing.

Base unit frame assembly for gas ranges. Provides structural support for the chassis. Replace if cracked, bent, or damaged. Essential cabinet component.

Replaces dim, flickering, or burnt-out bulbs in refrigerators, ovens, and microwaves. Restores interior lighting for visibility. Verify fit with model.

This panel spacer provides a small trim/mounting gap between cabinet panels and control or door assemblies to ensure proper alignment and a finished appearance. It helps stabilize panels and prevents rubbing or interference. What it does:

• Positions and spaces exterior or trim panels for correct fit and alignment
• Helps reduce panel vibration and rattling during operation
• Prevents panels from contacting adjacent parts that can cause wear or noise
• Restores original panel gap after panel removal or replacement

• One panel spacer as shown

• Install with appropriate screws or clips; only use the mounting hardware specified for your model
• Power off and unplug the appliance before accessing panels to avoid injury
• Handle panels carefully to avoid scratching finish; use a soft cloth or protective pads

Protective sleeve that routes and shields oven wiring from abrasion and contact. Replace if cracked, worn, or missing to restore safe wiring coverage.
