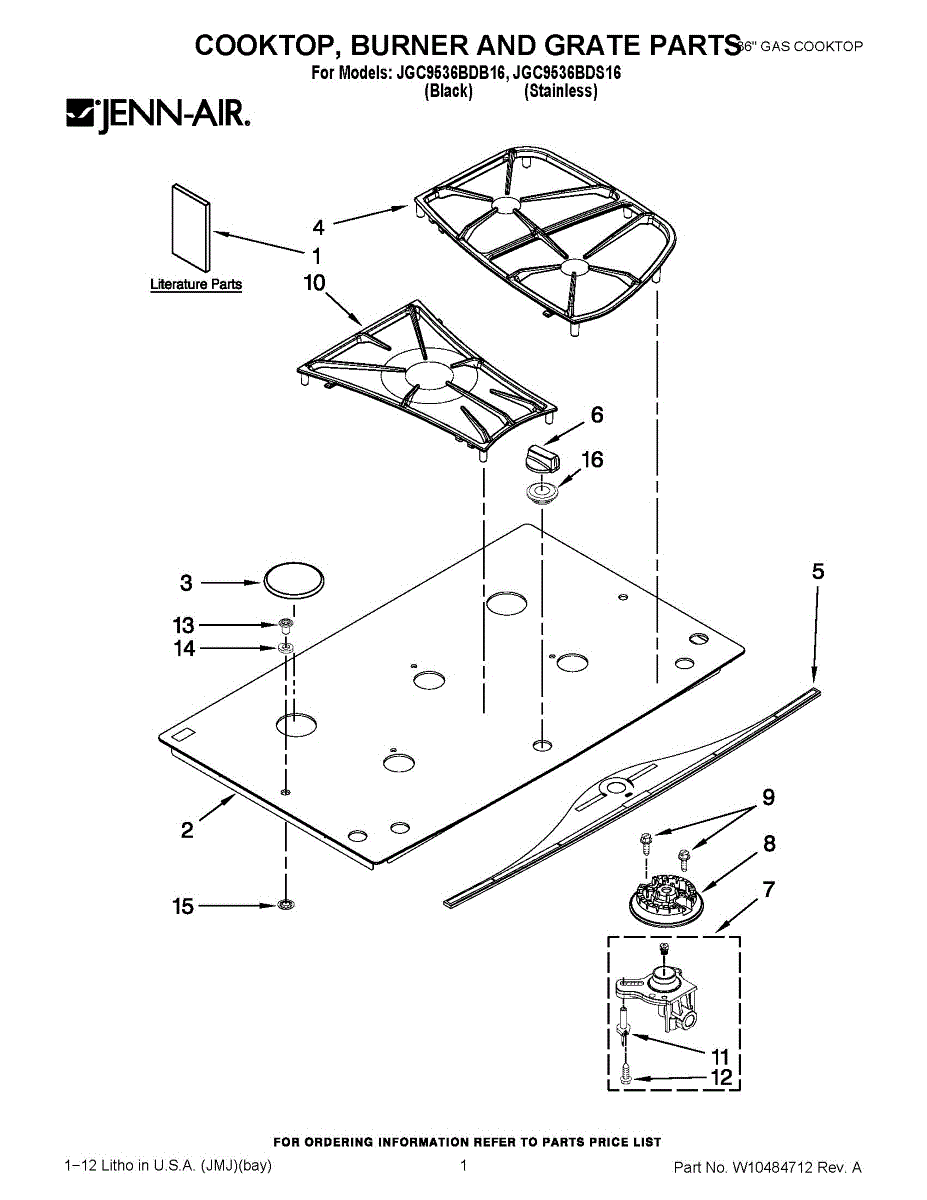

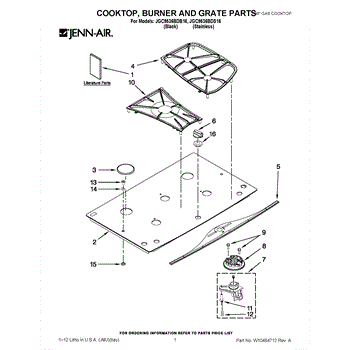

Parts for Jenn-Air JGC9536BDB16: 01 - Cooktop, Burner And Grate Parts

This is a replacement cooktop trim piece that restores the finished edge around your cooktop for a clean, factory look and helps cover gaps between the cooktop and countertop. Ideal for replacing damaged or bent trim. What it does:

• Replaces worn, dented or scratched cooktop edging to improve appearance
• Covers gaps at the cooktop edge to restore a flush, finished look
• Helps stabilize the cooktop perimeter and reduce rattling or movement
• Matches OEM fit and mount points for a secure replacement

• Disconnect power to the appliance before beginning any work.
• Remove screws or clips securing the old trim; handle edges carefully—parts may be sharp.
• Align new trim to OEM mounting points and secure with original fasteners.

This orifice holder assembly secures the gas orifice and positions it for correct burner operation, restoring reliable ignition and consistent flame behavior on gas ranges and cooktops. What it does:

• Holds the gas orifice in place so fuel is delivered properly to the burner
• Ensures stable, even flame distribution for normal cooking performance
• Helps when a burner has weak or uneven flame or fails to light reliably
• Matches the original mounting and gas flow orientation for direct replacement

• One orifice holder assembly as shown

• Turn off gas supply and unplug the appliance before servicing
• Replace only with the exact matched assembly; tighten fittings securely and check for gas leaks per local codes

This surface burner cap sits atop the burner head to shape the flame and protect the burner from spills. Replacing a chipped, warped, or missing cap restores proper ignition and even, efficient heating.

• Directs and evens the flame for consistent cooking
• Shields the burner head and igniter from spills and debris
• Common symptoms of a bad cap include uneven or yellow flames, delayed ignition or repeated clicking, weak heat, or flames that lift/sputter
• Replace if the cap is cracked, chipped, warped, or heavily coated with residue

• Allow the cooktop to cool; remove the grate and lift off the old cap
• Clean the burner head ports and seating surface; ensure the igniter is clean and intact
• Center the new cap on the burner head so it sits level and fully seated
• Restore power/gas and test burner; reseat the cap if the flame is uneven

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This grommet sits in the control panel opening around the valve/switch shaft on select ranges and cooktops. It helps seal out spills and stabilizes the control knob for a clean look and smooth operation.

• Seals the knob/shaft hole to help keep moisture, grease, and crumbs out of the control area
• Centers and supports the knob for a snug, stable feel
• Helps prevent rubbing and cosmetic wear around the panel opening
• Common signs: cracked or missing grommet, visible gap around knob, loose/wobbly knob, evidence of spills beneath the knob

• Disconnect power and, if applicable, shut off gas supply before servicing
• Pull the knob straight off the shaft and lift out the old grommet
• Clean the panel opening; press the new grommet fully into place, matching the original orientation
• Reinstall the knob and ensure smooth, unobstructed operation
