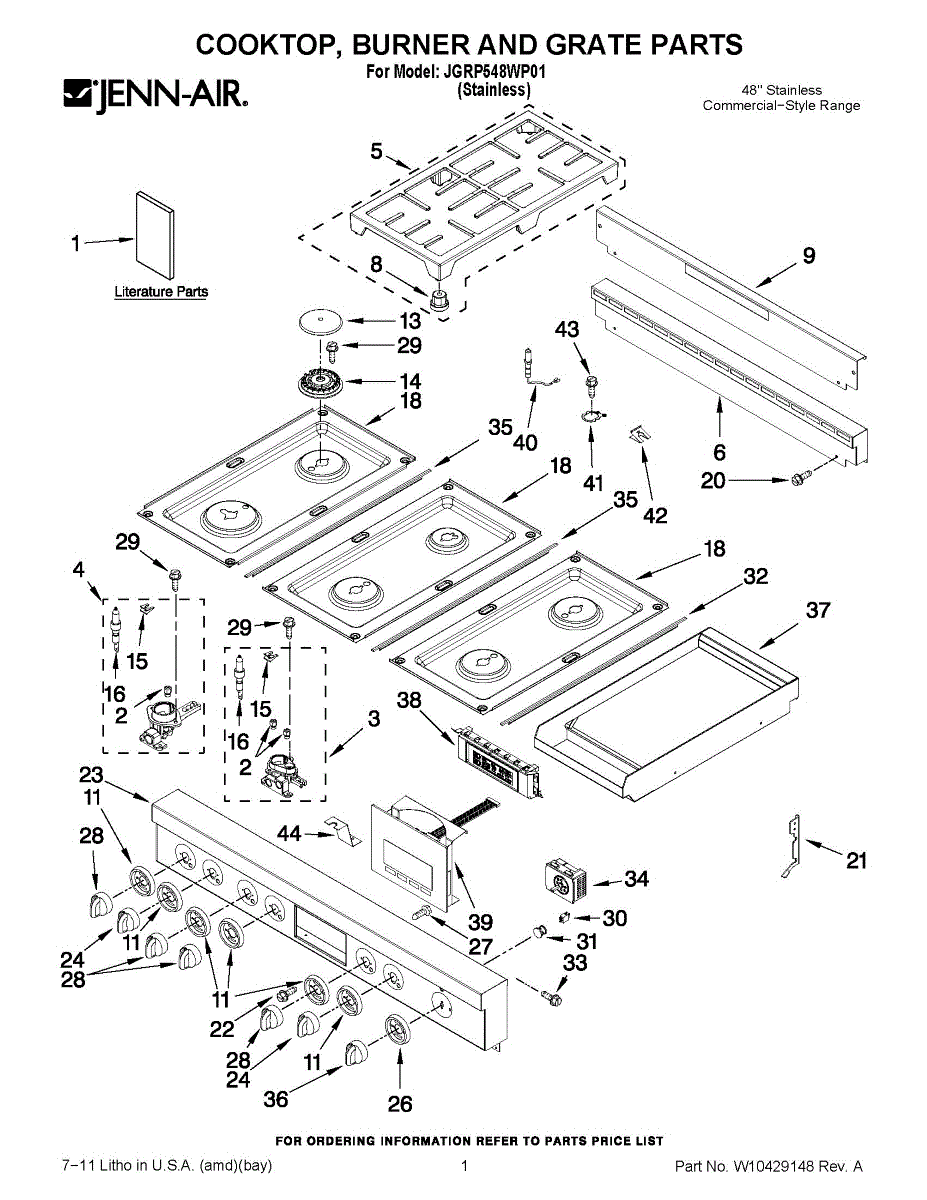

Parts for Jenn-Air JGRP548WP01: 01 - Cooktop, Burner And Grate Parts

This orifice is the small, precision-opening nozzle that meters gas flow to a range or cooktop burner for proper flame performance. It helps restore steady ignition and consistent cooking heat when a burner is underperforming. What it does:

• Directs and meters gas to the burner to produce a stable flame
• Helps correct weak, uneven, or yellow flames caused by a worn or damaged nozzle
• Supports consistent burner output for predictable cooking results
• Works as the calibrated passage between the valve and burner head

• One orifice

• Install only after disconnecting gas supply and following appliance shutoff procedures
• Tighten to OEM torque recommendations and use thread sealant only where specified by manufacturer
• Test for leaks with a soap solution or approved gas leak detector before use

This orifice spud directs gas flow into the burner for consistent ignition and flame control. It restores proper burner performance so cooking heats evenly and burners light reliably. What it does:

• Seats the burner orifice to control gas flow to the burner
• Helps maintain a steady, even flame for consistent cooking
• Can resolve weak or uneven flames and burners that struggle to light
• Works as the sealed interface between the gas manifold and burner tube

• One orifice spud

• Turn off the gas supply and disconnect power before servicing
• Inspect surrounding seals and gaskets for damage and replace if necessary
• Use basic hand tools; avoid overtightening to prevent damage

This orifice holder assembly secures the burner orifice and positions gas flow for proper burner operation on gas ranges and ovens. It restores correct gas delivery to the burner for reliable ignition and consistent flame performance. What it does:

• Holds the burner orifice in the correct position so gas flows into the burner tube
• Helps maintain even flame distribution for consistent cooking heat
• Can resolve symptoms like weak or uneven flames and burners that won't light reliably
• Works with the burner valve and ignition system as part of the gas delivery path

• Turn off the appliance's gas supply and electrical power before servicing.
• Replace only with the matching orifice holder assembly for your appliance model.
• Handle carefully to avoid damaging the orifice opening; do not enlarge or modify.

The Holder Orifice is an OEM component specifically designed for Whirlpool ranges. Located inside the gas burner unit, the orifice holds the brass valve that regulates gas flow to each burner flame. Its sturdy construction and precisely sized opening ensure a stable, controlled fuel supply.

Causes of a bad holder orifice can include mineral deposits building over time which diminish sizing accuracy or cracks developing that cause leaks.

Symptoms of a bad holder orifice include:

• Burners emitting unstable or sporadic flames of abnormal sizes
• Inability to efficiently ignite or achieve proper burner settings
• Strong gas or fuel smells coming from the range top
• Discolored or corroded brass components

This OEM Whirlpool part is also compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore cooking appliances.

The Burner Grate is an OEM part for Whirlpool ranges. It sits above the burner elements underneath the cooktop surface, allowing heat to radiate up through the grates to cookware. The burner grate disperses heat evenly while remaining cool to the touch when not in use.

Symptoms of a bad burner grate can include:

• Warping or sagging from long term heat exposure
• Discoloration or material deterioration over time
• Loose or uneven fit that allows spillage between burner holes

Causes of failure may be natural wear and tear from extended cooking use, damage from improper cleaning procedures, or malformations due to use of oversized cookware.

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This Trim-Top replaces the top decorative trim on the appliance console to restore a finished appearance and help protect the control area from spills and wear. It's a direct-fit exterior trim piece. What it does:

• Covers and protects the upper console area from splashes, crumbs, and everyday wear
• Holds the console assembly edges flush for a clean, finished look
• Prevents gaps that can collect dirt and impede cleaning
• Addresses visible damage, dents, or missing trim that affect appearance

• Disconnect power (unplug appliance or switch off at the breaker) before starting
• Use basic hand tools; removal may require lifting the console and releasing retaining clips or screws
• Handle edges carefully to avoid scratches or cuts; protect finished surfaces during install

The Grate Pad is an OEM part for Whirlpool cooktops. It is designed to fit onto the grates of the cooktop, providing stability and protecting the cooktop surface from scratches and damage. This is a kit of four grate pads. If you also need the adhesive, order part number W10841140.

You should replace the grate pads if they become worn out or damaged. Causes of bad grate pads can include exposure to high heat over time, physical damage from heavy cookware, or regular wear and tear from frequent use.

Symptoms of bad grate pads include:

• Grates that wobble or do not sit securely
• Scratches or damage on the cooktop surface
• Uneven cooking due to unstable grates

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This burner cap sits on top of the surface burner head to shape the flame and shield the head from spills. Replacing a damaged or missing cap helps restore even heating, reliable ignition, and the cooktop's original appearance.

• Covers the burner head and disperses flame for more even cooking
• Protects burner head and ports from food and liquid spills
• Helps maintain proper ignition and a steady blue flame
• Helps with symptoms like uneven/yellow flame, delayed ignition, or poor simmer

• Allow the cooktop to cool completely before handling
• Disconnect power and shut off gas
• Clean the burner head and clear ports before seating the cap
• Center the cap so it sits level and flush; misalignment can affect ignition and flame

This gas surface burner cap sits on top of the burner head to shape an even flame and shield the burner from spills. Replace a missing, chipped, or warped cap to restore proper flame pattern and appearance.

• Directs and evens the flame across the burner for consistent heating
• Shields the burner head and ports from spills and debris
• Helps promote reliable ignition when properly seated on the burner head
• Common signs it's needed: uneven or yellow flames, delayed ignition, flames lifting or noisy, visible chips/warping

• Ensure the cooktop/range is cool; disconnect power and shut off gas if working near igniters
• Lift off the old cap and clean the burner head/ports; do not enlarge or damage the ports
• Place the new cap on the matching burner, centered and seated flat; do not interchange sizes between burners
• Light the burner and confirm a steady, even blue flame; reseat the cap if the flame is uneven

This burner cap covers the auxiliary (small) gas burner on your cooktop or range. It shapes the flame for even heating and protects the burner head—helping restore reliable ignition and a clean, finished look.

• Sits on the auxiliary burner head to shape and contain the flame
• Promotes even heating and dependable ignition when properly centered
• Shields the burner head from spills and debris
• Replace if the original cap is missing, warped, chipped, or discolored
• Typical symptoms: uneven or yellow flame, delayed ignition or continuous clicking without lighting, weak heat on that burner

• Shut off gas and power; allow the surface to cool before servicing
• Lift off the old cap, clean the burner head, and place the new cap over the auxiliary burner
• Align any locating features so the cap sits flat and centered; misalignment can prevent ignition or cause a yellow flame

This auxiliary burner head restores the small/simmer burner on a gas cooktop to proper flame shape and heat delivery, helping improve low-heat cooking control and consistent simmering. What it does:

• Directs and disperses gas to create a stable, even flame for the auxiliary (small) burner.
• Replaces damaged, warped or clogged burner heads that can cause uneven heating.
• Helps address weak, spotty or irregular flames on the small/simmer burner.
• Works with the burner cap and base to maintain correct flame pattern and efficiency.

• Turn off the appliance power and gas supply before servicing; follow all safety precautions.
• Remove the grate and burner cap, lift off the old burner head, then set the new head into place ensuring it seats correctly.
• After reinstalling the cap and grate, test for proper ignition and flame pattern; if you smell gas or see persistent problems, stop.

This burner head distributes gas evenly around the burner for a steady flame and reliable ignition. Replace a worn or clogged head to restore even heating, proper simmering, and consistent burner performance on your gas range or cooktop.

• Spreads gas from the orifice through ports to create an even, controlled flame ring
• Works with the burner cap and igniter/electrode for quick, consistent lighting
• Replace if ports are clogged, corroded, cracked, or warped causing uneven/yellow flames, delayed ignition, or popping
• Can help when the igniter sparks but the burner won't light or the flame won't spread

• Disconnect power and shut off gas; allow the surface to cool completely
• Remove the burner cap, then lift off the old head (some models use a retaining screw—reuse existing hardware)
• Align the new head with the orifice and igniter; seat fully and level
• Reassemble and test for proper ignition and flame; do not enlarge or clean ports with hard objects

This surface burner head distributes gas to the flame on a gas cooktop or range burner. Replacing a worn or clogged head helps restore even flame, reliable ignition, and consistent heat on the affected burner.

• Channels gas from the orifice through burner ports to create a uniform flame pattern under the cap
• Works with the spark electrode to ignite the gas
• A damaged or clogged head can cause: burner won't light or only clicks; uneven/yellow flame; weak or low heat on that burner
• Carbon buildup or corrosion on the head can lead to delayed ignition

• Disconnect power and shut off gas; allow the surface to cool completely
• Remove the burner cap; take off the old head and retain any mounting screws
• Align the new head over the orifice and spark electrode; seat flat and secure
• Clean burner ports and cap before testing for a steady, blue flame

This small mounting clip secures small panels and components on compatible Whirlpool appliances, restoring proper fit and preventing parts from coming loose. It's a simple replacement that helps stop rattles and misaligned panels. What it does:

• Secures trim, panels or small components to the appliance frame to maintain proper alignment
• Prevents parts from shifting or vibrating during operation, reducing rattling noises
• Restores fit where a broken or missing clip allowed gaps or loose pieces
• Designed to snap into place for a secure hold without added hardware

• One clip

• Disconnect power to the appliance before attempting any repair
• Remove any trim or panels carefully to access the clip location; note original orientation
• Press or snap the clip into the mounting slot until it seats; some locations may require a flat tool or light force
• Replace or repair the adjacent parts for a secure fit

The Spark Electrode is an OEM part for Whirlpool gas ranges and cooktops. It is responsible for igniting the gas burner by generating a spark when the burner knob is turned to the ignite position, ensuring efficient and safe ignition of the gas.

Causes of a bad spark electrode can include exposure to high heat, accumulation of food debris, or wear and tear over time. These issues can prevent the electrode from producing a proper spark, leading to ignition problems.

Symptoms of a bad spark electrode include:

• Burner not igniting or taking longer to ignite
• Weak or no spark visible when igniting the burner
• Clicking sound without ignition
• Intermittent ignition problems

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cooktop is the smooth glass surface that covers the burner area and provides a flat, easy-to-clean cooking surface. It restores the cooktop's appearance and allows burners to sit properly for safe cooking. What it does:

• Replaces a cracked, chipped, or scratched glass cooktop surface
• Restores a level surface so electric or radiant elements seat correctly
• Helps prevent spills and drips from contacting internal components
• Improves cleaning — smooth glass wipes clean more easily than damaged tops

• Disconnect power at the breaker before starting any repair.
• Handle with care; glass is heavy and may break—use gloves and eye protection.
• May require removal of surrounding trim or screws; keep all fasteners for reassembly.

This cooktop smooth-top surface replaces a damaged or worn cooktop on compatible electric ranges, restoring a flat cooking area for even heating and safer cookware contact. It keeps your range looking clean and functioning correctly. What it does:

• Provides a flat, easy-to-clean cooking surface for radiant or induction-style heating elements
• Restores proper contact between cookware and the heating element for consistent cooking
• Resolves visible cracks, chips, or deep scratches that can trap food or compromise safety
• Helps eliminate uneven heating or intermittent burner operation caused by a damaged surface

• Turn off power to the range at the circuit breaker before starting any repair
• Handle the glass surface carefully to avoid breakage; use proper lifting techniques
• Follow OEM instructions for alignment and fastener torque; avoid overtightening

This cooktop glass surface is the smooth top replacement that restores a clean, even cooking area and holds burners and controls in place. It helps maintain safe, efficient stove operation and a finished look for the range. What it does

• Provides the finished glass cooking surface that supports burners and control components.
• Restores a sealed, easy-to-clean area for normal cooking use.
• Common replacement for cracked, chipped or heavily scratched tops that affect appearance or function.
• Helps prevent food and spills from reaching internal components when intact.

• Disconnect power (and gas if applicable) to the appliance before starting work.
• Handle the glass carefully—use gloves and eye protection to avoid cuts from edges or broken pieces.
• Installation may require removing burners, controls, and trim; keep screws and small parts organized.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

This indicator light lamp assembly notifies you when a control or function is active and restores visible status feedback for your appliance. It's a small, direct-replacement lamp used on control panels and status indicators. What it does:

• Illuminates control-panel indicators so you can see operating status and selected settings.
• Replaces a dim, flickering, or non-working indicator light.
• Helps diagnose control and user-interface issues by restoring visible feedback.
• Fits into the panel socket and connects to the existing wiring harness.

• Disconnect power to the appliance before starting any repair to avoid shock.
• Access typically requires removing the control or trim panel; keep screws and fasteners organized.
• Handle the lamp and lens carefully to avoid damage; do not force-fit.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This infinite switch is the temperature control for a cooktop griddle, letting you adjust heat smoothly for even cooking. Replaces a worn or failed griddle control to restore reliable temperature regulation and consistent results. What it does:

• Regulates griddle heat by providing variable power levels to the element
• Helps restore proper heating when griddle stays too cool, won't heat, or has inconsistent temperature
• Operates as the user control input for turning heat up or down on the griddle zone
• Compatible with systems that use an infinite (continuously variable) control for temperature adjustment

• One infinite switch (griddle control) as shown

• Disconnect power to the appliance before attempting service to avoid shock hazard
• Access may require removing cooktop or control panel
• Verify harness connector orientation and secure mounting; replace any damaged wiring or fasteners

This user interface power control board operates the dishwasher's control panel, supplying low-voltage power and interpreting button presses. Replacing a failed UI board can restore a responsive display and dependable cycle selection when controls are dark or erratic.

• Powers the display and touchpad/console for reliable operation
• Interprets selections and communicates with the main control
• Drives status lights/indicators on the control panel
• Common symptoms: blank or flickering display, unresponsive or intermittent buttons, cycles that won't start, or random beeps/lights

• Disconnect electrical power before servicing; verify no voltage is present
• Use ESD precautions; handle the circuit board by the edges only
• Access the console/control panel, label or photograph all connectors, and transfer any mounting hardware from the old board
• Restore power and run any model-specific diagnostics or resets per the service manual

This keypad assembly replaces a failed oven control keypad so you can send commands and select cooking functions from the console. It restores responsive buttons and proper control input for the oven's electronic control system. What it does

• Provides the front-keypad interface for selecting bake, broil, timers and other oven functions.
• Sends user input to the oven's electronic control so selections are registered and executed.
• Helps resolve symptoms such as unresponsive or stuck buttons, intermittent control input, or keypad that does not register presses.
• Works with the control electronics; does not by itself repair other unrelated failures (like display or power issues).

• One keypad assembly as shown.

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Handle the assembly carefully to avoid bending pins or damaging the underlying circuit board.
• Reconnect all wiring harnesses securely; ensure connectors are fully seated before reapplying power.

This surface burner ignitor creates the spark that lights gas at a cooktop/range burner. Replacing a worn or cracked electrode restores quick, reliable ignition and helps prevent repeated clicking or failed lighting at that burner.

• Generates a high-voltage spark at the burner to ignite gas
• Common fix for a surface burner that won't light or takes many clicks to light
• Addresses visible cracks, chips, or burned ignition tip on the electrode

• Disconnect power and shut off gas supply before servicing; allow the appliance to cool
• Handle the ceramic insulator carefully; avoid touching the electrode tip
• Note wire routing and ensure a secure connection to the harness/spark module
• Position the electrode correctly relative to the burner head for consistent ignition

The Clip is an OEM component specifically designed for Whirlpool free-standing electric ranges, securely fastening rack guides, and wire assemblies. This versatile clip features corrosion-resistant anchors and firm spring coils.

Causes of failure involve metal fatigue weakening the spring over years of expansion and contraction during heating, worn surfaces losing grip, or damaged barbs failing to anchor the racks correctly.

Symptoms of a bad cooking rack clip include:

• Loosened racks skewing pans off-center
• Detached wires posing burn and electrical hazards
• Rattling components exacerbating noises
• Difficulty transferring baking sheets without obstruction

Replace yours today with this genuine OEM Whirlpool clip. Compatible with KitchenAid, Maytag, and Jenn-Air appliances as well, its reinforced coils maintain constant tension for organized baking.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
