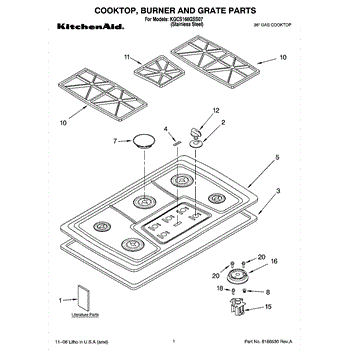

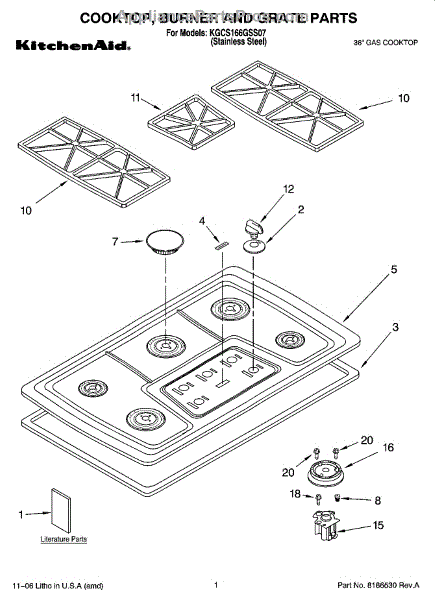

Parts for Kitchenaid KGCS166GSS07: 01 - Cooktop, Burner And Grate Parts

The Knob Bezel is an OEM Replacement Part designed for Whirlpool cooktops. This part is located behind the burner knob and serves the crucial role of labeling different burner settings.

Causes of a bad bezel-knob can include regular wear and tear, accidental impacts, or exposure to heat and cleaning chemicals. Over time, the bezel may crack, discolor, or become loose.

Symptoms of a bad bezel-knob include:

• Cracks or breaks in the bezel
• The bezel becoming loose or falling off
• Discoloration or fading
• Difficulty in turning the control knobs due to misalignment

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black.

Color: Black.

This replacement knob cap restores the look and function of a cooktop or range control knob by covering the knob hub and providing a finished, heat-resistant surface. It's a simple cosmetic and protective fix for worn or missing caps. What it does:

• Covers and protects the exposed knob hub from dirt, grease and wear
• Restores the original appearance when caps are scratched, faded or missing
• Provides the correct surface for turning control knobs comfortably and safely
• Helps keep spills and debris out of the knob shaft area, reducing buildup

• Before installing, make sure the appliance is off and cooled; disconnect power if recommended by your appliance manual
• Push the cap firmly onto the knob hub until it seats; do not force if it won't align
• Inspect the knob and shaft for damage; replace the entire knob assembly if the shaft or mechanism is worn

A replacement finish cap in coal matte black that restores the appliance's appearance and hides exposed hardware. Use it to refresh scratched, faded or missing trim for a neat, factory look. What it does:

• Covers exposed screws, fasteners or openings for a finished appearance
• Helps restore uniform trim color and hide cosmetic damage
• Prevents dirt buildup where trim is missing or damaged
• Useful when replacing damaged or worn decorative trim pieces

• Always disconnect power (or gas where applicable) before servicing the appliance
• Use common hand tools as needed; avoid forcing parts to prevent breakage

This replacement cap restores the finished look of a damaged or missing control cap and helps protect the underlying control shaft and fastener. Matches the coal matte black finish for a factory appearance. What it does:

• Covers and protects the control shaft and retaining screw from debris and wear
• Restores a worn, cracked or missing cap so the control looks like new
• Helps keep the control knob seated and stable during use
• Useful when the original cap is chipped, faded or cosmetically damaged

• Unplug the appliance or shut off power at the breaker before servicing
• Remove the control knob (pull straight off) to access the cap if needed
• Press the cap into place over the control shaft until it snaps or seats securely
• If a retaining screw is present, verify fit before reassembly; do not force or modify the part

Location: Right front.

Location: Right rear & left rear.

The Burner Grate is an OEM part for Whirlpool ranges and cooktops. This grate provides a stable surface for pots and pans, ensuring even heating and secure placement during cooking.

Causes of a bad burner grate can include exposure to high heat, which can cause warping or discoloration, physical damage such as chips or cracks from heavy cookware or accidental drops, and general wear and tear over time. These issues can affect the grate's stability and the cooking performance.

Symptoms of a bad burner grate include:

• Warping or bending
• Visible cracks or chips
• Uneven cooking surfaces
• Pots and pans wobbling or not sitting securely

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Burner Control Knob is an OEM part for Whirlpool ranges and cooktops. It is used to control the heat level of the burners, allowing for precise adjustments during cooking. This knob fits securely onto the burner valve stem, providing easy and reliable control over the gas or electric burners.

Over time, the burner control knob can become faulty. Causes of a bad burner control knob include regular wear and tear, exposure to high heat, or accidental impacts that cause the knob to crack or break. A damaged knob can make it difficult to adjust the burner settings accurately.

Symptoms of a bad burner control knob include:

• The knob not turning smoothly or feeling loose
• Difficulty in adjusting the burner flame or heat level
• The knob being cracked, broken, or missing
• The burner not responding to adjustments made with the knob

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This orifice holder routes gas from the surface burner valve to the burner head and supports proper burner alignment. Replacing a damaged holder helps restore reliable ignition and steady, even flame on your cooktop/range. What it does:

• Directs gas from the valve to the burner head for correct flame output
• Positions and supports the burner head for stable operation
• Helps maintain proper igniter alignment for consistent lighting
• Common failure symptoms include delayed or no ignition, weak/uneven flame, or a burner head that won't sit securely

• 1 orifice holder assembly

• Disconnect power and shut off gas supply; allow the appliance to cool before servicing
• Remove grates, caps, and burner heads; lift/open the top to access the holder
• Transfer the existing orifice spud, screws, gasket, and spark electrode as required by your model
• After reassembly, restore gas and check connections with a soapy-water solution per safety best practices

This orifice holder mounts beneath a gas burner and channels gas from the valve through the orifice to the burner head. Replacing a damaged holder helps restore consistent ignition, stable flame, and a secure burner fit.

• Directs gas flow from the control valve through the orifice jet into the burner
• Provides a solid mounting point for the burner head and orifice spud
• Helps maintain correct burner alignment for consistent flame quality
• Common symptoms: hard-to-light burner, uneven or weak flame, burner head not seating securely, stripped threads or visible cracks on the holder

• Disconnect power and shut off the gas supply; allow the appliance to cool before servicing
• Remove the burner cap and head; access the holder from below or by lifting the cooktop, depending on model
• Transfer the existing orifice spud and mounting hardware to the new holder; use thread sealant only if specified by the manufacturer
• After reassembly, restore gas and check all joints for leaks with an approved leak-detection solution; verify burner operation

This G4 orifice holder mounts beneath the cooktop to secure the burner orifice and route gas from the valve to the burner head. Replacing a damaged holder helps restore proper gas flow and consistent burner performance.

• Holds and aligns the orifice for the G4-designated surface burner
• Channels metered gas from the valve to the burner head
• Supports stable, even flame and reliable ignition at that burner
• A worn, cracked, or stripped holder may cause weak/uneven flame, delayed ignition, or a gas odor near the burner

• Disconnect power and shut off the gas supply before servicing; allow the appliance to cool
• Remove burner caps/heads and access the holder
• Transfer the existing orifice spud if reusing, or install the correct orifice specified for your gas type
• Tighten fittings to spec and leak-test all gas connections with an approved solution before restoring service

This orifice holder channels gas from the valve to the burner on your gas range or cooktop, aligning the orifice for a stable flame. Replace a damaged holder to restore reliable ignition and consistent burner performance.

• Routes gas from the valve to the burner through the orifice
• Positions and supports the burner base for proper flame pattern
• Maintains alignment of components for consistent ignition
• Typical symptoms: burner won't ignite, delayed ignition, weak or uneven flame, visible cracks or stripped threads on the holder

• Shut off gas supply and disconnect power before servicing
• Remove grates, caps, and burner head to access the holder
• Transfer the existing orifice spud and any seals to the new holder; ensure connections are snug and correctly aligned
• After reassembly, restore gas and check all connections for leaks per manufacturer instructions

Location: Left front. 14,000 BTU.

This gas surface burner head sits on the burner base and channels gas through precision ports for quick ignition and an even flame. Replacing a worn or clogged head helps restore reliable lighting and consistent heat.

• Distributes gas from the burner base to the flame ports for even flame patterns
• Interfaces with the spark electrode to enable ignition
• Helps maintain proper flame shape and heat output
• Common symptoms include burner won't light, weak/uneven or yellow flames, delayed ignition, or continuous clicking

• Disconnect power and shut off the gas supply before servicing
• Remove grate and burner cap; lift the old burner head off the base
• Clean the burner base and electrode area; align the new head with locator pins and the electrode opening, then seat fully
• Reinstall cap and grate; restore gas/power and test ignition and flame

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

The Burner Head is an OEM part for Whirlpool ranges. It is responsible for distributing gas to create an even flame for cooking on the stovetop. This burner head ensures efficient gas flow and optimal flame control, which are essential for consistent cooking performance.

Causes of a bad burner head can include clogging from food debris or grease, corrosion due to prolonged exposure to heat and moisture, or physical damage from impact. Such issues can obstruct gas flow and result in uneven heating or poor flame quality.

Symptoms of a bad burner head include:

• Uneven flame or poor flame control
• Difficulty igniting the burner
• Low or inconsistent heat output
• Unusual noises such as hissing or popping during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
