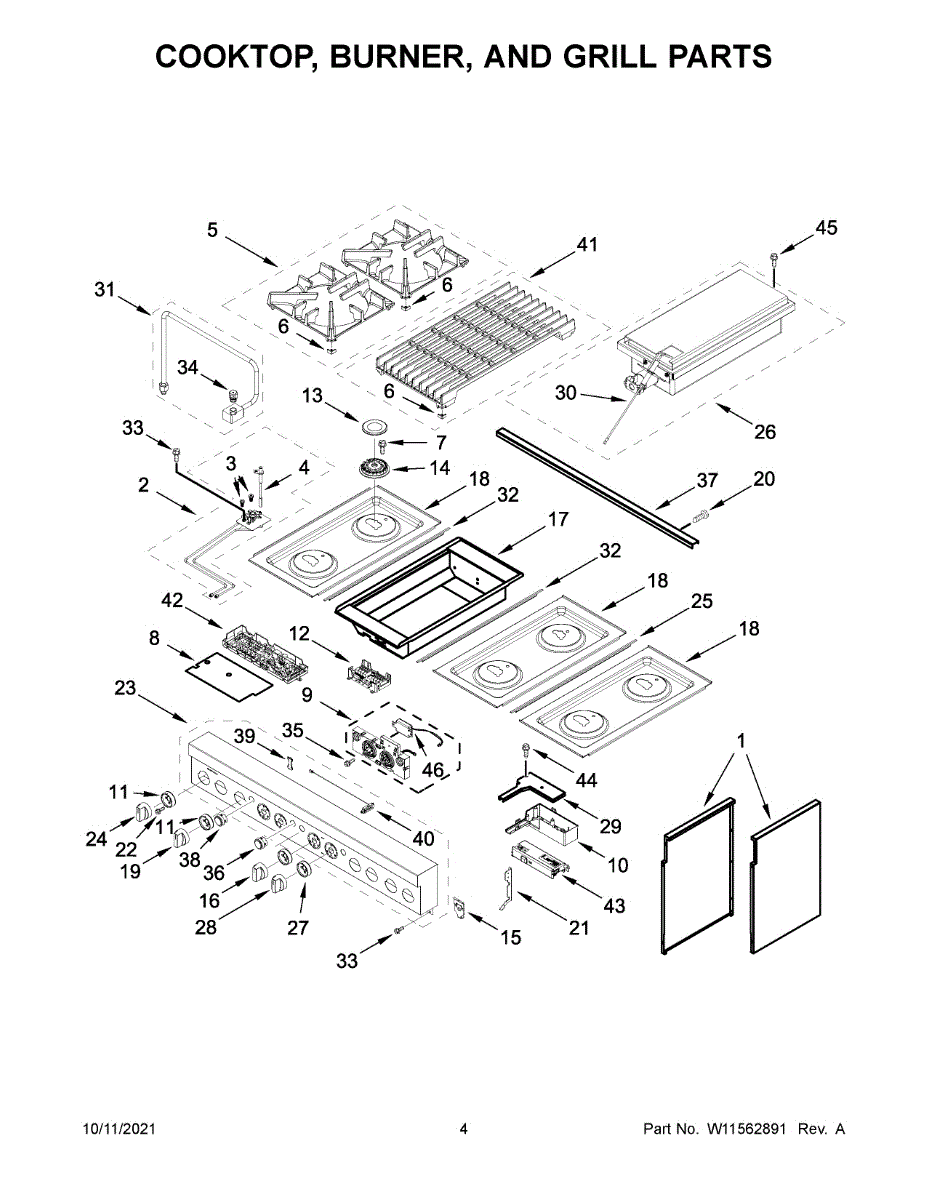

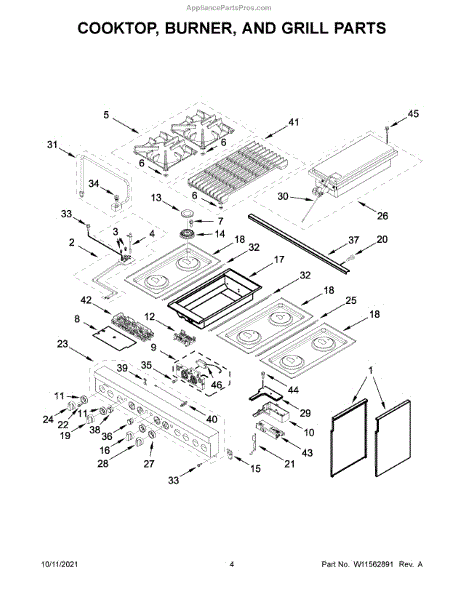

Parts for Jenn-Air TANKMAN50: Cooktop, Burner, And Grill Parts

This brass burner orifice meters natural gas to the burner for correct flame size and reliable cooking heat. Replaces a worn or clogged orifice to restore consistent ignition and even burner performance. What it does:

• Controls gas flow to the burner for a stable, properly sized flame
• Helps correct low, uneven, or weak burner flames caused by a restricted orifice
• Prevents rich/sooty combustion from an oversized orifice
• Used where a 2.5k BTU natural gas flow rate is required for the burner

• Turn off gas and electricity before servicing; follow all safety precautions
• Remove burner cap and unscrew old orifice; install new orifice hand-tight then snug with appropriate tool
• Do not overtighten; check for gas leaks after installation using a leak-safe method

This orifice controls natural gas flow to a burner for a precise 17.5K BTU output, restoring proper flame size and consistent heating. Use when a burner produces weak, uneven, or no flame. What it does:

• Meter gas to the burner for a 17.5K BTU natural gas flame
• Helps correct low or uneven burner flames and improves heat output
• Commonly replaced when a burner won't light, sputters, or shows an unstable/yellow flame
• Works as the fixed orifice that matches appliance gas pressure and burner design

• Shut off gas supply and disconnect power before servicing
• Replace only with the correct orifice size for safe operation
• Use proper fittings and thread sealant rated for gas; check all connections for leaks

This is a 10" heavy-duty igniter wire used to connect the oven igniter to the control/safety device, ensuring reliable spark transfer for proper ignition. It replaces worn or damaged wiring to restore safe burner operation. What it does:

• Conducts the ignition current between the igniter and the control/safety module
• Helps the oven or range light and maintain a consistent flame
• Commonly replaced when ignition is intermittent, the oven won't light, or wiring is visibly damaged
• Heavy-duty construction reduces breakage and improves durability

• Turn off power to the appliance and shut off the gas supply before starting any repair
• Handle carefully to avoid damaging insulation or connectors; replace if frayed, corroded, or nicked
• Route and secure the wire away from moving parts and high-heat areas

The Grate Pad is an OEM component for Whirlpool gas and electric ranges. Located underneath grates atop burner assemblies, this insulating pad protects the cooktop surface during use.

Symptoms of a degraded or improperly fitting grate pad include:

• Scratches or nicks appearing on the ceramic glass cooktop
• The range of burners becoming more difficult to clean
• Noise or vibration issues heard from the cooktop area

Causes related to normal wear over extended use, exposure to cleaning chemicals, or damage from heavy pans accidentally sliding off grates.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This knob bezel is the trim ring that sits behind a control knob, covering the panel opening and spacing the knob correctly. Replacing a cracked, loose, or missing bezel restores a finished look and smooth, consistent knob feel.

• Provides finished trim and support around the control-shaft opening
• Maintains proper clearance so the knob turns without scraping the panel
• Helps keep the knob aligned and seated on the shaft
• Helps when you notice wobbling, visible gaps, broken/missing ring, or a hard-to-turn knob

• Disconnect power (and gas, if applicable) before servicing
• Pull the control knob straight off; remove the old bezel from the panel
• Align the new bezel's orientation tabs and press it fully into place
• Reinstall the knob and verify smooth operation

This burner head replaces a damaged or clogged surface burner to restore proper gas flow and even flames on a gas cooktop. It provides a stable burner base for the burner cap and helps maintain consistent heat for cooking. What it does:

• Directs gas to the burner ports so the burner cap produces an even flame
• Helps restore normal burner performance when flames are weak, uneven, or misdirected
• Works with the existing burner cap and igniter to light and sustain a steady flame
• Prevents flame lift and popping caused by warped or clogged burner openings

• One surface burner head

• Turn off the gas supply and disconnect power to the range before beginning work
• Allow the appliance to cool completely; remove the burner cap and replace the burner head, ensuring ports align correctly
• Hand-tighten and seat parts; avoid over-tightening and verify the burner cap sits flat on the head
• If the igniter or burner cap is damaged or cracked, replace those components as well for reliable operation

This surface burner head directs and shapes the gas flame for even heating on a gas cooktop. It restores proper flame pattern and helps burners light and heat cookware reliably. What it does:

• Replaces a damaged or warped burner head to restore consistent flame distribution.
• Helps correct uneven heating, sputtering flames, or flame lift caused by cracked or corroded heads.
• Works with compatible cooktop caps and grates to safely contain the burner flame.
• Fits the factory burner assembly to maintain proper spacing and ignition performance.

• One replacement burner head

• Turn off gas supply and power to the appliance before beginning any work.
• Clean surrounding surface and check burner cap and orifice for debris before reassembly.
• Hand-tighten and seat parts; avoid overtightening.
• Use only with compatible burner caps, grates, and factory-specified components.

This small plastic clip secures appliance panels, trim, or wiring to prevent movement and rattling, restoring proper fit and quiet operation. It's a simple, low-cost part that helps keep components held in place. What it does:

• Acts as a retainer to hold panels, trim pieces, or harnesses in position
• Prevents rattling, vibration noise, and loose or misaligned parts
• Helps maintain proper spacing and alignment of adjacent components
• Commonly replaced when clips are broken, cracked, or missing

• One clip/retainer

• Disconnect power (and water if applicable) before beginning any work
• Clip typically snaps into place; may require a flat screwdriver or trim tool to remove/install
• Inspect surrounding mounting points for damage before fastening replacement clip
• Replace all corresponding fasteners for even fit

This burner box assembly houses and protects the range's burner components, helping direct heat and support reliable burner operation. It replaces a damaged or corroded box to restore proper burner alignment and safe operation. What it does

• Supports and positions the surface/broil burner so the flame or heating element operates correctly.
• Shields underlying wiring, igniters, and gas lines from spills and debris.
• Helps direct heat away from surrounding cabinetry and internal components.
• Commonly replaced when the box is warped, rusted, cracked, or causing burner misalignment or ignition problems.

• One burner box assembly

• Turn off electricity to the appliance at the breaker; for gas models, shut off the gas supply before starting.
• Use basic hand tools; keep track of mounting screws and any small brackets.
• Watch for sharp sheet-metal edges and wear cut-resistant gloves.
• After installation, restore power/gas and test burners for correct operation and any gas leaks.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This 8-32 x 5/8 screw replaces missing or damaged hardware specified by the manufacturer to secure panels, brackets, and internal components in your appliance. Restores a tight, rattle-free fit to help prevent vibration and misalignment.

• Provides the correct 8-32 thread and 5/8-inch length where specified
• Secures sheet-metal panels, brackets, and internal assemblies
• Replaces missing, stripped, or corroded screws
• Symptoms include loose or rattling panels, misaligned parts, or hardware that won't stay tight

• Disconnect power; shut off gas before servicing
• Support panels/components while removing or installing hardware
• Start threads by hand to avoid cross-threading; tighten only until snug
• Match the original screw's location and orientation for proper fit

This electronic control board replaces the appliance's main control module to restore proper operation of timed cycles, displays and user commands. It provides the control logic that manages the unit's functions and user interface. What it does:

• Manages and sequences appliance functions such as cycle selection, timing and accessory control
• Powers and communicates with the display and touch/selector controls
• Interprets user inputs and triggers valves, motors and other components
• Faulty boards can cause unresponsive controls, incorrect cycles, intermittent operation, or display error codes

• Disconnect power to the appliance before starting any repair to avoid electrical shock
• Handle the board by the edges and avoid static discharge—use an anti-static wrist strap if available
• Verify connector orientation and secure all wiring; do not force connectors

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

The Speaker is an OEM component specifically designed for Whirlpool brand washers. It alerts users with chime tones or voice prompts during cycle operation or any error states. Precise acoustic engineering allows for clear audio reception even amid operating vibrations.

Symptoms of a bad speaker include:

• No audio tones or voice prompts were heard
• Muffled, distorted, or unusually loud sounds
• Speaker making rattling or buzzing noises

Causes can be damage from water damage, defects in the audio circuitry, or aging components.

This speaker ensures optimal user communication. Without it, you cannot verify cycle progress or troubleshoot issues. Its dependable performance maintains the washer's convenience.

This Whirlpool OEM part fits perfectly while extending the equipment's lifespan. It is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
