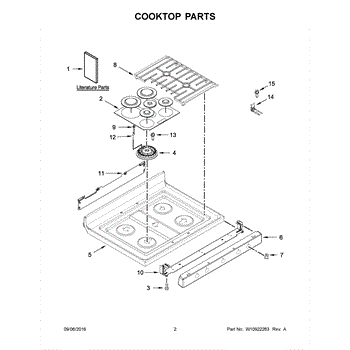

Parts for Maytag MGR8700DB3: 02 - Cooktop Parts

Color: Black. Kit includes five burner caps. For the burner cap kit in grey use part number WPW10183372.

This factory screw secures panels, brackets, or trim within your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces vibration and rattles, and helps keep components aligned for reliable, long-term performance.

• Fastens panels, brackets, or trim to the appliance cabinet/frame
• Replaces damaged, rusted, or missing hardware
• Helps eliminate vibration noises, gaps, and loose-fitting parts
• Supports proper alignment of adjoining components

• Disconnect power; turn off gas/water supplies where applicable.
• Match to the original screw from your model's parts diagram before installation.
• Start threads by hand to avoid cross-threading; use the correct driver bit for the head.
• Tighten snugly—do not overtighten to prevent stripping threads or cracking plastic bosses.

The Surface Burner Base is an OEM part for Whirlpool ranges and cooktops. This component is a critical part of the stove's burner assembly, housing the gas outlet and providing a stable platform for the burner cap and flame spreader. It is specifically designed to handle the rigors of daily cooking, ensuring an even and controlled flame that enhances your cooking precision.

Symptoms of a failing Surface Burner Base include:

• Uneven flames or poor heat distribution
• Difficulty in lighting the burner
• Gas leaks detected around the burner area
• Visible signs of corrosion or damage to the base

Common causes for burner base issues can include continual exposure to high temperatures, spills that lead to clogging or corrosion, and normal wear and tear.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Surface Burner and Electrode is an OEM part for Whirlpool cooktops and ranges. This component is essential for igniting the gas burner, ensuring efficient and reliable cooking performance. The burner provides a stable flame for cooking, while the electrode generates the spark needed to ignite the gas. Includes the igniter. The compatible screw is part number WP3368921 / AP6008125

You should replace the surface burner and electrode if they become faulty. Causes of a bad surface burner and electrode can include regular wear and tear, food residue buildup, or damage from high heat. A malfunctioning burner or electrode can lead to ignition issues and inefficient cooking.

Symptoms of a bad surface burner and electrode include:

• The burner not igniting or taking multiple attempts to light
• Weak or inconsistent flames
• Clicking sound without ignition when trying to light the burner
• Uneven cooking or hotspots on cookware

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Includes ignitor

This genuine control knob restores safe, reliable control of a range or oven dial. It gives a secure grip and clear pointer for accurate setting selection, replacing worn, cracked, or missing knobs. What it does:

• Provides a replacement control surface for temperature or function dials
• Restores smooth turning and a clear position indicator
• Fixes common symptoms like a loose, cracked, or missing knob that's hard to grip
• Helps prevent accidental setting changes caused by damaged knobs

• Remove the old knob by pulling straight off the control shaft; push the new knob firmly into place
• Make sure the pointer aligns with the control indicator before use
• Disconnect power or turn gas off (when applicable) before inspecting controls
• Do not force the knob onto a shaft that doesn't match.

The Burner Grate is an OEM part for Whirlpool gas ranges. This heavy-duty grate sits above the burners to safely distribute heat from the elements below.

Causes may be normal wear and tear from regular cooking use. Accidental damage from cookware is also possible over the years.

Symptoms of a faulty burner grate include:

• Warping or sagging over time affects pan placement and heat distribution
• Broken or missing wires that compromise safety
• Rough or sharp surfaces that could damage cookware
• Discoloration or buildup from prolonged heat exposure

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Electrode is an OEM part for Whirlpool gas ranges. This part ignites the gas in the surface burner, providing the flame necessary for cooking. The electrode generates a spark that lights the gas when the burner knob is turned on.

Causes of a bad electrode can include wear and tear from frequent use, buildup of food residue or grease, or physical damage from cleaning or accidental impact.

Symptoms of a bad electrode include:

• The burner not igniting
• Weak or intermittent sparking
• Clicking noises without the burner igniting
• Uneven or weak flame from the burner

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

The Anti Tip Bracket is an OEM component specifically designed for Whirlpool ranges. This bracket plays a crucial safety role in preventing the range from accidentally tipping over if excessive weight is applied to the open oven door.

The anti-tip bracket secures tightly to the floor or wall behind the range, linking it securely in place. It allows the oven door to function while ensuring the entire appliance remains stable even under heavy use.

Causes of a bad bracket can include damage, deterioration of mounting hardware over time, or failure to install properly according to manufacturer instructions.

Symptoms of a faulty anti-tip bracket include:

• The range appears unsecured and able to wobble or rock backward
• Looseness between the bracket and mounting surface
• Cracks or breaks in the anti-tip bracket material

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

This replacement wire harness routes power and signals between oven components so controls and safety devices communicate reliably. It helps restore proper electrical connections for safe, consistent operation. What it does:

• Replaces a damaged or burned harness to restore electrical continuity to controls and sensors
• Carries power and signal lines between control board, switches, and safety devices
• Addresses symptoms like intermittent power, no response from controls, or visible wiring damage
• Helps prevent shorts or arcing caused by frayed or loose connector ends

• Disconnect power before servicing to avoid shock or injury
• Inspect connectors and routing; replace if pins or insulation are damaged
• Secure harness away from heat sources and moving parts to prevent premature wear

This cable clamp secures a wiring harness to the appliance frame to prevent chafing and strain on electrical connections. It helps keep wires routed neatly and reduces the risk of abrasion-related faults. What it does:

• Holds wiring harnesses in place to prevent rubbing against sharp edges or moving parts
• Reduces strain on terminal connections and wire leads
• Helps prevent intermittent electrical problems caused by loose or misrouted wires
• Keeps routing tidy for safer, cleaner internal layouts

• One cable clamp

• Disconnect power to the appliance before beginning any repair
• Replace with the same clamp type and orientation as the original; secure without over-tightening
• Route wires so insulation is not pinched; verify clearance from moving parts
• If you see damaged insulation or frayed wires, repair those issues before reassembly

The Wire Harness is an OEM part for Whirlpool ranges. It is an intricate network of electrical wires that distributes power to components like the oven control board, temperature sensor, displays, buttons, lights, and more. Proper operation of these systems relies on an intact and functioning wire harness.

Causes of a bad wire harness can include cracked insulation, and exposed or severed wires due to stress and movement over time. The harness may also develop shorts, abrasions, or disconnects in wiring due to normal wear and repeated use of the oven door.

Symptoms of a bad wire harness include:

• Sudden failure of control buttons, lights, or displays
• Unstable or fluctuating oven temperatures
• Electrical burning smells when the oven is in use
• Intermittent or complete lack of power to oven systems

This Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric ranges.
