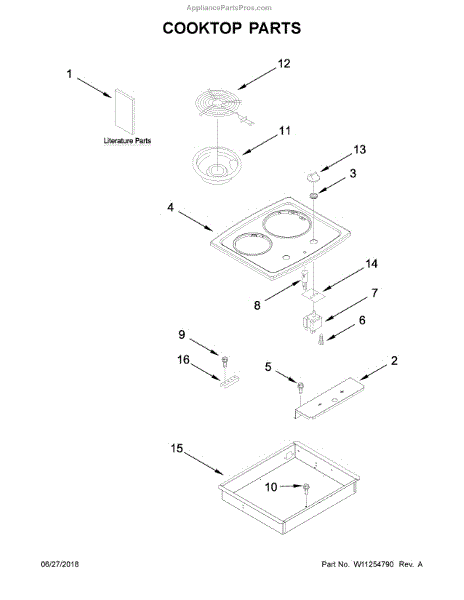

Parts for Whirlpool RCS2012RS08: Cooktop Parts

This is a knob grommet. For grate burner feet use part number 8186321.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This genuine replacement screw secures appliance components so panels, brackets, and assemblies stay tight and properly aligned. Replacing stripped, rusted, or missing hardware restores a solid fit and helps prevent rattles, shifting, or looseness over time.

• Fastens panels, brackets, and internal parts to maintain proper alignment
• Helps resolve issues caused by missing or damaged screws
• Restores secure mounting after service where original hardware is lost
• Use when threads are stripped or the screw head is damaged and won't tighten

• Disconnect power; turn off gas supply if applicable before servicing
• Match screw location and length to your model's parts diagram for correct placement
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug firmly but do not overtighten to prevent damage to mounting points

This infinite switch controls the heat settings for a cooktop surface burner, letting you adjust burner output from low to high for everyday cooking. It replaces a faulty control to restore variable heat regulation. What it does:

• Regulates power to a surface burner so you can set low, simmer, or high heat
• Replaces a worn or failed infinite control that causes a burner to not heat
• Addresses symptoms like a burner that won't change heat levels, stays off, or is stuck on
• Works with standard surface elements that use an infinite-style control

• Disconnect power to the range before testing or replacing the switch
• Handle glass cooktops carefully; avoid scratching or damaging the surface

This infinite switch is the user control that adjusts heat output for a stove's electric top burner, restoring smooth variable temperature control for cooking. It replaces a worn or failed burner control to regain normal element performance. What it does:

• Regulates power to a single cooking element so you can set low-to-high heat
• Allows gradual temperature adjustments instead of fixed steps
• Commonly used when a burner won't heat, only stays on high/low, or won't respond to the knob
• Works as the electrical interface between the control knob and the surface element

• Disconnect power at the breaker before servicing to avoid shock
• Access may require removing the cooktop or control panel; keep glass/ceramic surfaces protected
• Verify electrical connections and test with a multimeter

A 240V indicator light that signals when a high-voltage heating circuit is active, helping you confirm element or oven status at a glance. Fits the original control assemblies that use a panel-mounted signal lamp. What it does

• Illuminates to show the related 240V heating circuit or element is powered.
• Helps diagnose heating issues by indicating whether power is reaching the control or element.
• Visible on the front control panel for quick status checks during operation.
• Designed for direct replacement of the panel-mounted indicator lamp.

• Disconnect power at the breaker before accessing the control panel or wiring.
• Handle the lamp and lens carefully to avoid damage; use proper replacement tools.
• Verify correct function after installation by restoring power and observing the indicator during a heat cycle.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

The Stove Top Drip Pan is an OEM replacement part for Whirlpool gas and electric ranges. It is located underneath the stove burners and grates to catch and contain grease drippings and spills. Over time, grease and cooking residue buildup can cause drip pans to crack, warp or corrode.

Symptoms of a bad stove top drip pan include:

• Grease spillovers outside of the drip pan area
• Flames or heating elements obstructed by built-up debris
• Warping or cracking of the pan surface
• Difficulty removing or cleaning the drip pan

Causes can be normal wear from heat and long-term grease exposure. Accidental damage during cleaning is also possible.

 This OEM part is also compatible with Maytag, Jenn-Air, Amana and some Kenmore models.

The Drip Pan (LG) is an OEM replacement part for Whirlpool ranges and ovens. It is a durable metal tray designed to catch any spills, drips, or boil-overs that may occur during the cooking process, helping to keep the oven cavity clean and preventing potential messes or smoke from burnt-on spills.

Symptoms of needing to replace the drip pan include:

• Warping or discoloration from excessive heat exposure
• Cracks or breaks in the pan material
• Difficulty sliding the pan in and out of its designated position

Causes of a drip pan failure can include general wear and tear from repeated use and high temperatures, physical damage from impact or abrasion, or corrosion or deterioration due to exposure to acidic food spills or cleaning agents.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For 6-inch drip bowl order W10196406RW

This surface heating element replaces a damaged top burner so your range can heat cookware properly. It reconnects the cooktop's electric heating circuit to restore normal cooking performance and reliable heat. What it does:

• Heats cookware on the cooktop's top burner for boiling, frying and simmering
• Replaces cracked, burned-through or non-heating surface element units
• Commonly used when a burner won't heat, heats intermittently, or shows visible damage
• Matches the OEM element design and mounts at the cooktop surface using existing terminals

• Disconnect power to the range at the breaker before inspecting or replacing the element
• Allow the cooktop and element to cool fully; handle terminals by the insulated ends
• Remove and note connector positions before disconnecting wires to ensure correct reassembly

The Surface Element is an OEM component specifically designed for Whirlpool ranges and cooktops. It provides the heating source for cookware on the stove surface.

Causes of a bad element include deterioration of insulation material over time, carbonization or damage from pans slammed onto the element, or contact with moisture.

Symptoms of a bad element include:

• Inability to heat cookware sufficiently
• Uneven or incomplete heating of pans placed above
• Burn marks or discoloration visible on the element
• Crackling or popping noises heard from below pans

This part is also compatible with some Kenmore, Frigidaire, and select GE range models. Proper cooking performance and safety are maintained with an OEM surface element replacement when needed.

This black surface element control knob fits the burner's infinite switch, letting you turn the element on/off and set heat levels. Replace cracked, stripped, or missing knobs to restore safe, reliable control of your cooktop settings.

• Attaches to the infinite switch shaft to control a surface heating element
• Provides on/off and variable heat selection
• Replace if the knob is cracked, stripped, missing, or no longer engages the shaft
• Helpful when the control is hard to turn, wobbly, or can't be reliably set to Off

• Turn the appliance off and disconnect power before servicing
• Ensure the control is in the Off position
• Pull the old knob straight off the switch shaft; align the new knob with the shaft and press until fully seated
• Do not force; apply even pressure and verify proper alignment

This switch bracket mounting seal replaces a worn or damaged seal that cushions and protects the door or control switch mounting area. It helps keep the switch assembly seated and reduces debris and moisture intrusion for reliable operation. What it does:

• Seals the switch bracket mounting area to protect the switch from lint, dust and moisture
• Helps keep the switch properly positioned for accurate door or control sensing
• Can prevent intermittent or failed switch contacts caused by contamination or misalignment
• Useful when replacing a brittle, torn or missing mounting seal during switch or door repairs

• Disconnect power to the appliance before starting any repair
• Remove the door or panel per service instructions to access the switch bracket area
• Fit the seal into the bracket groove or around the switch housing, ensuring full seating without stretching
• Inspect adjacent clips or screws and reuse or replace as needed; test the switch function after reassembly

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
