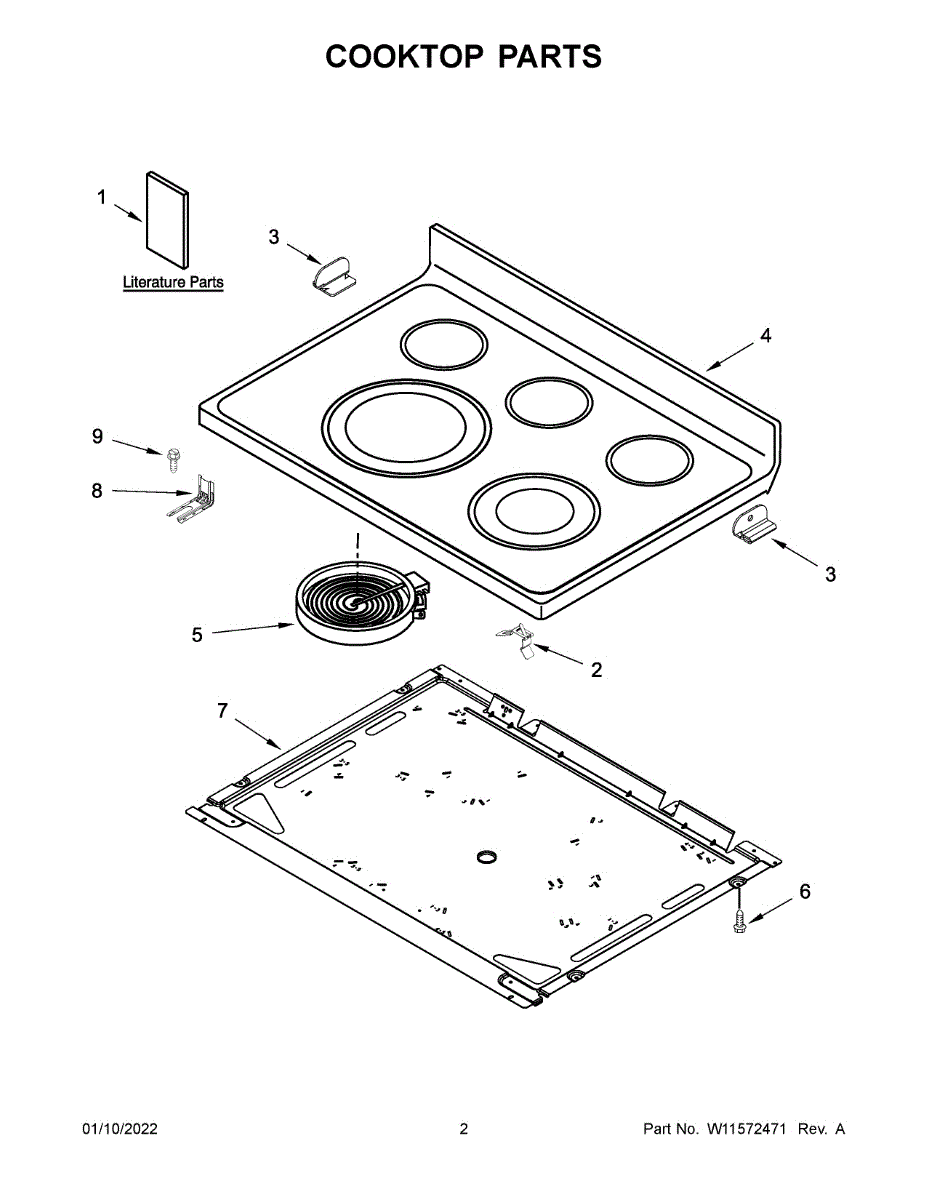

Parts for Whirlpool WFE775H0HB2: Cooktop Parts

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

Color: White

Color: Black

This surface heating element restores dependable heat to an electric range or cooktop's top burner. Replacing a failed element helps the burner heat evenly and respond correctly to temperature settings for everyday cooking.

• Supplies controlled heat to the selected surface burner during cooking
• Common symptoms: no heat, intermittent heating, only part of the element glows, or visible damage such as hot spots or breaks
• Often tests open for continuity when failed
• Inspect the element receptacle/terminal block and wiring for heat damage during replacement

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Handle the element carefully; avoid bending terminals or touching heating surfaces with bare hands
• Transfer any brackets/insulators from the original element if present, and route wiring exactly as original
• Ensure a secure fit and connections before restoring power and testing

This is a radiant surface heating element for smooth-top electric ranges. It replaces a failed burner to restore up to 1300 watts of even heat and dependable temperature control under the glass-ceramic cooktop. What it does:

• Generates radiant heat beneath the glass surface when powered by the burner control
• Restores proper heating if a burner will not heat, heats unevenly, or cycles off too quickly
• Helps eliminate long heat-up times caused by a weakened or open element
• Replaces elements with visible damage such as broken ribbons, burn spots, or charred terminals

• 1 radiant surface element (1300W)

• Disconnect power at the breaker or unplug the range before servicing
• Allow the cooktop to cool fully; lift/prop the glass top to access the element
• Note wire positions; transfer any mounting brackets/clips from the old element and reconnect wires securely
• Handle the element carefully and avoid stressing the ribbon; reassemble and test the burner before finalizing

This is a dual radiant surface element for a smoothtop range. It restores reliable heating on one burner position with adjustable small/large cooking zones for better control and even heat on compatible glass cooktops.

• Heats cookware using two selectable zones (small or full) to match pan size
• Replaces a worn or non-heating burner element on the cooktop
• Common symptoms: element won't heat, only one ring heats, uneven heating, or cycling off too soon
• Helps resolve tripped-limiter behavior caused by a failing element assembly

What's included: One dual radiant surface element assembly Install notes:

• Disconnect power before servicing; surface elements are high-voltage components
• Lift or remove the cooktop to access the element
• Transfer any mounting brackets and reconnect wires to the same terminals
• Avoid touching the radiant surface; handle by the frame to prevent damage

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

The Anti Tip Bracket is an OEM component specifically designed for Whirlpool ranges. This bracket plays a crucial safety role in preventing the range from accidentally tipping over if excessive weight is applied to the open oven door.

The anti-tip bracket secures tightly to the floor or wall behind the range, linking it securely in place. It allows the oven door to function while ensuring the entire appliance remains stable even under heavy use.

Causes of a bad bracket can include damage, deterioration of mounting hardware over time, or failure to install properly according to manufacturer instructions.

Symptoms of a faulty anti-tip bracket include:

• The range appears unsecured and able to wobble or rock backward
• Looseness between the bracket and mounting surface
• Cracks or breaks in the anti-tip bracket material

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

This wire harness routes power and signals between an appliance's controls and components to restore reliable electrical connections. Replacing a damaged harness helps eliminate intermittent or failed electrical paths and unsafe wiring. What it does:

• Carries power and control signals between the control board and components.
• Restores proper electrical connections when wires or terminals are burned, frayed, or broken.
• Commonly used to address intermittent operation, failure to start, or components not responding.
• Helps prevent shorts or arcing caused by damaged insulation or loose terminals.

• Disconnect power before starting any repair.
• Compare connectors and wire routing to the original; replace only if identical.
• Disconnect and reconnect connectors by hand; avoid pulling on wires. Use proper tools when needed.
• Follow OEM wiring diagrams and secure routing/clamps to prevent chafing or heat exposure.
