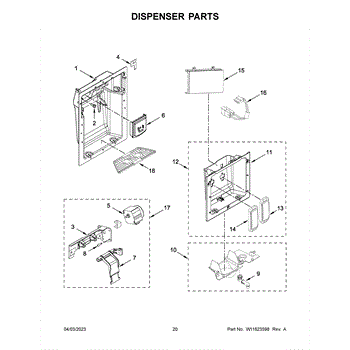

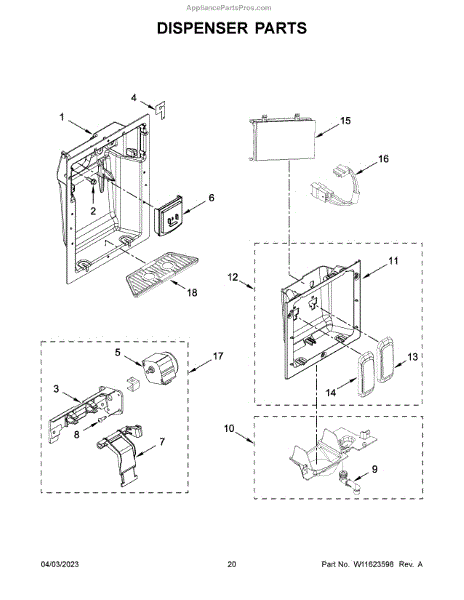

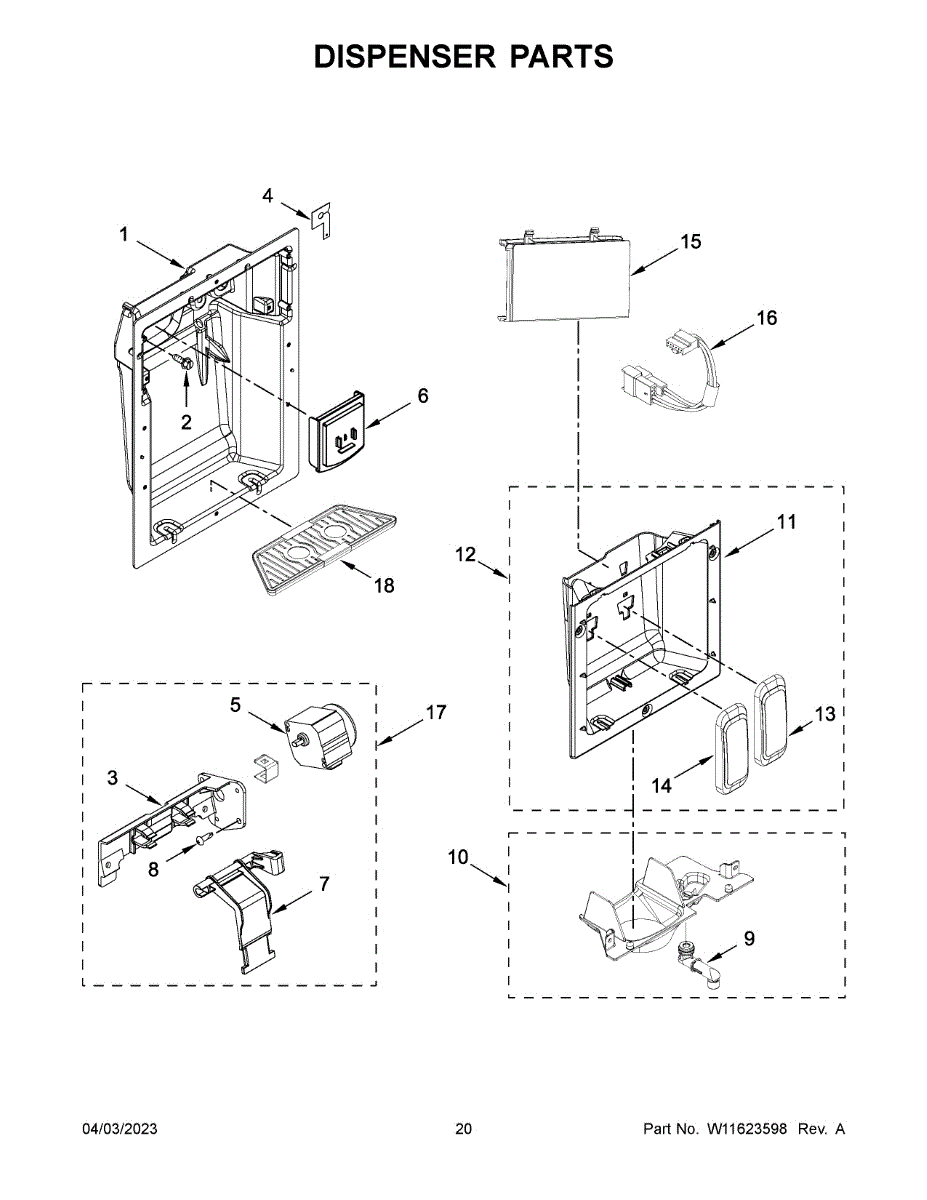

Parts for Kitchenaid KBSD706MPS00: Dispenser Parts

This motor bracket secures the ice door motor assembly to the freezer door, keeping the dispenser door aligned for reliable opening and closing. Designed as a direct-fit replacement to restore proper ice door movement. What it does:

• Holds the ice door motor in the correct position to operate the ice/dispenser door
• Maintains alignment so the ice door opens and closes smoothly
• Helps prevent rattling or binding from a loose or damaged motor mount
• Can resolve dispenser/door symptoms such as the ice door not opening or closing fully

• Disconnect power to the appliance before beginning any repair
• Handle clips and trim carefully; small screws or fasteners may be reused if undamaged
• Requires removal of the inner freezer door panel or dispenser trim for access
• If the motor or gears are damaged, replace those components as well for reliable operation

This small mounting retainer secures interior panels and components so covers, trims, or small assemblies stay aligned and stable. Replacing a broken clip restores fit and reduces rattles or loose panels for a neater appliance appearance. What it does:

• Holds trim, panel, or small component in place to maintain proper alignment
• Prevents vibration-related noise by keeping parts securely seated
• Replaces a worn, cracked, or lost factory clip to restore original fit
• Works where the original snap-in retainer or mounting tab is used

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access may require removing an exterior panel or trim; keep fasteners organized
• Use appropriate tools and gentle prying to avoid damaging surrounding parts

This ice door motor drives the dispenser flap that opens for ice dispensing and closes to seal the chute. Replacing a weak or failed motor restores smooth door movement and helps prevent warm air and moisture from entering the freezer. What it does:

• Actuates the ice chute door during dispensing and returns it closed for a proper seal
• Helps reduce frost, condensation, and ice clumping around the dispenser
• Can address ice not dispensing due to the door not opening/closing
• May resolve clicking or grinding noises from the dispenser area

• Unplug the refrigerator before servicing; wear cut-resistant gloves
• Remove dispenser trim/control panel to access the ice door assembly; handle wiring carefully
• Note linkage and wire orientation before removal to ensure proper reassembly
• After installation, test the dispenser to verify the door opens/closes and seals the chute

This ice dispenser chute door assembly opens to release ice and closes to help seal the dispenser opening. It helps limit warm air and moisture from entering the freezer so the chute stays clear and dispensing remains reliable.

• Opens during dispensing and closes to help seal the ice chute
• Helps reduce frost, moisture, and warm air intrusion at the dispenser
• Worn or warped door can stick open/closed or fail to seal
• Common symptoms include frost/ice around the chute, moisture at the dispenser, or clumping in the ice bin

• Unplug the refrigerator before servicing
• Remove the dispenser front panel/cover to access the chute area
• Note the door orientation and any spring/hinge positioning before removal
• After installation, manually cycle the door to confirm smooth movement and proper seal

This support mounting bracket secures internal components to the appliance chassis to restore proper alignment and reduce vibration or movement. It replaces a worn or broken bracket to help stop rubbing, sagging parts, and excessive noise. What it does:

• Secures the appliance cabinet or internal assembly to maintain correct alignment
• Prevents shifting that can cause rubbing, scraping, or contact-related noise
• Restores stable support for moving parts to reduce vibration and uneven wear
• Helps eliminate symptoms like loose panels, sagging components, or intermittent contact sounds

• Disconnect power before beginning any repair
• Use appropriate hand tools; avoid overtightening fasteners

Screw for control panel.

This spigot body assembly routes water from the refrigerator supply to the dispenser and replaces a worn, cracked, or leaking dispenser spigot. It restores proper water flow and helps stop drips or visible leaks at the dispenser. What it does:

• Channels water from the supply line through the dispenser area for normal dispense operation.
• Provides the structural mounting for the dispenser valve and actuator components.
• Common symptoms it can address: leaking or dripping at the dispenser, visible cracks or broken spigot housing, or intermittent water flow from the dispenser.
• Works with existing dispenser valve and seals when those components are undamaged.

• Disconnect power to the appliance and shut off the water supply before starting work.
• Access may require removing the refrigerator door panel or inner dispenser bezel.
• Inspect and replace any worn O-rings or seals during reassembly to prevent leaks; tighten fasteners only to specified torque if provided by the manufacturer.

The Ice Door Motor and Bracket Assembly is an OEM part for Whirlpool refrigerators. This part ensure that the ice dispenser operates smoothly, preventing room-temperature air from entering the freezer and maintaining the ice in its solid state.

Causes of a bad Ice Door Motor and Bracket Assembly can range from mechanical wear and tear on the motor itself, damage to the bracket that affects the door's alignment, or electrical issues that prevent the motor from receiving the correct signals.

Symptoms of a malfunctioning Ice Door Motor and Bracket Assembly include:

• The ice dispenser door not opening or closing properly
• Ice melting or clumping due to air leaks
• Unusual noises when attempting to dispense ice

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
