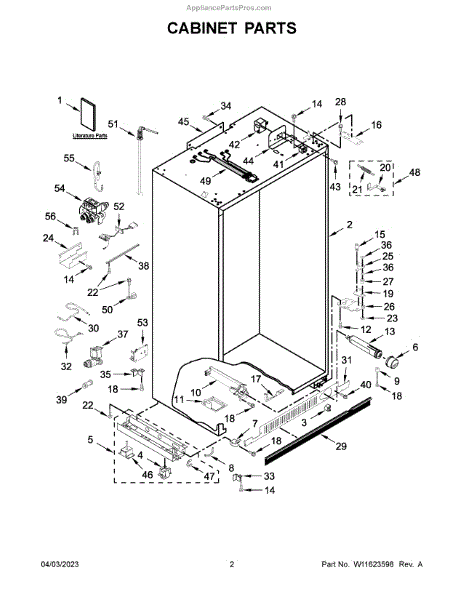

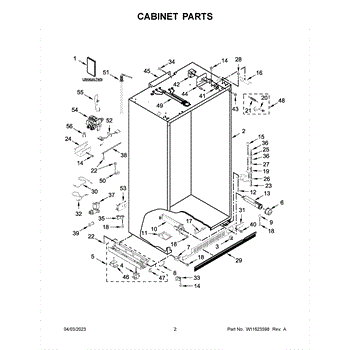

Parts for Kitchenaid KBSD706MPS00: Cabinet Parts

Color: Black

This replacement roller fits the front or rear position of a slide mechanism, restoring smooth, even movement and reducing noise when a wheel is worn or broken. It helps racks or drawers glide properly and stay aligned. What it does:

• Provides low-friction rolling support for the slide track
• Helps slide-out assemblies move freely without binding or scraping
• Worn or damaged rollers can cause sticking, squeaking, or uneven travel
• Restores proper alignment and smooth operation when replaced

• 1 roller assembly

• Disconnect power and allow the appliance to cool before servicing
• Remove the slide-out assembly; note roller orientation and hardware
• Transfer/reuse existing screws, clips, or retainers as required
• Do not lubricate unless the manufacturer specifies a lubricant

This Support (mounting bracket) secures internal components and stabilizes the appliance's assembly to help prevent sagging, misalignment and excess vibration. It's a small replacement that restores proper fit and reduces rattling. What it does:

• Provides a stable mounting point for panels or internal assemblies
• Keeps components aligned to prevent binding or wear
• Reduces noise caused by loose or sagging parts
• Helps stop intermittent contact or rubbing that can cause rattles

• Disconnect power (and water, if applicable) before servicing
• Access may require removing outer panels or trim; keep track of fasteners
• Support the assembly while replacing the bracket to avoid strain

This Support bracket holds internal components in place to restore proper alignment and reduce rattling or sagging. It's a simple replacement that helps stabilize the appliance's interior structure. What it does:

• Secures internal panels or assemblies to prevent movement and vibration
• Restores proper alignment when a factory support is damaged or missing
• Can reduce noise caused by loose components
• Helps maintain safe, stable operation of the affected area

• One Support bracket

• Disconnect power and unplug the appliance before beginning any repair
• Inspect surrounding fasteners and mounting points; replace any damaged hardware as needed
• Use appropriate hand tools; avoid over-tightening to prevent cracking plastic or stripping threads

This replacement filter cap secures the filter in its housing and helps maintain a proper, watertight seal. It restores a snug fit when the original cap is cracked, stripped, or missing to help prevent drips and performance issues. What it does:

• Locks the filter into place and helps provide a reliable seal
• Helps prevent water seepage at the filter housing
• Restores proper fit when the cap is worn, rounded, or broken
• Common symptoms: dripping around the filter area, filter won't stay seated, difficulty tightening or removing the cap

• 1 filter cap

• Disconnect power; shut off the water supply before servicing
• Place a towel to catch residual water and access the filter housing per your model's instructions
• Remove the old cap; align and hand-tighten the new cap until snug—do not overtighten
• Restore water and power, then test and check for leaks; ensure any separate O-ring used by your model is present and in good condition

This top door spacer positions and supports the upper edge of the appliance door to maintain correct clearance and alignment for smooth opening and closing. It helps keep the door trim and glass properly spaced for reliable operation. What it does:

• Keeps the top edge of the door correctly spaced from the cabinet to prevent rubbing or binding
• Helps maintain door alignment for an even seal and consistent closing
• Reduces vibration-related noise by stabilizing the door assembly
• Protects trim and glass from contact damage at the top edge
• Useful when replacing worn or missing door support components

• One top door spacer

• Disconnect power to the appliance before starting any repair
• Remove the door or door trim panels per the manufacturer's instructions to access the spacer
• Handle door glass and trim carefully; use appropriate tools and support to avoid damage

The Water Filter Housing is an OEM part for Whirlpool refrigerators. It encases the water filter, ensuring a secure fit and proper water flow through the filtration system to provide clean, safe drinking water.

Causes of a bad water filter housing can include cracks or wear and tear over time, improper installation, or damage from replacing the water filter.

Symptoms of a bad water filter housing include:

• Water leaks around the filter area
• Reduced water flow from the dispenser
• Odd tastes or odors in the water
• The water filter not fitting securely

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This replacement screw is a small fastener used to secure appliance panels and components. It restores lost or damaged screws so parts stay mounted and appliances run quietly and safely. What it does:

• Secures panels, trim, brackets or housings to prevent rattling and movement
• Replaces missing or stripped screws that allow parts to come loose
• Helps maintain correct alignment of assemblies for safe operation
• Small hardware solution for common repair and reassembly needs

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or driver bit to avoid cam-out or damage
• Do not overtighten; snug until secure to avoid stripping threads or cracking plastic
• Keep small parts away from children and pets

This top door hinge secures the refrigerator door to the cabinet and lets the door pivot smoothly. Replace a worn hinge to restore proper door alignment and even sealing for better cooling performance. What it does

• Supports the top of the refrigerator door and provides the pivot point for opening and closing.
• Helps keep the door aligned so the gasket seals properly and cold air stays inside.
• Worn or damaged hinge can cause door sag, uneven gaps, rubbing, or noisy operation.
• Restoring the hinge can reduce stress on the door and other hinge components.

• One top door hinge.

• Basic hand tools are usually required; support the door while removing or installing hinges to prevent injury or door damage.
• Disconnect power only if working near electrical components; this hinge replacement typically does not require electrical disconnection.
• If the door was removed, recheck alignment and gasket contact after reinstalling; adjustments may be needed.
• Follow OEM instructions and use proper safety equipment.

This bracket is a small mounting/support part that secures and aligns appliance components to restore proper fit and reduce movement. It's a direct-fit replacement designed to return panels and assemblies to their correct position. What it does:

• Provides a stable mounting point to secure panels, trim, or internal assemblies
• Restores correct alignment to eliminate rattling, vibration, or loose fit
• Helps maintain proper clearances for smooth operation of moving parts
• Replaces worn, bent, or broken brackets that prevent components from seating correctly

• One bracket

• Disconnect power and water before starting any repair
• Use common hand tools; support panels during removal to avoid damage
• Align bracket and fasteners before tightening; do not overtighten screws

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

A small replacement bushing that secures and centers the appliance's rotating plate or tray for smooth, stable rotation. Restores proper alignment and reduces noise or wobble caused by a worn or damaged bushing. What it does:

• Centers and locks the rotating plate/tray to the drive hub for steady rotation
• Prevents the plate from wobbling, slipping, or scraping during use
• Helps eliminate grinding, rattling, or uneven rotation symptoms
• Durable replacement for a worn, cracked, or deformed bushing

• One adjustable plate locking bushing

• Disconnect power before servicing and handle any glass plate or trim carefully
• Remove the plate/tray and access the bushing location according to the appliance service instructions
• Test rotation before use

Replacement extension that secures or supports a component on select Whirlpool appliances to restore proper fit and alignment. Helps reduce panel or drawer movement and improves smooth operation when a factory extension is damaged or missing. What it does:

• Secures and supports a panel, drawer, or internal component to maintain correct alignment.
• Restores smooth movement and prevents binding or sagging caused by a missing or broken extension.
• Reduces rattling and improves overall fit to help prevent further wear on adjacent parts.
• Works as a direct-fit replacement for the exact OEM extension designed for specific models.

• Disconnect power (and water, if applicable) before beginning any repair.
• Remove required trim or access panels to reach the mounting area; retain any factory fasteners unless replacement hardware is provided.
• Refer to the appliance's service manual or exploded parts diagram to fit and proper orientation before installing.

The door closure spring restores the tension that pulls the door closed and holds it securely. Replacing a fatigued spring brings back smooth, reliable closing action and helps prevent doors that drift open or feel loose.

• Provides return tension to assist door closing and latch engagement
• Replaces a stretched, broken, or missing spring
• Can help with symptoms like a door that won't stay shut, pops open, or closes weakly
• Restores a consistent, even feel to the door movement

• Disconnect power to the appliance before servicing; wear gloves and eye protection
• Support the door/drawer to relieve spring tension before removal
• Note the spring's routing and hook locations; take a photo for reference
• Use pliers to detach/attach the spring; keep hands clear of pinch points and avoid overstretching

A retainer ring that secures components in place to prevent axial movement and maintain proper alignment. Replacing a worn or damaged ring helps stop rattling and shifting, restoring quieter, more reliable operation. What it does:

• Holds shafts, bearings or seals in position to prevent side-to-side movement
• Keeps mating parts aligned so assemblies run smoothly
• Common symptom of failure: rattling, grinding, wobbling or loosened parts
• Small, inexpensive part that prevents larger component misalignment or wear

• Disconnect power and water before servicing the appliance
• Access the affected assembly by removing the appropriate panel(s)
• Installation may require snap-ring/retaining-ring pliers or small hand tools

The GAP-HINGE is an OEM component for Whirlpool brand refrigerators. It is designed to fill the space between the refrigerator door and cabinetry, creating a flush fit. The hinge allows the door to open and close smoothly while preventing air and moisture leaks around the door frame.

Symptoms of a bad gap hinge include:

• Gaps around the refrigerator door letting hot or humid air enter the refrigerator interior
• Increased energy costs from lack of insulation due to air gaps
• Buildup of moisture on internal surfaces from improper sealing
• Difficulty opening or closing the refrigerator door smoothly

Causes can include normal wear over time, or damage from repeated opening and closing of the door putting stress on the hinge.

This OEM Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore brands.

Bottom refrigerator hinge. For bottom freezer hinge use part number W10527053.

This adjustable bushing supports and centers a rotating shaft to reduce wobble and wear, helping the appliance run quieter and maintain smooth operation. It's a direct-fit service part used where a replaceable bearing surface is needed. What it does:

• Centers and supports a rotating shaft to maintain proper alignment
• Provides a replaceable bearing surface to reduce metal-on-metal wear
• Helps stop rubbing, scraping, or loud bearing-type noises from worn mounts
• Can restore smooth rotation when the original bushing is worn or damaged

• One adjustable bushing

• Disconnect power (and gas if applicable) before servicing
• Inspect adjoining components (shaft, housing, clips) and replace if worn
• Follow OEM torque and alignment guidance; avoid forcing parts into place
• Use only OEM-approved lubrication or none if OEM specifies dry install

This bottom skirt grille replaces the lower front trim on compatible refrigerators to restore appearance and help protect internal components. A direct-fit exterior piece that keeps the appliance looking finished while covering the lower access area. What it does:

• Covers and protects the refrigerator's lower front area and components from dirt and accidental contact
• Restores the appliance's finished appearance when the original grille is cracked, broken, or missing
• Helps maintain proper airflow pathways by keeping the access area closed (when installed correctly)
• Prevents small objects from entering the condenser/vent area behind the grille

• Disconnect power to the appliance before beginning any work near electrical components
• Typically installs at the refrigerator's lower front; remove the toe-kick or existing grille per manufacturer instructions
• May require basic hand tools; handle carefully to avoid scratching the finish

Front left hand side

Front left hand side

This door bearing fits the washer door assembly to restore smooth opening and closing and reduce noise, wobble, or binding. Replacing a worn bearing helps maintain proper door alignment for reliable operation. What it does:

• Supports the door hinge so the door pivots smoothly without sagging or sticking
• Reduces squeaks, grinding, or rough movement when opening or closing the door
• Helps keep the door aligned to reduce stress on the latch and door seal
• Addresses symptoms like door wobble, uneven closing, or noisy operation

• Disconnect power (and water if accessing near waterlines) before starting any repair
• Removing the door panel or inner door trim may be required; retain all fasteners and document their locations
• Inspect surrounding parts (hinge, seal, latch) and replace if damaged; improper alignment can cause premature wear

This water inlet valve controls water flow into the appliance so it fills properly and on schedule. Replacing a worn or leaking valve restores reliable fills and helps prevent slow or no-fill issues. What it does:

• Directs water into the appliance when the control calls for a fill
• Opens and closes in response to electrical signals from the timer or control board
• Commonly linked to symptoms like no fill, partial fill, or continuous filling
• May show external leaks or cause water on the floor if seals or valve body fail

• Disconnect power and shut off the water supply before beginning any service
• Expect to remove access panels; have towels or a shallow pan ready to catch residual water
• Verify water lines and electrical connectors are fully seated and leak-free after installation

The Water Line Union is an OEM part for Whirlpool refrigerators. It connects sections of the water line, ensuring a secure and leak-proof connection that facilitates the proper flow of water to the ice maker and water dispenser.

Causes of a bad water line union can include wear and tear from prolonged use, exposure to fluctuating temperatures, or physical damage from handling.

Symptoms of a bad water line union include:

• Leaks or water pooling around the refrigerator
• Reduced water flow to the dispenser or ice maker
• Water line disconnections
• Visible cracks or damage on the union

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures panels, brackets, and internal components within your appliance. Replacing a missing or damaged fastener restores a tight fit, reduces vibration and noise, and helps keep parts properly aligned during operation.

• Fastens panels, trim, brackets, or internal components to the chassis
• Maintains proper alignment and stability during normal use
• Replaces missing, rusted, or stripped hardware
• Common symptoms: loose or rattling panels, vibration, difficulty fastening, or a visibly missing screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Match length and thread to the original; replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is stripped, repair threads or replace the clip/nut before installing

The Door Switch Assembly is an OEM replacement part for Whirlpool refrigerators. It is responsible for turning the light on when you open the refrigerator door and turning it off when the door is closed. It ensures that the light functions properly, allowing you to easily locate and retrieve items from your refrigerator.

Symptoms of a faulty door light switch include:

• Interior light not turning on when the door is opened
• Interior light staying on even when the door is closed

A bad door light switch can occur due to regular use, wear and tear, or accidental damage. If you notice issues such as the interior light not turning on or off when you open or close the door, it may be time to replace the door light switch.

This Whirlpool replacement part is also compatible with Sears/Kenmore models.


The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement protective cover shields internal components and restores the appliance's appearance. It provides a simple exterior repair when the original cover is cracked, broken, or missing. What it does

• Protects internal parts from dirt, moisture, and accidental contact
• Restores a finished exterior to hide wiring or internal assemblies
• Helps reduce rattling or vibration caused by a damaged or loose cover
• Visible cracks, missing fasteners, or warped edges are common signs this part is needed

• One replacement cover

• Disconnect power (unplug or shut off breaker) before starting any repair
• Handle edges carefully; cover edges may be sharp or have clips that can break
• Use basic hand tools to remove mounting screws or clips; keep hardware for re-use if undamaged

This leveler is the adjustable leg that helps stabilize and level your appliance, restoring balance and reducing vibration. It's a simple replacement to get a rocking or uneven washer or dryer sitting squarely again. What it does:

• Replaces a worn or damaged leveling leg to restore stable, level support under the appliance
• Allows height adjustment to compensate for uneven floors and reduce rocking or vibration
• Helps prevent door misalignment and uneven loads that can affect performance
• Commonly used when an appliance wobbles, shifts during cycles, or sits crooked

• Disconnect power to the appliance before attempting service; for washers, turn off water supply and drain hoses if needed
• Slide or tip the appliance as required to access the leveling legs; use caution and a helper for heavy units
• Adjust height by turning the leveler; verify stability with the appliance resting on all legs

This light cam assembly positions and secures the interior light mechanism so the appliance light operates correctly when the door is opened. Replaces a worn or broken cam to restore proper light activation and fit. What it does:

• Holds and indexes the interior light/lens assembly so the light turns on/off reliably with door movement
• Prevents the light or lens from rattling or becoming loose inside the cabinet
• Restores proper alignment when a broken or worn cam causes intermittent or non-functioning interior lighting
• Works with the door/light linkage to ensure consistent contact with the light switch

• Disconnect power to the appliance before starting any repair
• Remove the light lens and/or inner trim panel to access the cam; keep all fasteners for reassembly
• Inspect mating parts (lens, switch, brackets) and replace if damaged to avoid repeat failures
• Test light and door operation after installation to confirm correct alignment and function

This light cam assembly interfaces with a switch mechanism to turn the light on when actuated and off when released, restoring reliable lighting performance and preventing the light from staying on. What it does

• Engages the light switch as the mechanism moves to provide on/off control
• Restores consistent interior lighting function
• Helps prevent heat build-up from a light left on
• Typical symptoms: light stays on, won't turn on, intermittent operation, or a broken/missing cam near the switch

• 1 light cam assembly

• Disconnect power before servicing
• Access the switch/cam area; note the original cam's orientation
• Transfer any reusable clips/brackets from the old part if present; avoid forcing brittle plastics
• Restore power and test light operation before full reassembly

This clamp secures flexible hoses to fittings to maintain a tight seal and prevent leaks. Use it to replace a worn or loose clamp to stop water or air seepage and restore proper hose attachment. What it does:

• Holds a washer, dryer, or appliance hose firmly to a barb or fitting to prevent slipping
• Helps maintain a watertight or airtight connection to reduce leaks and drips
• Replaces corroded, cracked, or stretched clamps that no longer grip reliably
• Supports normal appliance operation by keeping fluid/air flow contained

• One clamp

• Inspect the hose and fitting; replace the hose if damaged before installing the clamp
• Position clamp over the hose barb and tighten evenly; avoid over-tightening that can cut the hose
• Disconnect power and water supply before servicing any appliance components

The Tube-Inlet is an OEM part for Whirlpool refrigerators. It is the component that connects the water supply lines allowing water to flow into the refrigerator's ice maker and water dispenser. The tube inlet is designed to securely attach to the back of the fridge and easily connect to supply hoses through compression nuts and fittings.

Causes of a bad tube-inlet include mineral or sediment buildup within the tubing restricting flow, cracks or leaks from wear and tear over time, or loose or damaged fittings. With normal use, water pressure and temperature fluctuations can cause small issues to develop.

Symptoms of a bad tube-inlet are:

• Slow or incomplete filling of the ice maker or water dispenser
• Water leaks from connection points
• Loose fittings or burst tubing

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This wire harness assembly connects the appliance's control and electrical components for reliable signal and power transmission. Replacing a damaged harness restores proper electrical connections and helps recover normal function. What it does:

• Routes power and signal between the control board and components (motors, sensors, valves).
• Replaces frayed, burnt, or broken wiring that can cause intermittent operation or component failure.
• Restores proper connector seating to eliminate loose-connection symptoms like no-start or erratic cycles.
• Prevents shorting and electrical faults when original wiring is damaged.

• Disconnect power to the appliance before beginning any repair.
• Handle connectors carefully; match connector shapes and pin locations before seating.
• Route harness following existing clips and channels; avoid sharp edges and heat sources.

This water inlet valve assembly controls water entering the washer, restoring proper fill cycles and helping stop unwanted leaks or overfilling. Replace a failed inlet valve to regain consistent, timed water fill during wash cycles. What it does:

• Opens and closes to let hot and/or cold water enter the machine during fill cycles.
• Can cause no-fill, slow-fill, or continuous-fill symptoms when failed.
• Drip or leak at the valve if seals or solenoids are worn.
• Works with the washer's control/timer to regulate fill volume and timing.

• Disconnect power and shut off the water supply before starting any work.
• Place towels and a small bucket under the valve to catch residual water when removing supply lines.
• Inspect supply hoses and fittings; replace damaged hoses or washers to prevent future leaks.
• After installation, restore water and power, then run a short fill cycle to check for proper operation and leaks.

This replacement mounting ring secures small appliance components to maintain proper alignment and reliable operation. Use it when the original ring is worn, cracked, or missing to reduce play and restore normal function. What it does:

• Holds and centers components on a shaft or housing to prevent misalignment
• Replaces a worn or damaged ring that can cause excessive movement or noise
• Helps maintain stable operation of the assembly it secures
• Small, durable part used where a precision spacer or retainer is required

• Disconnect power and follow all safety procedures before starting repairs
• Inspect surrounding parts for wear; replace any damaged components to prevent repeat failure
• Use appropriate hand tools; do not force the ring into place
