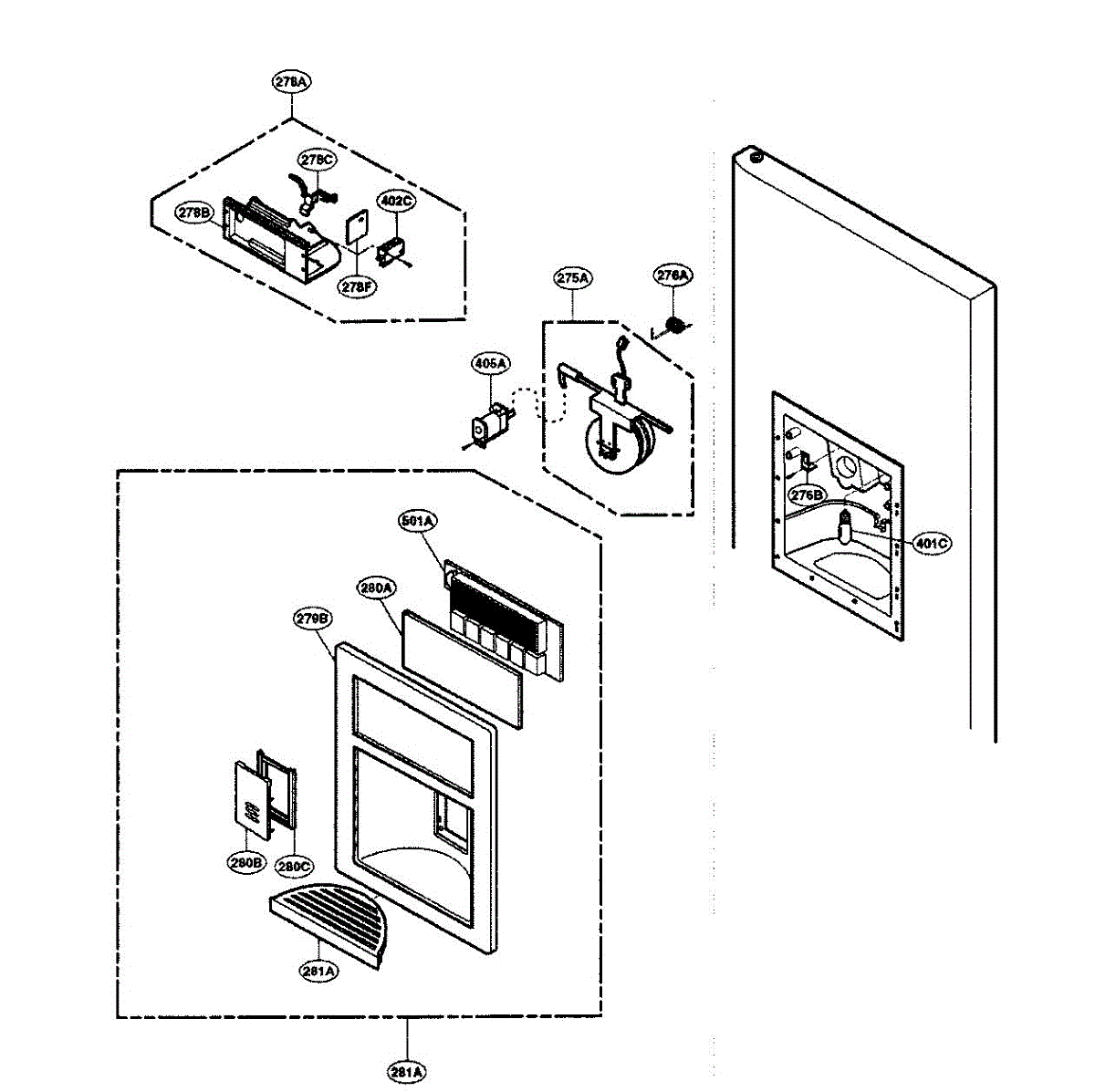

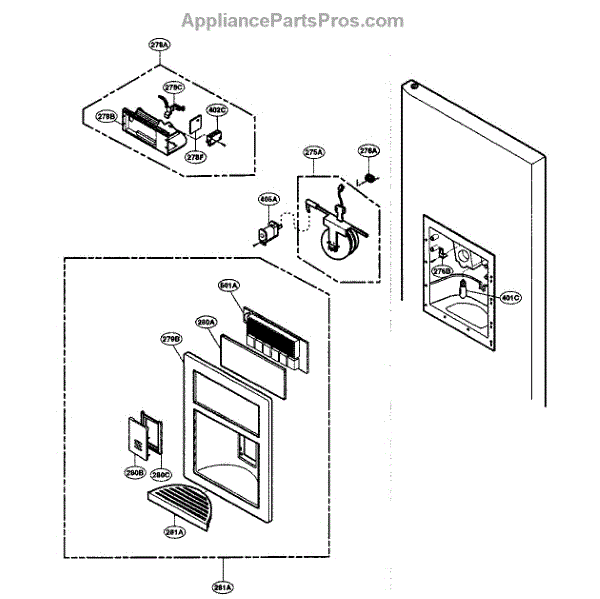

Parts for Lg LSC26945SW: Dispenser Parts

The Ice Chute Door is an OEM part for LG refrigerators. It is located in the ice dispenser area on the front of the refrigerator. It opens and closes automatically when ice is dispensed, ensuring a controlled release of ice cubes or crushed ice into the user's glass or container. The door helps to prevent frost buildup, maintain proper insulation, and protect the ice inside the dispenser.

Causes of a faulty ice chute door can include wear and tear over time, damage due to regular use or accidental impact, or a malfunctioning door motor or solenoid.

Symptoms of a bad ice chute door may include:

• Difficulty in dispensing ice
• Frost or condensation forming around the ice chute area
• The door not opening or closing smoothly or completely

This OEM LG part can also be used on Kenmore/Sears appliances.

This dispenser lever holder is the mounting bracket behind the refrigerator's dispenser paddle. It supports and aligns the lever and switch so water or ice dispenses reliably when the paddle is pressed.

• Holds and guides the dispenser lever and actuator switch inside the dispenser housing
• Provides a secure pivot point for smooth paddle movement
• Helps ensure consistent activation of water and ice dispensing
• Damage can cause a loose or stuck paddle, intermittent dispensing, or no dispense

• Disconnect power and shut off the water supply before servicing
• Remove the dispenser panel/escutcheon to access the lever assembly; note part orientation
• Transfer the lever, switch, and return spring to the new holder and secure with the original fasteners
• Restore power/water and test dispensing before reinstalling trim

This replacement funnel assembly directs dispensed contents safely and cleanly from the appliance outlet into a cup or container, helping restore proper flow and prevent spills. It's a direct-fit component used in the dispenser area. What it does:

• Channels dispensed water/ice/solution from the dispenser outlet to the cup or container
• Prevents drips and misdirected flow that can cause pooling or messes
• Helps reduce ice jams or blockages in the dispenser path
• Restores correct alignment and sealing of the dispenser outlet

• Disconnect power (and water line if applicable) before beginning any work.
• Replace only with the exact part number; align tabs and snaps carefully to avoid damage.
• Typical tools: screwdriver or nut driver may be needed to remove fasteners; avoid overtightening.

Due to manufacturer changes you must also order the frame 3210JA0006S to make this work. This funnel now only has four tabs instead of six.
