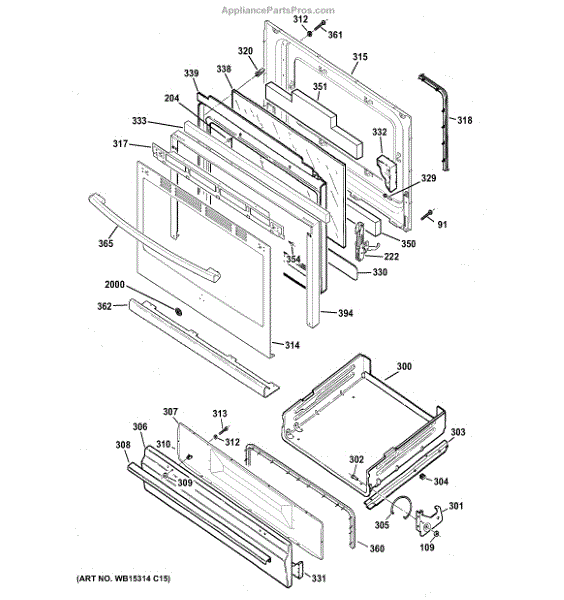

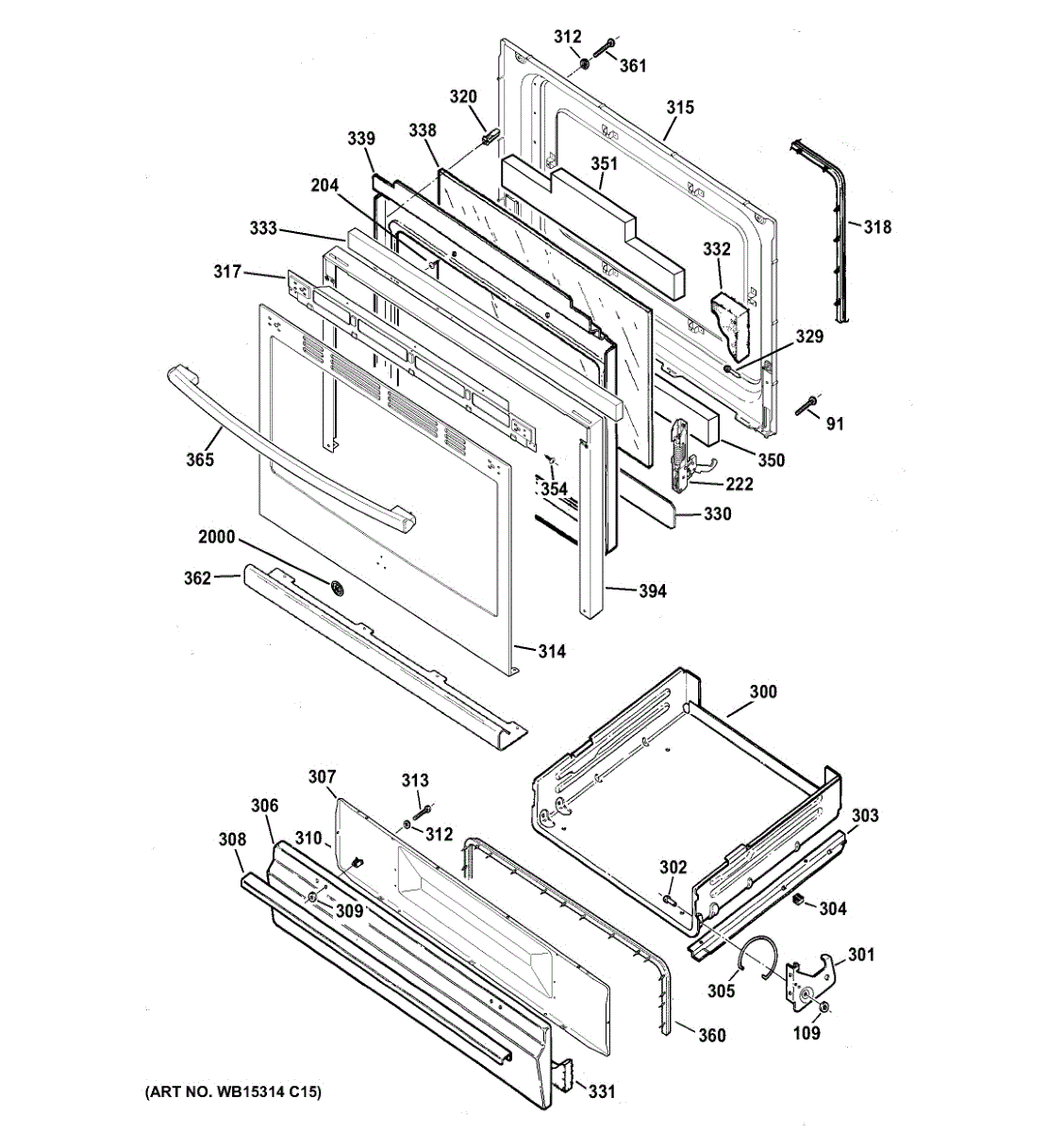

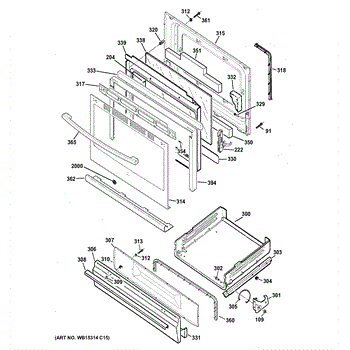

Parts for Ge JGBS60REF2SS: Door & Drawer Parts

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment

Includes 12 speed nuts.

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

The Door Hinge is an OEM replacement part for GE ranges. It allows for smooth and controlled opening and closing of the oven door. It features a sturdy metal construction and is designed to withstand the repeated use and high temperatures of the oven.

Symptoms of a faulty door hinge include:

• Oven door not closing or sealing properly
• Difficulty in opening or closing the oven door
• Uneven or loose door seal

A bad door hinge can occur due to wear and tear over time, excessive weight or force applied to the door, or damage from accidental impact. If you notice issues such as the oven door not closing properly, difficulty in opening or closing the door, or an uneven seal, it may be time to replace the old or damaged door hinge with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This is the right side broiler hinge. For left side use WB10K6.

This is the left side broiler hinge. For right side use WB10K5.

This broiler pin secures the oven's broiler drawer or rack, letting it slide and lock smoothly for even broiling. Replaces a worn or broken pin to restore proper broiler movement and alignment. What it does:

• Acts as the hinge/anchor for the broiler drawer or rack so it opens and closes smoothly
• Prevents the drawer or rack from sagging, binding, or coming loose
• Helps maintain correct broiler alignment for even heat exposure
• Common symptom: drawer or rack won't slide, sits crooked, or falls out

• Disconnect power (and gas if applicable) and allow the appliance to cool before servicing.
• Remove the broiler drawer or rack per the owner's manual to access the pin.
• This part typically installs by sliding or snapping into a bracket; verify fit before final assembly.

This broiler slide is the oven rack support that lets the broiler pan and rack slide in and out smoothly for cooking and removal. It restores proper rack movement and helps keep broiler pans supported and stable. What it does

• Supports the broiler pan and rack so they sit level and slide smoothly
• Replaces worn or bent slides that cause racks to bind, tilt, or fall
• Reduces scraping, sticking, and uneven pan movement during use
• Restores safe access for inserting and removing broiler pans

• One broiler slide

• Disconnect power to the range before starting work; if a gas range, also shut off the gas supply
• Remove oven racks and broiler pan before replacing the slide to access mounting points
• Reuse original fasteners unless replacements are specified by the manufacturer

This is the right side broiler door spring. For left side use WB9K3.

This is the left side broiler door spring. For right side use WB9K2.

Includes 12 washers.

This spacer fits between mating parts in select GE cooking appliances to set correct clearance and alignment. Replacing a worn or missing spacer helps secure the assembly and prevents rubbing or damage to adjacent surfaces during use.

• Maintains proper spacing so hardware tightens squarely and components sit evenly
• Helps prevent metal-to-metal contact that can cause noise, wear, or surface damage
• If missing, broken, or deformed, you may notice looseness, misalignment, rattling, or scraping
• Restores original fit and finish when replaced

• Disconnect power; if applicable, shut off gas. Allow the appliance to cool completely
• Support the part being unfastened (such as a door, handle, or trim) to avoid strain on panels or glass
• Install the spacer in the same location/orientation as the original and reuse existing hardware if serviceable
• Tighten screws evenly; do not overtighten against glass or enameled surfaces

Includes 12 washers.

Includes 12 screws.

A welded door liner assembly that replaces a damaged or dented inner door shell to restore proper sealing and appearance. Designed as a direct-replacement inner surface for affected appliance doors. What it does

• Replaces a cracked, dented, or otherwise damaged inner door liner that can allow drafts or interfere with proper door closure.
• Restores the door's interior surface so gaskets and inner components mount correctly.
• Helps eliminate cold or heat leaks caused by a compromised liner.
• Improves door appearance and prevents further damage to internal door parts.

• Disconnect power and follow OEM service manual instructions before starting work.
• Use safe handling practices — edges may be sharp and assembly can be heavy; use gloves and eye protection.
• May require removing door panels, trim, and hardware; retain mounting screws and check gasket seating during reassembly.

This panel backer is the interior support piece that helps secure and align the appliance control panel, protecting wiring and switches while keeping the panel stable during use. It restores proper fit and prevents rattling or loose controls. What it does:

• Supports and positions the control/display panel so buttons and switches align correctly
• Protects internal wiring and components behind the control panel
• Reduces panel flexing, vibration noise, and intermittent button contact
• Helps maintain a flush, stable control surface for reliable operation

• Disconnect power before starting — follow appliance-specific safety steps
• Remove the outer control/display panel to access and replace the backer
• Transfer any buttons, clips, or switches from the old backer to the new part as needed
• Inspect adjacent wiring and mounting clips; replace any damaged fasteners for a secure fit

The Gasket Door Assembly is an OEM replacement part for GE ovens. This gasket provides a seal around the oven door, ensuring that heat is retained inside the oven for efficient cooking and baking. It helps to maintain the correct temperature and prevents heat from escaping, which can affect cooking performance and energy efficiency.

Causes of a bad gasket door assembly can include regular wear and tear, exposure to high temperatures, and physical damage such as cuts or tears. Over time, the gasket can lose its elasticity and sealing capability.

Symptoms of a bad Gasket Door Assembly include:

• Heat escaping from the oven door
• The oven taking longer to preheat or maintain temperature
• Uneven cooking or baking results
• Visible damage or gaps in the gasket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This spacer sets the correct gap and alignment between appliance components so panels, brackets, or handles mount securely and operate quietly. Replacing a worn or missing spacer helps prevent rubbing, noise, and premature wear. What it does:

• Maintains proper clearance between mating parts for accurate alignment
• Positions mounting hardware at the correct depth
• Helps prevent rattling, rubbing, or uneven gaps
• Replaces a missing, cracked, warped, or heat-damaged spacer

• 1 spacer

• Disconnect power and allow the appliance to cool before service
• Note the original order/orientation of washers and spacers during disassembly
• Install the new spacer in the same position; reuse hardware if undamaged
• Tighten fasteners evenly and avoid overtightening; verify clearances before restoring power

This side door insulation panel installs inside a refrigerator door to help maintain internal temperature and reduce heat transfer. It replaces damaged or missing insulation to help the door seal and cooling performance. What it does:

• Fills the cavity inside a refrigerator door to limit air and heat transfer
• Helps the gasket maintain a consistent interior temperature by supporting proper door structure
• Commonly replaced when the original insulation is cracked, waterlogged, or missing
• Works as a direct-fit replacement for the specified OEM part number

• One side door insulation panel

• For safety, unplug the appliance or shut off power before starting repairs
• Remove the interior door panel or liner to access the insulation; handle foam carefully to avoid tearing
• Use manufacturer-recommended fasteners/adhesives if reattaching insulation; do not compress or overfill the cavity

The Crystal Window is an OEM part for GE ranges. This part is the inner glass window located on the oven door, allowing users to visually monitor the cooking process without opening the door. The window is designed to withstand high temperatures and provide clear visibility into the oven.

Causes of a bad crystal window can include regular wear and tear, thermal stress from repeated heating and cooling cycles, and accidental impacts that can cause cracks or scratches.

Symptoms of a bad crystal window include:

• Visible cracks or scratches on the window
• Cloudiness or discoloration obstructing the view
• Difficulty seeing inside the oven during cooking
• Potential safety concerns if the window's structural integrity is compromised

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This top-door insulation replaces the foam insert behind the refrigerator/freezer door panel to help maintain interior temperature and reduce heat transfer. Restores proper door insulation for more consistent cooling. What it does

• Provides thermal insulation behind the top door panel to help keep cold in and heat out
• Helps reduce frost buildup and temperature fluctuations near the door area
• Limits air transfer that can increase compressor run-time and energy use
• Restores proper fit and support for the inner door panel

• Disconnect power to the appliance before starting any repair.
• Remove the inner door panel fasteners and lift the panel to access the old insulation; handle panels carefully to avoid damage.
• Replace with the exact OEM insulation and resecure the inner panel per manufacturer instructions.
• If clips, adhesive, or fasteners are damaged or missing, replace them before reassembly.

This replacement screw fastens appliance components and panels, restoring a snug, rattle-free fit. Use it to replace a missing or stripped fastener so trim, brackets, and other parts stay properly secured and aligned. What it does:

• Secures panels, brackets, trim, or burner-related parts to the chassis
• Replaces missing, damaged, rusted, or stripped fasteners
• Helps reduce vibration and rattling from loose components
• Restores proper fit and alignment of attached parts

• 1 screw

• Disconnect power; shut off gas before servicing
• Replace one screw at a time to maintain alignment and fit
• Hand-start threads to prevent cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves and use the correct driver for the head type

This is a 10-16 x 2-3/4 machine screw used to secure appliance panels and components. It replaces worn or missing fasteners to restore proper fit and reduce rattling and loose parts. What it does:

• Secures panels, brackets, or assemblies where a 10-16 thread and 2-3/4" length are required
• Restores stable mounting to stop vibration, rattling, or misaligned panels
• Matches OEM thread and length for correct fit in designated fastening points
• Used in repairs where original screws are stripped, corroded, or missing

• One 10-16 x 2-3/4 machine screw

• Use the correct screwdriver or socket to avoid stripping the head
• Tighten securely but avoid over-torquing to prevent thread damage
• Replace only in the specified location and confirm proper alignment before final tightening
• Disconnect power and follow appliance safety guidance when accessing internal components

Size: 10-16 X 0.95 inch.

This barrier door assembly replaces the oven/stove barrier used to block heat and fumes when the appliance is not in use, helping maintain proper airflow and appliance efficiency. It's a direct-fit replacement designed to restore the door's sealing and movement. What it does:

• Covers and seals the internal opening to prevent heat, smoke and cooking odors from escaping when closed.
• Helps maintain proper internal airflow and prevents drafts when the appliance is off.
• Restores smooth opening and closing action if the original barrier door is broken, warped, or cracked.
• Can reduce heat loss and improve the performance consistency of the oven cavity.

• Disconnect power to the appliance before starting any repair.
• Handle the door carefully to avoid damaging hinges or mounting tabs during removal and installation.
• Use common hand tools; follow OEM instructions for alignment and fastening to ensure proper fit and movement.

The Handle and End Cap Assembly is an OEM part for GE electric ranges

Causes of a bad handle and end cap can include loss of integrity in seals after years of daily use. Cooking vapors may prematurely wear away protective finishes over time as well.

Symptoms of a bad handle and end cap assembly include:

• Difficulty opening or closing the oven door
• Loose, rattling or misaligned handle mounting
• Peeling or flaking cosmetic coatings
• Drafty air gaps presenting heat loss and burn risks

It is also compatible with Hotpoint, RCA, and certain Kenmore electric ranges.

Replacement badge designed to restore the appliance's exterior appearance and factory look. This decorative emblem replaces a faded, scratched, or missing badge so the control panel or door presents a clean, branded finish. What it does:

• Replaces a worn, cracked, faded, or missing badge to restore original appearance
• Sits on the appliance front where the original emblem was located for accurate visual match
• Helps maintain a factory-fresh look after cosmetic damage or panel repair
• Sold as the individual decorative emblem; intended as a direct-fit cosmetic replacement

• Clean and fully dry the mounting area before installing to ensure proper adhesion and fit
• Align carefully with the original location; press firmly and evenly to secure the badge
