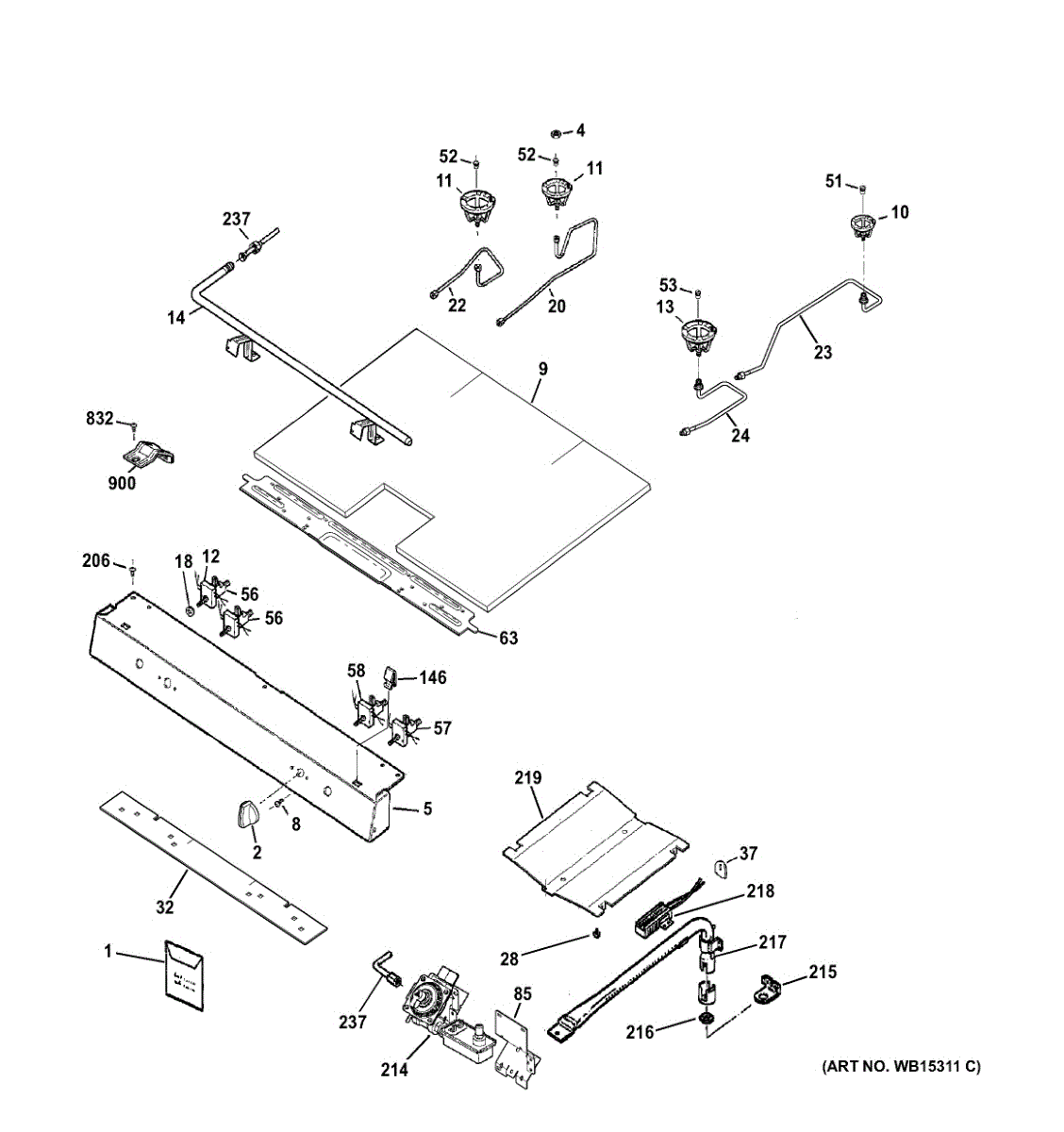

Parts for Ge JGBS60REF2SS: Gas & Burner Parts

This LP conversion kit lets a gas range be converted from natural gas to liquid propane (LP) so burners operate safely and efficiently on LP fuel. It supplies the nozzle and parts needed to match burner flow to propane. What it does

• Provides replacement orifices and necessary conversion components to size burner fuel flow for LP
• Enables proper burner flame and heat output after switching to propane
• Addresses symptoms like weak or irregular flames, poor heating, or appliances set for the wrong fuel type
• Helps meet appliance manufacturer requirements for safe fuel-type conversion

• Follow the included instructions and the appliance manufacturer's conversion procedure exactly.
• Turn off gas and electrical power before starting; use proper leak-testing after conversion.
• Do not attempt conversion without the correct kit for your appliance; incorrect parts may cause unsafe operation.

The Valve Knob is an OEM part for GE ranges. It is used to control the gas flow to the burners, allowing for precise adjustment of the flame and ensuring proper cooking temperatures.

You should replace the valve knob if it becomes damaged or worn out. Common issues include the knob becoming loose, cracking, or breaking, which can make it difficult to control the gas flow accurately.

Symptoms of a bad valve knob include:

• Difficulty in turning the knob
• The knob not staying in place
• Visible cracks or damage
• Inconsistent flame control

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This economic nut is a small replacement fastening nut that restores secure connections for appliance components. It replaces worn or missing hardware so panels and internal parts stay firmly seated and reduce vibration. What it does:

• Secures components and panels by threading onto the matching stud or bolt to hold assemblies in place
• Prevents loose or rattling panels and hardware caused by a missing or damaged nut
• Restores proper fit for user-accessible panels and internal brackets where this nut is specified
• Simple hardware replacement to regain stable mechanical connections

• Disconnect power and water (if applicable) and follow basic electrical safety before servicing the appliance
• Use the matching size wrench or socket; thread-on by hand first to avoid cross-threading, then snug—do not overtighten
• Inspect mating stud or bolt for damage; replace hardware that is stripped, corroded, or deformed

Size: 8 - 32 inch.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This circuit board mounting bracket secures an electronic board or module inside the appliance. It prevents movement, vibration damage, and wiring interference so the component stays correctly positioned for reliable operation.

• Mounts and supports a small circuit board or module within the chassis
• Maintains proper spacing and alignment to reduce chafing or electrical short risks
• Replace if bent, cracked, or missing tabs, or if it no longer holds the board securely
• Common signs include a loose/rattling board, visible bracket damage, or intermittent operation when the panel is bumped

• Disconnect power at the breaker; shut off gas supply if applicable
• Remove the necessary access panel(s) to reach the board and bracket; note orientation and wiring
• Transfer the board/module to the new bracket and reinstall using existing hardware
• Watch for sharp metal edges; route wires to avoid pinching and verify clearances before restoring power

This burner box harness is the wiring assembly that connects the range's cooktop igniters and gas valves inside the burner box, restoring reliable spark and control signals so burners ignite properly. What it does:

• Routes electrical power and ignition signals to cooktop igniters and gas valves inside the burner box
• Replaces damaged or frayed wiring that can cause intermittent ignition or no-spark conditions
• Helps stop arcing or shorting caused by chafed insulation or loose connections
• Restores proper electrical continuity between control board outputs and burner components

• One burner box wiring harness assembly as shown

• Disconnect electrical power (and gas supply where applicable) before servicing
• Access typically requires removing the range back panel or cooktop; keep fasteners organized
• Inspect connectors and mounting clips; replace any damaged clips or fasteners
• After installation, restore power and verify each burner ignites and shuts off properly; do not use if wiring shows damage

This bracket secures the cooktop/main top to the appliance chassis to keep the surface stable and properly aligned. Replacing a bent or missing bracket can eliminate looseness, rattles, and visible gaps so the top seats correctly.

• Anchors the cooktop/main top to the frame
• Maintains proper spacing and alignment of the top
• Helps prevent vibration and movement during use and cleaning
• A damaged or missing bracket can cause a loose, uneven, or rattling cooktop

• Disconnect power and, for gas units, shut off the gas supply before servicing
• Access the bracket location per your model's service procedure (top may need to be lifted or removed)
• Transfer and reuse mounting screws/clips from the original bracket if required
• Install in the same orientation, check alignment, and tighten fasteners securely before restoring service

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

The Rear Orifice Holder is an OEM part for GE gas ranges. This part holds the orifice that regulates the flow of gas to the rear burner, ensuring proper gas distribution and efficient burner operation.

Causes of a bad orifice holder can include wear and tear from regular use, corrosion from exposure to cooking residues, or physical damage.

Symptoms of a bad rear orifice holder include:

• The rear burner not lighting or staying lit
• Uneven or weak flame on the rear burner
• Gas odors around the burner area
• Visible damage or corrosion on the holder

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Front Orifice Holder is an OEM part for GE gas ranges and cooktops. This part holds the gas orifice in place at the front burner. This part is essential for the proper delivery and distribution of gas to the burner, facilitating precise flame control and consistent cooking performance.

Causes for issues with the orifice holder often involve normal wear and tear, exposure to high temperatures and cooking spills, or physical damage during cleaning or maintenance activities.

Symptoms of a malfunctioning Front Orifice Holder include:

• Inconsistent flame size or shape at the burner
• Difficulty igniting the burner or experiencing uneven heating
• Signs of damage or corrosion on the holder itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This rear orifice holder mounts beneath the cooktop to route gas from the valve to the rear surface burner. It positions the orifice correctly for reliable ignition and a stable, even flame at the rear burner.

• Channels gas from the valve through the orifice to the rear surface burner
• Aligns and supports the orifice spud for proper flame shape and height
• Helps address delayed ignition, weak/uneven or yellow flames at the rear burner
• A damaged or loose holder can contribute to clicking without lighting or a gas odor near the burner

• Shut off gas supply and power; allow the cooktop to cool before servicing
• Remove grates, burner caps/heads, and lift or release the cooktop to access the manifold area
• Detach the old holder from the valve and mounting points; note orientation and transfer the existing orifice spud to the new holder
• Reassemble, restore gas, and check all connections for leaks with a soapy-water solution; verify proper ignition and flame

This front orifice holder sits under the cooktop's front burner, channeling gas from the control valve through the orifice to the burner head. Replacing a damaged holder restores proper flame and dependable ignition on the front burner position.

• Channels gas from the valve to the burner head and secures the orifice spud in place
• Maintains correct alignment and seal for consistent flame size and distribution
• Helps resolve issues like front burner not lighting, repeated clicking without ignition, or weak/uneven flame
• Designed for the designated front burner position per the model's gas manifold layout

• Shut off gas supply and disconnect power; allow the appliance to cool before servicing
• Remove grates, caps, and burner head; lift or open the cooktop as required for access
• Transfer the existing orifice spud and mounting hardware to the new holder; tighten fittings and check with an approved leak-detection solution
• Test ignition and flame; adjust only per manufacturer instructions

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This orifice spud meters gas to a burner in your range or cooktop. Replacing a clogged or damaged spud helps restore correct flame size and reliable ignition for consistent cooking performance.

• Regulates gas flow from the valve to the burner head for proper combustion
• Helps restore consistent flame height and even heating on the burner
• Sized for the burner rating and fuel type specified by your model; always match the correct part

• Disconnect power and shut off gas supply; allow the appliance to cool completely before servicing.
• Access the burner orifice and replace with the correct, model-specified spud using an appropriate wrench; do not overtighten.
• Restore gas and check all connections for leaks with a soap-and-water solution.
• Use only the spud specified for your fuel type (NG or LP); do not attempt conversion without the approved kit and instructions.

The Orifice Spud is an OEM part for GE ranges and cooktops. It is a small, precise component responsible for regulating the flow of gas to the burner, ensuring a controlled and efficient flame for cooking. This spud is essential for maintaining the correct gas pressure and flame size.

Over time, orifice spuds can become clogged or damaged due to residue buildup, corrosion, or improper cleaning. These issues can lead to inefficient burner performance or safety hazards.

Symptoms of a bad orifice spud include:

• Uneven or weak burner flames
• Difficulty in igniting the burner
• Yellow or flickering flames
• Gas odors near the burner area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

LP Gas. LG .99mm

This round gas valve controls flow to a surface burner, providing smooth flame adjustment and reliable shutoff. Replace a worn valve to restore precise burner control and safe operation on your gas range or cooktop.

• Regulates gas to the burner as the control knob turns, from low simmer to full flame
• Common symptoms: burner won't light though the igniter sparks, flame won't adjust or shut off, gas odor near the knob, or a stiff/stripped valve stem
• Services one burner position; multiple valves are used on many gas ranges/cooktops
• Installs in the burner manifold/orifice holder location specified by the manufacturer

• Disconnect power and shut off the gas supply before servicing
• Note stem orientation; transfer fittings/brackets from the original valve as needed and use approved thread sealant where specified
• After installation, leak-test all joints with an approved solution before restoring gas
• Verify proper ignition and flame adjustment on the burner after replacement

The Round Valve Burner 140 is an OEM part for GE gas ranges. It regulates gas flow to a tubular burner ring, enabling tempered cooking performance.

Causes of failure include mineral buildups obstructing valve ports, worn sealing edges letting gas escape, or broken internal components.

Symptoms of a bad round valve burner are:

• Inaccurate or indistinct burner flame patterns
• Inability to maintain consistent flame heights
• Responsiveness issues adjusting burner temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

The Round Valve Burner is an OEM component specifically designed for GE gas ranges. Each burner delivers flame through a round metal valve that is mounted below the cooktop surface.

Symptoms of a bad burner include:

• Inability to ignite or an intermittent flame
• Irregular or unpredictable flame size regardless of control knob position
• Yellow flame or flame that encompasses the burner entirely instead of staying centered
• Gas smell emitting from the burner area when in use

Causes of burner failure can be a buildup of residue or debris in the valve mechanism over many years, wear and tear of internal parts like the thermocouple or orifice, or physical damage.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore gas ranges.

This is a surface burner control valve assembly for a gas range. It regulates gas flow to a standard ("normal") burner, allowing precise flame control from low to high for consistent cooking performance.

• Controls and modulates gas flow to a standard surface burner
• Worn valves may cause hard-to-turn knobs, inconsistent flame, popping, or burner not lighting or not shutting off properly
• Restores smooth knob operation and steady flame adjustment

• Disconnect power and shut off gas before servicing
• Note knob orientation and valve position before removal
• Check for gas leaks with a leak-detection solution after installation

This oven safety valve bracket secures the gas safety valve in place to keep the valve aligned and stable during operation. It replaces a worn, bent, or broken bracket to help maintain safe, consistent gas valve positioning. What it does:

• Holds the oven gas safety valve securely to the chassis to prevent movement or misalignment
• Helps maintain consistent valve positioning for reliable burner operation
• Commonly replaced when the bracket is cracked, bent, or missing hardware

• Always shut off gas supply and disconnect power before servicing gas components
• Remove access panels to reach the valve; retain all fasteners for reassembly
• Check valve alignment and gas connections after installation; do not overtighten mounting hardware

The Burner/Oven Assembly is an OEM part for GE gas ranges. It holds ignition and valve components over lower cooking surfaces.

Causes of failure include deterioration of high-temperature seals from repeated heating cycles, stripped mounting points from frequent removal/cleaning access, and impact damage to housing structures.

Symptoms of a faulty burner/oven assembly are:

• Gas leaks around burner bases or control knobs
• Unstable or irregular flame sizes lacking responsiveness
• Potential safety hazards from exposed connections or cracks

This OEM part is compatible with Hotpoint and RCA gas range models as well.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

This manifold supply tube assembly is the pre-formed gas line that feeds the burner manifold in your gas range or cooktop. Replacing a damaged or leaking tube restores safe, consistent gas flow so burners can ignite and operate properly.

• Routes gas from the appliance inlet/regulator to the burner manifold
• Restores proper gas delivery if the original tube is cracked, kinked, or corroded
• Helps with symptoms such as multiple burners not lighting, weak/uneven flames, or a gas odor near the manifold area
• Pre-bent OEM geometry ensures correct routing and fit

• Shut off gas supply and disconnect power before servicing
• Work in a well-ventilated area; keep open flames and sparks away
• Do not bend or modify the pre-formed tube; ensure flare fittings seat squarely
• After installation, leak-test all connections with an approved leak-detection solution.
