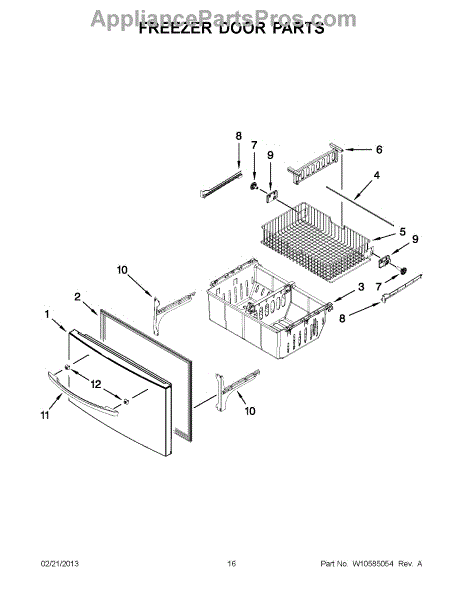

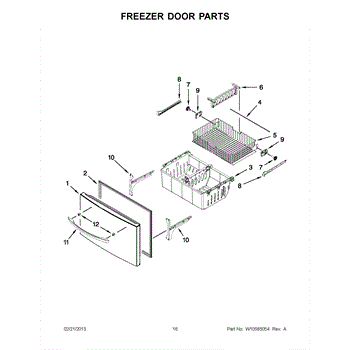

Parts for Whirlpool WRX735SDBM00: 08 - Freezer Door Parts

The Freezer Door Gasket is an OEM part for Whirlpool refrigerators. It provides a secure seal around the freezer door, helping to maintain the internal temperature and ensure efficient operation by preventing warm air from entering the freezer compartment.

You should replace the freezer door gasket if it becomes worn out, torn, or damaged. Causes of a bad door gasket can include general wear and tear, frequent opening and closing of the freezer door, or exposure to extreme temperatures.

Symptoms of a bad freezer door gasket include:

• Frost buildup inside the freezer
• The freezer not maintaining a consistent temperature
• Increased energy consumption
• The freezer door not closing properly or sealing tightly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This lower freezer bin replaces a damaged or missing drawer to keep frozen items organized and easy to reach. Designed for the freezer's lower position, it restores secure storage and smooth drawer use.

• Holds and organizes frozen foods in the lower freezer section
• Replaces cracked, warped, or missing bin
• Helps maintain proper drawer alignment and movement
• Addresses issues like broken tabs, wobbling, or difficulty opening/closing due to a damaged bin

• Disconnect power and remove freezer contents before starting
• Fully extend the drawer, lift the old bin up and out, and set the new bin in place
• Ensure the bin is seated flat and moves freely
• Transfer any reusable trim or inserts from the original bin if needed

This replacement shaft is the mechanical link that transmits rotation and keeps aligned parts moving together inside your appliance. Replacing a worn or stripped shaft restores smooth, reliable operation of the connected mechanism. What it does:

• Transfers motor or gear torque to the mated component
• Maintains alignment and support within the assembly
• Helps ensure smooth engagement of gears, levers, or augers
• Common symptoms of a failed shaft: connected part won't turn or slips, intermittent operation, grinding/clicking noises, or visible wobble/play at the interface

• 1 shaft

• Disconnect power before servicing; shut off water supply if applicable
• Note the original orientation and take photos to aid reassembly
• Inspect mating gears/bushings for wear and replace if needed to prevent rapid re-failure
• Align any flats/splines and seat the shaft without forcing; tighten fasteners to manufacturer guidance

This freezer basket is a replacement storage bin that organizes frozen foods and keeps items accessible. It restores usable freezer space and helps prevent loose items from shifting or blocking airflow inside the compartment. What it does:

• Holds and organizes frozen foods for easy access and stacking
• Keeps smaller or loose items contained to prevent shifting during drawer movement
• Helps maintain airflow by keeping items off walls and away from vents
• Replaces cracked, warped, or missing baskets that can snag or spill contents

• One freezer basket assembly

• Unplug the appliance or disconnect power before beginning work
• Empty the freezer section and remove any shelves or drawers that obstruct access
• Slide the basket into the existing rails or support ledges until it seats; avoid forcing it
• If fasteners or brackets are present, reinstall them securely; inspect rails/holders for damage

The Drawer Glide Gear is an OEM part for Whirlpool refrigerators. This part ensures the smooth operation of refrigerator drawers, allowing them to slide in and out with ease. This gear mechanism is vital for the user-friendly access to stored food items, contributing to the efficient organization and optimization of space within the refrigerator.

Causes for replacement include physical damage such as cracks or breakage, wear that impedes smooth operation, or a malfunction that prevents drawers from opening or closing properly.

Symptoms of a bad Drawer Glide Gear include:

• Difficulty in sliding the refrigerator drawers
• Uneven movement or jamming of the drawer
• Noise when opening or closing the drawer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This spur gear is part of the appliance's drive assembly, transferring motor power to mating components. Replacing a worn or stripped gear restores smooth, consistent motion and helps eliminate grinding, slipping, or no-drive issues. What it does

• Transfers rotational power within the drive mechanism
• Maintains proper engagement with mating gear(s) for smooth operation
• Common failure symptoms: grinding/clicking noises, slipping or stalled movement, irregular motion
• Visual clues: rounded, chipped, or missing teeth

• One spur gear

• Disconnect power; turn off water supply before service
• Access the drive assembly and note gear orientation and any shims/washers during disassembly
• Inspect mating gears, bushings, and bearings; replace any worn components to prevent rapid re-failure
• Apply manufacturer-specified grease if required and tighten fasteners per service information

The Drawer Slide Rail is an OEM part for Whirlpool refrigerators. It allows movement of the refrigerator drawer.

A bad drawer slide rail can be caused by regular use, wear and tear, or accidental damage. If you experience issues such as the drawer sticking, not sliding smoothly, or falling off the rail, it may indicate a problem with the slide rail.

Symptoms of a bad drawer slide rail include:

• Difficulty in opening or closing the refrigerator drawer
• Uneven or jerky movement of the drawer
• Drawer falling off or not staying in place

Replace your faulty drawer slide rail with this genuine OEM part to restore your refrigerator.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Side Rack is an OEM part for refrigerators. It is designed to ensure movement of the freezer drawer, allowing easy access to frozen items.

A bad freezer drawer slide rail can be caused by regular use, wear and tear, or accidental damage. If you notice issues such as the freezer drawer sticking, not sliding smoothly, or falling off the rail, it may indicate a problem with the slide rail.

Symptoms of a bad drawer rail include:

• Difficulty in opening or closing the freezer drawer
• Uneven movement of the drawer
• Freezer drawer falling off

Replace your faulty freezer drawer slide rail with this genuine OEM part to restore smooth functionality and convenient access to your frozen goods.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


Left side mount

Right side mount

This right-hand slide bracket secures and supports a cabinet or drawer slide assembly so drawers and shelves open and close smoothly. It restores alignment and support for proper sliding action. What it does:

• Anchors the right-side slide or rail to the cabinet frame or drawer assembly
• Keeps the slide aligned to prevent binding, sagging, or uneven travel
• Helps restore smooth opening and closing when the drawer or shelf sticks
• Works with the existing slide/rail hardware; replaces damaged or broken brackets

• One right-hand slide bracket

• Turn off power to any nearby powered components and remove contents before starting
• Remove the drawer or shelf to access the bracket
• Typical installation requires basic hand tools (screwdriver or nut driver) and original fasteners; retain screws for reuse unless replacement is specified
• Inspect mating slide/rail and adjacent brackets for wear and replace any damaged components to ensure proper function

This left-side slide bracket secures and guides a sliding assembly so drawers or components open smoothly and stay aligned. It replaces a worn or broken bracket to restore proper support and reduce binding or sagging. What it does:

• Provides structural support for the left side of a sliding drawer/assembly
• Keeps slides aligned so the drawer opens and closes smoothly
• Helps stop sagging, catching, or uneven movement of the sliding part
• Replaces cracked, bent, or damaged brackets that interfere with operation

• Disconnect power and/or unplug the appliance before starting any repair
• Remove any outer panels or drawer components as needed to access the bracket
• Keep original fasteners; install bracket in the same orientation and tighten screws securely but do not overtighten
• If movement still feels restricted after replacement, check mating slide components and alignment

The Door Handle Mounting Screw is an OEM part for Whirlpool refrigerators. It secures the door handle to the refrigerator door.

Causes of a bad door handle mounting screw can include wear and tear over time, improper installation, or excessive force applied to the handle. These factors can result in a loose or wobbly handle, compromising the functionality and aesthetics of your refrigerator.

Symptoms of a bad door handle mounting screw may include:

• A loose or unstable handle
• Difficulty in opening or closing the refrigerator door
• The handle becoming detached

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
