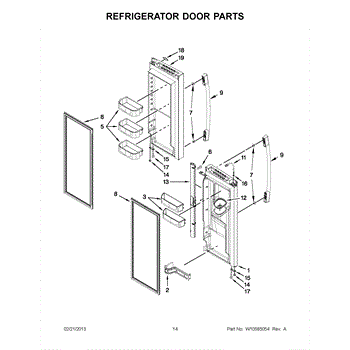

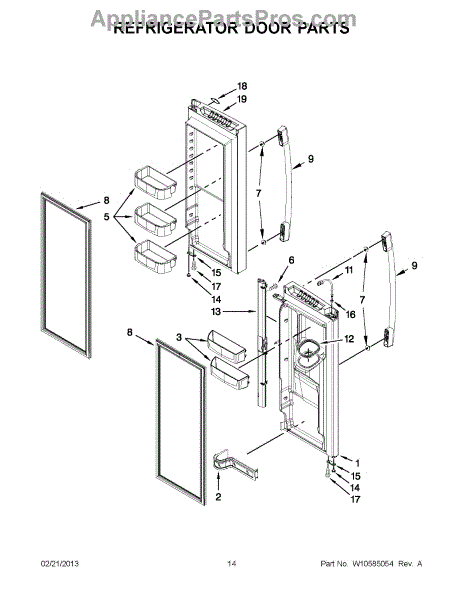

Parts for Whirlpool WRX735SDBM00: 07 - Refrigerator Door Parts

This refrigerator door shelf bin mounts in the left-hand, upper position on the door. Replace a cracked or missing bin to restore secure, organized storage for small items and help keep containers from tipping when the door opens.

• Provides shelf storage on the door for condiments and small items
• Designed for the left-hand, upper door position on applicable models
• Helps keep items upright and reduces spills during door movement
• Replace if the bin is cracked, tabs are broken, or it won't stay seated

• Remove the old bin and clear the area
• Align the new bin with the left-hand upper door rail slots and push down until it snaps securely in place
• Handle carefully; let plastic warm to room temperature to reduce risk of cracking
• Wear gloves to protect hands from sharp or broken plastic

The Cantilever Bin is an OEM part for Whirlpool refrigerators. It attaches to the inner door panel, providing adjustable and accessible storage for various items like condiments, jars, and drinks. This bin measures approximately 14 by 4-1/4 by 3-3/8 inches

Causes of a bad Cantilever Bin can include cracking due to overloading or impact, wear and tear from regular use, and damage from harsh cleaning chemicals that can weaken the plastic. It's also possible for the mounting hooks to break, which would prevent the bin from securely attaching to the refrigerator door.

Symptoms of a bad Cantilever Bin include:

• Difficulty in securing the bin to the door
• Visible cracks or stress marks in the plastic
• Sagging or leaning when the bin is loaded
• The bin detaching from the door unexpectedly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Bin is an OEM part for Whirlpool refrigerators. It attaches to the inside of the refrigerator door, offering convenient storage for condiments, bottles, and other items, maximizing space and keeping your refrigerator organized. This bin is designed to be easily removable for cleaning and adjusting storage needs. The bin measures about 16 inches wide by 6 inches high by 8 inches deep.

Symptoms of a failing door bin include:

• Cracks or breaks in the plastic.
• The bin becoming loose or unable to properly attach to the door.
• Sagging or bending under weight, indicating a loss of structural integrity.

Common causes of damage to the door bin often include overloading with heavy items, frequent removal and reattachment, or impacts during cleaning. Replacing a damaged or broken bin is essential for maintaining the functionality and appearance of your refrigerator's interior.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

The Door Handle Mounting Screw is an OEM part for Whirlpool refrigerators. It secures the door handle to the refrigerator door.

Causes of a bad door handle mounting screw can include wear and tear over time, improper installation, or excessive force applied to the handle. These factors can result in a loose or wobbly handle, compromising the functionality and aesthetics of your refrigerator.

Symptoms of a bad door handle mounting screw may include:

• A loose or unstable handle
• Difficulty in opening or closing the refrigerator door
• The handle becoming detached

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The French Door Gasket is an OEM part for Whirlpool refrigerators. It is designed to create a tight seal around the edges of the refrigerator's French doors, preventing warm air from entering and cool air from escaping. This gasket helps to maintain the internal temperature, ensuring energy efficiency and keeping food fresh for longer periods.

You should replace the French door gasket if it becomes damaged or worn out. Causes of a bad gasket can include regular wear and tear, exposure to temperature fluctuations, or physical damage such as tears or deformities. A compromised gasket can lead to air leaks, increased energy consumption, and reduced cooling efficiency.

Symptoms of a bad French door gasket include:

• Visible cracks, tears, or deformities in the gasket
• Condensation or frost buildup around the door edges
• The refrigerator door not sealing properly or feeling loose
• Increased energy bills due to inefficient cooling

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Stainless

The Door Handle is an OEM part for Whirlpool refrigerators. It is a component that facilitates easy access to the fresh food and freezer compartments. The handle interfaces directly with users to open and close refrigerator doors.

Causes of a bad door handle can include wear and tear over time from repeated use, or damage such as cracks, chips or breaks from accidental impact. Temperature fluctuations from frequent door openings can also cause handles to warp or fail prematurely.

Symptoms of a bad refrigerator door handle include:

• Difficulty opening or closing the refrigerator door
• The door not latching securely
• Internal components like springs or cables becoming loose or worn

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This water tube routes cold water from the household line to the refrigerator door dispenser, restoring reliable dispensing and preventing leaks at the door. Durable tubing designed for direct connection to dispenser fittings. What it does:

• Carries cold water from the inlet to the door-mounted dispenser assembly.
• Replaces cracked, pinched, or kinked tubing that causes leaking or poor flow.
• Helps stop slow or intermittent dispensing caused by damaged or collapsed tubing.
• Keeps the dispenser water path sealed when properly installed.

• Shut off the refrigerator and turn off the water supply before starting.
• Inspect and replace any damaged fittings or O-rings; tighten connections to prevent leaks.
• Route tubing without sharp bends or kinks; trim cleanly if shortening is required.

The Ice Chute Seal is an OEM part for Whirlpool refrigerators, specifically designed to maintain the efficiency and functionality of the ice dispenser system. This crucial component creates a tight seal around the ice chute, preventing cold air from escaping the freezer compartment and blocking warm air from entering.

Causes of a bad ice chute seal can include regular wear and tear, exposure to temperature fluctuations, and repeated opening and closing of the ice chute. A compromised seal can lead to air leaks, causing ice to melt or form frost around the dispenser area.

Symptoms of a bad Ice Chute Seal include:

• Frost or ice buildup around the ice chute area.
• Increased energy consumption as the refrigerator works harder to maintain its internal temperature.
• Moisture or water leakage around the dispenser, indicating air leaks.
• Difficulty dispensing ice, possibly due to frost or ice blockages.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This door mullion forms the pivoting center rail between the refrigerator's French doors. It flips closed to complete the door seal, helping prevent air leaks, condensation, and temperature swings in the fresh food section.

• Provides the center rail that bridges the gap when the doors close and flips open with either door
• Helps maintain a proper door seal to reduce warm air infiltration and moisture buildup
• Common signs of failure: broken or loose flap, won't flip or stay engaged, doors not closing evenly, condensation or frost near the center seal
• Restores smooth operation of the door stop and sealing surfaces

• Disconnect power before servicing
• Clear door bins and support the door to prevent strain while working
• Remove mounting screws/covers; note spring orientation and any clips on the old mullion
• Transfer hardware if needed, align and secure the new mullion, and verify it flips and seals smoothly

The Door Closer is an OEM part for Whirlpool refrigerators. This component ensures that the refrigerator door closes smoothly and securely, maintaining the seal that keeps cold air inside and warm air out. The door closer helps to prevent the door from remaining ajar, which can lead to increased energy consumption and reduced cooling efficiency.

Causes of a bad door closer can include regular wear and tear, physical damage from repeated use, or misalignment. A malfunctioning door closer can result in the refrigerator door not closing properly, leading to cooling issues and higher energy bills.

Symptoms of a bad door closer include:

• The refrigerator door not closing or sealing properly
• The door not staying closed
• Warm air entering the refrigerator, causing the interior temperature to rise
• Increased energy consumption due to the door not sealing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This door stop limits the door's travel to its intended range, helping prevent overextension that can stress hinges or damage adjacent cabinetry. Replacing a worn or broken stop restores smooth, controlled door operation.

• Limits door opening/closing travel to protect hinges and alignment
• Helps maintain proper seal and fit by preventing overextension
• Replaces cracked, worn, or missing stop that allows excess movement
• Typical symptoms include door opening too far, a hard "clunk" at full travel, or visible damage to the stop

• Disconnect power; also shut off the water supply
• Support the door while servicing the hinge/stop to avoid strain
• Note the original orientation and transfer/secure fasteners firmly
• Open/close the door slowly to ensure smooth movement and proper stop action

This left door bushing supports a refrigerator/freezer door hinge for smooth, stable operation and helps prevent wear and noise. It restores proper door movement and alignment when the original bushing is worn or damaged. What it does:

• Guides and cushions the door hinge to reduce friction and wear
• Helps stop door binding, sticking, or misalignment
• Reduces squeaks and rattles from a loose or worn hinge area
• Maintains consistent door pivot for reliable opening and closing

• Disconnect power to the appliance before attempting any repair.
• Access may require removing the door or hinge trim; follow manufacturer instructions.
• Inspect hinge and surrounding parts for wear; replace any damaged hardware for best results.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing
