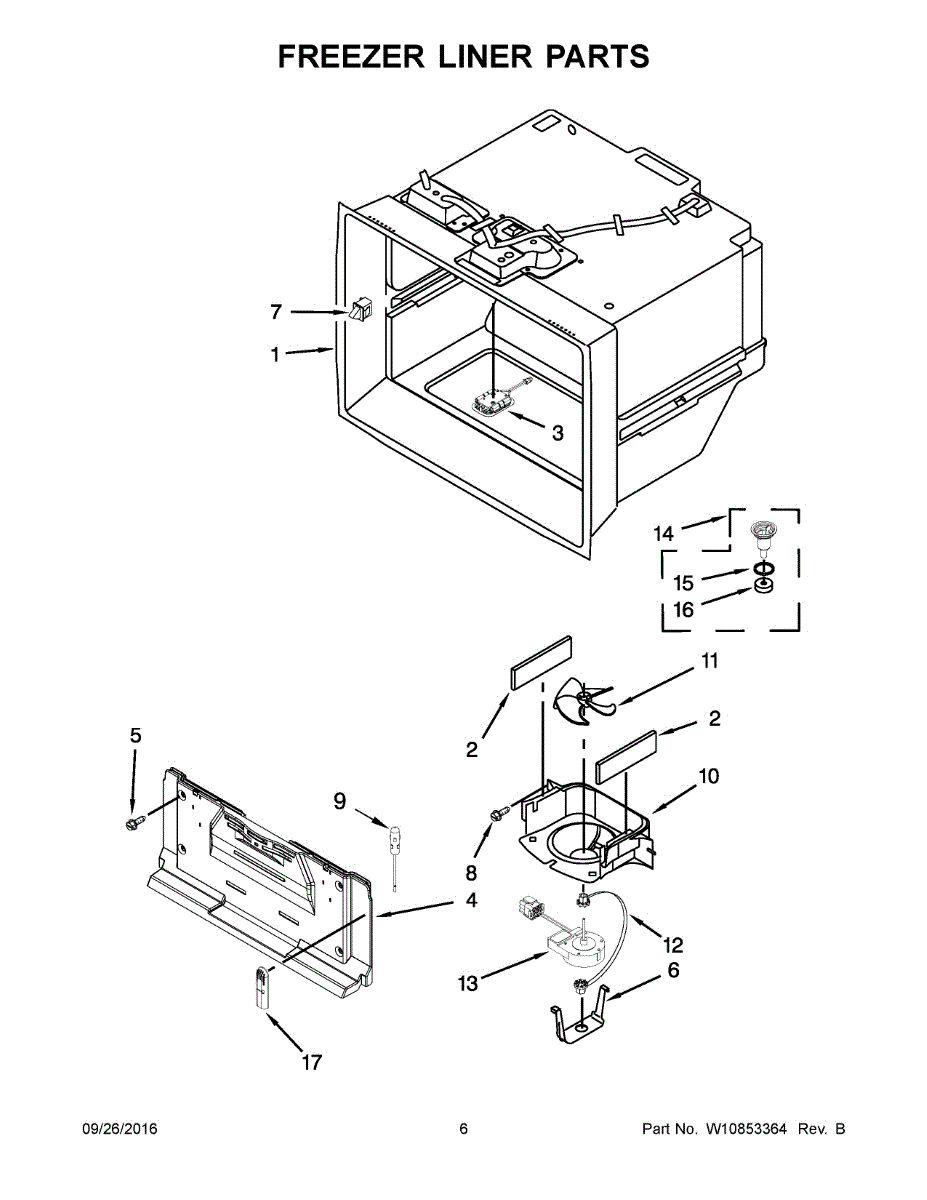

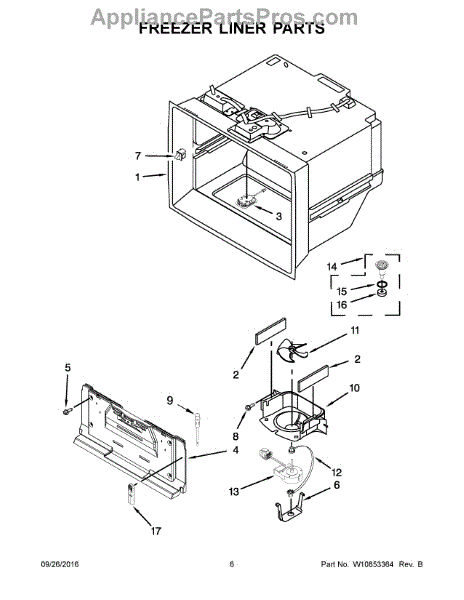

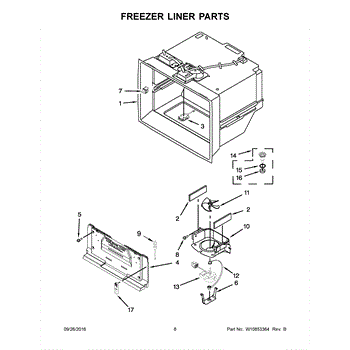

Parts for Kitchenaid KRMF606ESS01: 04 - Freezer Liner Parts

The LED Light Module Kit is an OEM part compatible with Whirlpool refrigerators and freezers. The kit contains 12 LED lights to replace all LEDs within the refrigerator. Within the interior cavity, this module evenly illuminates the compartment to visually check contents. LED technology provides a cool, energy-efficient light source.

Causes of a bad light module can include failure of individual LED bulbs over time, wires detaching from the circuit board, or damage from moisture intrusion.

Symptoms of a bad LED light module include:

• Dim, flickering, or completely non-functional lighting
• Hot spots or sections of the module not illuminating
• Audible buzzing or humming from internal electronics

This replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This evaporator cover is the molded shroud that protects the freezer evaporator and helps direct airflow for consistent cooling. It replaces a damaged or missing cover to reduce frost buildup and improve temperature performance. What it does:

• Shields the evaporator coil from physical damage and debris
• Directs airflow over the evaporator for more even cooling
• Helps reduce frost buildup and ice forming on the coil
• Can reduce vibration/noise caused by loose or broken shrouds
• Addresses symptoms like excessive frost, uneven temperatures, or unusual freezer noise

• Always disconnect power to the appliance before beginning any repair
• Remove food, shelving, and interior panels as needed to access the evaporator compartment
• Handle carefully to avoid bending the evaporator coil or damaging mounting tabs
• Defrost and dry the area before installing the new cover

Size: 8 x 1-1/4 inch.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This evaporator fan shroud directs air from the evaporator coil into the cabinet and protects the fan assembly for consistent cooling performance. It helps maintain proper airflow and reduces fan noise when installed correctly. What it does:

• Channels air across the evaporator coil to improve cold-air circulation in the compartment
• Protects the evaporator fan motor and blade from contact with ice and debris
• Helps reduce rattling or whistling caused by loose or damaged housings
• Can help address uneven cooling or warmer temperatures when the original shroud is cracked or missing

• (1) evaporator fan shroud / fan housing

• Disconnect power to the appliance before starting any repair
• Remove interior panels and the evaporator cover to access the fan area; keep track of fasteners
• Inspect mounting tabs and gaskets; replace any damaged hardware for a secure fit
• Reassemble panels fully and restore power; verify fan runs and airflow is unobstructed

This evaporator fan blade mounts on the freezer fan motor to move air across the evaporator coils and circulate cold air through the cabinet, helping maintain proper temperatures when the original blade is cracked, warped, or missing.

• Circulates air over the evaporator coils for efficient heat removal and even cooling
• Helps restore airflow between freezer and fresh food sections
• Addresses symptoms such as weak/no airflow from vents, rising temperatures, or rattling/scraping noises from the freezer area
• Replaces a damaged blade that wobbles or rubs the shroud

• Disconnect power; remove freezer shelves/bins and the rear panel to access the fan assembly
• Pull the old blade straight off the motor shaft; avoid prying on or bending the shaft
• Match the orientation of the original and press the new blade onto the shaft until fully seated with clearance to the shroud
• Spin by hand to ensure free movement; reassemble panels and restore power

This rubber grommet cushions and seals a wiring, hose, or shaft opening to help prevent abrasion, reduce vibration, and maintain a snug fit for quieter, safer appliance operation. What it does:

• Protects wiring, hoses, or moving shafts from chafing and wear
• Helps seal openings to limit water, air, or lint intrusion
• Dampens vibration and reduces noise where panels or components meet
• Worn or damaged grommets can cause rubbing sounds, visible wear, loose hoses, or leaks

• Disconnect power (and water if applicable) before beginning any repair
• Push-fit replacement in most applications; a small screwdriver or needle-nose pliers can help with removal or alignment
• Inspect surrounding seals, hoses, and mounting surfaces and replace damaged parts as needed

This evaporator fan motor spins the internal fan that moves air across the evaporator and throughout the refrigerator. Replace a weak, noisy, or stalled motor to restore proper airflow, consistent temperatures, and quieter operation.

• Circulates air over the evaporator coils and through the vents to cool the compartments
• Helps maintain even, stable temperatures throughout the cabinet
• Common failure symptoms: little or no airflow from vents, warming in the fresh food section, intermittent or loud fan noise, or the fan not running

• Disconnect power before servicing; wear cut-resistant gloves.
• Access the motor behind the interior rear panel near the evaporator; use care around sharp fins and wiring.
• Unplug the wire harness; transfer the existing fan blade and mounting hardware to the new motor as needed. Ensure correct blade orientation and free rotation.
• After reassembly, depress the door switch to verify the fan runs before replacing shelves and contents.

The Drain Funnel is an OEM part for Whirlpool French door refrigerators. It serves as the sloped plastic strainer that guides water from the evaporator coils s it into the drip pan below.

Causes of a faulty Drain Funnel include cracks or punctures developing from continuous use transferring water weight. Mineral deposits or food particles that gradually collect on funnel surfaces could restrict proper drainage as well over time.

Symptoms involve:

• Puddling or spilled water inside refrigerator interiors
• Uncontrolled leaks potentially damaging other components
• Restricted airflow if funnel clogs from sediment buildup
• Musty odors developing without efficient drainage management

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This O-ring seal provides a watertight seal for the appliance's water path, helping prevent leaks and maintain proper operation. Use this exact replacement when the original ring is cracked, flattened, or worn. What it does:

• Creates a pressure-tight seal at a water connection to stop drips and leaks
• Keeps water contained inside hoses, valves or pump fittings
• Restores proper sealing when the original O-ring becomes brittle or deformed
• Helps prevent water damage to cabinetry and flooring from appliance leaks

• One O-ring seal

• Turn off power and water supply before beginning any repair
• Remove the old O-ring and clean mating surfaces of debris and buildup
• Inspect the groove or fitting for damage; replace the part if the mating surface is scored
• If needed, use a small amount of manufacturer-recommended lubricant to ease installation and protect the O-ring

This drain tube gasket seals the connection between the drain tube and its mating port to prevent leaks. A tight seal helps keep water where it belongs and protects surrounding components from moisture damage.

• Creates a watertight seal at the drain tube connection point
• Can help address water leaks around the drain area
• Deterioration, cracking, or hardening of the old gasket may cause seepage
• Replacing a worn gasket can restore proper leak prevention

• Unplug the appliance and shut off water supply before service
• Place a towel or pan to catch residual water when disconnecting the tube
• Inspect the tube and mating surfaces; clean before installing the new gasket
• Do not overtighten fittings; verify a snug, even seal and check for leaks on first run
