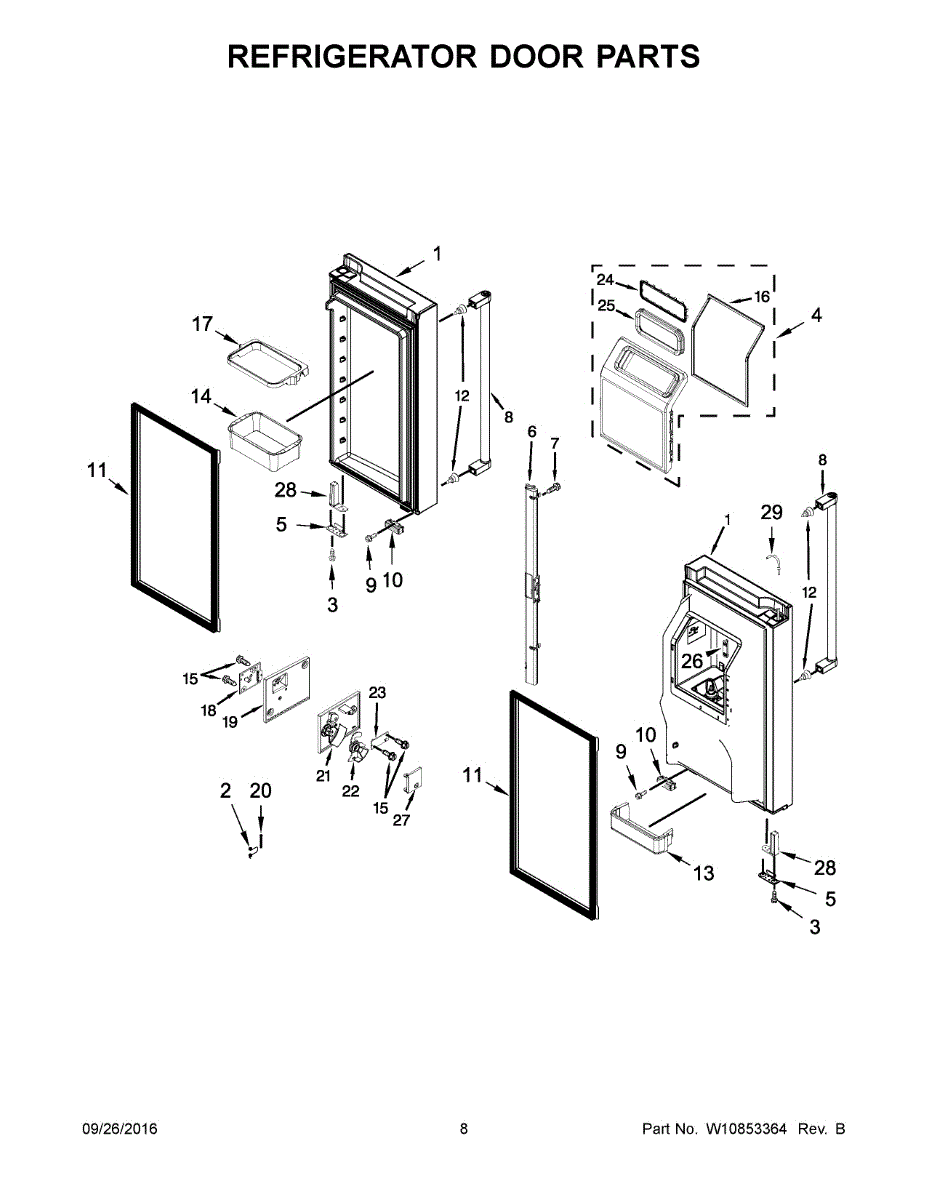

Parts for Kitchenaid KRMF606ESS01: 05 - Refrigerator Door Parts

This flipper spring returns the refrigerator's ice dispenser door (chute flapper) to the closed position after dispensing. It helps keep warm air and moisture out to minimize frost at the chute and reduce ice clumping in the bin.

• Provides the closing tension for the ice chute door/flapper
• Helps maintain a proper seal at the dispenser opening
• If worn or broken, you may notice the flapper not closing fully
• Frost/condensation around the chute or ice clumping in the bucket may occur

• Disconnect power to the refrigerator before servicing
• Remove dispenser trim/control to access the ice chute door assembly; note spring orientation and anchor points
• Install the new spring in the same orientation; the flapper moves freely and closes under spring tension
• Wear gloves and use caution—metal edges in the dispenser area can be sharp

This factory screw fastens appliance components securely. Replacing a missing, stripped, or rusty screw helps stop rattles, keep panels and brackets aligned, and restore a solid, as-designed fit.

• Secures panels, brackets, and trim to the appliance cabinet or frame
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces damaged, corroded, or missing hardware
• Can resolve loose or shifting components

• Disconnect power and shut off gas/water to the appliance before service.
• Use the correct driver; start threads by hand to avoid cross-threading and do not overtighten.
• Install in the original location and match the OEM fastener type specified in your model's parts diagram.

This ice door is the refrigerated freezer dispenser door that directs ice from the dispenser chute and helps keep cold air in the ice chute to reduce clumping. It replaces damaged, cracked or sticking dispenser doors. What it does:

• Seals the ice chute to retain cold air and help prevent ice from melting or clumping
• Opens and closes to allow cubes/crushed ice to pass into the dispenser
• Prevents debris from entering the ice chute when closed
• Restores a smooth, leak-free ice dispensing action and reduces jams

• One ice door assembly

• Turn off power to the refrigerator before starting work
• Handle plastic parts carefully to avoid cracking; use gentle prying where needed
• Verify proper alignment and full travel of the door after installation

This mullion rail is the exterior trim piece that finishes and reinforces the appliance door opening, restoring a clean, sealed appearance and helping the door meet the cabinet face correctly. It's a direct-fit replacement for the factory trim. What it does:

• Provides the finished trim around the door opening and helps align the door edge
• Helps maintain a tighter door seal and keeps edges protected from wear
• Restores proper appearance after damage, cracks, or missing trim
• Commonly replaced when the door shows visible trim damage or separation

• Install with the appliance powered off; follow manufacturer's service manual for disassembly steps
• Require removal of adjacent trim pieces or screws; handle parts to avoid scratching finished surfaces
• Reuse factory fasteners if undamaged or replace with OEM fasteners

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This door bumper cushions the door against the frame to prevent metal-to-metal contact. Replacing a worn or missing bumper restores smooth, quieter closing and helps protect surfaces from chips, scuffs, and vibration.

• Absorbs impact where the door meets the cabinet/frame
• Reduces slamming noise and vibration during closing
• Helps protect paint, glass, and trim from wear
• Typical symptoms: missing/cracked bumper, loud clunk when closing, marks on frame, rattling

• Disconnect power and, if applicable, shut off gas/water; allow hot surfaces to cool
• Open the door to access the bumper location
• Remove the worn bumper and clean the contact area for proper seating
• Install the new bumper fully seated and aligned; test door operation

The Door Gasket is an OEM part for Whirlpool refrigerators. It creates an essential seal around the refrigerator door, helping to maintain cool interior temperatures and energy efficiency.

Causes of a bad door gasket can include cracks, tears, or compressions from repeated closing of the door over many years of use. Exposure to heat or sharp objects may also damage the sealing material.

Symptoms of a bad door gasket include:

• Ineffective sealing allowing warm air into the refrigerator
• Increased cooling requirement from the compressor to maintain temperatures
• Frost or moisture buildup around the door seal
• Gaps are visible along the door frame where the gasket makes contact

Color: Grey

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Door Handle Mounting Screw is an OEM part for Whirlpool refrigerators. It secures the door handle to the refrigerator door.

Causes of a bad door handle mounting screw can include wear and tear over time, improper installation, or excessive force applied to the handle. These factors can result in a loose or wobbly handle, compromising the functionality and aesthetics of your refrigerator.

Symptoms of a bad door handle mounting screw may include:

• A loose or unstable handle
• Difficulty in opening or closing the refrigerator door
• The handle becoming detached

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Trivet is an OEM part for Whirlpool refrigerators. It is responsible for providing convenient storage within the refrigerator door for items that need to be easily accessible, such as condiments, drinks, eggs, and other small items. The door bin is designed with adjustable shelves and dividers to accommodate containers of various sizes and shapes.

Causes of a bad door bin can include wear and tear over time, broken or cracked shelves, or damage to the bin itself.

Symptoms of a bad door bin include:

• Items falling through cracks or gaps in the bin
• Shelves that no longer support weight
• Difficulty inserting or removing the bin due to misalignment

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Bin is an OEM part for Whirlpool side-by-side refrigerators. Located internally on the refrigerator door, it provides convenient storage for taller items like bottles and cartons.

Symptoms of a faulty door bin include:

• Cracked or broken plastic that causes items to fall out
• Detached or loose mounting brackets unable to securely hold the bin
• Warped or collapsed bin walls reducing usable capacity

Causes can be normal wear and impact damage over time from loading/unloading. Temperature fluctuations may also cause brittle plastic to crack or warp.

This OEM replacement is compatible with additional Whirlpool, Maytag, and some Kenmore side-by-side models.

6 - 19 x .250

This gasket seals the ice compartment door to help maintain proper cold temperatures and reduce frost or moisture buildup inside the ice storage area. A worn seal can let warm air in and harm ice quality. What it does:

• Seals the ice compartment door to help keep ice cold and dry
• Helps reduce frost buildup and excess condensation inside the compartment
• Can improve cooling consistency and reduce strain on the refrigerator
• Common symptom fix: visible gaps, torn or compressed seal, frost or melting in the ice area

• One ice compartment door gasket

• Clean the door surface and channel before installing to ensure a proper seal
• Press the gasket into the door channel evenly, working around the perimeter for a uniform fit
• If needed, loosen or remove the door per the manufacturer's instructions for easier access
• Avoid sharp tools that could damage the gasket; check the seal after installation and allow time for it to fully seat

The Frame-Shelf is an OEM part for Whirlpool refrigerators. It is a sturdy plastic frame and shelf that provides organization and storage space inside the refrigerator door. The frame-shelf is designed to hold condiments, snacks, beverages, and other small food items that need frequent access. It assists in keeping these items within easy reach and in view while also preventing them from toppling over during opening and closing of the refrigerator door.

Causes of a bad frame-shelf can be normal wear and tear from frequent usage, accidental damage due to dropping heavy items, or stresses from overloading the shelf's weight capacity.

Symptoms of a bad frame-shelf include:

• Cracking or breaking of the plastic material
• Difficulty installing or removing items due to a poorly fitting shelf
• Warping or bending of the frame over time

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

A small replacement pin that secures the flipper emitter assembly, restoring correct movement and alignment so the flipper can engage and operate reliably. Ideal when the original pin is bent, worn, or missing. What it does:

• Holds the flipper emitter or lever in place so the mechanism can pivot correctly
• Restores proper movement when a loose or broken pin causes misalignment
• Helps stop clicking, scraping, or intermittent operation related to a damaged fastener
• Serves as a direct-fit replacement designed for the OEM emitter/lever assembly

• One replacement pin as shown

• Disconnect power to the appliance before beginning any repair
• Handle small parts carefully; keep screws and pins organized during disassembly
• Use basic hand tools; no special tools or adhesives are typically required

This replacement cover is a molded housing piece that protects internal components and restores the appliance's exterior appearance. It keeps wiring and controls shielded while helping reduce noise and debris entry. What it does:

• Protects internal components and wiring from physical damage and contamination
• Helps reduce vibration noise and rattling by covering exposed parts
• Restores a finished appearance to the appliance cabinet or control area
• Can prevent loose parts from shifting during operation

• Disconnect power (unplug appliance or switch off breaker) before beginning service
• Use basic hand tools; support the appliance panel while removing fasteners
• Handle with care to avoid scratching painted surfaces or breaking tabs

This slide is the replacement rack glide that helps a rack roll smoothly in and out of the appliance, restoring proper rack movement and preventing scraping or sticking during use. Fits where the factory rack glide has worn or broken. What it does

• Provides a smooth track for a rack to slide in and out without binding
• Replaces cracked, worn or missing glide that causes rubbing or uneven movement
• Helps keep the rack properly aligned during loading and unloading
• Reduces noise and drag from a damaged or missing glide

• One replacement slide/rack glide

• Remove power supply or disconnect appliance before starting any repair
• Access the glide by sliding the rack out and removing any retainer clips or screws as required
• Snap or screw the replacement slide into place and verify smooth rack movement before restoring power
• If other rack parts are damaged, replace them to ensure proper function

This replacement retainer secures the ice chute door assembly inside the dispenser, helping maintain a proper seal and smooth ice dispensing. Use it to restore alignment and reduce frost or dripping at the dispenser opening.

• Secures the ice chute/flapper assembly within the dispenser housing
• Helps keep the chute sealed to minimize warm air entering the freezer
• Replace if the chute door is loose, misaligned, or won't stay closed
• Common symptoms include frost/ice buildup at the chute, ice not dispensing smoothly, or visible damage to the retainer

• Unplug the refrigerator and shut off the water supply before servicing
• Remove the dispenser front/escutcheon to access the chute; note part orientation
• Transfer any reusable hardware and seat the new retainer fully
• Restore power and test ice dispensing and chute door sealing

This ice dispenser chute gasket seals the opening at the freezer door's ice chute, helping block warm, humid air from entering. A proper seal reduces frost and moisture around the dispenser and helps keep ice from clumping near the chute.

• Seals the gap between the ice door/flapper and chute to limit air leaks
• Helps minimize frost, condensation, and ice buildup in the dispenser area
• Replaces a torn, flattened, or missing gasket that prevents a tight seal

• Disconnect power to the refrigerator before servicing
• Remove the dispenser front panel/escutcheon to access the ice door and chute area
• Remove the old gasket, clean the mating surfaces, and seat the new gasket evenly all around
• Ensure the ice door/flapper moves freely and seals uniformly before reassembly

This vent directs and protects an appliance's exhaust, helping airflow move from the appliance to the ductwork for safe, efficient venting. It replaces a worn or damaged exhaust outlet to restore proper ventilation. What it does:

• Provides the finished outlet for appliance exhaust, guiding airflow into the duct system
• Helps reduce backflow and air leakage when properly installed
• Prevents larger debris and physical damage at the exhaust opening
• Can correct symptoms like reduced venting efficiency, unusual airflow, or visible damage at the vent opening

• One vent outlet piece

• Disconnect power (and gas if applicable) before servicing the appliance
• Use basic hand tools; avoid over-tightening fasteners that could distort the part
• If ductwork shows heavy lint, corrosion, or damage, repair or replace ducting for best results

The Door Closer is an OEM part for Whirlpool refrigerators. It is a hydraulic piston positioned behind the refrigerator's gasket seal that controls door closing pressure.

Symptoms of a bad door closer include:

• Door not latching or staying firmly closed
• Excessive force needed to open/close the door
• Leaks occurring around door joints
• Improper cooling due to loose door seal

Causes of a bad door closer typically include dried-out fluid after years of usage stresses. Impact damage to mounting points may cause improper alignment as well.

The door closer plays a crucial role in maintaining a tight fit between refrigerator components every time the door shuts. It prevents warm air and moisture exchange for efficient energy usage.

This OEM Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Closing Cam is an OEM component used in Whirlpool side-by-side refrigerators. It is the mechanism located on the inner refrigerator door that utilizes a rotating cam configuration to gently pull the door closed.

Causes of a damaged closing cam can include stresses from opening and closing the door many times over the years. The constant motion wears down parts through normal use.

Symptoms of a faulty cam include:

• Door not latching securely in the closed position
• Loud slamming sound instead of a soft pull to close
• Cracks, fractures or a wobbly cam shaft

This Whirlpool OEM part is also compatible for use in some KitchenAid, Jenn-Air and select Kenmore refrigerator models.

The Tube is an OEM component specifically designed for Whirlpool refrigerators. It provides the critical supply and return path for water to circulate between the door dispenser components and internal water filter housing.

Causes of a bad water tube can include cracks or splits developing from repeated bending during installation/removal, mineral buildup restricting flow, or tubing becoming disconnected at connection points.

Symptoms include:

• Slow or inconsistent water dispensing
• Dripping or spraying of water from tube ends
• Inability to filter and transport water as designed

This OEM replacement tube directly replaces the original with an identical design. Compatible models include those from brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Kenmore.
