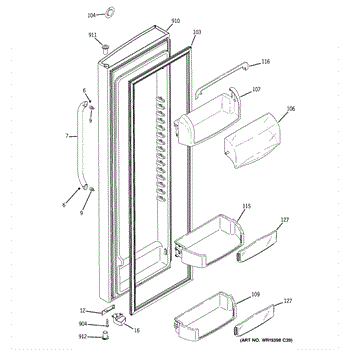

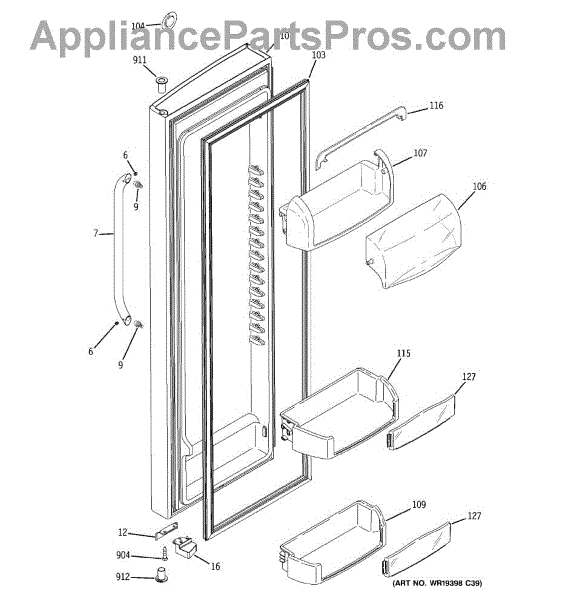

Parts for Ge DSHF6VGBBCBB: 02 - Fresh Food Door Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


The Set Screw is an OEM part for GE refrigerators. It is used to secure various components within the refrigerator, ensuring they remain firmly in place during operation.

Over time, a set screw can become worn, stripped, or lost due to regular use or during repairs. A missing or damaged set screw can lead to loose components, which may cause operational issues or even damage other parts of the refrigerator.

Symptoms of a bad Set Screw include:

• Loose or rattling components inside the refrigerator
• Difficulty in keeping parts securely fastened
• Noise coming from the area where the screw is used
• Misalignment of parts, leading to improper functioning

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This white stop door replaces the dispenser stop/door that controls access to the ice/water chute, helping restore proper dispenser operation and reduce sticking or unwanted discharge. Designed to match the original OEM fit and appearance. What it does

• Seals and releases the dispenser opening so ice or water is dispensed only when the door is actuated
• Replaces a cracked, warped, or jammed stop door that can cause sticking or partial openings
• Helps prevent accidental drips or debris entering the dispenser chute
• Restores a smooth, aligned door movement for reliable dispensing

• One white stop door

• Disconnect power to the appliance before starting any repair
• Remove dispenser housing or outer door per the service manual to access the stop door
• Inspect the actuator and mounting tabs for damage; replace if worn to ensure proper operation
• Use basic hand tools;

The Door Stop is an OEM component for GE refrigerator models. It is a small component located at the base of the refrigerator door that stops the door from opening past 90 degrees.

Symptoms of a bad door stop include:

• Door being able to open past 90 degrees
• Hitting other parts of the refrigerator or interior shelves

Causes of a bad door stop include cracking or breaking of the plastic material due to impact or excess force on the door over its lifespan. Small flaws present during manufacturing could also lead to premature wear. With its compact design and durable plastic, the door stop safely limits door movement.

This OEM GE part is also compatible with some Kenmore refrigerator models.

Fresh food side. Color: white. For the same part in black, purchase WR02X10779.

The Fresh Food Door Closure Cam is an OEM replacement part for GE refrigerators. It is a component located inside the fresh food door that works together with the door latch mechanism. The door closure cam has a pivoting arm that engages the latch to securely fasten the door shut when closed. For the same part in white, purchase WR02X10637.

Causes of failure include wear and tear over time from repeated usage, damage due to accidental mishandling of the door, or an impact that causes misalignment of the cam.

Symptoms of a bad door closure cam include:

• The refrigerator door not closing properly
• A sagging or misaligned door
• Unusual noises when opening or closing the door
• Gaps in the door seal leading to temperature inconsistencies

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fresh Food Door Gasket is an OEM replacement part for GE refrigerators. It forms an air-tight seal around the fresh food door preventing air and moisture exchange between the refrigerator interior and exterior. The gasket helps to maintain the ideal temperature and humidity levels inside for optimal food storage.

Causes of a bad gasket can include cracks, tears, or worn-away sections compromising the air-tight seal over time. Exposure to heat, moisture, or chemicals during cleaning may also degrade sealing qualities.

Symptoms of a bad gasket include:

• Cool air leaking from around the door
• Interior surfaces becoming wet or frosty
• Difficulty maintaining proper interior temperature settings

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Refrigerator Door Gasket is an OEM part for GE refrigerators. This gasket forms a seal around the refrigerator door, preventing warm air from entering and cool air from escaping, thereby ensuring optimal cooling efficiency.

You should replace the refrigerator door gasket if it becomes worn, cracked, or damaged. Causes of a bad gasket can include regular wear and tear, exposure to extreme temperatures, or damage from repeated opening and closing of the door.

Symptoms of a bad refrigerator door gasket include:

• Warm air leaking into the refrigerator
• Excessive frost build-up inside the refrigerator
• Increased energy consumption
• The refrigerator door not closing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dairy Door is an OEM replacement part for GE refrigerators. It serves as a sealed storage compartment ideal for keeping dairy and other perishable items colder longer.

Color: clear. Measures about 16 inches wide by 8 inches high.

The dairy door houses precision-engineered vents, seals, and insulation optimized for maintaining a dedicated cold zone of around 33°F. tall shelves and wide doors maximize capacity.

Symptoms of a failing door include:

• Temperature in dairy bin fluctuating outside the normal cold range
• Seals no longer provide an air-tight barrier to prevent warm air entry
• Warping, cracks, or cosmetic wear developing on door surfaces

Causes may be severe temperature changes over time putting stress on materials, or general wear and tear from repetitive opening/closing motions.

This dairy compartment is the dedicated storage bin on your refrigerator's fresh food door for butter and other small items. Replacing a cracked or missing dairy bin restores secure, convenient door storage and keeps contents organized.

• Mounts on the refrigerator door to hold butter and small items
• Helps keep contents contained during normal door opening and closing
• Restores proper storage when the original bin is cracked, warped, or missing
• Addresses issues like broken tabs or a bin that won't stay attached

• Remove the old bin by lifting it up and out of the door liner channels
• Align the new bin with the door slots or hooks and press/snap into place
• If your model uses screws or retainers, transfer and reuse them
• Handle plastic tabs gently and ensure the bin is fully seated before loading

The Door Bin is an OEM part for GE refrigerators. It is a convenient storage compartment located on the interior of the refrigerator door, designed to hold and organize smaller items such as condiments, jars, or beverages.

Symptoms of a faulty door bin:

• Cracks or breaks in the bin itself
• Difficulty in removing or inserting the bin
• Loose or misaligned fit within the door
• Leaks or spills from the bin

Causes of a bad door bin can include physical damage from impact or excessive force, general wear and tear over time, or issues with the mounting brackets or support mechanisms.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Door Bin is an OEM part for GE refrigerators. This door bin is designed to fit onto the inner door panel of the refrigerator, providing convenient storage for condiments, bottles, and other items that need to be easily accessible. The use of this bin helps to maximize the storage capacity of the refrigerator, keeping items organized and within reach.

Causes of damage to the door bin often include overloading it with too much weight, which can lead to stress cracks or breakage.

Symptoms of a bad Door Bin include:

• Cracks or breaks in the bin
• The bin not fitting properly onto the door panel
• Difficulty in sliding the bin in and out or removing it for cleaning

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement trim fits the dairy compartment on the refrigerator door. It restores a clean, finished look and proper fit of the butter/dairy bin so contents stay organized and the area opens and closes smoothly.

• Attaches to the front edge of the dairy/butter bin on the fresh food door to provide a finished, secure fit
• Replaces cracked, warped, or missing trim that can cause gaps, rattling, or a loose dairy compartment
• Helps keep small items from sliding out when opening/closing the door
• Built to match the original mounting points for straightforward replacement

• Disconnect power to the refrigerator before servicing
• Open the fresh food door; release tabs or remove any retaining screws to take off the old trim
• Align the new trim with the mounting points and snap in or reinstall existing hardware
• Handle plastic tabs carefully and avoid overtightening screws

The Door Bin Front is an OEM part for GE refrigerators. This component serves as the front barrier for door bins, helping to keep stored items in place and preventing them from falling out when the door is opened or closed. This front measures approximately 13 inches wide by 3-1/2 inches high.

Common causes of a bad door bin front include cracking due to impact, stress from heavy items, or general wear and tear from frequent use.

Symptoms of a bad door bin front include:

• Items falling out of the door bin
• The bin front appearing loose or detached
• Visible cracks or breaks in the plastic
• Difficulty in securing the bin front to the door bin

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement screw fastens refrigerator components securely, restoring a tight, rattle-free fit when original hardware is missing, stripped, or corroded. Use it to secure panels, brackets, or trim and keep parts properly aligned.

• Secures panels, brackets, covers, or trim in place
• Helps maintain correct alignment of components and hardware
• Reduces vibration and rattling caused by loose or missing screws
• Replaces lost, rusted, or stripped screws

• Unplug the refrigerator and turn off water supply if working near water components
• Match thread and length to the removed fastener; hand-start threads to avoid cross-threading
• Tighten snugly; do not overtighten into plastic or thin sheet metal
• Keep track of any spacers or washers reused from the original assembly

This door thimble is the bushing that lines the upper hinge on your refrigerator door, supporting the hinge pin so the door swings smoothly, stays aligned, and helps reduce squeaks and wear.

• Provides a smooth bearing surface for the upper hinge pin
• Helps keep the door level and properly aligned with the cabinet
• Reduces friction and noise when opening and closing
• Replace if cracked, worn, or missing, which can cause door sagging, scraping, or poor closing

• Disconnect power and remove items from the door before servicing
• Support the door; remove the upper hinge cover and screws
• Lift the door off the hinge pin and remove the worn bushing from the hinge bracket
• Press the new thimble fully into place, reinstall the door, and verify proper alignment and seal

This thimble door is the metal mounting sleeve that fits around an over-the-range microwave where it meets the cabinet cutout, restoring a finished look and helping secure the microwave in place. What it does:

• Provides the metal sleeve that fills the gap between the microwave and cabinet for a finished installation
• Helps position and secure the microwave to the cabinet opening
• Prevents visible gaps or exposed cabinet edges at the microwave opening
• Common replacement when the sleeve is bent, dented, or damaged during removal or reinstallation

• Turn off power to the microwave at the breaker before servicing
• Typically installed from the front/inside the cabinet; a second person may be needed to support the microwave
• Use manufacturer instructions and proper fasteners; do not force or bend the sleeve during installation

This small hinge sleeve fits into the refrigerator door to guide the hinge pin and keep the door aligned. Replacing a worn thimble can reduce squeaks and wobble and help the door open smoothly and seal correctly.

• Sits in the door hinge pocket and guides the hinge pin
• Provides a smooth bearing surface for easy opening/closing
• Helps maintain door alignment and consistent gasket contact
• Wear may show as squeaking, door play/sag, rubbing, or incomplete closing

• Disconnect power and remove items from the door before starting
• Support the door; remove hinge cover and fasteners, then lift door off the hinge pin
• Pull out the old thimble and press the new thimble fully into the door hinge pocket
• Reinstall door and hinges; verify alignment and that the gasket seals all around
