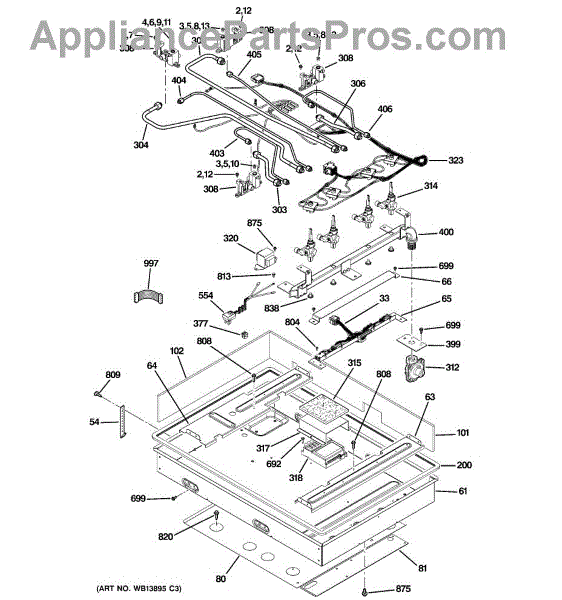

Parts for Ge ZGU384LSM2SS: 02 - Gas & Burner Parts

Liquid propane. High altitude. Simmer burner

Natural gas. Simmer burner

Liquid propane. Simmer burner

Liquid propane. Main burner

Liquid propane. Main burner.

Liquid propane. High altitude. Main burner.

Liquid propane. High altitude. Main burner

This replacement high-altitude natural gas orifice helps restore correct gas flow for burners in higher-elevation installations, improving ignition consistency and flame stability compared with an incorrect or worn orifice. What it does:

• Regulates natural gas flow for proper burner operation at higher elevations
• Helps reduce weak or uneven flames and ignition difficulty caused by altitude-related gas pressure differences
• Used where an adjusted orifice is required instead of standard sea-level orifices
• Designed to work with specified OEM gas valve/burner assemblies

• Turn off gas supply and electrical power before servicing; follow all local codes
• Install only in the specified orifice location and orientation; do not force or modify the part
• Check for gas leaks after installation and restore power only after confirming safe operation

Natural gas. High altitude. Simmer burner.

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

• Anchors the specified part to the appliance frame/cabinet to prevent shifting
• Reduces vibration and rattling noises during operation
• Helps maintain correct alignment and spacing for reliable performance
• Replace if the bracket is bent, cracked, corroded, or missing

• 1 hold-down bracket

• Disconnect electrical power; for gas appliances, also shut off the gas supply
• Note the original orientation and screw locations before removal (a quick photo helps)
• Reuse existing mounting hardware unless your model specifies new fasteners
• Do not overtighten; verify the secured component is aligned and stable before restoring power

18K

This gas valve controls fuel flow to a cooktop or range burner so the burner ignites and holds a steady flame. Replaces a worn or failed valve to restore normal burner operation and safe ignition. What it does:

• Regulates gas flow to a single surface burner so the igniter can light the flame
• Stops gas flow when the control is off to prevent unintended flow
• Common symptoms: burner won't light, weak or no flame, or a burner that won't stay lit
• Works with the range's existing igniter and control knob to modulate flame

• One gas valve

• Turn off both gas supply and electrical power before starting work
• Tighten gas fittings to specified torque and test all connections for leaks using a soap solution or approved leak detector
• Check that replacement valve matches original part number and orientation before installing

Spark module insulation is a replacement insulator pad that protects the cooktop's spark/ignition module from heat, moisture and abrasion. It helps preserve reliable ignition and prevents premature module damage. What it does:

• Cushions and isolates the spark/ignition module from surrounding components to reduce heat transfer.
• Helps prevent moisture or food debris from contacting the module and ignition wiring.
• Reduces the chance of arcing or shorting caused by damaged or worn insulation.
• Common symptoms when this part fails: intermittent sparks, ignition problems, visible burned or degraded insulation near the module.

• Always disconnect power to the appliance and shut off the gas supply before beginning work.
• Handle the pad gently to avoid tearing; position it exactly as the original to ensure proper protection.
• Avoid contact with ignition wires and module pins; reassemble panels and connections securely.

This spark module controls surface-burner ignition on gas cooktops and ranges, sending high-voltage pulses to the igniters when you turn a knob. Replacing a failed module restores quick, consistent sparking so burners light reliably.

• Generates and routes high-voltage pulses to the surface burner igniters
• Triggers sparking when a burner knob is turned to the Ignite/Light position
• Common symptoms: no spark or clicking on any burners; multiple burners won't ignite; weak or intermittent sparking
• Restores dependable ignition performance across the surface burners

• Disconnect electrical power and shut off gas supply before servicing
• Access the module behind the control area or beneath the cooktop, depending on model
• Label and transfer wires one at a time to the new module to maintain correct placement
• Mount securely and ensure a good ground; test burner ignition before reassembly

The Transformer is an OEM part for GE gas cooktops. This component is responsible for converting electrical power to the necessary voltage required for the cooktop's ignition system to function correctly.

Replace this transformer if it fails to supply the proper voltage, leading to ignition issues. Common causes of a bad transformer include electrical surges, overheating, or normal wear and tear over time.

Symptoms of a bad Gas Cooktop Transformer include:

• Burners not igniting or taking longer to ignite
• Clicking sound without ignition
• No power to the ignition system
• Flickering or inconsistent burner flames

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Switch/Wire Harness is an OEM part for GE gas cooktops featuring digital controls. It relays input signals between interactive panels and control modules.

Causes of failure involve physical stress cracks from repeated flexing, pinched wiring compromising conductivity, and insulation degradation over extended use.

Symptoms of a faulty harness include:

• Unresponsive burner/knob selections
• Inability to adjust flame heights or temperatures accurately
• Intermittent or unstable power to ignition/control systems

This OEM part is also compatible with Hotpoint and RCA gas cooktop models.

Right angle

Replacement screw that secures panels, trim and internal brackets to keep appliance components stable and rattle-free. Use when originals are missing, stripped, or broken to restore proper fit and safe operation. What it does:

• Secures panels, control housings, trim and small brackets so parts stay aligned and stable.
• Replaces missing or damaged fasteners that cause rattling, vibration, or loose assemblies.
• Keeps electrical and mechanical components properly positioned for reliable operation.
• Intended as a direct replacement where the OEM screw specified for the application is required.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or bit and seat the screw squarely to avoid stripping the head or threads.
• Do not overtighten—stop when snug to prevent damage to panels or plastic components.
• Keep removed screws organized; replace only with the identical OEM screw for proper fit.

ST10-16 X 7/16"

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

Size: 10-16 AB HXW .750 S N

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Package of 12

Package of 12

Black. 8-18 AB HXW 3/8

Size: 6 inch

Size: 14 inch
