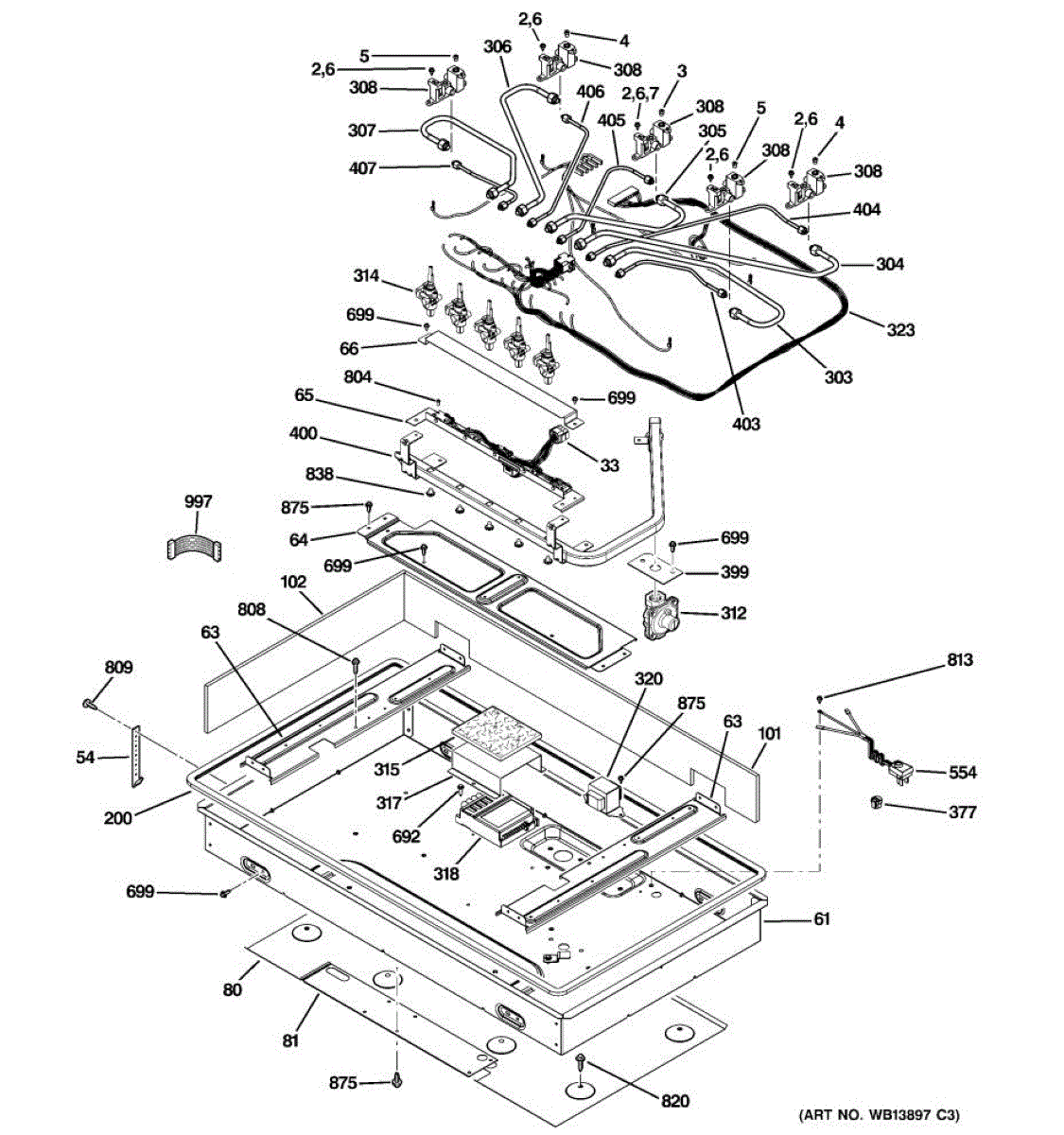

Parts for Ge ZGU385LSM2SS: 02 - Gas & Burner Parts

Liquid propane. High altitude. Simmer burner

Natural gas. Simmer burner

Liquid propane. Simmer burner

Natural gas. High altitude. Main burner

Liquid propane. High altitude. Main burner

Liquid propane. Main burner

Natural gas. Main burner.

Natural gas. High altitude. Main burner.

Liquid propane. High altitude. Main burner.

Natural gas. High altitude. Main burner.

Liquid propane. Main burner.

Natural gas. Main burner.

Natural gas. High altitude. Simmer burner.

Wire harness with LED assembly that connects an appliance's control circuitry to an LED indicator or lighting module, restoring proper indicator illumination and signal routing when the original harness is damaged or intermittent. What it does:

• Provides the electrical connection and mounted LED used for control/indicator or internal lighting circuits
• Transfers power and signal between the control board and the LED/indicator
• Can correct symptoms such as a dim, flickering, or non-lighting indicator or intermittent LED function
• Replaces a damaged or corroded connector that causes loss of indicator/lighting

• Disconnect power to the appliance before attempting replacement to avoid shock or damage
• Handle connectors and the LED assembly carefully to avoid bending pins or damaging wiring
• Route and secure the harness to match original routing and avoid pinch points or heat sources
• Test operation after installation; for wiring diagrams and connector locations

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

• Anchors the specified part to the appliance frame/cabinet to prevent shifting
• Reduces vibration and rattling noises during operation
• Helps maintain correct alignment and spacing for reliable performance
• Replace if the bracket is bent, cracked, corroded, or missing

• 1 hold-down bracket

• Disconnect electrical power; for gas appliances, also shut off the gas supply
• Note the original orientation and screw locations before removal (a quick photo helps)
• Reuse existing mounting hardware unless your model specifies new fasteners
• Do not overtighten; verify the secured component is aligned and stable before restoring power

Left hand side

Right hand side

18K

This gas valve controls gas flow to the burners and oven, restoring reliable ignition and consistent heat when the burner won't light or the oven won't heat properly. Designed as a direct replacement part. What it does:

• Regulates gas supply to the oven and cooktop burners for proper ignition and consistent flame
• Commonly replaces valves that cause burners not to light or the oven to not maintain heat
• Helps stop irregular gas flow that can lead to weak or fluctuating flames
• Works with the appliance's safety and control systems to open and close gas flow as commanded

• One gas valve as shown

• Shut off the gas supply and disconnect power before starting any repair
• Only install on compatible appliances;
• Tighten gas fittings to the manufacturer's torque spec and test with a leak solution

Spark module insulation is a replacement insulator pad that protects the cooktop's spark/ignition module from heat, moisture and abrasion. It helps preserve reliable ignition and prevents premature module damage. What it does:

• Cushions and isolates the spark/ignition module from surrounding components to reduce heat transfer.
• Helps prevent moisture or food debris from contacting the module and ignition wiring.
• Reduces the chance of arcing or shorting caused by damaged or worn insulation.
• Common symptoms when this part fails: intermittent sparks, ignition problems, visible burned or degraded insulation near the module.

• Always disconnect power to the appliance and shut off the gas supply before beginning work.
• Handle the pad gently to avoid tearing; position it exactly as the original to ensure proper protection.
• Avoid contact with ignition wires and module pins; reassemble panels and connections securely.

The Spark Module is an OEM part for GE ranges and cooktops. This module ignites the burners, ensuring that they light quickly and efficiently every time the appliance is used. It works by generating and transmitting electrical sparks to the burner when the control knob is turned on.

These issues can arise due to moisture exposure, grease buildup, electrical faults, or simple wear and tear over time.

Symptoms of a failing spark module include:

• Burners that fail to ignite or ignite intermittently
• Continuous clicking sounds from the module after the burner is lit
• Weak or inconsistent spark production that affects burner performance

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Transformer is an OEM part for GE gas cooktops. This component is responsible for converting electrical power to the necessary voltage required for the cooktop's ignition system to function correctly.

Replace this transformer if it fails to supply the proper voltage, leading to ignition issues. Common causes of a bad transformer include electrical surges, overheating, or normal wear and tear over time.

Symptoms of a bad Gas Cooktop Transformer include:

• Burners not igniting or taking longer to ignite
• Clicking sound without ignition
• No power to the ignition system
• Flickering or inconsistent burner flames

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Spark Switch and Harness is an OEM replacement part for GE ranges. It consists of multiple spark switches connected via a harness. When turned, these switches initiate the ignition spark, lighting the burners.

Symptoms of a bad spark switch include:

• Burners not igniting
• Continuous sparking even after the burner is lit
• Absence of sparking sound or visible spark when attempting ignition
• The necessity to use an external flame source, like a lighter or match, to ignite the burners

Common causes for a malfunctioning spark switch can be attributed to a short circuit resulting from liquid spills or during cleaning, natural wear and tear over time, or defects in the wiring or individual switches that impede the electrical flow.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Right angle

36 inch

Replacement screw that secures panels, trim and internal brackets to keep appliance components stable and rattle-free. Use when originals are missing, stripped, or broken to restore proper fit and safe operation. What it does:

• Secures panels, control housings, trim and small brackets so parts stay aligned and stable.
• Replaces missing or damaged fasteners that cause rattling, vibration, or loose assemblies.
• Keeps electrical and mechanical components properly positioned for reliable operation.
• Intended as a direct replacement where the OEM screw specified for the application is required.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or bit and seat the screw squarely to avoid stripping the head or threads.
• Do not overtighten—stop when snug to prevent damage to panels or plastic components.
• Keep removed screws organized; replace only with the identical OEM screw for proper fit.

ST10-16 X 7/16"

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

Size: 10-16 AB HXW .750 S N

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Package of 12

Package of 12

Black. 8-18 AB HXW 3/8

Size: 14 inches. GY

Size: 24 inches

Size: 6 inch

Size: 14 inch

Size: 26 inch
