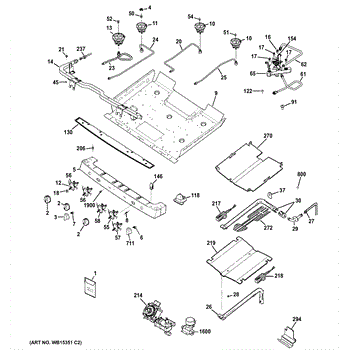

Parts for Ge PGB940DEF2BB: Gas & Burner Parts

This economic nut is a small replacement fastening nut that restores secure connections for appliance components. It replaces worn or missing hardware so panels and internal parts stay firmly seated and reduce vibration. What it does:

• Secures components and panels by threading onto the matching stud or bolt to hold assemblies in place
• Prevents loose or rattling panels and hardware caused by a missing or damaged nut
• Restores proper fit for user-accessible panels and internal brackets where this nut is specified
• Simple hardware replacement to regain stable mechanical connections

• Disconnect power and water (if applicable) and follow basic electrical safety before servicing the appliance
• Use the matching size wrench or socket; thread-on by hand first to avoid cross-threading, then snug—do not overtighten
• Inspect mating stud or bolt for damage; replace hardware that is stripped, corroded, or deformed

This knob locator keeps a range or cooktop control knob centered and aligned on the control shaft so knobs fit securely and operate smoothly. It restores correct knob position and reduces slipping or misalignment. What it does:

• Centers and seats the control knob on the shaft for proper engagement
• Prevents knob wobble, slipping, or off-center rotation during use
• Helps ensure accurate control selection and consistent user feel
• Fits behind the control knob at the console or panel to retain knob position

• Disconnect power to the appliance before servicing for safety.
• Remove the control knob, replace the locator, then reinstall the knob—typically a simple push-fit.
• Inspect the knob and shaft for wear; replace any damaged components to ensure proper fit.

Size: 8 - 32 inch.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This circuit board mounting bracket secures an electronic board or module inside the appliance. It prevents movement, vibration damage, and wiring interference so the component stays correctly positioned for reliable operation.

• Mounts and supports a small circuit board or module within the chassis
• Maintains proper spacing and alignment to reduce chafing or electrical short risks
• Replace if bent, cracked, or missing tabs, or if it no longer holds the board securely
• Common signs include a loose/rattling board, visible bracket damage, or intermittent operation when the panel is bumped

• Disconnect power at the breaker; shut off gas supply if applicable
• Remove the necessary access panel(s) to reach the board and bracket; note orientation and wiring
• Transfer the board/module to the new bracket and reinstall using existing hardware
• Watch for sharp metal edges; route wires to avoid pinching and verify clearances before restoring power

This bracket secures the cooktop/main top to the appliance chassis to keep the surface stable and properly aligned. Replacing a bent or missing bracket can eliminate looseness, rattles, and visible gaps so the top seats correctly.

• Anchors the cooktop/main top to the frame
• Maintains proper spacing and alignment of the top
• Helps prevent vibration and movement during use and cleaning
• A damaged or missing bracket can cause a loose, uneven, or rattling cooktop

• Disconnect power and, for gas units, shut off the gas supply before servicing
• Access the bracket location per your model's service procedure (top may need to be lifted or removed)
• Transfer and reuse mounting screws/clips from the original bracket if required
• Install in the same orientation, check alignment, and tighten fasteners securely before restoring service

LP orifice spud that meters propane to a single burner for correct flame size and efficient combustion after converting a cooktop or oven to LP. Restores proper burner performance and safer operation. What it does:

• Meters propane flow to one burner to establish the correct flame for LP fuel.
• Used when converting a range or oven from natural gas to propane (LP).
• Helps correct flames that are too large, yellow, uneven, or won't stay lit.
• Replaces a worn, damaged, or incorrect LP orifice spud for improved burner control.

• Shut off the gas supply at the appliance and service valve before servicing.
• Follow OEM conversion instructions.
• After installation, check all gas connections for leaks with an approved method; do not operate the appliance if you detect a gas leak.
• Use only the exact orifice specified for LP conversion—do not substitute unverified parts.

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

This 1/4-20 screw secures panels, brackets, and other assemblies in your appliance. It restores a tight, reliable hold when an original fastener is missing, stripped, or corroded.

• Fastens components that require a 1/4-20 threaded screw
• Helps keep panels and assemblies aligned and rattle-free
• Direct replacement for worn, rusted, or lost hardware
• Common symptoms: loose or vibrating parts, misaligned brackets, missing fastener

• Disconnect power; turn off gas supply before servicing
• Allow the appliance to cool; wear gloves and eye protection
• Start threads by hand to avoid cross-threading; use the correct driver/tool
• Tighten snugly—do not overtighten to prevent stripping or damage

This orifice holder secures the burner orifice at the left-rear cooktop burner to ensure correct gas flow for stable ignition and consistent flame. It replaces a worn or damaged holder to restore burner operation and flame control. What it does:

• Holds the burner orifice in the correct position for proper gas delivery to the left-rear burner
• Helps maintain a steady, even flame and reliable ignition
• Can resolve symptoms like weak or uneven flame or a burner that fails to light reliably
• Works with the corresponding burner assembly to keep gas flow aligned and secured

• One orifice holder

• Turn off gas supply and power to the appliance before servicing
• Tighten and position the holder per the appliance's service instructions; use correct orifice size and orientation
• Check for gas leaks and proper burner operation after installation

This orifice holder secures the burner orifice for the right-rear cooktop burner, keeping the gas orifice aligned for consistent ignition and flame. It helps restore proper burner performance when the holder is damaged or missing. What it does:

• Holds and positions the gas orifice for the right-rear burner so fuel flows through the correct opening
• Helps maintain a steady, even flame and reliable ignition at the right-rear burner
• Commonly replaced when the burner won't light, has weak or uneven flames, or when the holder is cracked or corroded
• Designed to mate with the burner tube and orifice for proper gas flow

• Turn off gas supply and power to the appliance before beginning any service
• Remove burner cap and assembly to access the orifice holder; use appropriate hand tools and avoid overtightening
• Inspect the orifice and any sealing gaskets for damage; replace damaged orifices or gaskets as needed

This bake burner is the oven's primary gas burner assembly that produces and directs heat for baking and roasting. Replaces a worn or damaged burner to restore consistent oven heat and cooking performance. What it does:

• Provides the main heat source for the oven cavity during bake/roast cycles.
• Directs and distributes the gas flame along the oven floor for even cooking.
• Works with the oven igniter and gas valve to light and maintain the flame.
• Common symptom link: oven won't reach temperature, won't heat, or heats unevenly.

• Disconnect power and shut off the gas supply before attempting service.
• Inspect and match mounting points and gas connection; handle the burner to avoid bending or damaging flame ports.
• Replace only with the correct OEM part number; check igniter and valve if issues persist.

This tube burner supply is the replacement gas tube that delivers fuel from the range/oven valve to the burner, restoring proper gas flow for reliable ignition and consistent flame performance. What it does:

• Directs gas from the appliance valve to the burner for normal operation
• Replaces cracked, corroded, or clogged burner tubing that can cause fuel flow disruption
• Helps correct symptoms such as burners that won't light, weak or uneven flames, or intermittent ignition
• Restores a sealed path for gas to reduce leakage risk when installed and tightened correctly

• Turn off gas supply and electrical power to the appliance before beginning work
• Verify proper fit and orientation to the valve and burner; use the OEM clamp/hardware if provided
• After installation, check all connections for leaks (soap-and-water test) and restore power per the appliance manual

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Elbow 90° Asm is an OEM replacement part for GE gas ranges. It joins sections of burner piping at precise right angles, guiding fuel and air flow to burner heads.

Causes of a bad elbow joint can be wear from years of vibrations, cracks developing from heat cycling, or accidental damage during maintenance.

Symptoms of a faulty elbow include:

• Yellow burner flames or incomplete combustion
• Gas smell or leaks around pipes
• Reduced heat levels from affected burners
• Premature deterioration of other components

This GE replacement is compatible with Hotpoint, RCA, and Kenmore models too.

This igniter cover is a replacement protective shield that helps protect the oven igniter from food spills and debris, extending the igniter's service life and helping the burner ignite reliably. What it does:

• Shields the oven igniter from direct contact with spills, drips and falling debris
• Helps prevent premature igniter damage that can lead to ignition problems
• Can reduce the chance of shorting or erratic ignition caused by contamination
• Matches original shape to ensure proper fit and clearance around the igniter

• Disconnect power to the appliance (and shut off gas if applicable) before servicing
• Allow the oven to cool completely and wear gloves to avoid cuts from sheet metal
• Handle the igniter and cover carefully; avoid touching the igniter surface directly
• Test appliance operation after reinstall

The Orifice Spud is an OEM part for GE ranges and cooktops. It is a small, precise component responsible for regulating the flow of gas to the burner, ensuring a controlled and efficient flame for cooking. This spud is essential for maintaining the correct gas pressure and flame size.

Over time, orifice spuds can become clogged or damaged due to residue buildup, corrosion, or improper cleaning. These issues can lead to inefficient burner performance or safety hazards.

Symptoms of a bad orifice spud include:

• Uneven or weak burner flames
• Difficulty in igniting the burner
• Yellow or flickering flames
• Gas odors near the burner area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This orifice spud meters gas to a burner in your range or cooktop. Replacing a clogged or damaged spud helps restore correct flame size and reliable ignition for consistent cooking performance.

• Regulates gas flow from the valve to the burner head for proper combustion
• Helps restore consistent flame height and even heating on the burner
• Sized for the burner rating and fuel type specified by your model; always match the correct part

• Disconnect power and shut off gas supply; allow the appliance to cool completely before servicing.
• Access the burner orifice and replace with the correct, model-specified spud using an appropriate wrench; do not overtighten.
• Restore gas and check all connections for leaks with a soap-and-water solution.
• Use only the spud specified for your fuel type (NG or LP); do not attempt conversion without the approved kit and instructions.

This LP orifice spud meters gas to a range burner when using liquid propane. Replacing a worn or incorrect jet helps restore proper flame size and clean combustion during LP setup or conversion.

• Meters LP gas to the burner for correct flame height and color
• Helps resolve large yellow flames, soot, and poor simmering caused by an incorrect/blocked spud
• Supports safe operation when converting from natural gas to LP per the manufacturer's instructions
• Can improve ignition and flame stability when the original jet is damaged or clogged

• Disconnect power and shut off the gas supply; allow the appliance to cool before servicing
• Remove the existing spud with the correct wrench and install the replacement snugly—do not overtighten
• Perform any required air-shutter/burner adjustments per the service instructions
• After installation, leak-check with a soapy water solution; LP conversions should comply with local codes

The Burner Valve Assembly 270 is an OEM part for GE gas ranges. It controls gas flow to individual burners to deliver precise heating levels.

Causes of a bad burner valve assembly include worn rubber diaphragms, debris inside valve channels, or damage from repeated heating cycles.

Symptoms are:

• Uneven cooking temperatures across burners
• Inability to ignite or adjust certain burners
• Fluctuations in flame height/cooking output

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

The Valve Burner is an OEM component for GE gas ranges. Located below the grates atop each cooktop burner, it precisely mixes gas and air to provide controllable flames. A valve adjusts gas flow while perforated metal distributes the flame evenly.

Symptoms of a faulty valve burner include:

• Difficulty obtaining or maintaining set flame levels
• Unstable or intermittent burner operation
• Yellow fire or flame that produces excessive soot
• No ignition or fire when the knob is turned

Causes can be wear of internal valve components, debris, or clogs in gas ports restricting flow over time. Damage from spills or dropped objects may also crack the burner.

This OEM GE burner is also compatible with models from Hotpoint and RCA.

The Burner Valve Assembly 3R 310 is an OEM part for GE gas ranges. It controls gas flow to individual burners to deliver precise heating levels.

Causes of a bad burner valve assembly include worn rubber diaphragms, debris inside valve channels, or damage from repeated heating cycles.

Symptoms are:

• Uneven cooking temperatures across burners
• Inability to ignite or adjust certain burners
• Fluctuations in flame height/cooking output

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

The Burner Valve Assembly 270 is an OEM part for GE gas ranges. It controls gas flow to individual burners to deliver precise heating levels.

Causes of a bad burner valve assembly include worn rubber diaphragms, debris inside valve channels, or damage from repeated heating cycles.

Symptoms are:

• Uneven cooking temperatures across burners
• Inability to ignite or adjust certain burners
• Fluctuations in flame height/cooking output

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This valve control assembly regulates gas flow to the burner, restoring safe and reliable ignition and heating. Replace a faulty valve control to return proper burner operation and consistent heat output. What it does:

• Controls gas flow to the burner so the appliance can ignite and hold a flame
• Helps the burner reach and maintain proper heat during operation
• Can resolve symptoms like burners not lighting, weak or no flame, or intermittent heating
• Works as the control interface between the appliance's control system and the gas supply

• One valve control assembly

• Turn off gas supply and disconnect power before starting any repair
• Handle the assembly carefully and avoid forcing connectors; ensure wiring and gas fittings are secure
• If you smell gas or suspect a leak after installation, stop immediately
• Follow the appliance manufacturer's service manual for model-specific installation steps and torque specs

This is a replacement igniter glowbar. This is a genuine OEM part made by General Electric and has been sourced directly from the manufacturer. This part is intended to replace defective or burnt-out igniter glowbars in a variety of gas powered oven and stove models. A glowbar igniter works to electrically ignite the gas source on a stove or range. A defective glowbar will prevent the burner from lighting and emitting a flame. Always make sure that the stove is entirely disconnected from power and gas before starting any repair work. Proper tools are required to replace this part. Please ensure the appropriate safety precautions are followed when attempting to fix any appliances. For more accurate information on how and where to install this igniter glowbar, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this igniter glowbar is suitable for use on several different models of gas-powered ovens, stoves, and ranges manufactured by General Electric and Hotpoint. This is a genuine part made of high-quality, durable materials and is sold individually.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

This broil shield protects the oven interior above the broiler, helping direct heat and shielding the oven cavity from intense broiling temperatures for safer, more consistent broiling results. Durable metal construction resists warping. What it does:

• Shields the oven top and components from direct broiler heat to prevent damage and discoloration
• Helps maintain more even broiling by directing heat where food is placed
• Reduces the risk of flare-ups reaching wiring or insulation behind the oven liner
• Restores proper clearance between the burner and oven liner for safe operation

• One broil shield

• Disconnect power (and gas, if applicable) and allow the oven to cool completely before starting
• Remove oven racks and access the broiler area to unfasten and replace the shield using basic hand tools
• Inspect mounting tabs and surrounding liner; replace any damaged clips or screws as needed

This valve lockout mounting clip secures the appliance's gas valve actuator to help prevent unintended valve movement and ensure consistent operation. It replaces a worn or broken lockout clip to restore reliable valve positioning. What it does:

• Secures the gas valve actuator or linkage to keep the valve in its intended position
• Helps stop intermittent or loose valve movement that can cause inconsistent ignition or burner operation
• Restores proper mechanical alignment after the original clip has cracked, bent, or broken
• Small replacement part used where a damaged lockout clip prevents stable valve function

• One valve lockout mounting clip

• Disconnect power and shut off gas supply before servicing; follow all safety precautions
• Inspect adjacent fasteners and actuator for damage; replace any additional damaged parts as needed
• Basic hand tools typically required; handle small plastic clips carefully to avoid breakage
