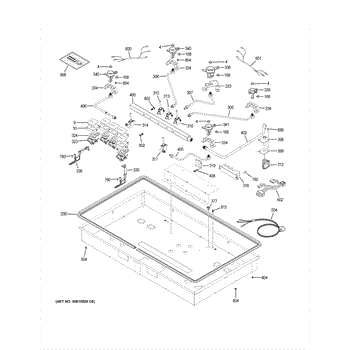

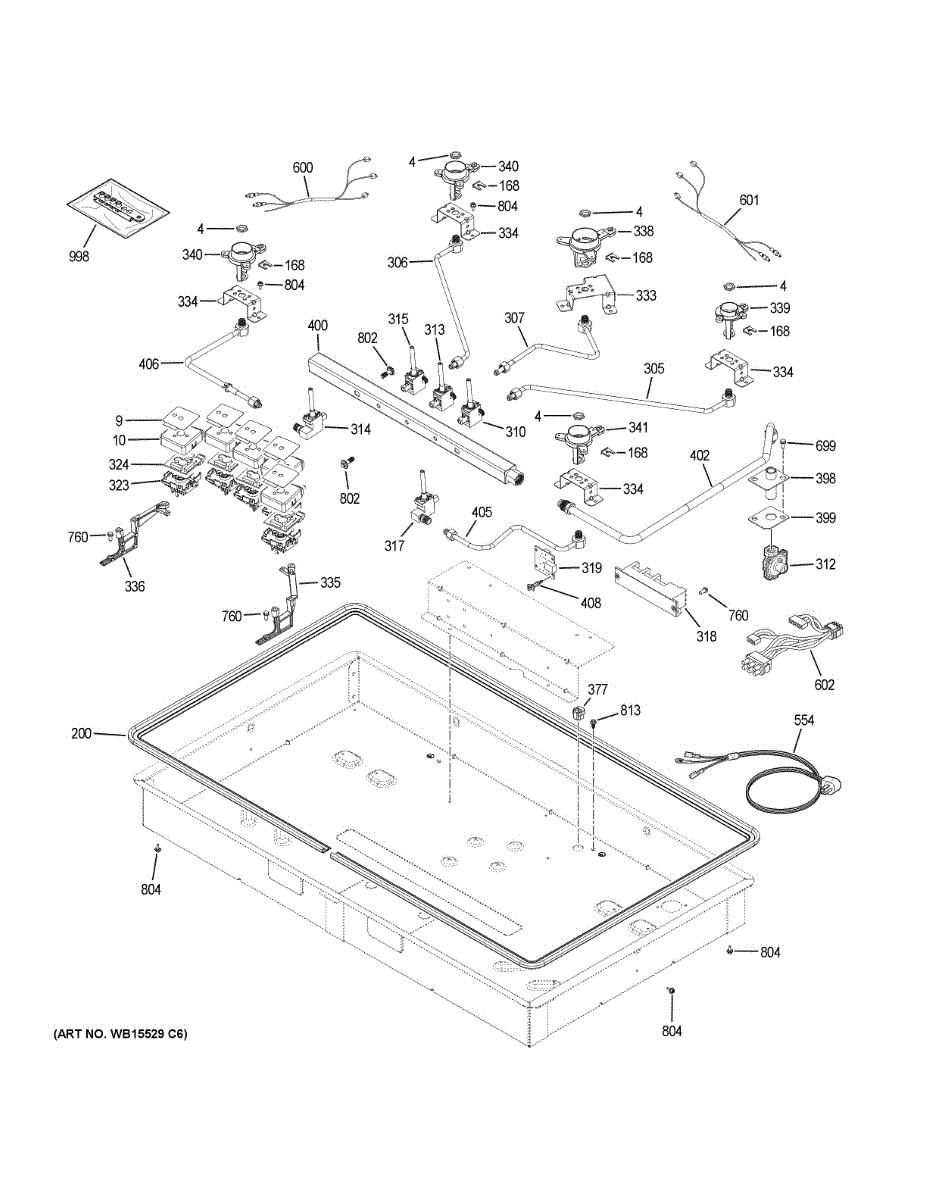

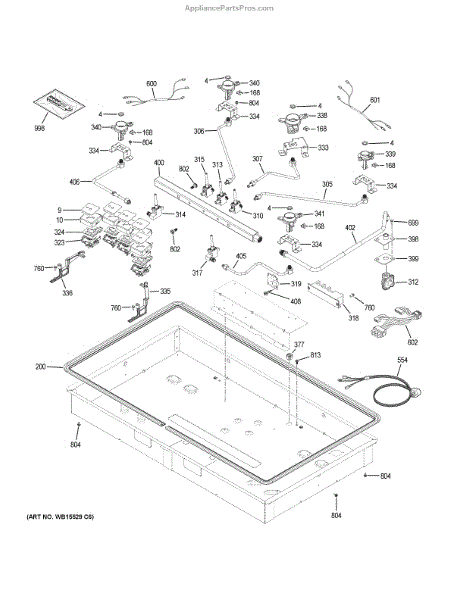

Parts for Ge PGP7030DL1BB: Gas & Burner Parts

Replacement fastener nut for gas ranges and cooktops. Secures panels and internal components. Needed when original nut is missing, stripped, or worn.

Protective film that shields cooktop housing from grease and moisture. Replace when torn, worn, or missing to maintain proper protection. Confirm fit with your model.

Secures and shields the LED light board in your cooktop's control assembly. Replace if cracked, discolored, or no longer holding the board properly.

If your gas range burner won't light or clicks continuously, this igniter clip secures the ignition system. Simple DIY fix in under 15 minutes.

Burner box gasket seals the burner assembly on your gas cooktop. Replace if you notice gas odors, uneven flames, or visible wear. Confirm fit with your model.

This gas tube assembly routes gas to the oven's rear-right burner, restoring proper fuel flow for safe ignition and consistent heating. Replace a damaged or clogged tube to help resolve burner lighting problems and uneven oven performance. What it does

• Directs gas from the manifold to the rear-right burner for normal combustion
• Helps ensure an even, steady flame at the rear-right oven burner
• Commonly replaced for burners that fail to light or sputter
• Used when a tube is bent, cracked, clogged, or shows corrosion/leaks

• One gas tube assembly (rear right)

• Shut off gas supply and electrical power before beginning work
• Only connect and tighten fittings per manufacturer torque recommendations; use pipe sealant rated for gas if specified by OEM
• After installation, perform a leak test and confirm proper ignition and flame

This gas tube assembly routes fuel from the valve to the burner on compatible gas ranges and ovens, restoring proper fuel delivery for reliable burner operation. It replaces damaged or corroded tubing to help ensure consistent heating. What it does:

• Directs gas from the main gas valve to the burner ports for ignition and steady flame
• Restores proper burner operation when tubing is cracked, dented, or clogged
• Can resolve weak, uneven, or non-lighting burners caused by damaged tubing
• Helps prevent gas leaks when installed and sealed correctly

• Turn off the gas supply and disconnect power before starting any work
• Use proper seals, gaskets, and torque on fittings; inspect connections for leaks with a soap solution or approved leak detector
• After installation, test all burners for correct flame and check for gas leaks before normal use

Fix uneven flames or burners that won't light with a new rear gas valve. Controls gas flow to back burners. Moderate DIY repair, 30-45 minutes.

Controls incoming gas pressure for your cooktop. Replace if cracked, broken, or missing. Installs at the gas line connection point at the unit base.

If your gas cooktop burner won't light or has weak flames, the center gas valve may have failed. This valve controls gas flow to ensure safe ignition.

If your gas cooktop burner won't ignite or maintain temperature, the gas valve may need replacement. This part regulates fuel flow for safe heating.

Fix uneven flames or burners that won't light with this gas cooktop gas valve. Controls gas flow to individual burners. Moderate DIY repair.

Fix a burner that won't ignite or has weak flames with this gas valve. Controls gas flow to the burner for safe, consistent heating. 30-minute repair.

The Spark Module is an OEM part for GE cooktops. Located within the cooktop's control unit, this module is responsible for generating electric sparks to ignite the burners. Consisting of electronic components and wiring, the spark module works with other systems to reliably and safely light the gas or electric burners.

Symptoms of a bad spark module include:

• Burners not lighting or lighting intermittently
• Repeated flashing of the burner indicator lights
• Clicking or buzzing sounds coming from the control unit

Causes of a failed spark module can be exposure to moisture, dust or debris accumulating inside the control unit over time as well as mechanical or electrical degradation of the ignition components.

This genuine OEM GE replacement part is also compatible with some Kenmore cooktop models that use GE's control systems.

Fix a blank or unresponsive cooktop display with this LED control board. Restores electronic controls and temperature indicators when your display fails.

Fix non-responsive burners or control knobs with this gas cooktop switch harness assembly. Connects switches to control ignition and heat adjustment.

If your cooktop's LED display is dim, flickering, or completely dark, this LED control board regulates power to restore consistent illumination and indicator visibility.

This mounting bracket secures components in place to keep appliance parts stable and properly aligned during operation. It restores structural support so panels or assemblies remain correctly positioned and reduces movement-related noise or wear. What it does:

• Provides a secure mounting point to hold panels, modules, or assemblies in position
• Restores alignment and prevents parts from shifting or vibrating during use
• Helps reduce rattling or intermittent contact caused by loose components
• Suitable when old or damaged brackets are bent, cracked, or missing

• Turn off and unplug the appliance (or disconnect power) before beginning any work
• Handle sharp edges carefully and use appropriate hand tools for removal and installation
• Verify bracket orientation and fastener locations match the original part before tightening
• If mounting hardware is missing or damaged, replace with matching fasteners

Fix uneven or smoky burner flames with this gas range burner injector. Restores proper gas flow for even heating. Simple DIY installation.

If your ice maker isn't filling properly or ice cubes are misshapen, this inlet jet restores correct water flow to the dispenser and ice-making area.

Surface burner base that covers and protects the burner cavity on gas ranges. Replace if warped from heat, cracked from impact, or corroded over time.

Large burner injector for gas ranges and cooktops. Replaces cracked, worn, or missing injectors that control gas flow to the burner assembly.

Right angle

Gas cooktop supply inlet connects your gas line to the burner manifold. Essential for proper gas flow and pressure. Moderate DIY repair in 30-45 minutes.

Manifold seal prevents gas leaks at the valve connection. Replace if damaged, cracked, or during valve service. Confirm fit with your cooktop model number.

Gas not flowing to burners? This inlet gas tube connects your cooktop's gas supply line to the manifold. Moderate DIY repair in 30-45 minutes.

Standoff bumper for ranges, ovens, and cooktops. Installs to provide spacing and support between components. Replace if cracked, broken, or missing.

This range cord supplies main power to an electric range so the appliance can heat and run safely. It replaces a worn or damaged cord to restore reliable power connection and reduce risk of arcing or intermittent power. What it does:

• Transfers mains power from the wall outlet to the range's terminal block
• Restores a secure, stable electrical connection when the original cord is frayed or damaged
• Helps stop sparking, burning smells, or intermittent power caused by a faulty cord
• Supports normal oven and cooktop operation when the outlet and terminal connections are serviceable

• Disconnect power at the breaker before servicing; verify power is off with a meter
• Securely tighten terminal screws and route cord to avoid contact with hot surfaces

Burner won't light or clicks but doesn't ignite? This igniter and harness assembly restores spark and electrical connection to gas burners. DIY repair.

Burner won't light or clicks continuously? This gas cooktop igniter and wiring harness assembly restores reliable ignition with a complete plug-in unit.

This replacement power wire harness routes main electrical power between components to restore secure connections and reliable operation. It's a direct-fit OEM-style harness that helps fix intermittent power or no-power symptoms caused by damaged wiring. What it does:

• Provides secure, insulated conductors to transfer power from the main supply to control and motor assemblies
• Replaces damaged, frayed, or burnt wiring that can cause intermittent power loss or failure to start
• Restores proper connector fit where terminals or plug ends have worn or melted
• Helps prevent shorting and arcing by renewing factory wiring and insulation

• Disconnect power at the breaker or unplug the appliance before beginning work
• Verify wire routing and connector orientation match the original harness before final installation
• Use appropriate tools to secure connectors; replace any damaged terminal clips as needed

Hex head mounting screw for ranges and ovens. Secures elements, panels, and internal components. Replace if stripped, missing, or damaged during repairs.

Replacement mounting screw for appliances. Secures components and reduces vibration. Needed when original screws are missing, stripped, or damaged.

A small machine screw used to fasten appliance panels and components. This 10-32 x 7/16 screw secures assemblies and replacement parts so panels and brackets stay properly mounted during normal operation. What it does:

• Fastens small panels, brackets, and assemblies that use a 10-32 thread
• Replaces missing or stripped mounting screws to stop rattling and loose parts
• Helps maintain proper alignment of fitted components
• Used where a short 7/16" length is required for a flush fit

• Unplug the appliance before starting any repair
• Use the correct sized screwdriver or nut driver for 10-32 threads
• Hand-start the screw to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, replace with correct fastener; avoid forcing the screw

Convert your gas cooktop to LP for high altitude use. This conversion kit ensures proper burner operation at elevations above 2,000 feet. Easy install.

Converts gas cooktop burners for high altitude operation. Adjusts gas pressure flow for proper performance above sea level. Replace if missing.

Converting your gas cooktop from natural gas to propane? This LP conversion kit includes the orifices and parts needed for safe, efficient operation.
