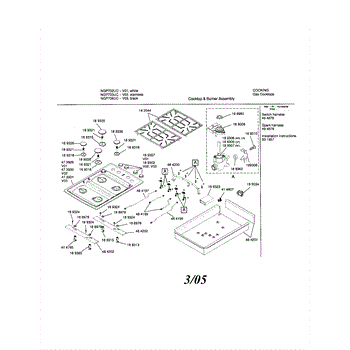

Parts for Bosch NGP736UC/01: Gas, Cooktop Parts

Used to hold down the jet holder assembly.

This push-on retainer clip holds a 6mm shaft securely in place on compatible appliance components, restoring proper axial restraint and preventing parts from sliding off during operation. Simple, low-profile fastening for shaft retainment. What it does:

• Secures shafts and spindles with a 6mm outer diameter to prevent axial movement
• Keeps knobs, pulleys, or rotating components positioned correctly during use
• Commonly used where a quick, tool-free clip is required for retention
• Can resolve symptoms like loose or detached knobs, wobbling pulleys, or parts sliding along the shaft

• One push-on retainer clip sized for 6mm shaft mounting

• Push the clip onto the shaft groove until it snaps into place; ensure full engagement before operating
• Use snap-ring pliers or appropriate tools if removal is required to avoid damage
• Wear eye protection when installing or removing clips to guard against sudden release

The Spark Switch is an OEM part for Bosch ranges. This part ignites the burners by sending a signal to the spark module, which then produces the spark needed to ignite the gas.

Causes of a bad spark switch can include wear and tear from regular use, damage from spills or cleaning agents, or electrical issues.

Symptoms of a bad spark switch include:

• Burners not igniting
  Continuous clicking even after the knob is turned off
  No spark when attempting to ignite the burner
  The cooktop not producing a flame

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Regulator is an OEM part for Bosch ranges. This regulator controls gas flow to the burners, ensuring they receive the proper amount of fuel to achieve the desired cooking heat levels.

Causes of a bad regulator include cracks, jets becoming clogged over time, or damaged thermostatic components that improperly sense temperature.

Symptoms of a bad regulator include:

• Burners that will not ignite or light unevenly
• Inability to adjust burner flames precisely
• Burners that become too hot or too cool unexpectedly
• Yellow burner flames instead of blue

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This replacement cooktop knob restores smooth heat control and a clean, finished look. It includes a trim ring and installs by pressing onto the control stem. What it does:

• Mounts to the control stem to turn the burner/element on and off and adjust heat level
• Replaces a broken, stripped, or missing knob
• Helps when the knob slips, won't turn, or won't stay seated
• Refreshes the appearance of the control panel

• Ensure the cooktop is off and completely cool.
• Pull the old knob straight off; remove the old trim ring if present.
• Position the new trim ring over the opening.
• Align the knob with the stem and press straight on until fully seated—do not force or use tools on the stem.

This gas burner jet holder assembly routes fuel through the orifice to the burner and secures the connection. The red 11,000 BTU version is designated for the right-front or left-rear burner, helping restore proper flame and heat output.

• Positions the jet and routes gas from the manifold to the burner for the specified heat output
• 11,000 BTU, red-coded variant designated for RF/LR burner location
• Provides a stable, serviceable connection between tubing and burner base for a consistent flame
• Symptoms include weak or irregular flame, failure to ignite, or incorrect flame size at the RF/LR burner

• Shut off gas supply and power; allow the appliance to cool before servicing
• Remove grates, burner caps/heads, and any panels needed to access the holder
• Support gas tubing and use two wrenches on fittings to avoid twisting or damage during removal/installation
• After installation, check all joints with an approved leak-detecting solution and verify flame quality

This burner base supports the cooktop burner assembly and helps position the burner cap for a consistent flame. Replace a damaged or warped base to restore proper burner alignment and reliable ignition. What it does

• Holds the burner head and cap in the correct position for even flame distribution.
• Stabilizes the burner assembly so the ignition electrode can spark reliably.
• Helps prevent burner cap wobble or misalignment that causes uneven heating.
• Can resolve symptoms like burners that light intermittently or produce an irregular flame pattern.

• One burner base.

• Disconnect power and shut off the gas supply before beginning service.
• Remove burner grates and caps; replace base using basic hand tools—do not force parts.
• Inspect surrounding gaskets and the ignition electrode for damage; clean any debris before reassembly.

This burner base supports the cooktop's burner cap and directs flame for even heating. It replaces a damaged or warped base to restore stable burner alignment and consistent flame pattern. What it does:

• Holds the burner cap in place and centers the gas flame
• Channels gas flow for proper burner operation
• Helps prevent wobbling or uneven heating from a warped base
• Commonly replaced when the base is cracked, corroded, or bent

• One burner base (B)

• Turn off gas supply and power to the appliance before servicing
• Remove surrounding burner components and reassemble in reverse order
• Inspect nearby seals and burner ports for damage; replace if necessary

This Venturi is an OEM part for Bosch Ranges. It plays a role in supplying air to the burner for proper combustion. Continuous exposure to heat and debris can cause this part to degrade or malfunction.

What Causes a Bad Venturi:
Exposure to heat and debris from cooking can cause the venturi to deteriorate over time. Blockages or clogs in the venturi can also affect its functionality.

Symptoms of a Bad Venturi:

• Uneven flame or inconsistent burner operation
• Reduced gas flow to the burner
• Burner flame discoloration

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

Ignition device creates the spark that lights gas burners on compatible Bosch gas ranges and cooktops. Replacing a worn or faulty ignition device restores reliable ignition and reduces burner-start failures. What it does:

• Generates the high-voltage spark used to ignite gas at the burner
• Replaces a unit that causes clicking without ignition or burners that won't light
• Supports reliable ignition timing for proper burner start-up
• Works as the primary spark source for the cooktop's gas ignition system

• Disconnect electrical power and shut off the gas supply before starting work
• Handle ceramic electrodes and connectors carefully to avoid damage
• Basic hand tools are typically required; wiring plugs into the existing harness

This is a cooktop burner igniter OEM replacement part for Bosch cooktops and ranges and is sold as an individual part. This part creates a spark that ignites the burner within your cooktop or stovetop and is made of a combination of metal and ceramic.

Causes of a bad ignition plug can include issues with the electronic module, worn electrodes that no longer spark reliably, or damaged wiring.

Symptoms of a bad ignition plug include:

• Gas burners that will not light or remain lit
• Delayed ignition of one or more burners
• Intermittent or no sparking from the ignition plug

This OEM Bosch part is also compatible with Thermador, Gaggenau and some Kenmore models.

The Burner Cap Assembly "C" Matte Blk is an OEM part for Bosch gas cooktops. As the rounded covering fitted over individual burners, it safely contains flames underneath cookware. Maintaining proper cap placement is vital for heating performance and safety compliance standards.

Causes of a bad burner cap assembly can include cracks or punctures from sustained high temperature cycling that compromise its insulating barrier. Over time, surface imperfections like scratches also diminish durability against consistent heat exposure.

Symptoms of faulty caps are:

• Flames improperly escaping from under pan edges
• Visible damage present on cap surfaces
• Inconsistent flame height adjustment or shut-off
• Excessive heat concentration in burnered area

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Burner Cap is an OEM part for Bosch gas cooktops. This small black burner cap safely contains the flame underneath to concentrate heat efficiently for precise cooktop control. Reliable burner caps are crucial for safety, performance, and aesthetics.

Causes of a bad burner cap can include warping or cracking from continuous exposure to high heat over the long run, as well as surface scratching or punctures.

Symptoms of a faulty cap include:

• Flames escaping beyond cap and licking up sides of cookware
• Visible damage or deterioration on cap surfaces
• Inability to adjust flame height as intended
• Burners no longer heating or shutting off properly

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Jet Holder with Nut is an OEM part for Bosch ranges and cooktops. It holds precisely machined jets that control gas flow from each burner valve.

Causes may be wear and deterioration from prolonged heating exposure. Physical impacts or damage accumulation over time could also compromise the jet holder.

Symptoms of a bad jet holder can include:

• Inability to adjust or maintain proper flame stability and heat output
• Irregular or uneven flame patterns between surface burners
• Potential gas leaks observed at jet connections

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This is a replacement gas tubing assembly for your gas range that routes fuel safely between the valve and burner manifold. Replacing damaged tubing restores proper gas flow and helps eliminate leaks or ignition problems. What it does

• Routes gas from the range's valve to the burner manifold or secondary fittings
• Restores proper fuel flow when old tubing is cracked, corroded, or pinched
• Addresses common symptoms like a gas smell near the appliance, burners that won't light, or visible tubing damage
• Serves as a direct-fit OEM-style replacement when the original tubing is worn or leaking

• One gas tubing assembly

• Turn off the appliance gas supply and power before inspecting or replacing tubing
• Only install with compatible fittings and thread sealant rated for gas connections; follow manufacturer torque specs
• After installation, perform a certified gas-leak test and check all burner operations

A dishwasher rough-in box that provides a protected mounting pocket for the water and drain connections, plus a sidewall for secure installation. Keeps plumbing connections accessible and contained behind the cabinet face. What it does

• Houses and secures water supply and drain fittings for a dishwasher during installation.
• Protects plumbing connections from cabinet damage and helps prevent movement or strain on hoses.
• Allows access to service supply/drain lines without removing cabinetry.
• Can reduce the risk of leaks reaching adjacent cabinetry by containing connections.

• One rough-in box with sidewall

• Intended for in-cabinet installation during dishwasher rough-in; confirm fit before final cabinet cutout.
• Turn off water supply and power to the appliance circuit before installing or servicing plumbing connections.
• Use appropriate fasteners and sealants per local code; avoid overtightening plumbing fittings.
