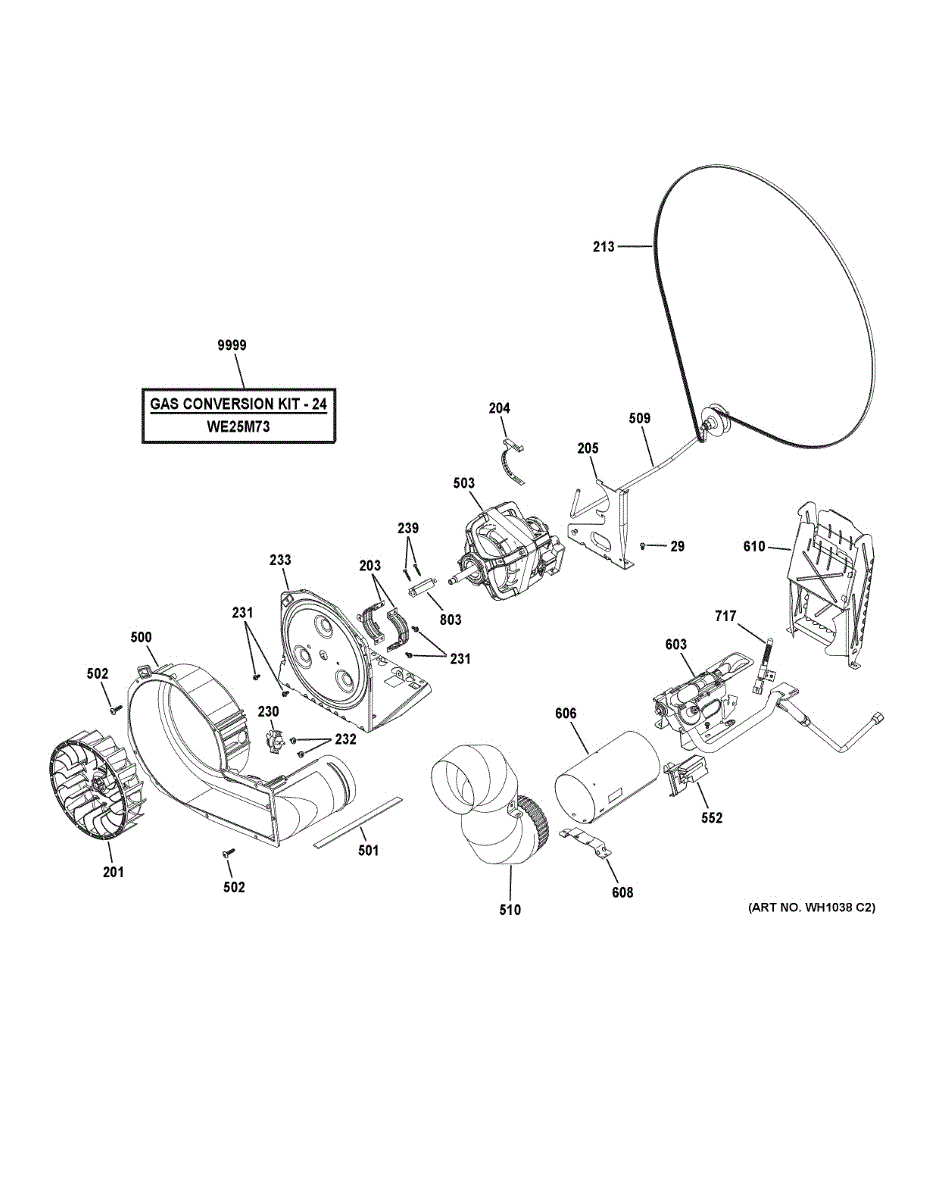

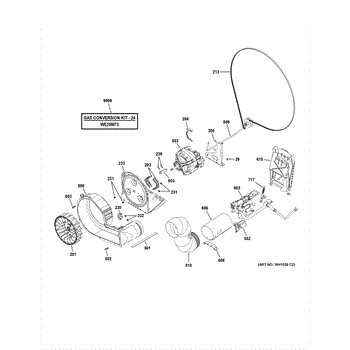

Parts for Ge GUD24GSSM0WW: Gas Valve, Blower & Motor Assembly Parts

This replacement blower wheel for a dryer mounts to the drive motor and pulls air through the drum, lint filter, and exhaust, restoring proper airflow so loads dry efficiently and the appliance runs as intended. What it does:

• Spins with the motor to move air through the drum, lint screen, and exhaust duct
• Maintains airflow needed for even drying and temperature control
• Wear, cracks, or a stripped hub can cause long dry times and weak vent airflow
• Damage or imbalance may produce rattling, scraping, or vibration noises from the blower area

• 1 blower wheel

• Disconnect power; turn off gas supply for gas models before servicing
• Access the blower housing and remove the old wheel from the motor shaft per your model's design
• Clean lint and debris from the blower housing and exhaust duct while open
• Seat the new wheel fully and verify free rotation without rubbing before reassembly

This replacement motor strap secures the dryer's drive motor to its mounting bracket so the motor and blower stay aligned and stable, helping reduce vibration and noise for smoother operation. What it does:

• Holds the drive motor firmly to the base/bracket
• Maintains proper alignment of the motor and blower wheel to prevent rubbing
• Helps reduce vibration, rattling, and related noise
• Typical signs of failure: increased vibration, rattling, scraping from the blower area, or a motor that feels loose inside the cabinet

• Includes 1 motor strap

• Disconnect power; for gas dryers, also shut off gas supply
• Access the motor assembly; note the strap's routing/orientation before removal
• Support the motor while releasing the strap to avoid stressing wiring and mounts
• After securing the strap, rotate the drum/blower by hand to verify free movement before reassembly

This motor strap secures the appliance motor to the cabinet, keeping the motor stable during operation to reduce vibration and noise. Use this replacement to restore proper motor positioning and support in compatible models. What it does:

• Holds the motor firmly in place to prevent movement or shifting during use
• Helps reduce vibration and associated noise caused by a loose motor
• Maintains correct motor alignment so belts and linkages run smoothly
• Commonly used when a worn or broken strap allows motor sag or misalignment

• One motor mounting/retaining strap

• Disconnect power to the appliance before beginning any work
• Inspect mounting points and fasteners; replace any damaged hardware as needed
• Secure strap to the motor and cabinet using the original mounting holes and recommended hardware

This motor support is the stamped metal bracket that secures the dryer motor and blower assembly, keeping components aligned for smooth operation. It restores proper motor mounting and reduces noise from loose or misaligned parts. What it does:

• Holds the dryer motor and blower housing in the correct position to prevent wobble or misalignment
• Helps maintain proper blower alignment for effective air movement
• Supports safe, reliable motor operation when the original bracket is bent, cracked, or worn

• Disconnect power (unplug electric or shut off gas and breaker) before beginning repair
• Access requires opening the dryer cabinet and removing the drum and/or front panel on many models
• Inspect related components (motor mounts, blower wheel, idler, belt) and replace if damaged

This dryer drive belt wraps around the drum and motor pulley to rotate the drum during the cycle. Replacing a worn or broken belt restores proper tumbling so clothes move freely for even drying.

• Transfers motor power to the drum to enable tumbling
• A worn, stretched, or broken belt can cause the drum not to turn
• May also result in the dryer running but not tumbling
• Visual signs include fraying, cracks, or glazing on the belt

• Unplug the dryer before servicing; allow components to cool
• Access typically requires removing the front panel and/or top panel
• Note the belt routing around the motor pulley and idler before removal
• Inspect drum rollers and idler pulley while the belt is off; replace if worn

The Cycling Thermostat is an OEM replacement part for GE dryers. It regulates heating element output and drum temperature during drying cycles. Maintaining proper air and drum temperatures is key to achieving thorough moisture removal from fabrics within targeted cycle times.

Causes of failure typically involve defects developing over many heat exposure and cool-down cycles. Mineral deposits accumulating on the thermostat head can also impact heat-sensing precision over extended use.

Symptoms of a bad cycling thermostat include:

• Slow or inadequate drying times
• Excessively long cycles for normal loads
• The dryer turning on/off irregularly while operating
• Unpredictable or fluctuating drum temperatures

This OEM replacement thermostat is compatible with GE, Hotpoint, and some Kenmore models.

This factory screw secures dryer panels and internal components, keeping assemblies tight and aligned so the machine operates safely and without vibration or rattling.

• Fastens sheet-metal panels, brackets, or trim to the dryer cabinet/frame
• A loose or missing screw can cause panel vibration, noise, or misalignment
• Helps restore stability after service or when original hardware is lost
• Typical symptoms include rattling, loose panels, or gaps in trim

• Unplug the dryer before servicing
• Keep track of original screw locations and lengths; replace like-for-like
• Start screws by hand to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, inspect mating hole or clip before installing

This is a genuine GE replacement screw used to secure appliance panels and components, restoring proper fit and reducing vibration or rattling. A simple fastener that helps keep assemblies aligned and functioning safely. What it does:

• Secures panels, brackets, and small components in place
• Prevents noise from loose parts and maintains structural alignment
• Restores proper fastening after repairs or wear
• Matches OEM fit for reliable replacement

• Disconnect power to the appliance before accessing internal parts
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread carefully and tighten until snug; do not overtighten to prevent damage
• Replace any damaged or missing fasteners with the same OEM part for best results

This blower housing directs airflow from the dryer motor to the drum and exhaust, keeping proper ventilation for efficient drying. Replaces a worn or damaged housing to restore normal airflow and reduce noise or overheating risks. What it does

• Channels air from the blower wheel to the drum and vent system for proper drying.
• Helps prevent recirculation of lint and hot air that can reduce drying performance.
• Can cause reduced drying, longer cycles, or unusual blower noise when cracked or clogged.
• Supports the blower wheel and seals to maintain consistent airflow.

• Disconnect power (and gas supply for gas dryers) before servicing.
• Removal typically requires opening the dryer cabinet and removing the drum; follow the model's service manual.
• Inspect the blower wheel, housing mounting tabs, and vent path for debris or damage before reassembly.

This exhaust blower gasket seals the joint between the dryer's blower outlet and exhaust duct. It helps maintain proper airflow and contain lint and heat, supporting efficient drying and preventing leaks into the cabinet or laundry area. What it does:

• Seals the blower-to-exhaust connection to prevent air and lint leaks
• Helps maintain designed airflow through the drum and vent system
• Can reduce warm air or lint escaping inside the cabinet

• 1 gasket

• Disconnect power; for gas dryers, shut off gas and disconnect the supply. Allow the dryer to cool.
• Access the blower housing/exhaust duct; remove panels as needed.
• Remove the old gasket and any residue; clean mating surfaces and lint before installing.
• Seat the new gasket evenly and reassemble; avoid overtightening fasteners and ensure the home vent is clear.

This replacement screw secures appliance panels and internal components per your model's hardware list. Replace lost or stripped screws to keep assemblies tight, reduce vibration and rattles, and maintain proper alignment.

• Fastens brackets, covers, and sheet-metal panels as specified in the parts diagram
• Restores proper fit when an original screw is missing, stripped, or damaged
• Helps eliminate rattling or vibration from loose hardware
• Keeps components safely in place during operation

• Disconnect power to the appliance before servicing
• Match length, head style, and thread to the original; install in the same location/quantity
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten, especially into plastic or thin sheet metal

This motor and pulley assembly drives the dryer drum so clothes tumble and dry evenly. Replacing a worn or damaged unit restores normal drum rotation and reduces noise for reliable drying performance. What it does:

• Spins the dryer drum by transferring motor power through the pulley and belt
• Stops drum rotation when the motor or pulley fails
• Helps prevent loud squealing or grinding caused by worn pulley bearings
• Can resolve symptoms like no tumbling, intermittent rotation, or abnormal noise during operation

• Disconnect power (unplug or shut off breaker) before servicing
• Basic hand tools required; follow the dryer model's service manual for disassembly
• Handle wiring connectors and mounting hardware carefully; verify secure connections
• Test run after installation to confirm proper drum rotation and quiet operation

This dryer idler arm assembly keeps the drive belt tight and aligned so the drum turns smoothly. A worn or seized idler can cause squealing, belt slippage, or a drum that won't tumble.

• Applies tension to the drive belt and guides it around the motor pulley
• Maintains proper belt alignment for consistent drum rotation
• Common symptoms of failure: squealing/squeaking, belt coming off or wearing quickly, drum not turning, or burning rubber odor
• Pulley should spin freely; roughness or wobble indicates replacement is needed

• Disconnect power; if gas, also shut off gas supply before servicing
• Remove top/front panels as needed, release belt tension, and note belt routing
• Remove the old idler from its mount; transfer spring from the original if required by your model, then install the new assembly and re-route the belt
• Rotate drum by hand to verify belt tracking before reassembly and test run

This duct exhaust directs dryer exhaust air from the appliance to the home vent, helping remove lint, moisture and heat for safer, more efficient drying. Designed as a direct replacement duct component. What it does:

• Channels hot, moist air and lint from the dryer to the external vent
• Restores proper venting when the existing duct is damaged, crushed or leaking
• Helps reduce long dry times, overheating and musty or burning odors tied to poor venting
• Works with the dryer's blower to maintain consistent airflow to the outside

• Disconnect power before servicing the dryer
• Remove the dryer from the wall and disconnect the old duct from the dryer and wall vent
• Inspect and clear the vent path; install the replacement duct with secure clamps or approved fasteners and proper sealing
• Follow local building codes for venting materials and routing; clean lint from the dryer and vent during replacement

The Flame Sensor is an OEM part for GE dryers. This part detects the presence of a flame in gas dryers, ensuring that the gas ignites properly for safe and efficient drying.

Causes of a bad flame sensor can include regular wear and tear, carbon buildup from the gas flame, or electrical malfunctions.

Symptoms of a bad flame sensor include:

• The dryer not heating or taking longer to dry clothes
• The dryer shutting off unexpectedly during a cycle
• The igniter glowing but not igniting the gas
• Error codes related to heating or ignition issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Valve and Burner Assembly is an OEM part for GE dryers. As an integrated sub-assembly, it includes gas control valves, pilot components, and the main burner.

Working together as a system, this assembly regulates gas flow to the heating elements. It provides consistent thermal output throughout drying cycles under control board direction.

Causes of failure can include normal wear over extended use. Mineral or debris buildup may also interfere with proper functioning over time.

Symptoms of a faulty assembly comprise:

• Inability to properly ignite or maintain burner flames
• Fluctuations in heating element output impacting dry times
• Potential gas leaks or unsafe unburned gas emissions
• Issues fully completing designated drying cycles

This genuine GE replacement assembly ensures all gas components function reliably once more. Compatible with some Hotpoint, RCA, and select Kenmore models too, safety and performance are restored through precise thermal regulation.

The Igniter is an OEM part for GE dryers. It is designed to ignite the gas burner to produce heat, which is essential for drying clothes. The igniter ensures that the gas is lit efficiently and safely, enabling the dryer to reach and maintain the proper temperature for effective drying.

You should replace the igniter if it becomes faulty. Causes of a bad igniter can include electrical failures, cracks or breaks in the igniter material, or wear and tear from regular use. These issues can prevent the igniter from generating the necessary heat to ignite the gas.

Symptoms of a bad igniter include:

• The dryer not heating up
• Extended drying times
• The igniter glowing but failing to light the gas burner
•  A lack of flame in gas dryers

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Interlock Switch is an OEM replacement part for GE electric and gas dryers. This safety component monitors the door closure, preventing operation if the door is not securely closed and latched. The switch measures 2 inches long and 1/2 inch wide.

Symptoms of a faulty interlock switch include:

• Dryer failing to start or running with the door open
• Timer display not illuminated when start button is pressed
• Inability to open the dryer door during operation
• Dryer suddenly stopping mid-cycle before fully drying clothes

Causes relate to the internal component contacting the door frame over 50,000 open/close cycles potentially exposing wiring to wear. Regular cleaning the external switch area prevents dust or lint buildup skewing performance.

This genuine GE switch is compatible with Hotpoint and RCA dryers as well.

Note: Can be used as a dishwasher door switch on specific models. Check your model number for the most accurate results.
