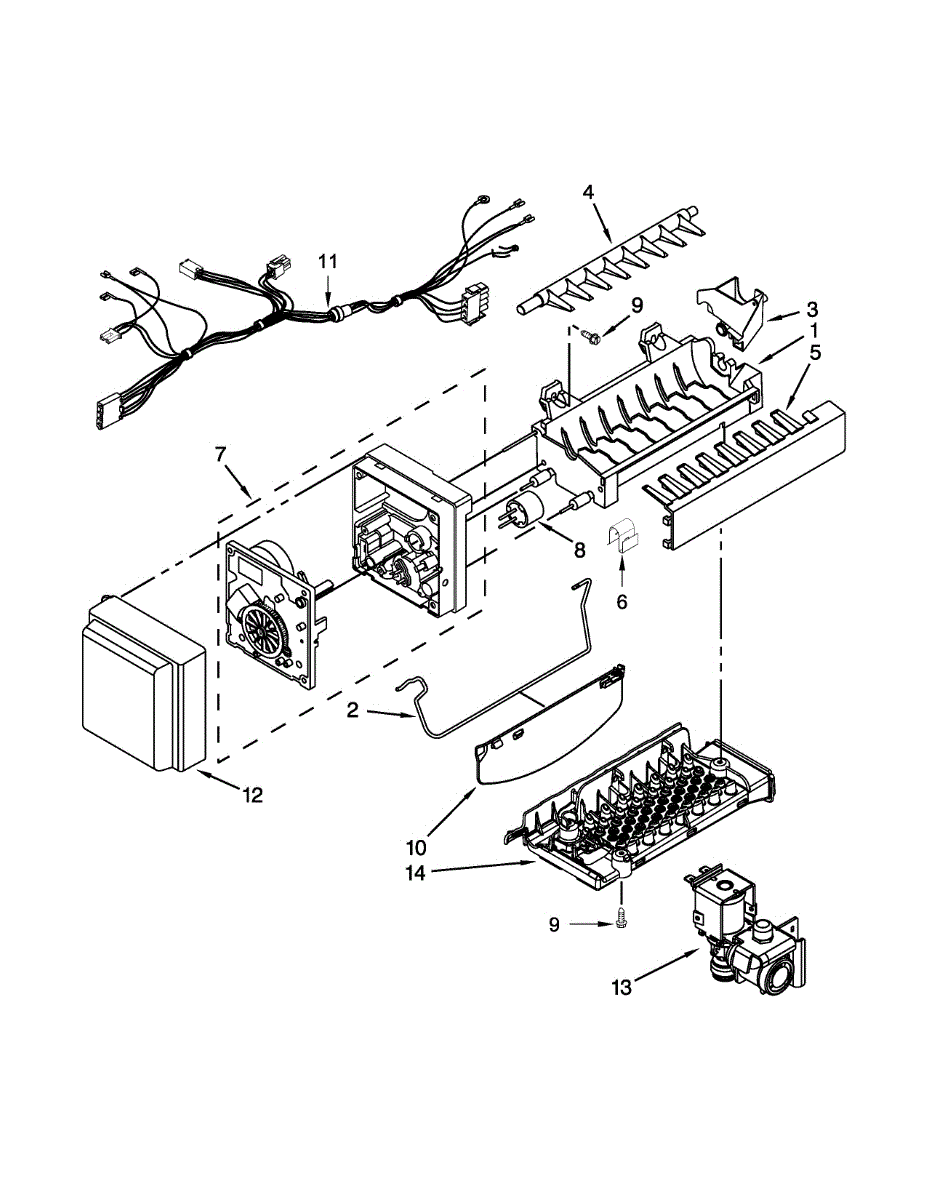

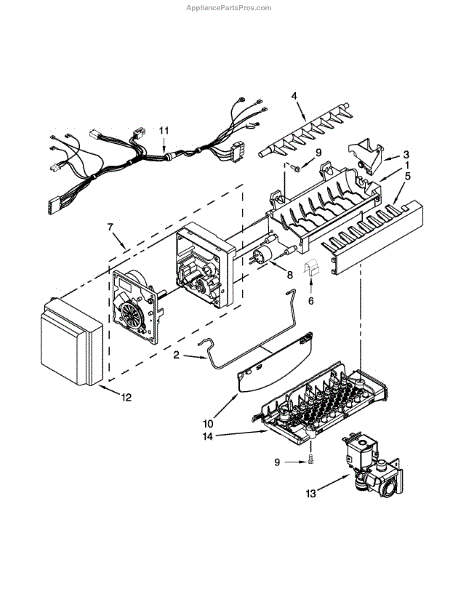

Parts for Amana AFI2539ERM00: Icemaker Parts

This ice mold and heater assembly forms the ice cubes and warms the mold just enough during harvest so cubes release cleanly into the bin. Replacing a worn mold/heater restores reliable ice production and prevents jams or incomplete ejection.

• Forms the ice cube cavities and provides gentle heat for smooth release
• Can help resolve slow or no ice production due to cubes sticking in the mold
• Address misshapen cubes, ice jams, or incomplete harvest cycles
• Common when the coating is worn, the heater is open, or cubes consistently hang up

• Disconnect power to the refrigerator before servicing the icemaker
• Remove the icemaker assembly to access and swap the mold/heater unit
• Transfer any required brackets or hardware from the old part if applicable
• After reassembly, restore power and allow several hours for normal ice making

Restore proper ice control with this replacement ice maker shut-off arm. It senses the ice level and toggles production—lower to make ice, raised to stop—helping prevent overflow and resolving issues caused by a missing, bent, or broken arm.

• Controls the ice maker's on/off function through the internal shut-off switch
• Raises to stop ice production when the bin is full; lowers to allow ice making
• Common symptoms of a failed arm: keeps making ice/overfilling, won't make ice if stuck "off," or arm won't stay in position
• Direct replacement for a loose, deformed, or missing bail arm

• Unplug the refrigerator and turn off the water supply before servicing
• Remove the ice bin; removing the ice maker may improve access
• Note spring/anchor hole positions and install the arm in the same orientation without bending it
• After reassembly, the arm moves freely and starts/stops the ice maker when lowered/raised

This Arm Ejector secures and positions the dishwasher spray arm so it spins properly and distributes water for effective cleaning. Replacing a worn or broken ejector restores spray-arm stability and helps prevent uneven washing. What it does:

• Holds the spray arm in the correct position so it can rotate freely
• Prevents spray arm wobble, scraping, or falling off during cycles
• Helps maintain proper water distribution for consistent cleaning
• Can resolve symptoms like noisy spray arm movement or uneven wash performance

• Disconnect power and turn off the water supply before starting any repair
• Remove the lower spray arm and mounting cup as shown in your model's parts diagram to access the ejector
• Inspect surrounding components for wear when replacing the ejector
• Use only the exact replacement part number to ensure proper fit and function

The Ice Maker is an OEM replacement part for Whirlpool refrigerators. It is responsible for producing ice cubes to fill the ice bucket in the freezer. The ice maker utilizes water from the refrigerator's internal supply line and electricity to slowly freeze water into individual ice cubes.

Causes of a bad ice maker can include worn components that affect its ability to properly freeze water, malfunctions in the electronic control board that regulate the process, or issues with the supply line.

Symptoms of a bad ice maker include:

• Failure to produce ice cubes
• Incorrect sized or shaped ice
• Excessive noise during operation
• Water in the freezer

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

NOTE: 8 cube icemaker Includes two wire harnesses and shut off arm.

This is the small extension that attaches to the ice maker's shut-off arm. It lengthens the arm so the ice bin can reliably raise/lower the arm to stop ice production when full and resume when space is available.

• Extends the ice maker's shut-off/bail arm for proper bin detection
• Helps prevent ice maker overfilling when the bin is full
• Can resolve issues like continuous ice production, overfilling, or ice not stopping
• Restores original fit and function on compatible ice maker assemblies

• Disconnect power and shut off water supply before servicing
• Access the ice maker, then slide/clip the extension onto the shut-off arm as directed by your model's service info
• Ensure the arm moves freely and properly actuates the ice maker switch
• Restore power and verify the arm stops ice production when raised

This main control wire harness routes power and signals between the appliance control board and key components, restoring reliable electrical connections for proper operation. Ideal when controls or components lose power or communication. What it does:

• Transfers power and control signals between the control board and motors, switches, sensors, or heating elements
• Replaces damaged, frayed, or corroded wiring that can cause intermittent or complete failure of functions
• Helps resolve symptoms like unresponsive controls, components not powering on, or intermittent operation
• Maintains correct connector fit and wire routing to prevent shorting or signal loss

• One wire harness as shown

• Disconnect power (unplug or shut off breaker) before starting any repairs
• Compare connectors and wire colors to the old harness to confirm correct fit before installation
• Route harness along the original path and secure with existing clips or fasteners to avoid contact with moving or hot parts

The Water Inlet Valve is an OEM part for Whirlpool dishwashers. It is responsible for controlling the flow of water into the dishwasher during the fill cycles. This valve ensures that the dishwasher receives the correct amount of water needed for washing and rinsing dishes effectively.

You should replace the water inlet valve if it becomes faulty. Causes of a bad water inlet valve can include wear and tear from regular use, mineral buildup from hard water, or electrical issues. A malfunctioning valve can lead to improper water flow, affecting the dishwasher’s performance and potentially causing water leaks.

Symptoms of a bad water inlet valve include:

• The dishwasher not filling with water or filling slowly
• Water leaking from the valve area
• Dishes not being cleaned properly due to insufficient water
• The dishwasher making unusual noises during the fill cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This impinger assembly directs heated airflow inside the oven/microwave cavity to help promote even cooking and consistent heating. It replaces a damaged or warped air baffle to restore proper airflow distribution. What it does:

• Routes and evens airflow across the cooking cavity to help reduce cold spots
• Helps maintain consistent internal temperatures during operation
• Prevents hot air from short-circuiting around food for more uniform results
• Replaces cracked, warped, or missing air-baffle components that impair airflow

• Disconnect power to the appliance before starting any repair
• Use appropriate hand tools and take care to avoid sharp sheet-metal edges
• Inspect mounting clips/fasteners and replace if damaged; follow OEM fitment orientation

The Ice Maker is an OEM replacement part for Whirlpool refrigerators. It is responsible for producing ice cubes to fill the ice bucket in the freezer. The ice maker utilizes water from the refrigerator's internal supply line and electricity to slowly freeze water into individual ice cubes.

Causes of a bad ice maker can include worn components that affect its ability to properly freeze water, malfunctions in the electronic control board that regulate the process, or issues with the supply line.

Symptoms of a bad ice maker include:

• Failure to produce ice cubes
• Incorrect sized or shaped ice
• Excessive noise during operation
• Water in the freezer

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

NOTE: 8 cube icemaker Includes two wire harnesses and shut off arm.
