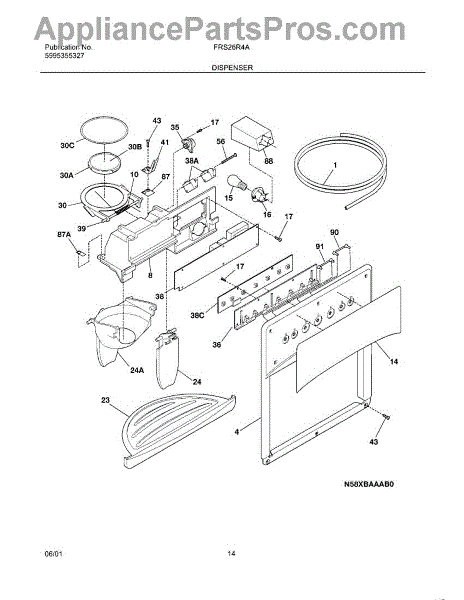

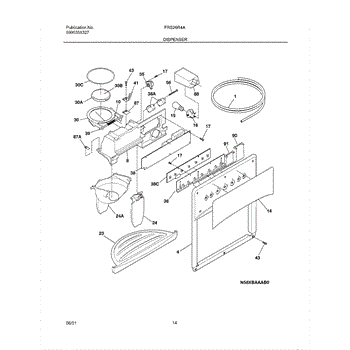

Parts for Frigidaire FRS26R4AB1: 15 - Ice & Water Dispenser Parts

The Frigidaire PureSource Plus WFCB Refrigerator Water Filter is an OEM part for Frigidaire refrigerators. This water filter is specifically engineered to reduce impurities and contaminants in your drinking water and ice, including chlorine taste and odor, lead, cysts, and particulates.

Regular replacement of the water filter is recommended to maintain the best water quality and flow rate. Over time, the filter can become clogged with particles and contaminants, which can reduce its effectiveness and potentially affect the taste and odor of your water.

Symptoms of a filter that needs replacement include:

• Reduced water flow from the dispenser
• Unpleasant taste or odor in the water and ice
• The refrigerator's water filter indicator light turns on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Inlet valve to icemaker

The Dispenser Frame is an OEM part for Frigidaire refrigerators. It provides structural support for the ice and water dispenser assembly, ensuring that all components are securely held in place and function properly. The frame measures about 11x 12 inches

Causes of a bad dispenser frame can include repeated use, physical impact, or exposure to moisture, which can lead to cracks, warping, or breakage. A damaged frame can compromise the functionality of the dispenser, leading to leaks or misalignment of the dispensing components.

Symptoms of a bad Dispenser Frame include:

• The dispenser assembly becoming loose or wobbly
• Leaks around the dispenser area
• Difficulty in dispensing ice or water properly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models

This torsion spring mounts in the dispenser to return the ice chute door/flapper to the closed position after dispensing. Replacing a weak or broken spring helps stop warm air leaks, frost, and ice clumping in the chute.

• Provides the closing force for the dispenser ice door
• Helps seal the ice chute to reduce frost and moisture intrusion
• Typical symptoms: ice door won't close fully, frost/ice buildup around the chute, cubes dropping after dispensing, or air leakage at the dispenser
• Replace if the spring is broken, deformed, or has lost tension

• Disconnect power before servicing; shut off water if working near the dispenser area
• Remove dispenser trim/bezel and control panel to access the ice door assembly; support wiring harnesses
• Note spring orientation and preload before removal; install the new spring on the same hinge posts in the same direction
• Manually cycle the flapper to ensure smooth return and a full seal before reassembly

This replacement light bulb restores clear illumination inside your appliance, making it easy to check progress and find items. It matches the original fit and connection for dependable lighting exactly where the manufacturer intended.

• Provides appliance illumination per the original design
• Replaces bulbs that are burned out, dim, flickering, or intermittent
• Helps you monitor progress and see the compartment clearly
• Fits the original socket for straightforward replacement

• Disconnect power to the appliance before replacing the bulb
• Allow the bulb and surrounding area to cool completely
• Handle the bulb by the base; avoid touching the glass
• Replace with the same type and wattage specified on the appliance or in the manual

A replacement refrigerator light socket that holds and connects the interior bulb so the light turns on when the door opens. Restores reliable interior lighting for easier food visibility and maintenance. What it does:

• Holds the interior refrigerator bulb and provides the electrical connection to power the lamp
• Replaces a cracked, burned, loose or intermittently working socket
• Helps stop flickering, arcing, or loss of interior light due to a damaged holder
• Works with the refrigerator's existing wiring and bulb type

• Disconnect power to the appliance before starting any repair
• Handle the bulb carefully; remove it before replacing the socket
• Verify proper wire connections and secure mounting; restore power and test the light after installation

A single replacement mounting screw used to secure appliance panels and components. Restores proper fit and prevents rattling or loose parts so trims and panels stay aligned during normal use. What it does:

• Fastens panels, brackets or trim pieces to the appliance frame
• Replaces worn, stripped or missing screws that cause loose or rattling parts
• Helps restore secure alignment for doors and access panels
• Works where the OEM lists a basic machine/fastener screw

• Disconnect power and water before beginning any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread by hand to start, then tighten until snug—do not overtighten
• Keep small parts away from children and pets during installation

The Dispenser Drip Tray is an OEM replacement part for Frigidaire refrigerators. It is located below the water and ice dispenser and collects any accidental spills or drips that occur during use. The drip tray helps prevent moisture accumulation on interior surfaces that could lead to mold or mess. It measures about 11 inches wide by 4 inches deep.

Symptoms of a bad dispenser drip tray include:

• Unpleasant odors emanating from unaddressed spills or drips
• Visible water staining or residue buildup below dispenser

Causes of failure are typically just general wear and tear from prolonged use.

This replacement part is also compatible with models produced by Electrolux, Gibson, Kelvinator, and Kenmore.

The Ice Dispenser Actuator Arm is an OEM part for Frigidaire refrigerators. It is designed to engage the ice dispensing mechanism when you press the lever or button on the ice dispenser. This actuator arm transfers the mechanical action needed to release ice from the dispenser into your glass or container.

You should replace the ice dispenser actuator arm if it becomes damaged, worn out, or fails to engage the ice dispensing mechanism properly. Common causes of a bad actuator arm include frequent use, mechanical wear, or accidental damage that can bend or break the arm.

Symptoms of a bad ice dispenser actuator arm include:

• The ice dispenser not releasing ice
• The dispenser lever feeling loose or unresponsive
• Ice dispenser making unusual noises
•  The actuator arm appearing bent or broken

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Water Actuator is an OEM part for Frigidaire refrigerators. It is a crucial component of the dispenser system, primarily responsible for initiating the water dispensing process when pressed. This actuator typically sits behind the water dispenser lever on the refrigerator door, acting as the mechanical link that triggers the water flow when activated by the user.

Symptoms of a faulty water actuator include:

• Inability to dispense water when the lever is pressed.
• Intermittent or inconsistent water flow.
• Unusual noises during actuation.

Causes of a bad water actuator can include mechanical wear and tear, failure of the spring mechanism that returns the lever to its original position, or electrical issues that prevent the actuator from functioning properly. Regular usage and accidental impacts can also lead to the deterioration of this part.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Chute Door Insulation is an OEM replacement part for Frigidaire refrigerators. It is installed on the ice chute door to prevent warm air infiltration and moisture buildup around the ice dispenser.

Causes may include compression or cracking of insulating foam/material from normal use stress. Spills exposing it to liquid are also damaging.

Symptoms of defective insulation consist of:

• Ice accumulating within the chute cover area
• Condensation visible on exterior chute surfaces
• Inefficient icemaker performance due to altered temperatures

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Door Center is an OEM part for Frigidaire refrigerators. This component is part of the ice dispenser system, managing the release of ice through the dispenser chute. It helps prevent cold air from escaping the freezer, maintaining energy efficiency and preserving the ice supply.

You should replace the ice door center if it becomes damaged or fails to seal properly. Causes of a bad ice door center can include regular wear and tear, damage from repeated use, or build-up of ice and debris obstructing its movement.

Symptoms of a bad ice door center include:

• Ice dispenser not working correctly
• Ice build-up around the dispenser area
• Warm air entering the freezer, causing ice to melt or clump
• Increased energy consumption due to poor sealing

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Door Seal is an OEM part for Frigidaire refrigerators. This seal is designed to create an airtight barrier around the ice dispenser door, preventing warm air from entering the freezer and maintaining optimal temperature inside the ice compartment. Please note, this listing is for the seal only, other components are sold separately.

Over time, the ice door seal can become worn out or damaged due to frequent use, exposure to varying temperatures, and regular opening and closing. Causes of a bad ice door seal include cracking, tearing, or loss of elasticity, which can lead to air leaks.

Symptoms of a bad ice door seal include:

• Frost or ice buildup around the ice dispenser
• Warm air entering the freezer compartment
• Increased energy consumption
• Water or condensation around the ice dispenser area
• The ice door not closing properly or sealing tightly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Door Bracket is an OEM part for Frigidaire refrigerators. It is a critical component of the ice dispenser mechanism, designed to support and align the ice door properly. This bracket ensures the ice door opens and closes smoothly, maintaining an airtight seal to prevent warm air from entering the freezer compartment and causing frost buildup.

Symptoms of a bad Ice Door Bracket include:

• The ice dispenser door failing to close completely, which can lead to ice melting and freezer burn.
• Excessive frost or ice accumulation near the dispenser area.
• Unusual noise when the dispenser is activated, indicating misalignment or instability.

Causes of a bad ice door bracket can include mechanical stress from repeated use, accidental damage from impact, or wear and tear that weakens the structural integrity of the bracket.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Dispenser Switch is an OEM replacement part for Frigidaire refrigerators. It is a component that controls the operation of the water and ice dispenser, allowing users to conveniently access chilled water, cubed ice, or crushed ice from the refrigerator door.

Symptoms of a bad dispenser switch:

• Failure of the water or ice to dispense when the lever or button is activated
• Erratic or inconsistent dispensing behavior
• Water or ice continuously dispensing without user input
• Leaks or moisture around the dispenser area

Causes of a bad dispenser switch can include mechanical wear and tear, electrical malfunctions, or physical damage due to mishandling or impact.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This door hinge pin forms the pivot for the refrigerator door hinge, keeping the door supported and aligned. Replacing a worn or missing pin restores smooth door movement and consistent sealing.

• Acts as the hinge's pivot shaft to support the door
• Helps maintain door alignment so the gasket can seal properly
• Reduces wobble and scraping at the hinge point
• Typical failure symptoms: door sagging, misalignment, poor closing, or a loose/wobbly hinge

• Unplug the refrigerator and remove items from the door to reduce weight.
• Support the door; remove hinge cover and screws, then lift the door off the hinge.
• Replace the hinge pin in the hinge bracket; transfer any existing spacers/bushings as designed.
• Reinstall and align the door; tighten hardware and verify smooth operation and seal contact.

This small but critical actuator spring restores return tension in a refrigerator's actuator mechanism, helping the lever reset to neutral after use so controls feel responsive and operation stops cleanly. What it does:

• Provides the return force for an actuator or lever so it moves back to its neutral position
• Helps the mechanism engage/disengage a switch cleanly
• Common symptoms of a weak or broken spring: lever sticks, feels loose, or doesn't spring back
• Contribute to intermittent activation or failure to stop when released

• 1 actuator spring

• Disconnect power; if working near the dispenser/water system, shut off the water supply
• Access the actuator mechanism and note the spring's exact orientation (take a photo before removal)
• Use needle-nose pliers to transfer the spring; do not over-stretch or deform it
• Wear cut-resistant gloves and eye protection; test lever return action before reassembly

Pan head

Inlet valve to door

Replacement water inlet tube that connects the refrigerator water inlet valve to the inline filter, restoring proper water routing for the dispenser and ice maker while helping prevent leaks and maintain steady water flow. What it does:

• Routes water from the inlet valve to the fridge's inline filter for filtration and delivery.
• Restores or improves water flow when the original tubing is cracked, pinched, or clogged.
• Helps stop leaks caused by damaged or brittle tubing between the valve and filter.
• Common symptoms indicating replacement: reduced or no water flow, visible leaks, or damaged/kinked tubing.

• Turn off the water supply and unplug the appliance before replacing tubing.
• Use appropriate fittings/clamps and avoid kinking or over-bending the tube; replace worn clamps if present.
• Tighten connections securely but do not overtighten plastic fittings; check for leaks after restoring water and power.
