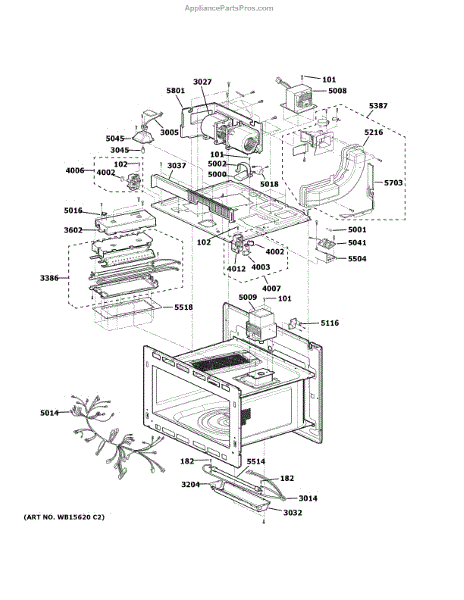

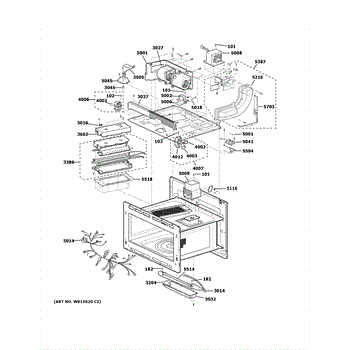

Parts for Ge CSB913P4N2W2: Insulator Parts

This is a binding-head screw used to fasten panels and components on compatible GE appliances. It provides secure, low-profile fastening where a binding head design is required for proper fit and alignment. What it does

• Secures panels, brackets, or small assemblies to prevent movement or rattling.
• Replaces a missing or stripped screw that causes loose parts or squeaks.
• Restores proper alignment for components that rely on the binding-head profile.
• Works where a shallow, rounded head and threaded shaft are specified.

• Use the correct driver size to avoid cam-out or head damage.
• Do not overtighten; snug until secure to avoid stripping threads or damaging parts.
• Disconnect power and follow all appliance-specific safety procedures before accessing panels.

This circulation motor powers the circulating fan to move air inside the appliance, helping maintain even temperatures and support proper cooling or heating performance. It replaces a worn or failed motor to restore airflow. What it does:

• Spins the circulating fan or blower to move air through the appliance compartment
• Helps maintain consistent internal temperature and airflow for efficient operation
• Can address symptoms such as weak or no airflow, uneven cooling/heating, or unusual motor noise
• Works as the rotating drive component that transfers power to the fan assembly

• One circulation motor as shown

• Disconnect power before attempting any service to avoid electrical shock
• Verify orientation and mounting before removal; note wiring positions for reinstallation
• Use proper tools and follow manufacturer instructions; replace any worn grommets or fasteners as needed

The Halogen Lamp is an OEM replacement part for GE microwaves. It provides optimal interior light for monitoring food as it cooks. Consistent illumination supports convenience and usability.

Causes generally involve standard wear of the lamp coil and filament from heat and electromagnetic forces during operation. Accidental damage is another potential issue.

Symptoms of a bad halogen lamp include:

• Dark or splotchy lighting inside the microwave
• Inability to fully view food as it cooks
• Difficulty determining if items are thoroughly heated
• Shadows create the potential for uneven cooking

This GE OEM replacement is compatible with some Hotpoint, RCA, and Kenmore models.

The Door Interlock Switch is an OEM part for GE microwaves. It ensures the safety of the microwave by preventing the appliance from operating while the door is open. This switch is part of a microwave's safety mechanism, which includes multiple interlock systems designed to stop the generation of microwaves immediately once the door is opened, thereby protecting users from exposure to microwave radiation.

Signs that it's time to replace your door interlock switch include the microwave not starting or stopping unexpectedly, the microwave continuing to operate with the door open, or a failure to heat food even though the appliance seems to be running.

Symptoms of a bad Door Interlock Switch include:

• Microwave does not start
• Microwave stops unexpectedly
• The microwave operates with the door open
• Microwave turns on but does not heat food

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Switch Monitor Interlock is an OEM replacement part for GE microwaves. This safety component ensures that the microwave operates only when the door is securely closed. It prevents the microwave from running if the door is open, providing a critical safety feature to protect users from exposure to microwave radiation.

Causes of a bad switch monitor interlock can include wear and tear over time, mechanical damage from frequent door opening and closing, or electrical malfunctions that impact its performance.

Symptoms of a bad Switch Monitor Interlock include:

• The microwave not starting or operating intermittently
• The microwave running with the door open
• Error messages or safety warnings displayed on the control panel
• Unusual clicking or buzzing noises when the microwave door is opened or closed

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Latch/Switch Holder (Right Side) is an OEM component specifically designed for GE microwaves. It is responsible for securely mounting the latch and door switch components on the right side of the microwave door.

Symptoms of a bad latch/switch holder include:

• Loose, unstable, or improperly functioning door latch
• Inoperative or faulty door switch preventing the microwave from operating
• Physical damage or cracks in the holder plastic

Causes can include normal wear over time exposing internal wires, moisture damage compromising electronics or impact damage weakening the holder structure.

This GE replacement is compatible with Hotpoint, RCA, and Kenmore models.

The Capacitor High Voltage is an OEM part for GE microwaves. It stores and releases high voltage electrical energy to power the magnetron, which generates the microwaves for cooking.

Over time, capacitors can deteriorate due to prolonged exposure to high voltage, excessive heat, or electrical surges. A malfunctioning capacitor can lead to inefficient cooking or complete failure of the microwave.

Symptoms of a bad capacitor include:

• The microwave not heating food properly
• A loud humming or buzzing noise during operation
• The microwave shutting down unexpectedly
• Visible damage or leakage from the capacitor

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This high-voltage transformer steps household power up to the level needed to energize the magnetron. Replacing a failing transformer can restore consistent microwave heating and reduce excessive humming under load. What it does and common symptoms:

• Steps up AC line voltage to power the magnetron through the high-voltage circuit
• Microwave runs but does not heat food
• Loud humming or buzzing when a cycle starts
• Blows internal fuse or trips breaker immediately after pressing Start (can also be caused by other HV components)

• 1 high-voltage transformer

• Disconnect power; microwave high-voltage components can retain a lethal charge
• Discharge the high-voltage capacitor before handling any internal parts
• Note and photo-document wire positions; transfer one lead at a time to avoid miswiring
• Support the transformer's weight during removal/installation and reuse original mounting hardware and insulators

• "No heat" can also result from a failed magnetron, HV diode, or HV capacitor; diagnose related components before replacing the transformer.

The Magnetron is an OEM component specifically designed for GE microwaves. The magnetron is responsible for generating microwave radiation that cooks food by utilizing electromagnetic energy. It works by accelerating electrons within a vacuum tube using a magnet to generate microwave emissions.

Causes of a bad magnetron can include overuse, excessive cooking times, damage from arcing due to sparks, or general wear and tear over time.

Symptoms of a bad magnetron include:

• Inefficient or inconsistent cooking and heating
• Longer cook times required
• Food not cooking thoroughly or remaining cold in spots
• The microwave making buzzing or humming noises during use

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is the oven thermostat that senses and controls the oven cavity temperature so your range heats to and maintains the set temperature for baking and roasting. Replacing a faulty thermostat can restore consistent, accurate cooking performance.

• Regulates oven temperature by cycling the heat source on and off
• Helps correct issues like oven not reaching set temperature or running too hot
• Can address erratic temperature swings or uneven baking results
• Mechanical control with sensing bulb/capillary that monitors oven heat

• Disconnect power and allow the oven to cool completely before service
• Handle the capillary/sensing bulb carefully—do not kink, bend sharply, or cut it
• Route and secure the capillary in the original clips/position to avoid hot spots
• Verify knob alignment and perform a test preheat; adjust calibration only per service guidance

The Diode Cable Assembly is an OEM part for GE microwaves. This part converts AC power to DC power, which is crucial for the microwave's operation.

Causes of a bad diode cable assembly can include electrical surges, overheating, or general wear and tear.

Symptoms of a bad diode cable assembly include:

• Microwave not heating food
• Unusual noises during operation
• Burning smell or visible damage to the cable
• Microwave shutting off unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This noise filter board helps suppress electrical interference to protect controls and reduce audible buzzing or display interference. It fits into the appliance's power/control area to help stabilize operation. What it does:

• Filters electromagnetic and radio-frequency interference on the power line
• Can stop or reduce buzzing, static, or interference affecting displays and controls
• Helps prevent false error codes or intermittent control issues linked to electrical noise
• Works as part of the appliance power/control circuitry for cleaner power delivery

• One noise filter board

• Always disconnect power before accessing or replacing the filter board
• Handle the board carefully and avoid touching components or connectors directly
• Verify the part number on your appliance match before installation

Replace a cracked or discolored refrigerator interior light cover to protect the bulb and restore even, glare-free illumination inside the compartment. This molded lens snaps into the light housing for a clean finished look. What it does:

• Protects the interior light bulb from impact, moisture, and debris
• Diffuses light for more even illumination throughout the compartment
• Prevents direct exposure to the bulb, reducing bright hotspots and glare
• Stops rattling or vibration noises caused by a loose or damaged lens

• High-level replacement — usually snaps or screws into the existing light housing; no wiring required
• Power off the appliance or switch off the interior light circuit before servicing
• Inspect the housing and bulb for damage while replacing the lens; replace bulb if needed
• Use only the matching replacement lens to ensure proper fit and safe operation

The Thermostat is an OEM part for GE microwaves. This part regulates the temperature within the microwave, ensuring it operates within safe and efficient temperature ranges. It helps prevent overheating by monitoring and controlling the internal temperature, protecting both the appliance and the user.

Causes of a bad thermostat can include wear and tear over time, electrical malfunctions, or damage from power surges.

Symptoms of a bad thermostat include:

• Microwave not heating properly
• Overheating or shutting off unexpectedly
• Error codes related to temperature issues
• Inconsistent cooking times

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.
