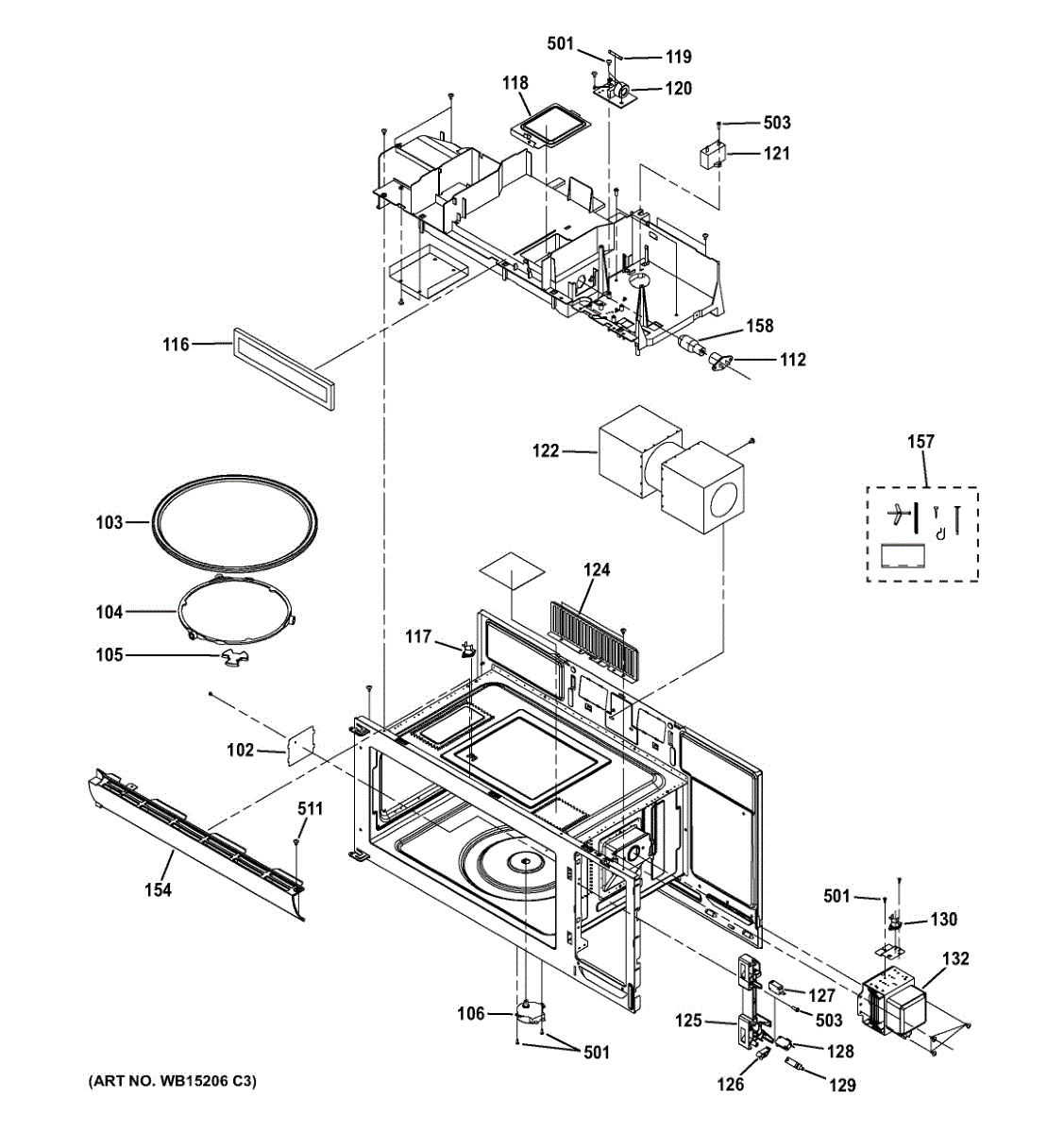

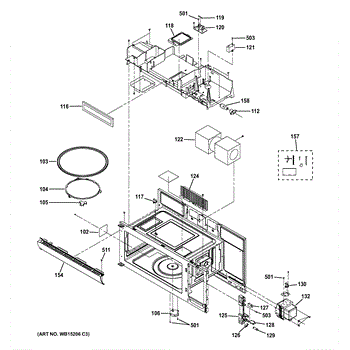

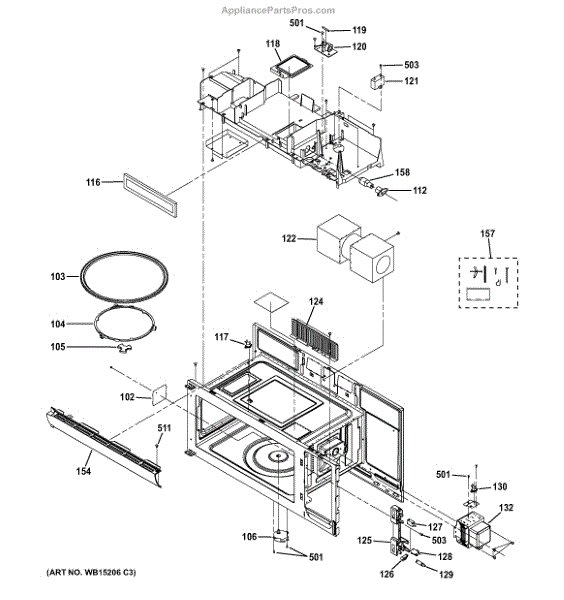

Parts for Hot Point RVM5160RH1SS: Interior Parts (1) Parts

This waveguide cover protects the microwave's waveguide opening from food debris and prevents arcing that can damage the magnetron. Replacing a damaged cover helps restore safe microwave operation and consistent cooking results. What it does:

• Shields the waveguide and magnetron from grease, splatter, and food particles.
• Helps prevent sparking or arcing inside the cavity when the cover is intact and undamaged.
• Reduces the risk of damage that can cause uneven heating or microwave failure.
• Visible burn marks, holes, or charring on the cover are common signs it needs replacement.

• One waveguide cover and mounting nut.

• Unplug or disconnect power before servicing the microwave to avoid electric shock.
• Access typically requires removing the outer cabinet or inner trim panels—follow your model's service instructions.
• Handle the cover gently; avoid bending or cracking the material during installation.
• Do not operate the microwave if the waveguide cover is missing or damaged.

The Tray is an OEM replacement part for GE microwaves. This glass tray rotates on the turntable so the food in the microwave can cook evenly.

Causes of a bad tray can include warping, cracks or breaks developing from repeated high heat exposure over time, or damage caused by aggressive cleaning methods.

Symptoms of a bad tray include:

• Difficulty fitting dishes, plates, or bowls securely on the tray
• Tray slipping or sliding during a cook cycle
• Sharp edges posing a safety risk

This genuine GE OEM tray is also compatible with some Hotpoint, RCA, and Kenmore microwave models as well.

This turntable support ring sits beneath the microwave's glass tray and rides on small rollers to enable smooth rotation. Replacing a worn ring restores stable, quiet turning for more consistent heating and helps prevent tray wobble.

• Supports the glass tray and allows it to rotate smoothly
• Helps maintain even heating by keeping the tray centered and turning
• Common symptoms: tray not turning or stopping intermittently; tray wobbling or slipping
• Reduces grinding or squeaking caused by a worn ring

• Disconnect power by unplugging the unit or switching off the circuit breaker
• Remove the glass tray; lift out the old ring and clean the track
• Position the new ring with the rollers facing up and seated evenly
• Reinstall the glass tray and verify free rotation before restoring power

This microwave turntable coupler links the turntable motor to the glass tray so it rotates during cooking. Replacing a worn hub restores smooth, reliable tray movement and helps ensure more even heating across your dishes. What it does:

• Transfers rotation from the turntable motor to the tray
• Helps resolve a tray that will not turn
• Corrects wobbling or poor engagement at the center hub
• Can improve heating consistency when the tray fails to rotate

• Includes: 1 turntable coupler

• Disconnect power before servicing
• Remove the glass tray and roller ring; lift the old coupler straight up from the center
• Align the new coupler with the motor shaft (flat/D-shape) and press down until fully seated
• Installation can vary by model; follow your model's service instructions to access the motor area

The Turntable Motor is an OEM part for GE microwaves. It is responsible for rotating the glass turntable plate during cooking, ensuring food is evenly heated throughout the microwave cavity.

Symptoms of a bad turntable motor include:

• The turntable not spinning at all or rotating unevenly
• Loud grinding or clicking noises coming from the motor area
• The turntable plate wobbles excessively during the operation

Causes can be normal wear and tear over time from continuous use, failure of electronic components in the motor, or damage from heavy loads or impact. This GE replacement motor restores even cooking performance.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today before a minor problem becomes a major repair bill. Continued use without a properly functioning turntable can damage other microwave components.


The Light Socket is an OEM part for GE microwaves. This part holds the light bulb securely in place within the microwave, providing illumination inside the appliance.

Causes of a bad light socket can include wear and tear from frequent use, exposure to high heat, or electrical issues that cause the socket to malfunction.

Symptoms of a bad Light Socket include:

• The light bulb not illuminating when the microwave is in use
• Flickering or intermittent light
• Visible damage or discoloration of the socket
• The bulb not fitting securely or falling out

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Charcoal Filter is an OEM part for GE microwave ovens. This component is crucial for absorbing odors and filtering out grease and other contaminants from the air circulated by the microwave's exhaust system. By maintaining a cleaner airflow, the charcoal filter ensures that your microwave remains efficient and free from odors that can affect the taste and smell of your food. The filter measures about 10 inches wide by 2-1/2 inches high.

Causes of a bad charcoal filter include saturation with grease or odors over time, which reduces its efficacy. Additionally, accidental damage or prolonged use without replacement can impair its ability to filter air effectively.

Symptoms of a bad charcoal filter include:

• Persistent odors even after cooking has completed
• Visible grease buildup on the filter
•  Reduced efficiency in air recirculation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Temperature-sensing thermostat that controls an appliance's heating cycle to keep temperatures within a safe operating range. Replacing a failed thermostat restores proper temperature cycling, helps prevent overheating, and stabilizes performance. What it does:

• Opens or closes at its designed trip point to control heating elements or temperature circuits.
• Stops heating when the set temperature is reached and allows heating to resume when temperature falls.
• A faulty thermostat can cause no heat, continuous heating, erratic cycling, or temperature that never stabilizes.
• Used as the temperature control device in the appliance's heat-regulation system.

• Disconnect power to the appliance before servicing to avoid electrical shock.
• Match wiring and mounting to the original thermostat; do not force terminals or sensor elements.
• Handle the sensor and terminals carefully to avoid damage; do not kink or crush the sensing element.

This is a fuse that is used on microwaves. This fuse shuts off the microwave if there happens to be a power surge. This helps prevent damage to the microwave unit and also prevents fires from being started from the power surge. Be sure to unplug the microwave from its power source prior to attempting the replacement of the fuse. The process to replace the fuse is relatively easy and can be completed in about 30 to 60 minutes time.A new fuse may be needed if the microwave will no longer turn on. If the fuse has been blown, it will show scorch marks, and the filament inside will be melted.This fuse is a genuine General Electric part and is an OEM part sourced directly from the manufacturer. It is sold individually. This specific fuse is compatible with microwaves that are manufactured by the General Electric brand.

A noise filter that helps suppress electrical interference on the appliance power line, reducing hum, arcing and radio-frequency interference for more reliable operation. Fits into the appliance mains to limit unwanted electrical noise. What it does

• Suppresses line noise and radio-frequency interference that can cause humming, buzzing or intermittent operation.
• Helps prevent electrical interference that affect controls, displays or nearby audio equipment.
• Used where power-line filtering is required to maintain stable operation of the appliance's electronics.
• Common symptom: intermittent control response, audible electrical noise, or interference-related malfunctions.

• One noise filter.

• Disconnect power at the breaker or unplug the appliance before servicing.
• Access may require removing a rear or control panel; keep track of fasteners and grounding connections.
• Replace only with the exact part number; ensure proper orientation and secure mounting.

This capacitor helps the appliance motor start and run smoothly, restoring proper motor operation and reducing startup strain. Use this exact replacement to address motor performance issues. What it does:

• Provides the electrical phase shift needed for the motor to start and run
• Restores normal motor startup and running behavior
• Can resolve humming, slow or non-starting motors, and intermittent motor stalls
• Works with the motor's control circuitry to stabilize performance under load

• Always disconnect power to the appliance before starting work
• Discharge the capacitor before handling to avoid electrical shock
• Match terminals and wiring exactly to the original; secure connections firmly

The Vent Motor is an OEM part for GE microwaves. It is responsible for circulating air through the appliance and venting moisture, heat, and odors outside the home.

Causes of a bad Vent Motor can include normal wear and tear from extended use over time, exposure to grease or debris that causes increased friction or interference, or damage to motor windings from surges in electrical current.

Symptoms of a bad Vent Motor include:

• Lack of airflow when the vent is turned on
• Strange noises or knocking sounds coming from the vent system
• Grease or residue building up inside the appliance
• Excessive heat inside the oven or microwave

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Latch Board is an OEM part for GE microwaves. The latch board controls the door latching mechanism that secures the microwave door closed during operation. It works alongside the door interlock switch to initiate the removal of power to the magnetron when the door is opened, for safety during use.

Symptoms of a bad latch board include:

• The door not closing and latching properly
• The microwave operating with the door open
• Error codes or blinking lights related to the door interlock system
• Issues engaging or disengaging the door-locking mechanism

This replacement part is also compatible with Hotpoint and Profile microwaves.

The Interlock Switch Lever is an OEM part for GE microwaves. This mechanical component works with the microwave door interlock switch to disable power to the unit when the door is open.

Symptoms of a bad interlock lever include:

• Microwave remaining powered on with door open
• Delayed enabling or disabling of power when opening/closing door
• Loose or unstable door closing and sealing

Causes can be normal wear from repeated opening and closing of the microwave door over many years of use. The lever and its surrounding components experience stress with every operation.

This GE part is also compatible with Hotpoint, RCA, and select Kenmore models.

This microswitch senses the microwave door position and controls the safety interlock circuits. Replacing a worn switch restores proper start/stop behavior so the oven only runs when the door is fully closed.

• Detects door open/closed status to enable or disable cooking
• Part of the safety interlock system that stops operation if the door opens mid-cycle
• Replace if the switch fails a continuity check or shows heat or terminal damage

• Disconnect power before service; microwave capacitors can retain a dangerous charge
• Note wire positions and move them to the same terminals on the new switch
• Ensure the door latch cleanly actuates the switch; test operation before reassembly

The Microwave Monitor Switch is an OEM part for GE microwaves. This part monitors the position of the microwave door, ensuring that the microwave does not operate when the door is open. It acts as a crucial safety feature, preventing the microwave from emitting radiation when the door is not securely closed.

Causes of a bad monitor switch can include general wear and tear, repeated use, or electrical issues.

Symptoms of a bad monitor switch include:

• Microwave not starting or running intermittently
• Microwave operating with the door open
• Error codes or safety warnings displayed
• Unusual noises or sparking inside the microwave

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Microwave Monitor Switch is an OEM part for GE microwaves. This part monitors the position of the microwave door, ensuring that the microwave does not operate when the door is open. It acts as a crucial safety feature, preventing the microwave from emitting radiation when the door is not securely closed.

Causes of a bad monitor switch can include general wear and tear, repeated use, or electrical issues.

Symptoms of a bad monitor switch include:

• Microwave not starting or running intermittently
• Microwave operating with the door open
• Error codes or safety warnings displayed
• Unusual noises or sparking inside the microwave

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Thermostat is an OEM part for GE microwaves. It acts as a temperature-sensing component that monitors internal heat levels and provides feedback to electronic controls.

Causes of thermostat failures can involve deterioration over extended use under intermittent high heat stresses.

Symptoms of a bad thermostat include:

• Inability to properly cook or reheat foods thoroughly
• Temperature readings malfunction triggering errors
• Magnetron shutting off unexpectedly mid-cooking cycle
• Cook settings not functioning optimally

This OEM GE replacement is compatible with Hotpoint, RCA and some Kenmore microwave models as well.

This magnetron is the microwave's high-frequency energy source. Replacing a weak or failed tube restores consistent heating performance so food warms evenly and cook cycles complete properly.

• Generates the microwave energy that heats food
• Works with the transformer, capacitor, and diode in the high-voltage circuit
• Failure signs include: runs but does not heat, intermittent or weak heating, or a loud humming/buzzing noise

• Disconnect power; the high-voltage capacitor can retain a dangerous charge—discharge per service information before servicing
• Do not run the microwave with the cover removed
• Handle by the metal body; avoid touching or damaging the antenna/insulator. Secure mounting screws and reconnect terminals firmly
• After reassembly, test with a cup of water to ensure proper heating and fan operation

The Vent Grille is an OEM replacement part for GE microwaves. It covers and protects the vent opening of your microwave, ensuring proper airflow and ventilation during cooking. It prevents dust, debris, and other particles from entering the vent, keeping it clean.

Symptoms of a faulty vent grille include:

• Visible cracks or damage on the grille
• Poor airflow or ventilation during microwave use
• Accumulation of dust or debris around the vent area

A bad vent grille can occur due to regular wear and tear, accidental damage, or improper cleaning. If you notice signs of damage such as cracks, discoloration, or a loose fit, it may be time to replace the worn-out or damaged vent grille with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This installation hardware kit provides the mounting fasteners and brackets needed to secure your appliance during installation, helping restore proper fit and stable operation. It's a small parts kit designed for use where OEM mounting components are required. What it does:

• Supplies the mounting screws, brackets and small hardware used to attach and level the appliance
• Replaces missing or damaged fasteners that can cause loose panels, gaps, or vibration
• Helps restore proper alignment to doors, panels or trim that rely on factory hardware
• Useful when reinstalling an appliance after servicing or moving

• One installation hardware kit

• Follow the appliance's OEM installation instructions and torque recommendations
• Disconnect power and water before starting work
• Keep small parts away from children and pets; use proper tools to avoid stripping screws

This 30-watt incandescent appliance bulb restores bright, dependable lighting in your microwave so you can clearly see food and the cooktop. Replace a failed lamp to bring back full visibility while cooking. What it does:

• Provides 30-watt illumination as designed by the appliance—interior cavity or cooktop area on select models
• Restores visibility when the original bulb burns out or breaks
• Typical symptoms include no light, dim light, or flickering
• Blackened glass or a broken filament indicates the bulb needs replacement

• One 30-watt incandescent bulb

• Disconnect power at the plug or circuit breaker before servicing
• Allow the bulb and surrounding area to cool before handling
• Access the lamp cover or lens per your owner's manual; remove cover, replace bulb, and reinstall
• Replace only with the wattage and type specified for your model

The Screw is an OEM part for GE microwaves. It secures the microwave handle to the door, ensuring a sturdy and reliable grip when opening and closing the microwave.

Causes of a bad screw can include stripping from over-tightening, corrosion from exposure to moisture, or general wear and tear over time.

Symptoms of a bad handle screw include:

• Handle feels loose or wobbly
• Difficulty opening or closing the microwave door
• Visible rust or corrosion on the screw
• Screw missing or falling out

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.
