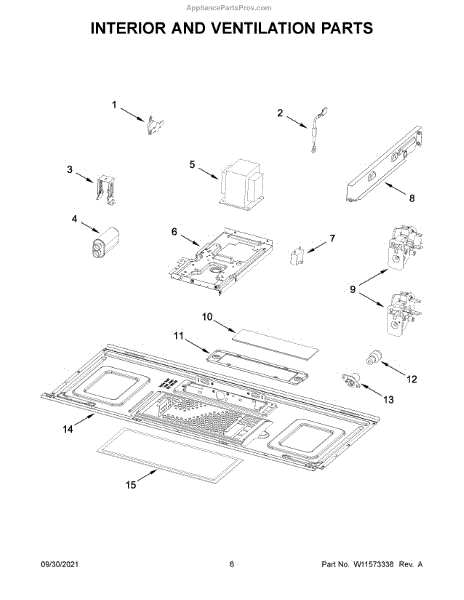

Parts for Whirlpool UMV1170LS0: Interior And Ventilation Parts

The Diode is an OEM part for Whirlpool microwaves. The diode plays a key role in regulating power flow and protecting other sensitive components from voltage fluctuations.

Causes of a bad microwave diode can include component failure due to age or heat exposure over time. Diodes are also susceptible to electrical damage if exposed to power surges.

Symptoms of a bad diode can include:

• The microwave failing to power on or having intermittent power
• Food not heating up properly or unevenly
• Strange sounds like buzzing or humming emanating from inside
• The door lock mechanism not engaging or release properly
• Repeated tripping of fuses or circuit breakers

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This magnetron capacitor is the microwave high-voltage capacitor that helps supply the magnetron with the pulse of energy needed to produce heat. Replacing a failing capacitor restores normal heating performance and reduces arcing or loud humming. What it does

• Stores and releases the high-voltage pulse required by the magnetron so the microwave can generate heat.
• Prevents unstable magnetron operation that can cause weak or no heating.
• Common symptoms of a failing capacitor: oven runs but doesn't heat, intermittent heating, loud buzzing/humming, or visible arcing inside the cavity.
• A failed capacitor can also cause blown internal fuses or tripped circuits.

• One capacitor.

• Disconnect power and verify the appliance is completely de-energized before servicing.
• Capacitors can hold dangerous charge; discharge the capacitor safely with an insulated tool.
• Use the exact replacement part and follow the appliance service manual for routing and connections.

The Interlock Switch is an OEM part for Whirlpool microwave ovens. It is an electrical component of the safety interlock system that prevents the microwave from operating unless the door is securely closed.

Causes of a bad interlock switch can be prolonged exposure to microwave energy, which can degrade electrical contacts over many years. Physical damage from excessive force on the door or foreign debris is also possible.

Symptoms of a failed interlock switch include:

• Microwave runs with the door open
• Cycle does not start until door is repeatedly opened and closed
• Error code indicating door lock problem

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Reflector is an OEM part for Whirlpool microwaves. It is located inside the microwave cavity behind the waveguide and works to redirect electromagnetic waves for more even cooking.

Symptoms of a damaged reflector include:

• Inconsistent or incomplete heating of foods during cooking
• Hot and cold spots forming within the microwave cavity
• Lower overall power output from the microwave

Causes of reflector damage can be cracking or pitting of the reflective aluminum surface over multiple heating cycles. Impact incidents from user error may also damage its shape.

This OEM Whirlpool replacement assists in delivering uniform energy distribution for optimal microwave performance. This part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Roper microwave models.

The 40W Light Bulb is an OEM replacement part for Whirlpool microwave ovens. It is a standard-size bulb designed to provide illumination inside the microwave cavity, allowing you to easily view and monitor the cooking or reheating process.

Symptoms of a faulty microwave light bulb include:

• Dimming or flickering light during operation
• Complete bulb failure or no illumination within the cavity
• Discoloration or physical damage to the bulb itself

Causes of a bad microwave light bulb can include normal wear and tear over time, electrical surges or voltage fluctuations, or physical impact or vibration during use.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwave oven models.

The Light Socket is an OEM replacement part for Whirlpool microwaves. This socket holds and supplies power to the light bulb inside the microwave, illuminating the interior when the door is opened or when the microwave is in use. It ensures that users can easily monitor the cooking process and check the condition of the food.

Over time, the light socket can become worn out or damaged due to regular use, electrical surges, or the heat generated within the microwave. Corrosion or buildup on the contacts can also impair the socket’s ability to provide a stable connection to the light bulb, leading to intermittent or complete failure of the light.

Symptoms of a bad light socket include:

• The interior light not turning on when the door is opened or during operation
• Flickering or dimming of the light
• The light bulb frequently burning out
• Electrical arcing or sparking from the socket area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This base is the appliance's lower cabinet section that supports internal components and helps stabilize the unit. It restores a solid foundation so the appliance sits level and protects internal parts from floor contact and debris. What it does:

• Provides structural support for the appliance's internal assemblies and controls
• Helps stabilize the unit and reduce excessive vibration or rocking
• Protects wiring, motors and other components from contact with the floor
• A damaged or cracked base can cause noisy operation, misalignment, or uneven sitting

• Disconnect power (and gas if applicable) before beginning any repair
• Follow the OEM service manual for disassembly and reassembly steps
• Replacement may require removing the cabinet and/or drum; having a second person helps with lifting and alignment
• Inspect and reuse original fasteners only if undamaged; replace any worn mounting hardware

The Grease Filter is an OEM part for Whirlpool microwaves, designed to enhance the performance of over-the-range units. This filter maintains the appliance's efficiency and the kitchen's air quality by capturing grease and other particles from the air that circulates through the microwave during cooking.

Signs of wear and tear or damage can affect not only the microwave's performance but also the cleanliness of your kitchen environment. Regular maintenance, including cleaning and replacing the grease filter as necessary, is essential for keeping your microwave functioning optimally and ensuring the air in your kitchen remains clean.

Symptoms that indicate a need for replacement:

• Decreased ventilation efficiency, resulting in lingering cooking odors
• Reduced airflow, which can cause the microwave to overheat
• Visible grease buildup and difficulty cleaning the filter

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
