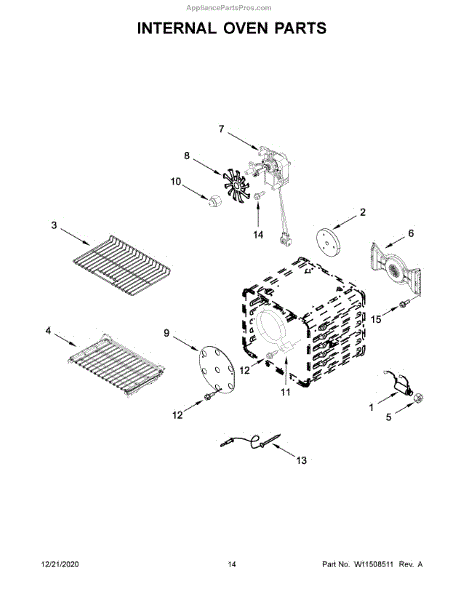

Parts for Kitchenaid KFGC500JSS01: Internal Oven Parts

This replacement jack mounts inside the oven cavity and provides the receptacle for the food temperature probe. It restores a dependable connection so the control can monitor internal food temperature and operate probe-cook features as intended.

• Provides the in-oven receptacle for the food/meat temperature probe
• Carries the probe's signal to the control during probe-cook cycles
• Helps resolve issues where the control does not recognize a probe or the probe feature won't run
• Replaces a jack that is damaged, corroded, or loose

• Disconnect power at the breaker and allow the oven to cool completely
• Access from inside the oven; remove the mounting screw(s) and carefully pull the jack to reach the wire harness
• Transfer/connect the harness and seat any gasket or insulation to maintain the oven cavity seal
• Do not overtighten fasteners; avoid pinching or damaging wires and insulation

The Rack is an OEM part for Whirlpool wall ovens. It provides a durable surface for baking and cooking food items. These racks are engineered to maximize capacity while withstanding high heat.

Causes of a bad rack include standard wear and tear from regular cleaning cycles in addition to exposure to grease buildup despite cleaning. Racks support significant weight loads during cooking cycles.

Symptoms of a bad rack include:

• Visible bends, cracks, or detachment of rack elements
• Lack of support leads to spilled/dropped food safety concerns
• Food or debris lodged in rack imperfections promotes residue buildup
• Compromised rack integrity reduces usable oven space for cooking

This Whirlpool OEM replacement rack directly fits the original location and restores full cooking functionality. Models also include Maytag, KitchenAid, Jenn-Air, and select Kenmore ovens for lasting performance.

This replacement oven rack restores a stable, adjustable cooking surface inside the oven so pots and pans sit level and slide in and out smoothly. Fits into existing rack supports for easy restoration of full oven function. What it does:

• Provides a sturdy shelf for cookware and bakeware during cooking and baking
• Slides into factory rack guides so trays and pans can be moved without lifting
• Replaces bent, warped, or missing racks that prevent even cooking or safe handling
• Helps maintain correct clearance and airflow inside the oven for consistent results

• One (1) standard sliding oven rack

• Install when oven is cool; no tools usually required—slide into desired rack supports
• Inspect rack supports/guides for damage before installing; replace damaged guides separately
• Use oven mitts when removing or repositioning loaded racks; do not exceed appliance load recommendations
• Clean per manufacturer instructions before first use if required

This replacement fan motor restores proper airflow for your appliance's ventilation/cooling system so the unit can run efficiently and avoid overheating. Designed as a direct-fit replacement for the OEM fan motor part number shown. What it does

• Spins the blower/fan to circulate air across coils or through the appliance cabinet
• Helps maintain proper cooling and prevents overheating of components
• Can reduce or eliminate loud whine, grinding, or reduced airflow when failing
• Supports stable operation of compressors, condensers or exhaust systems

• Disconnect power to the appliance before starting any repair.
• Follow service manual instructions for access; remove panels/guards as needed.
• Handle the motor and connectors carefully; support any attached fan or housing during removal.
• After installation, verify proper fan rotation and unobstructed airflow before reassembling covers.

This retaining nut secures components on compatible Whirlpool appliances to restore proper fastening and reduce looseness. A simple replacement for stripped or missing nuts that helps stop rattling and keeps parts held in place. What it does:

• Threads onto matching bolts or studs to fasten panels, brackets, or assemblies
• Restores tight connections that can cause vibration, noise, or looseness when worn or missing
• Commonly used where a small, serviceable nut is required for secure assembly
• Helps prevent components from coming detached during normal use

• Disconnect power and follow appliance-specific safety procedures before servicing
• Use the correct size wrench or socket; start threads by hand to avoid cross-threading
• Tighten securely but avoid overtightening to prevent damage to studs or mating parts
• If threads are damaged, replace the mating stud or fastener as needed

This bake element heats the oven cavity so food cooks and browns properly. It replaces a failed or damaged oven heating element to restore consistent baking performance and oven temperature response. What it does:

• Heats the lower oven for baking and roasting
• Replaces a cracked, burnt, or non-heating element
• Helps correct symptoms like oven not reaching set temperature or uneven baking
• Works with the oven's controls to provide consistent heat during bake cycles

• One bake element

• Disconnect power at the breaker before servicing the range or oven
• Handle the element carefully; damaged insulation or terminals require replacement
• Typical access requires removing the oven floor or rear access panel.

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Color: brown. Its total length is about 25 inches.

This replacement screw fastens appliance panels and small internal components to restore secure mounting and reduce rattling or movement. It's a direct-replacement style fastener used where factory screws have become missing, worn, or damaged. What it does:

• Secures panels, brackets and accessory parts in their original mounting locations.
• Restores proper fit to reduce vibration, rattling or loose covers.
• Replaces stripped, rusted, or missing screws that prevent proper alignment.
• Small, low-profile fastener intended for factory thread and hole sizes.

• Disconnect power and water before starting repairs.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug; avoid over-tightening to prevent thread damage.
• Keep small parts away from children and pets during installation.
