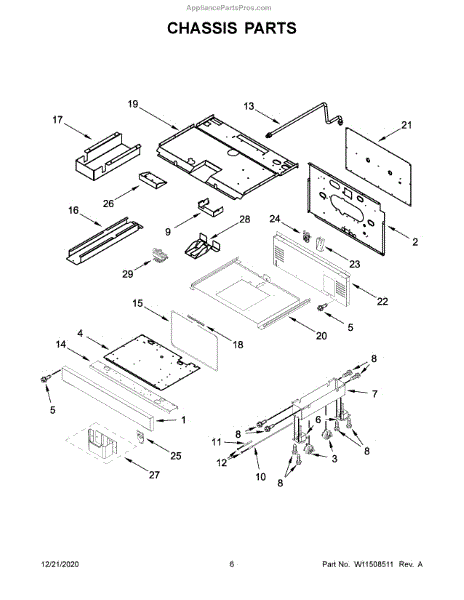

Parts for Kitchenaid KFGC500JSS01: Chassis Parts

This replacement roller fits the front or rear position of a slide mechanism, restoring smooth, even movement and reducing noise when a wheel is worn or broken. It helps racks or drawers glide properly and stay aligned. What it does:

• Provides low-friction rolling support for the slide track
• Helps slide-out assemblies move freely without binding or scraping
• Worn or damaged rollers can cause sticking, squeaking, or uneven travel
• Restores proper alignment and smooth operation when replaced

• 1 roller assembly

• Disconnect power and allow the appliance to cool before servicing
• Remove the slide-out assembly; note roller orientation and hardware
• Transfer/reuse existing screws, clips, or retainers as required
• Do not lubricate unless the manufacturer specifies a lubricant

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

This pressure regulator tube connects the gas pressure regulator to the appliance's gas system, directing fuel flow for safe operation. It's a direct-replacement gas line component used when the existing tube is damaged, bent, or leaking. What it does:

• Channels gas from the pressure regulator to the appliance's burner assembly.
• Restores a sealed, rigid gas connection when the original tube is cracked, corroded, or deformed.
• Helps prevent gas leaks and maintains intended regulator routing when installed correctly.
• Commonly replaced if you see visible damage, corrosion, or a persistent gas smell near the connection.

• Turn off gas supply and electricity to the appliance before attempting any repair.
• Inspect fittings and use appropriate thread sealant or gaskets as specified by manufacturer instructions; do not modify the tube.
• After installation, perform a leak test per local codes and manufacturer guidelines before putting the appliance back into service.

The Oven Gasket is an OEM component specifically designed for Whirlpool ranges. This gasket measuring 75.40 inches seals the oven door, preventing heat from escaping and maintaining optimal cooking temperatures inside the oven cavity.

Causes of a bad gasket include warping, cracks or tears that compromise the seal overtime due to repeated exposure to high heat.

Symptoms of a bad gasket include:

• Inefficient or uneven cooking
• Lower than expected oven temperatures
• Escaping heat from around the oven door
• A worn/damaged appearance

This Whirlpool OEM replacement gasket is also compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This pressure regulator controls and stabilizes the gas flow to the appliance, helping the burner maintain a steady, correct flame for reliable heating and cooking performance. What it does

• Regulates gas pressure to the appliance's burner assembly for consistent ignition and flame size
• Can correct low or uneven burner flames when the regulator is failing
• Helps prevent frequent burner shutdowns and poor temperature control linked to pressure issues
• Works as part of the appliance's fuel delivery system to ensure safe, steady operation

• One pressure regulator

• Turn off the gas supply and disconnect power before attempting service
• Use proper gas fittings and thread sealant rated for gas lines; check for leaks after installation

This small plastic clip secures appliance panels, trim, or wiring to prevent movement and rattling, restoring proper fit and quiet operation. It's a simple, low-cost part that helps keep components held in place. What it does:

• Acts as a retainer to hold panels, trim pieces, or harnesses in position
• Prevents rattling, vibration noise, and loose or misaligned parts
• Helps maintain proper spacing and alignment of adjacent components
• Commonly replaced when clips are broken, cracked, or missing

• One clip/retainer

• Disconnect power (and water if applicable) before beginning any work
• Clip typically snaps into place; may require a flat screwdriver or trim tool to remove/install
• Inspect surrounding mounting points for damage before fastening replacement clip
• Replace all corresponding fasteners for even fit

The Cover Foot is an OEM part for Whirlpool ranges. Attaching to the bottom front panel, it provides protection and support for the range. Made of durable metal, the cover foot encases leveling legs or glides to safeguard them from scraping or impact damage.

Symptoms of a bad cover foot include dents, scratches, or cracks that expose leveling components.

Causes can be hits or abrasions incurred during installation, moves, or cleaning.

Problems with a faulty cover foot consist of:

• Risk of injury from exposed leveling parts
• Loss of range stability from compromised leg function
• Reduced aesthetic and home resale value

This OEM replacement ensures secure, stable operation. Compatible with additional brands including Maytag, Jenn-Air, Amana, Magic Chef, Admiral, and select Kenmore designs.

The Cover Foot is an OEM part for Whirlpool ranges. Attaching to the bottom front panel, it provides protection and support for the range. Made of durable metal, the cover foot encases leveling legs or glides to safeguard them from scraping or impact damage.

Symptoms of a bad cover foot include dents, scratches, or cracks that expose leveling components.

Causes can be hits or abrasions incurred during installation, moves, or cleaning.

Problems with a faulty cover foot consist of:

• Risk of injury from exposed leveling parts
• Loss of range stability from compromised leg function
• Reduced aesthetic and home resale value

This OEM replacement ensures secure, stable operation. Compatible with additional brands including Maytag, Jenn-Air, Amana, Magic Chef, Admiral, and select Kenmore designs.

The Valve-Gas is an OEM part for Whirlpool gas stoves. It controls the flow of gas from the supply line into the burner tubing, igniters, and flames themselves during the operation of the range top. Precise control of gas flow is critical for safe and efficient cooking performance.

Symptoms of a bad gas valve can include:

• Inability to ignite one or more burners
• Unstable, intermittent burner flames
• Burners that cannot be turned low enough or click off suddenly
• Escaping gas odor near the range

Causes of a bad valve may involve wear and tear of internal parts like diaphragms or seals letting in air/gas, corrosion on valve surfaces from gas or moisture, or damage from appliance service/movement over time.

This Whirlpool OEM replacement part is compatible with Maytag, Jenn-Air, Amana, Magic Chef, and select Kenmore models.
