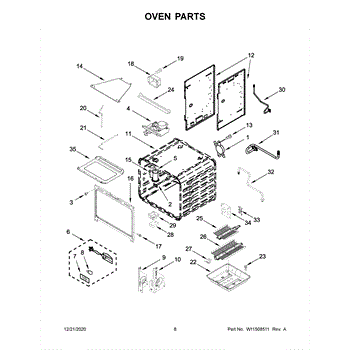

Parts for Kitchenaid KFGC500JSS01: Oven Parts

This lower thermostat monitors and helps regulate temperature in the appliance's lower compartment by opening and closing an electrical contact. Replacing a failing thermostat can restore normal cycling and help the compartment maintain correct temperatures. What it does:

• Senses lower-compartment temperature and completes or breaks the circuit to control cooling cycles.
• Helps the compressor/fan cycle on and off to maintain set temperatures.
• A defective thermostat may cause warm temperatures, continuous compressor operation, or inconsistent cooling.
• Matches the OEM function and mounting location for lower compartment temperature control.

• Disconnect power to the appliance before beginning any service.
• Label or tag wires before removal and reconnect exactly to the same terminals.
• Handle the sensor and capillary carefully; avoid kinking or excessive bending. After installation, restore power and verify normal cycling.

This sensor monitors moisture inside the microwave cavity during Sensor Cook/Reheat cycles so the control can automatically set time and power. Replace it if sensor-based functions stop working or the unit shows a sensor error during cooking.

• Detects steam/humidity during sensor cycles to help the control adjust cook time and power
• Helps improve cooking results on Sensor Cook/Reheat programs
• Common failure signs: sensor-cook options won't start or end early, or the display shows a sensor error
• Intermittent or inconsistent results on sensor-only programs can also indicate a failing sensor

• Disconnect power before service. Microwaves can retain dangerous high voltage even when unplugged—use extreme caution
• Access is typically behind the control panel or top grille; note wire routing and connector orientation before removal
• Handle the sensor by its body/connector—avoid touching the sensing element
• After installation, run a sensor-cook cycle to confirm proper operation

A 6-32 machine screw used to secure panels, brackets, and components in many Whirlpool appliances. Replaces worn or missing fasteners to restore proper fit and stop loose parts from rattling or shifting. What it does:

• Secures panels, trim, brackets, and small assemblies
• Helps stop vibration and rattling caused by loose fasteners
• Restores proper alignment for parts held by a 6-32 thread
• Prevents further wear from movement or improper fit

• Disconnect power to the appliance before beginning any repair
• Use the correct driver for the screw head to avoid stripping
• Thread gently and avoid overtightening to prevent damage to threads or components
• Keep removed fasteners organized to ensure correct reassembly

This door latch secures the appliance door and signals the control that it's safely closed. Replacing a worn or broken latch restores reliable door closure and proper cycle operation. What it does:

• Holds the door closed and aligned during use
• Engages the door strike to complete the door/lock switch circuit
• Resolve issues such as: door won't latch or pops open; cycles won't start; intermittent "door open" messages; needing to press/hold the door to run

• One door latch

• Disconnect power before servicing
• Access is typically from the door/front panel; note screw locations and latch orientation
• Transfer any mounting hardware from the original latch if needed
• After installation, verify smooth latch engagement with the strike and run a test cycle

This oven light lamp assembly replaces a burned or broken interior oven light so you can clearly see cooking progress without opening the door. Fits compatible Whirlpool-built ranges and ovens that use this OEM-style lamp assembly. What it does:

• Provides interior oven illumination so food and bake performance can be checked without opening the door
• Replaces a cracked lens, damaged socket, or non-functioning oven lamp
• Restores normal lighting when the oven light fails to turn on or flickers
• Helps identify spills, browning, or burn spots inside the oven cavity

• Disconnect power to the appliance before servicing to prevent shock or injury
• Handle the lens and bulb carefully; allow the oven to cool completely before replacing
• Typical replacement requires removing the oven light cover and unplugging the socket.

This clear interior light lens protects and diffuses the refrigerator light, restoring even illumination inside the fresh-food compartment. Replace a cracked, yellowed, or missing lens to improve visibility and protect the bulb from spills. What it does

• Covers and shields the interior light bulb from splashes and debris
• Diffuses light for more even illumination throughout the compartment
• Helps prevent direct contact with the bulb, reducing breakage risk
• Common symptoms: cracked or discolored lens, uneven or glaring light, or a missing lens

• Disconnect power to the appliance before servicing to avoid shock or injury
• Handle the lens gently—it is a molded plastic part that can crack if dropped
• Inspect the bulb and socket while the lens is removed; replace any damaged components
• No special tools typically required; your model's service instructions for safe removal/replacement steps

The Light Bulb is an OEM part for Whirlpool ranges and ovens. It provides illumination inside the oven cavity, allowing users to monitor the cooking process without opening the oven door.

Causes of a bad light bulb can include burnout from regular use, electrical issues, or damage due to high temperatures and vibrations within the oven.

Symptoms of a bad light bulb include:

• The light not turning on when the oven door is opened or the light switch is activated
• Flickering or dim light
• The bulb appears visibly damaged or burned out

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This hinge receiver is the replacement door hinge support that helps secure and align the appliance door for proper closing and sealing. Restores stable door pivoting and reduces sag or misalignment. What it does:

• Provides the pivot point and structural support for the door hinge assembly
• Helps keep the door properly aligned so it seals and closes evenly
• Commonly replaced when the door droops, binds, or won't stay level
• Prevents excessive wear on hinge pins and surrounding trim

• One hinge receiver

• Unplug the appliance or disconnect power before starting any repair
• Support the door while removing hinge fasteners to prevent dropping or damage
• Use appropriate hand tools; do not force parts or overtighten fasteners

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This replacement screw restores secure fastening for appliance panels and components, helping stop loose parts and rattling so controls and panels stay aligned. Use when original screws are missing, stripped, or damaged. What it does:

• Secures panels, trim, control boards, brackets, or components to the appliance frame
• Stops rattling, vibration noise, and loose or misaligned parts caused by missing or damaged fasteners
• Replaces stripped, corroded, or missing screws to restore proper fit and function
• Matches OEM fit and threading for straightforward hardware replacement when the correct screw is identified

• Turn off power and unplug the appliance before accessing internal components
• Use the correct screwdriver or bit to avoid stripping the head; do not force mismatched drivers
• Tighten until snug—do not overtighten, which can strip threads or crack plastic
• Keep removed hardware organized and verify the replacement screw matches the original before installation

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

This bake burner is the oven's gas combustion component that produces the heat for baking and roasting. It restores reliable oven heating so you can cook and bake at the proper temperatures. What it does

• Provides the primary gas flame for the oven's bake function.
• Helps the oven reach and maintain baking temperatures.
• Resolves symptoms like no oven heat, weak or erratic bake flame, or oven not maintaining temperature.
• Works with the oven's ignition system and safety controls to light and sustain the burner.

• One bake burner assembly.

• Turn off gas supply and power to the appliance before beginning any work.
• Inspect ignition and burner ports for debris; clean or replace as needed for proper lighting.
• Follow the oven manufacturer's service instructions and local codes when reconnecting gas lines.

This broil burner supplies the top-down heat for gas ovens so you can brown and crisp foods under the broiler. It replaces a worn or damaged burner to restore even broiling performance and reliable ignition. What it does:

• Produces the concentrated heat needed for broiling and browning foods
• Directs gas flow and flame across the oven top for consistent broil results
• Commonly replaced when the broiler won't ignite, flame is weak, or cooking is uneven
• Works with the oven's gas valve and igniter to provide safe, reliable operation

• Turn off the gas supply and electrical power before starting work
• Only install if the part number and burner shape match your oven
• Inspect and replace any damaged gaskets or mounting hardware as needed

This gas tubing supplies fuel from the appliance gas valve to the burner or manifold, restoring proper gas flow for safe operation. Replace damaged or corroded tubing to stop leaks and restore reliable ignition. What it does

• Carries natural gas or propane from the valve/manifold to burners or components.
• Restores proper gas flow when tubing is kinked, cracked, or corroded.
• Helps stop gas leaks that can cause a persistent gas odor near the appliance.
• Addresses burner failure or weak ignition caused by blocked or damaged tubing.

• Turn off the appliance, shut off the household gas supply, and disconnect power before starting.
• Inspect fittings and apply proper thread sealant or gas-rated connectors per manufacturer instructions.
• Tighten fittings to OEM torque/lightly snug—do not overtighten or damage fittings.
• After installation, test all connections for leaks with a soapy-water solution or a gas leak detector and follow local codes.

This gas tubing supplies fuel between the range's gas valve and burner assembly to restore safe, reliable gas flow. Install a new tube when the original is kinked, cracked, or leaking to help restore normal burner operation. What it does:

• Carries propane/natural gas from the control valve to the burner manifold or orifices.
• Replaces tubing that is cracked, punctured, pinched, corroded, or otherwise damaged.
• Can resolve symptoms like a persistent gas odor near the appliance, burners that won't light, or uneven flames when caused by damaged tubing.
• Designed to match the OEM routing and connections for a proper gas seal when installed correctly.

• One gas tubing (single piece) as shown

• Turn off the gas supply and electricity to the appliance before starting any work.
• Use appropriate fittings, thread sealant rated for gas, and torque to OEM specs; inspect all joints for leaks with a gas-safe leak detector or soapy water.
• If you smell gas, stop and ventilate the area; do not use open flames or electrical switches.

This electronic control module generates and manages ignition spark for DSI-equipped gas ovens/ranges. Replacing a failed unit restores reliable burner lighting and can resolve issues such as no spark, repeated clicking, or the oven/broiler not igniting.

• Generates high-voltage pulses to ignite gas at the DSI electrodes
• Times and controls ignition cycles; energizes the gas valve only during commanded ignition
• Monitors flame presence through the sense circuit and may retry or lock out if ignition fails
• Common symptoms of failure: oven or broiler won't ignite/heat, no clicking/spark, intermittent ignition, or continuous clicking
• Intended for models that use direct-spark (DSI) ignition systems, not glow-bar/hot-surface igniters

• Disconnect power and shut off gas supply before servicing
• Handle the control as an electrostatic-sensitive device; avoid touching terminals
• Transfer wires one at a time and mount the module securely with a proper ground
• After reassembly, restore utilities and verify normal ignition operation

This oven bottom pan replaces the removable bottom tray that catches spills and protects the oven floor, restoring an even surface for cooking and easier cleanup. Fits in the lower cavity under the oven racks. What it does:

• Provides a durable, porcelain-coated surface to catch drips, crumbs and spills during baking and roasting
• Helps prevent spills from contacting the oven floor and heating elements
• Restores a flat, stable cooking surface for pans and bakeware
• Can reduce time spent scrubbing baked-on messes when used with proper liners

• One oven bottom pan

• Allow the oven to cool completely and disconnect power before replacing the pan
• Remove oven racks, slide out the old pan, then slide the replacement into the same position
• No special tools typically required; handle carefully to avoid chipping the coating
