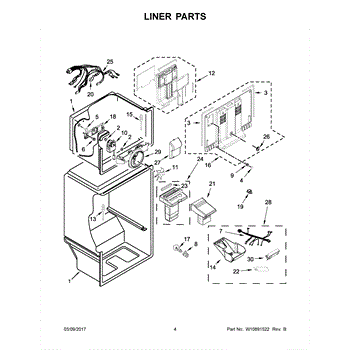

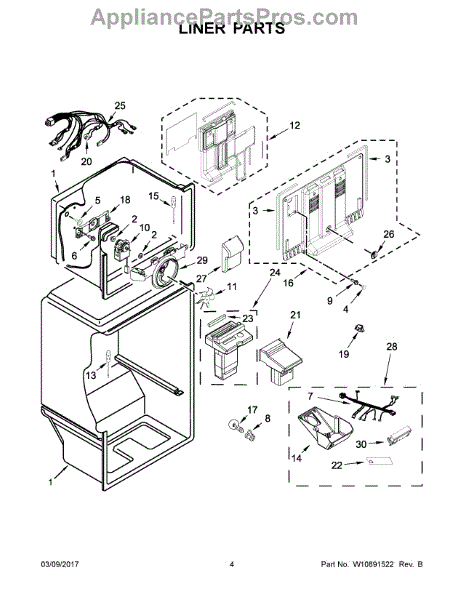

Parts for Whirlpool WRT518SZFB00: 03 - Liner Parts

This rubber grommet cushions and secures a refrigerator fan motor, isolating vibration to help reduce noise and keep the fan properly aligned in its mount.

• Provides a snug, vibration-dampening seat for the fan motor shaft or mounting stud
• Helps prevent rattling, buzzing, or humming sounds from a loose fan mount
• Maintains proper fan alignment to avoid blade contact with shrouds or brackets
• Replaces aged, cracked, or compressed rubber that can lead to increased vibration

• Disconnect power before service; wear cut-resistant gloves
• Access the fan assembly (rear or evaporator section), support the motor, and remove the old grommet
• Press the new grommet fully into the bracket or housing; transfer any spacers as originally configured
• Reinstall the motor and verify the fan blade spins freely with no contact before restoring power

This refrigerator door gasket creates an airtight seal around the door to help keep cold in and moisture out, preserving food freshness and improving cooling efficiency. What it does:

• Seals the refrigerator door to prevent warm air entry and cold air loss
• Helps reduce frost buildup and condensation inside the refrigerator
• Can improve temperature stability and reduce run time when the seal is compromised
• Addresses symptoms such as visible gaps around the door, warm spots, or excess frost

• One refrigerator door gasket

• Inspect door frame for damage or debris and clean sealing surface before installing
• Warm the gasket slightly to make positioning easier; avoid open flames or excessive heat
• Work around the door edges to seat the gasket evenly; some fasteners or retainer channels may need to be adjusted

This hole plug covers an unused opening in the appliance cabinet. It restores a clean, finished look and helps keep spills, dust, and moisture out of internal components.

• Seals an unused hole in the cabinet for a tidy, finished appearance
• Helps protect internal parts from liquids, dust, and humidity
• Covers sharp or unfinished edges around open holes
• Common signs it's needed: missing/broken cap, exposed hole, or a plug that won't stay seated

• Disconnect power and, if applicable, shut off gas/water before starting.
• Remove the old plug; access from the front or from behind the panel as needed.
• Align and press the new plug firmly into the opening until fully seated and flush.
• If panel removal is required for access, handle sheet metal carefully and reinstall all fasteners.

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

This light socket replaces a worn or heat-damaged lamp holder so your appliance light works reliably again. Its straight-connector design fits applications with in-line wiring, ensuring a secure electrical connection to the interior light bulb.

• Holds the light bulb and supplies power to it
• Restores interior illumination for better visibility
• Straight terminal orientation for housings requiring inline wiring clearance
• Typical signs of failure: light stays off with a good bulb, flickers, or shows heat damage at the socket

• Disconnect power at the breaker or unplug before servicing; allow the area to cool completely
• Remove any lens/cover; transfer wires one at a time to maintain correct connections
• Secure the socket with existing bracket/fasteners; do not overtighten
• Test light operation before reassembly and confirm the door switch activates the light

The Evaporator Motor is an OEM part for Whirlpool refrigerators. It plays a critical role in circulating air over the refrigerator's evaporator coils to cool the air inside the fridge and freezer compartments. This circulation helps maintain the desired temperature settings, ensuring that food is kept at optimal freshness.

Includes wire harness. If your fan motor does not have an incorporated wire harness, you will need part number- WPW10188389

Causes of a bad Evaporator Motor can include motor burnout due to continuous operation, electrical failures, or mechanical wear from prolonged use.

Symptoms of a bad Evaporator Motor include:

• The refrigerator or freezer not cooling adequately
• Unusual noises coming from the refrigerator indicating motor distress
• The motor running hot or not running at all

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Evaporator Fan Blade is an OEM part for Whirlpool refrigerators. It is designed to circulate air over the evaporator coils, ensuring efficient cooling throughout the refrigerator and freezer compartments. The fan blade helps maintain an even temperature, contributing to the appliance's overall performance.

Causes of a bad fan blade can include wear and tear over time, ice buildup interfering with the blade, or physical damage from accidental impact or obstruction by debris.

Symptoms of a bad evaporator fan blade include:

• Unusual noises such as rattling or scraping
• Inconsistent or insufficient cooling in the refrigerator or freezer
• The refrigerator running longer than usual
• Visible damage or warping of the fan blade

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This Air Duct directs airflow inside the appliance to maintain proper ventilation and efficient operation. It replaces a damaged or cracked duct to help restore normal airflow and reduce exhaust leaks. What it does

• Channels internal airflow between the blower and the venting path to help the appliance move air properly.
• Helps reduce exhaust leakage that can cause longer cycles or decreased performance.
• Addresses symptoms such as reduced drying/heating performance, unusual airflow noise, or visible cracks in the duct.
• Works with the existing blower and vent components to maintain designed airflow routing.

• Disconnect power (and gas, if applicable) before servicing to avoid shock or injury.
• Basic hand tools are typically required; follow the appliance service manual for access and removal steps.
• Inspect surrounding seals and fasteners; replace any damaged clips or gaskets for a proper fit.

This control box is the appliance's main electronic control assembly, managing user inputs and operating cycles for reliable performance. Replacing a failing control restores normal cycle selection and electronic functions. What it does:

• Receives and processes user control inputs to run timed and automatic cycles
• Sends signals to motors, valves, and heaters to start, stop, or change operations
• Can resolve symptoms like unresponsive controls, incorrect cycles, or no display/activity
• Works as the central interface between the user panel and internal components

• Disconnect power before beginning work to avoid shock or damage
• Handle the board carefully and avoid touching circuitry; use ESD precautions if available
• Some models require removing the console or control housing for access—refer to model-specific service instructions

The Thermistor is an OEM part for Whirlpool refrigerators. It is responsible for monitoring and regulating the refrigerator's temperature by sending temperature readings to the control board, which adjusts the cooling system accordingly. This ensures that the refrigerator maintains a consistent and optimal temperature for food preservation.

You should replace this thermistor if it becomes faulty. Causes of a bad thermistor can include electrical failures, physical damage, or wear and tear over time.

Symptoms of a bad Thermistor include:

• Inconsistent or incorrect temperatures in the refrigerator
• The refrigerator running continuously or not running enough
• Frost buildup or inadequate cooling

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This mounting bracket secures internal components in place to keep your appliance stable and operating quietly. It replaces a worn, bent, or broken bracket to restore proper alignment and prevent loose or rattling parts. What it does:

• Provides a stable mounting point for panels, assemblies, or hardware
• Keeps connected components aligned to prevent rubbing or vibration
• Stops noises caused by loose or shifting internal parts
• Restores proper fit when an old bracket is bent, cracked, or missing

• Install with appliance unplugged or power disconnected to avoid shock
• Verify bracket orientation using the appliance's service diagram before fastening
• Use appropriate screws/fasteners and torque to avoid stripping or distortion

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This air duct is the molded channel that directs airflow within the appliance cabinet. Replacing a cracked or warped duct restores proper circulation so the system can maintain designed temperatures and performance across compartments.

• Routes air between sections to support consistent temperature control
• Helps prevent air leaks and bypass that reduce airflow
• Common signs of failure: broken tabs, cracks, warped plastic, or a loose fit
• Symptoms can include weak airflow at vents, temperature fluctuations, or moisture/frost near openings

• Disconnect power and, if applicable, shut off water before servicing
• Remove any panels/shelves to access the duct; retain fasteners and note seal orientation
• Transfer any reusable foam seals or clips from the original part, seat the duct fully, and secure without overtightening

This oven door gasket creates a tight seal around the oven door to help keep heat, smoke and cooking odors inside the oven for more even baking and efficient operation. Replaces a worn, torn or flattened seal. What it does:

• Seals the gap between the oven door and frame to reduce heat loss and improve temperature consistency
• Helps prevent spills and food debris from entering the oven cavity and insulation
• Reduces oven cycling and energy waste caused by a damaged or compressed seal
• Common symptom: oven takes longer to reach or maintain temperature, or heat felt around the door

• Allow oven to fully cool and disconnect power before replacing the gasket
• Remove the old gasket carefully and press the new gasket into the door channel evenly around the perimeter
• Check that the gasket lies flat with no twists or gaps; do not over-stretch during installation

The Diffuser is an OEM part for Whirlpool refrigerators. Located inside the refrigerator compartment, it helps distribute cool air evenly throughout. With perforated passageways, the diffuser facilitates balanced airflow from the evaporator and ensures proper temperature regulation in all refrigerator shelves and bins.

Causes of a bad diffuser can include cracks or breaks from repeated impact or heavy loads, or blockages caused by accumulated dirt and debris over time.

Symptoms include:

• Hot or cold spots within the refrigerator
• Food spoilage from temperature fluctuations
• Condensation or frosting on internal surfaces
• Reduced cooling efficiency

This OEM Whirlpool replacement diffuser restores optimized interior air circulation. It is compatible with models by Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, and select Kenmore designs.

The Wire Harness is an OEM part for Whirlpool refrigerators. It is responsible for providing electrical connections between various parts of the refrigerator, ensuring proper voltage and communication.

A bad wire harness can be caused by wear and tear, exposure to temperature fluctuations, or accidental damage. If you experience issues such as intermittent power loss, malfunctioning components, or error codes on your refrigerator, it may indicate a problem with the wire harness.

Symptoms of a bad wire harness include:

• Intermittent power loss or flickering
• Malfunctioning display or control panel
• Inconsistent cooling or temperature fluctuations

Replace your faulty wire harness with this genuine OEM part to restore your refrigerator.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This replacement air damper regulates and directs airflow inside the appliance or through its vent path. Replacing a broken or stuck damper helps restore proper air movement and reduces performance issues caused by a jammed or missing flap. What it does:

• Opens and closes to control airflow in the duct or air channel
• Helps maintain proper ventilation or temperature, depending on the appliance design
• Reduces backflow/drafts or uneven airflow
• Common symptoms: poor air movement, rattling/whistling near the vent, drafts, or performance imbalance due to a stuck or broken flap

• 1 air damper

• Disconnect power before servicing; isolate ducting if applicable
• Access the damper location; note orientation of the flap and any seals/gaskets
• Remove the old damper; install the new one with the flap moving freely in the correct direction
• Reassemble and test airflow; seal any duct joints per manufacturer guidance

This replacement fitting tube cover restores the finished appearance and helps protect the appliance's tube fitting from dirt and damage. Durable plastic design matches the original part for a clean, secure fit. What it does

• Covers and protects the exposed tube/fitting area to reduce dirt buildup and cosmetic wear
• Maintains the appliance's original appearance at the tube connection point
• Helps ensure a consistent seal area by keeping the fitting clear of debris
• Useful when replacing a cracked, warped, or missing cover

• Disconnect power and water (if applicable) before starting any repair
• Remove any trim or access panels covering the tube fitting to access the cover
• Typically snaps or slides into place; inspect for broken tabs and replace if necessary

The Control Board Box is an OEM replacement part for Whirlpool refrigerators. Housed internally, it contains the digital control board that regulates all refrigerator functions.

Symptoms of a faulty control board box include:

• Lights or compartments not functioning properly
• Inability to adjust temperature settings
• Fluctuating interior temperatures
• Refrigerator failing to power on or cool

Causes can be moisture damage over time compromising electronics, accidental impact trauma to the plastic case, or standard component degradation during usage cycles.

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, and Kenmore models.

This burner orifice meters the gas delivered to a burner so you get a stable, properly sized flame. Replacing a clogged or damaged orifice helps restore quick ignition, consistent flame quality, and even heating on gas appliances.

• Meters gas flow from the valve to the burner for correct flame size and shape
• Helps maintain efficient, even heating and clean combustion
• Wear or blockage may show as delayed or no ignition, weak/uneven flame, or yellow tipping
• Can reduce popping or flare-ups caused by improper gas metering

• Shut off gas supply and disconnect power before servicing
• Remove the old orifice with the proper wrench/nut driver; install the new one snugly—do not overtighten
• After reassembly, leak-check connections and verify flame; adjust air shutter only if specified by the service manual
